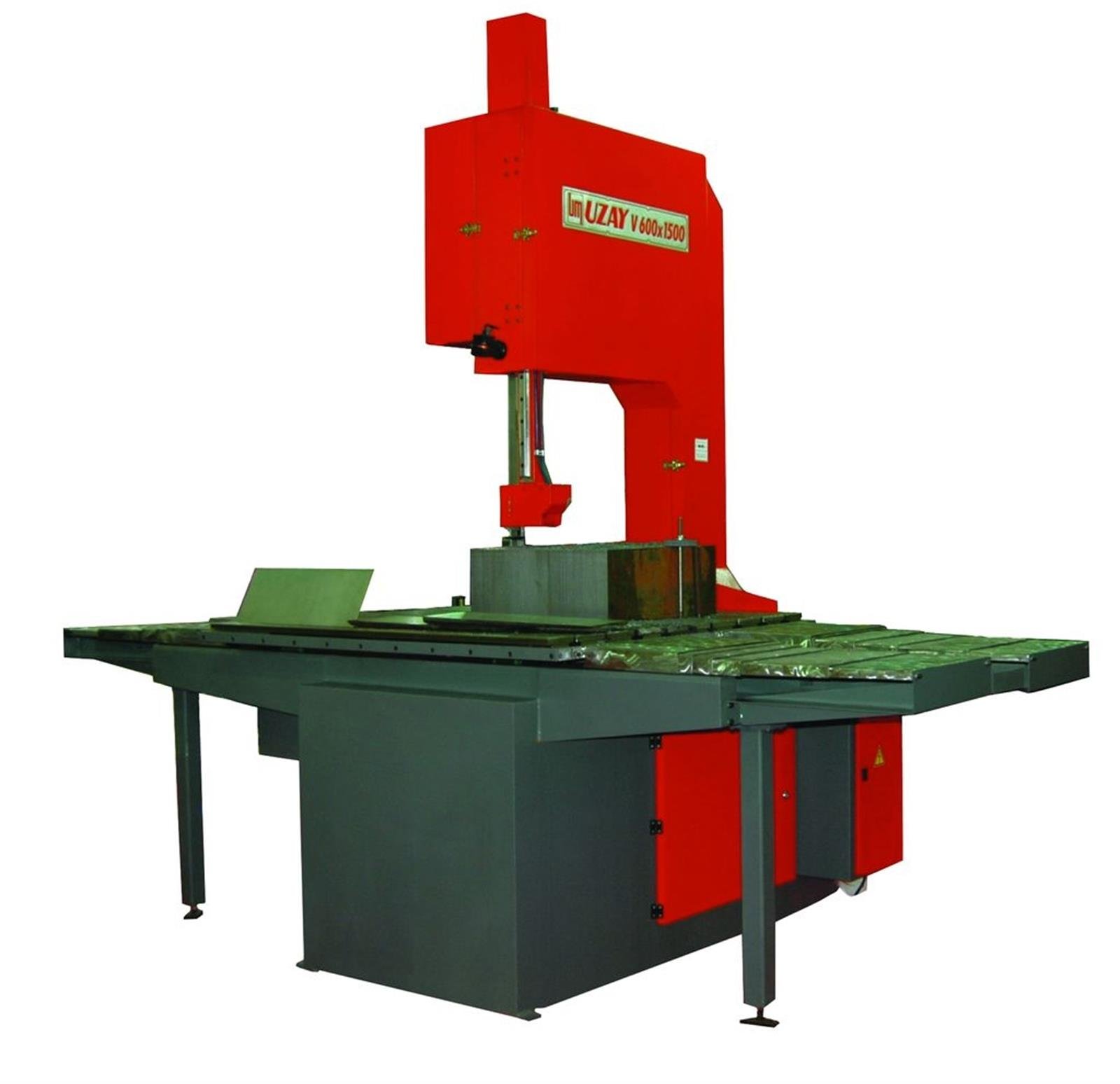

Uzay Makina UZV 600x1500 BLOCK Vertical Cut Bandsaw Machine (UZV 600x1500 BLOCK)

For medium-duty jobs, the saw head is fixed, the table moves vertically. The table top has T-slots so that the material can be flexibly connected according to the desired cutting direction. It is a suitable model for tool and die manufacturers, sample cutting businesses, and parts with short end cuts. .Table movement is realized by servo motor and precision ball screws.

90°	ABL	L	ROUND
	600×7500	1500	600



Main Engine	5.5 kW 1000 rpm
Cooling Engine	0.37 kW 3000 rpm
Hydraulic Motor	0.37 kW 1500 rpm
Servo-motor	1.5 kW 2000 rpm
Chip Conveyor	0.37 kW 1500 rpm
Chip Brush	0.09 kW 1500 rpm
Tape Measure	6600x41x1.3mm
Loading Weight	4500 kg
Working Height	1250mm
Working Dimensions	3950x3250x31150 mm

• Spindle cut sensor
• Inverter lane speed control
• hydraulic band tensioning
• Hydraulic strip guide arm movement
• coolant pump
• Ribbon break plug
• NC control cutting feed system with torque motor
• Table movement material advance
• Pallet chip conveyor
• Chip cleaning brush
• lighting spotlight
• Telescopic linear guide sheet protection system
• laser line cut beacon light
• Touch color control panel

UZV 600x1500 BLOCK CATALOG

UZV 600x1500 BLOCK
