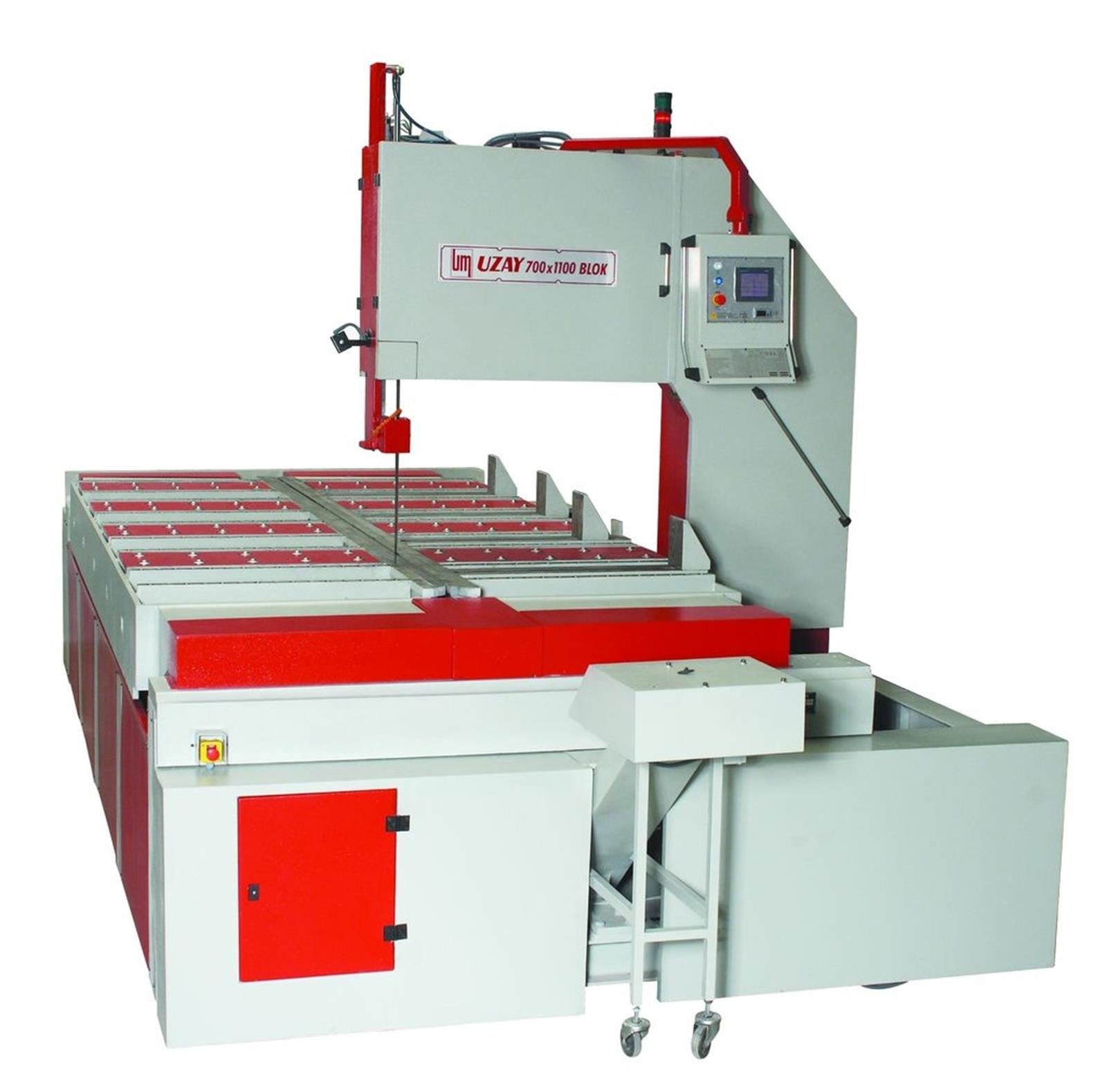

Uzay Makina UZBLOK 700X1100X4500/6000 Vertical Cut Bandsaw Machine (UZBLOK 700X1100X4500/6000)

Vertical models with fixed table and saw body longitudinal movement. Specially designed for cutting large and heavy blocks on one or more surfaces. Developed and manufactured at the request of steel stock dealers and tooling manufacturers. A wide range of materials from the lightest materials to the hardest alloys, from rough It has a flexible application area from cutting parts or sensitive strips. The bench has an optional transverse automatic material feeding system. Also, extra stands can be used for wider materials. Sawing movement is realized with servo motor and rack

90°	H	B	L
	700	1100	4500



Main Engine	7.5 kW 1500 rpm
Cooling Engine	0.37 kW 3000 rpm
Hydraulic Motor	0.37 kW + 1.5 kW 1500 rpm
Servo-motor	4 kW 2000 rpm
Chip Conveyor	0.37 kW 1500 rpm
Chip Brush	0.09 kW 1500 rpm
Tape Measure	7300x54x1.6 mm
Loading Weight	15000 kg
Working Height	2950mm
Working Dimensions	3575x7200x3135 mm

• Curve cut sensor
• Inverter lane speed control
• hydraulic band tensioning
• Strip break control with hydraulic pressure switch
• coolant pump
• Body advancement on linear slide with servo motor
• laser line light
• Chip brush
• hydraulic bench lift
• Chip Conveyor
• Movable control panel

UZBLOK 700X1100X4500/6000 CATALOG

UZBLOK 700X1100X4500/6000
