Uzay Makina UMSY 800 HAD Rolling Mill Cutting Bandsaws Machine (UMSY 800 HAD)

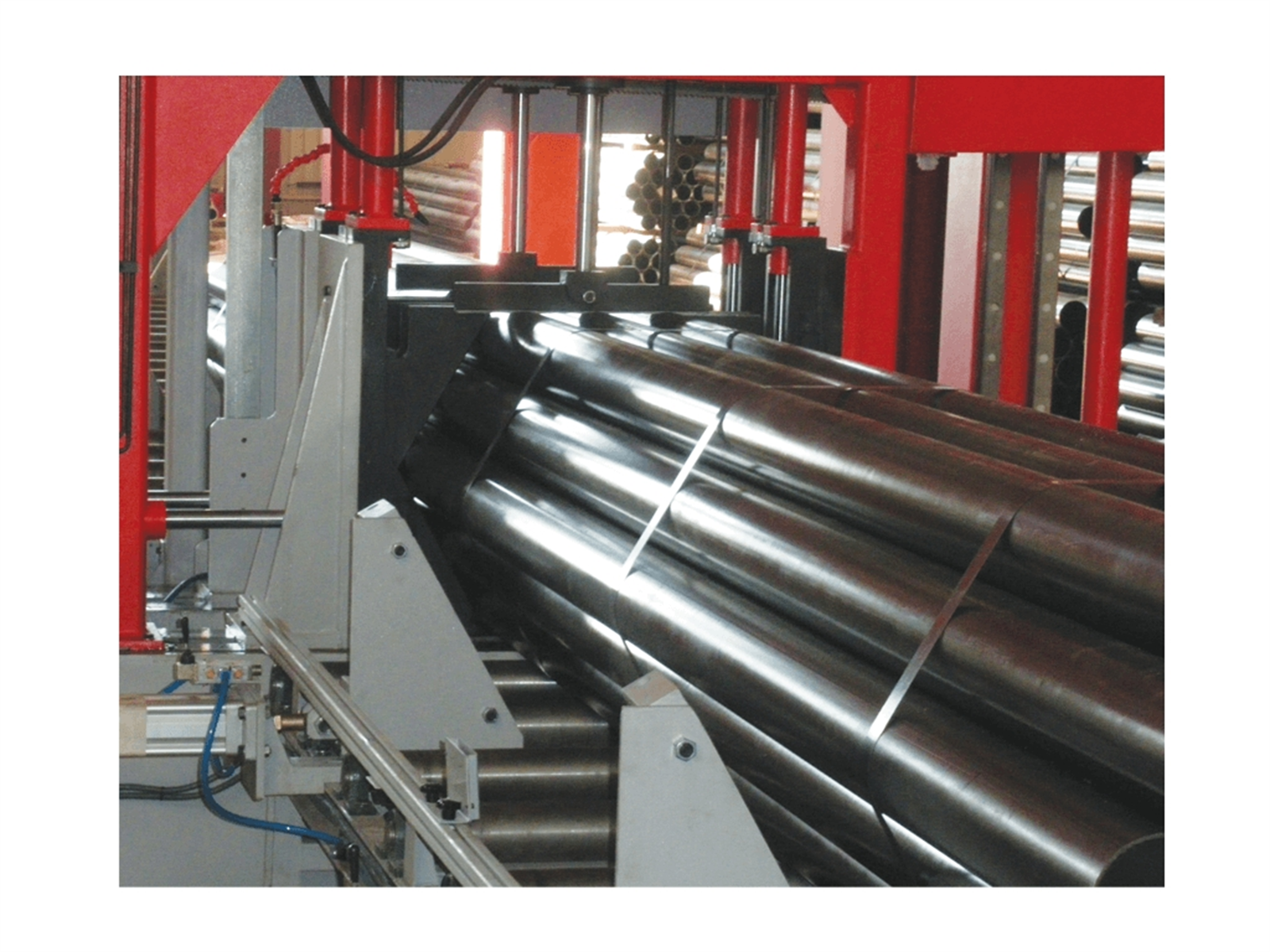

HAD series is generally a model designed for package cutting. The workbench is produced with double clamp system and double overpressure system as standard. In case of cutting hexagonal packages, optional hexagonal clamp jaws are offered.

90°	RECTANGLE	SQUARE	ROUND
	800×750	750	800
Wolf Mouth	RECTANGLE	SQUARE	ROUND
	680×590	450×390	450×390





Main Engine	5.5 kW 1500 rpm
Cooling Engine	0.09 kW 3000 rpm
Hydraulic Motor	1.1 kW 1500 rpm
Chip Conveyor	0.18 kW 1000 rpm
Chip Brush	0.09 kW 3000 rpm
Tape Measure	7250x41x1.3 mm
Loading Weight	3500 kg
Working Height	475mm
Working Dimensions	3500x1350x2500 mm



• Movable control panel
• hydraulic descent system
• Hydraulic cutting speed control
• Strip test track system with inverter
• Cutting height adjustment
• coolant pump system
• Linear guide system that facilitates working on columns
• Ribbon break plug
• Suitable for strip material in profile cutting
• entry angle (angle oblique body)

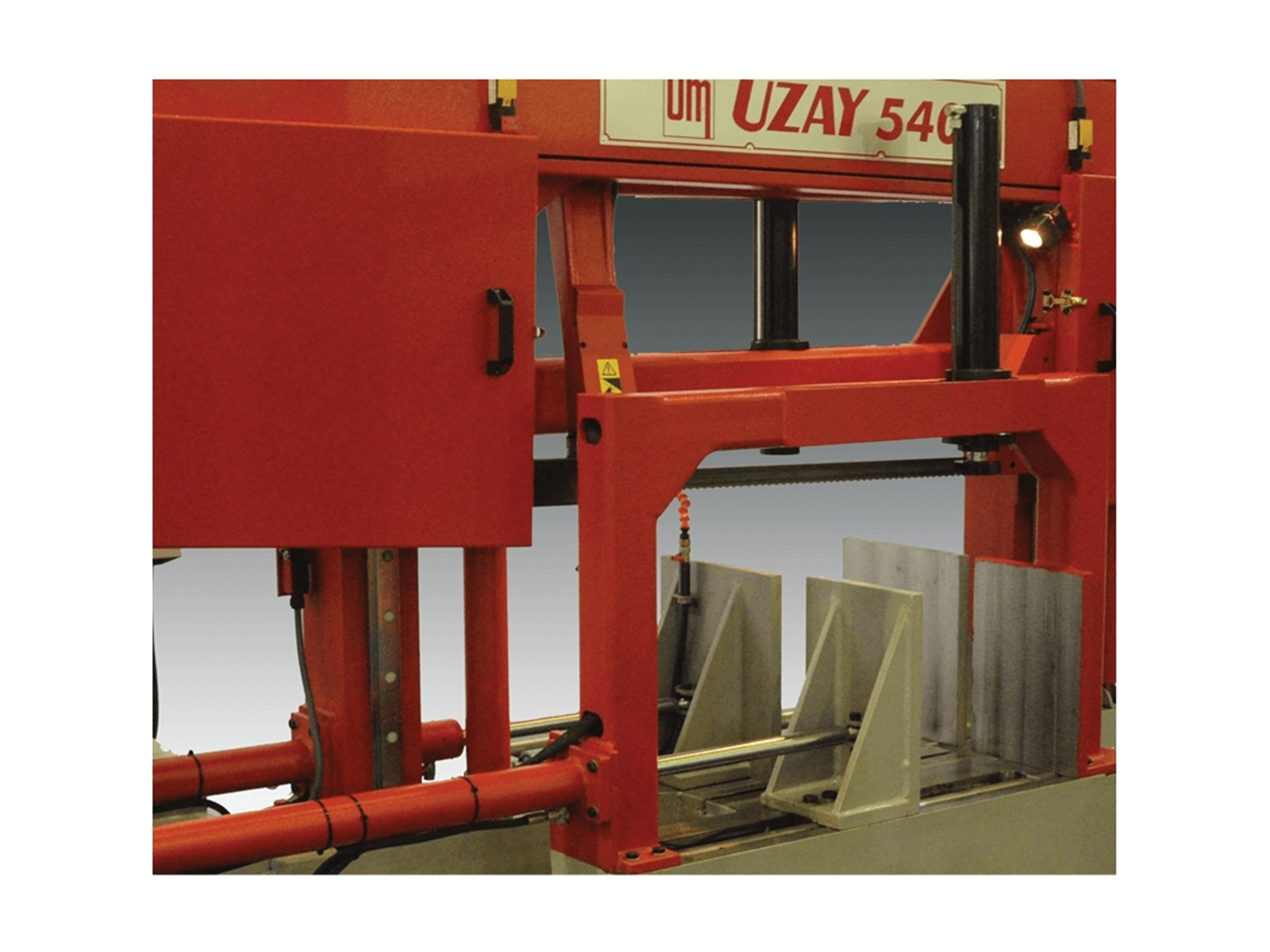

• double hydraulic vise
• Dual material overpress system
• 1200 mm material handling system
