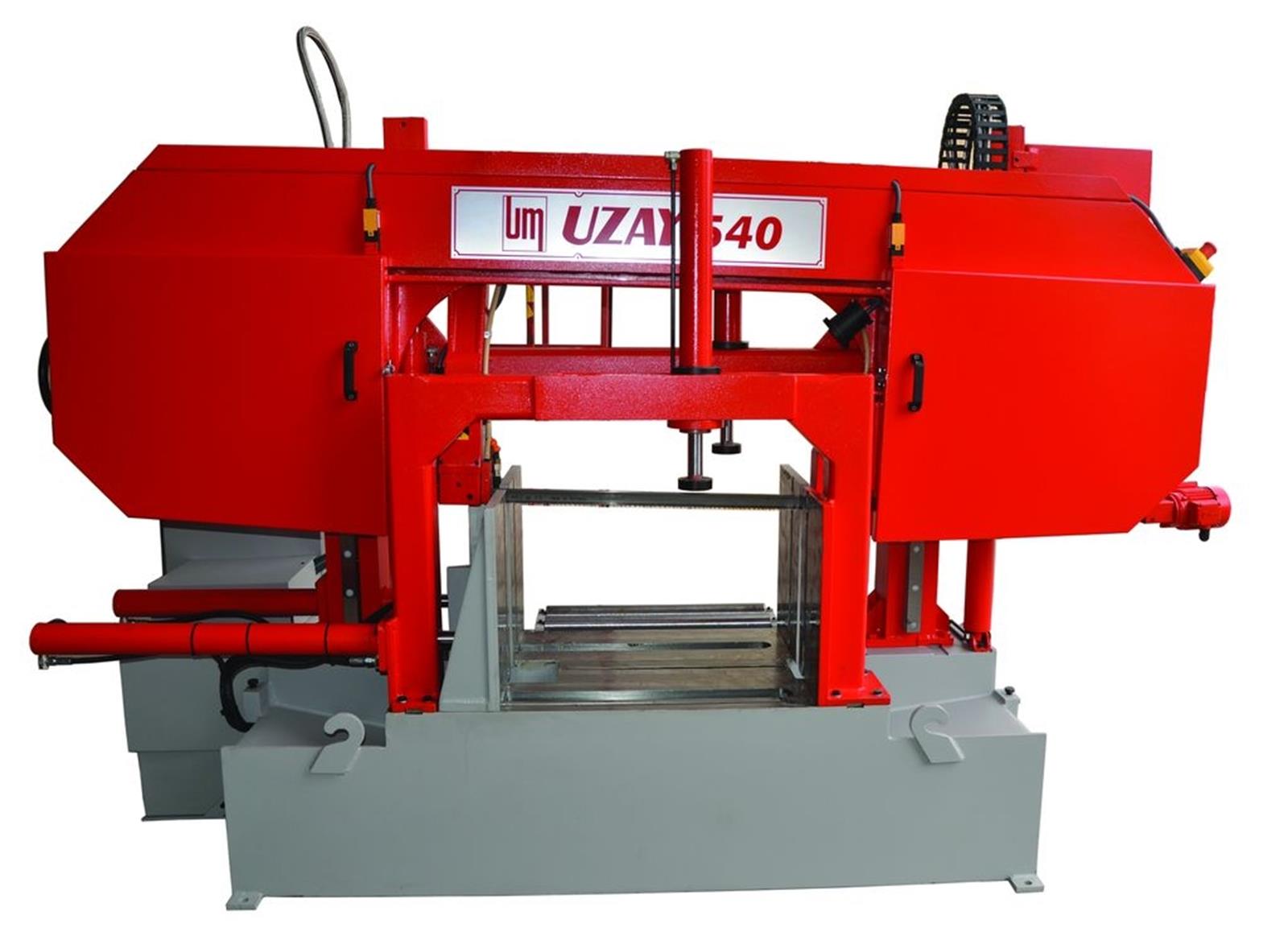

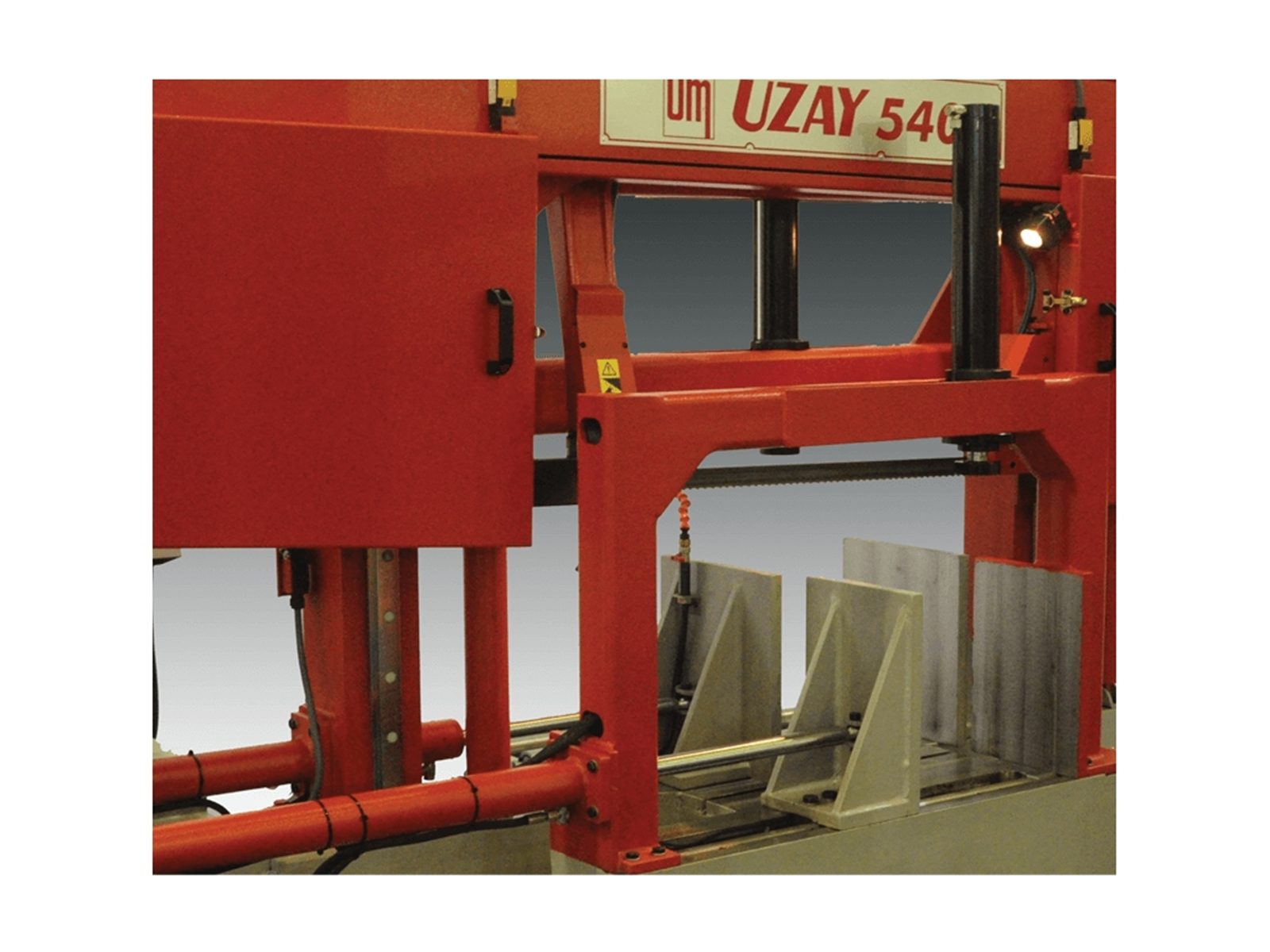

Uzay Makina UMSY 540HAD Rolling Mill Cutting Bandsaws Machine (UMSY 540 HAD)

HAD series is generally a model designed for package cutting. The workbench is produced with double clamp system and double overpressure system as standard. In case of cutting hexagonal packages, optional hexagonal clamp jaws are offered.

90°	RECTANGLE	SQUARE	ROUND
	540×740	540	540
Wolf Mouth	RECTANGLE	SQUARE	ROUND
	600×520	330×285	330×285



Main Engine	4 kW 1500 rpm
Cooling Engine	0.09 kW 3000 rpm
Hydraulic Motor	1.1 kW 1500 rpm
Chip Conveyor	0.18 kW 1000 rpm
Chip Brush	0.09 kW 3000 rpm
Tape Measure	6100x41x1.3mm
Loading Weight	2500 kg
Working Height	475mm
Working Dimensions	3100x1350x2150 mm

• Movable control panel
• hydraulic descent system
• Hydraulic cutting speed control
• Strip test track system with inverter
• Cutting height adjustment
• coolant pump system
• Linear guide system that facilitates working on columns
• Ribbon break plug
• Suitable for strip material in profile cutting
• entry angle (angle oblique body)
• double hydraulic vise
• Dual material overpress system
• 1200 mm material handling system
