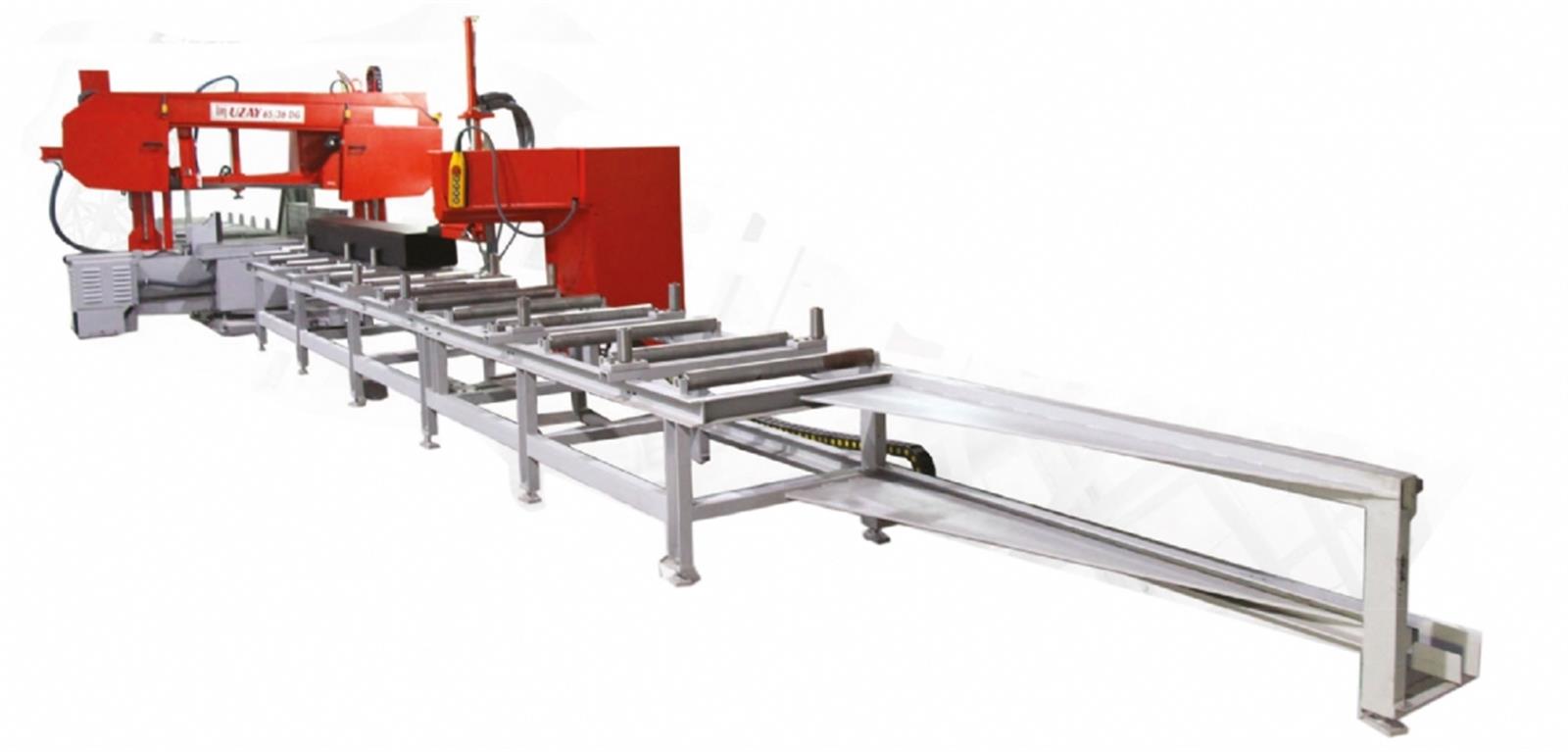

Uzay Makina UMSY 450 DGSF Angle-Cut Semi-Automatic Bandsaw Machine (UMSY 450 DGSF)

Column, fully automatic, double-sided angled cutting band saw machines. The upper body is automatically turned to the desired angle. It is generally used for angled cutting of H, U, I profiles, angles, pipes and profiles. Special design holder on the standard 6 m drive table Thanks to the sliding system, faultless height sensitivity is achieved. Optional driver tables can be manufactured in 12 m, 18 m, 24 m lengths.

• hydraulic descent system
• Inverter speed control
• Fixed control panel
• Ribbon break plug
• Air, oil mixture, spray, cooling system
• Cutting height adjustment
• hydraulic vise
• hydraulic band tensioning

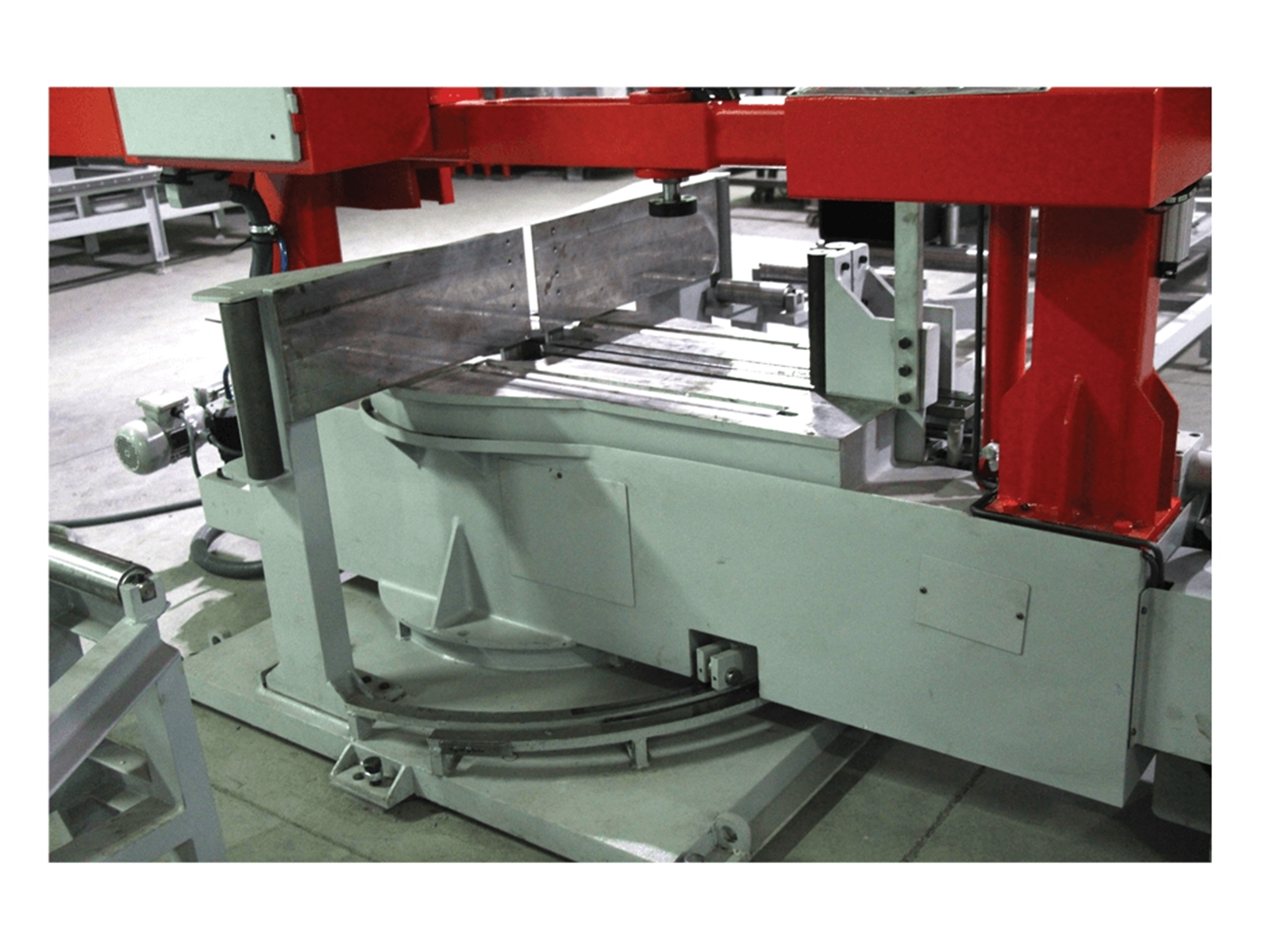

• Automatic angle going
• hydraulic angle fixation
• Hydraulic shear descent control
• hydraulic top pressure

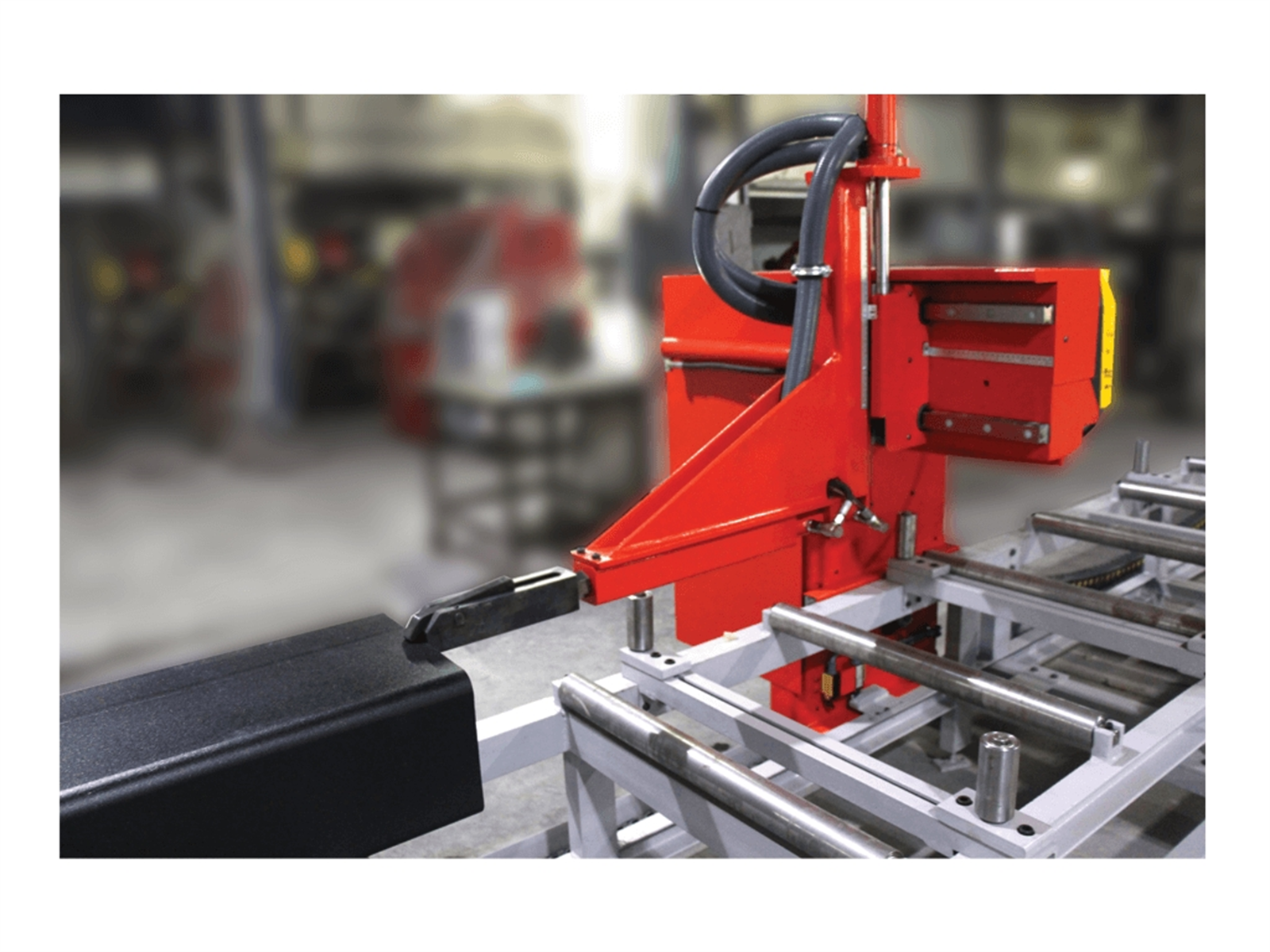

• 6 mt material stand (With holder, hydraulic clamping,
• Hydraulic overpressure and servo overrun control)
• Digital cutting height adjustment

0°	RECTANGLE	SQUARE	ROUND
	450×800	450	500
-+ 30°	RECTANGLE	SQUARE	ROUND
	450×680	450	500
-+ 45°	RECTANGLE	SQUARE	ROUND
	450×550	450	500
60°	RECTANGLE	SQUARE	ROUND
	450×370	370	370



Main engine	4 kW 1500 d/d
Cooling Engine	0.09 kW 3000 d/d
hydraulic motor	0.75 kW 1500 d/d
Motorized Pickup	1 kW 2000 d/d
Material Spreading Group	1 kW 2000 d/d
Chip Conveyor	0.18 kW 1000 d/d
Chip Brush	0.18 kW 3000 d/d
Decelerate	20-100 m/dk
Tape measure	7000x41x1.3 mm
Loading Weight	3500 mm + Tabla
working height	650 mm
Working Dimensions	3350x3300x2250+1175
