Uzay Makina UMSY 450 DG/S Angle-Cut Semi-Automatic Bandsaw Machine (UMSY 450 DG/S)

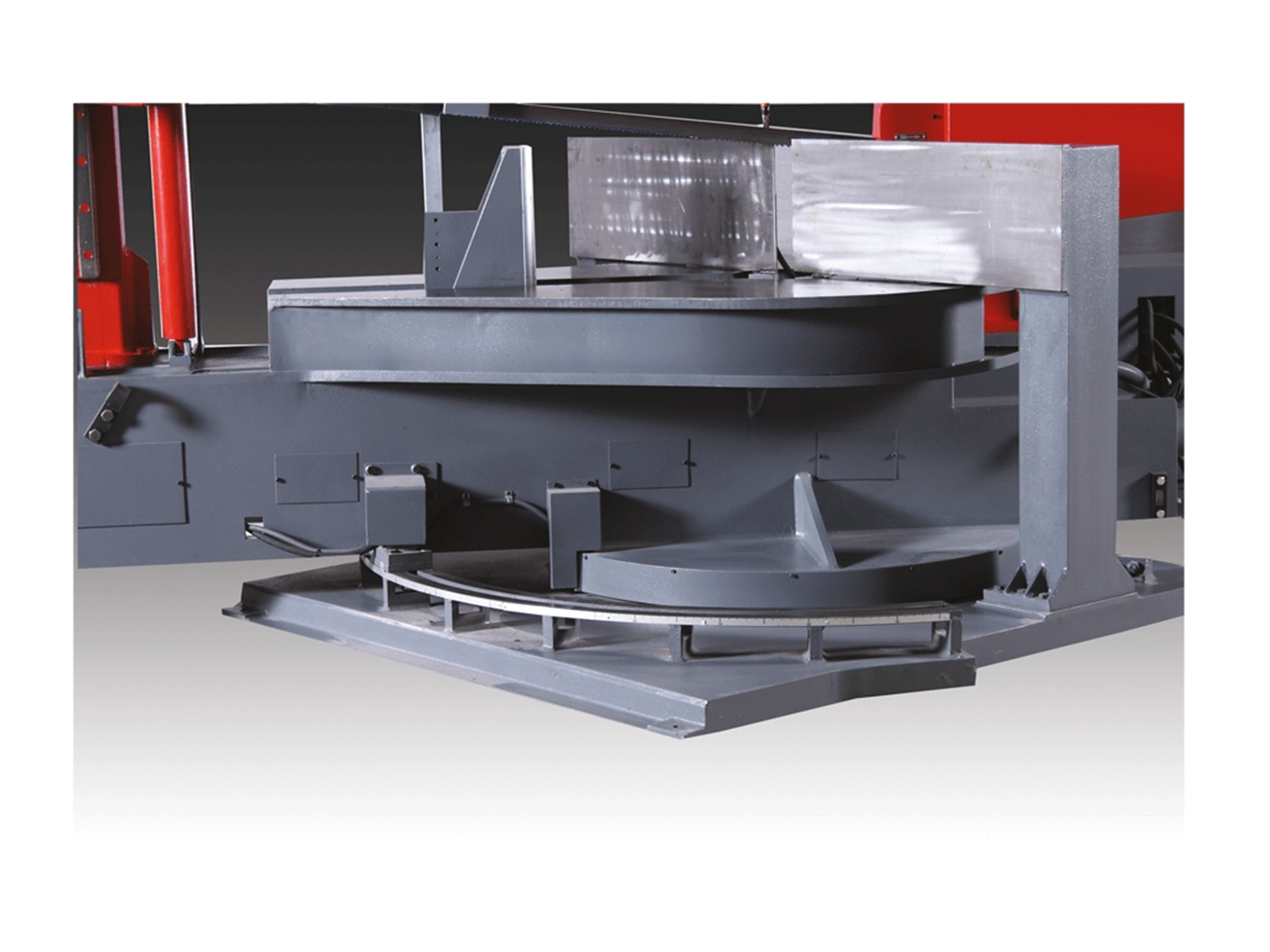

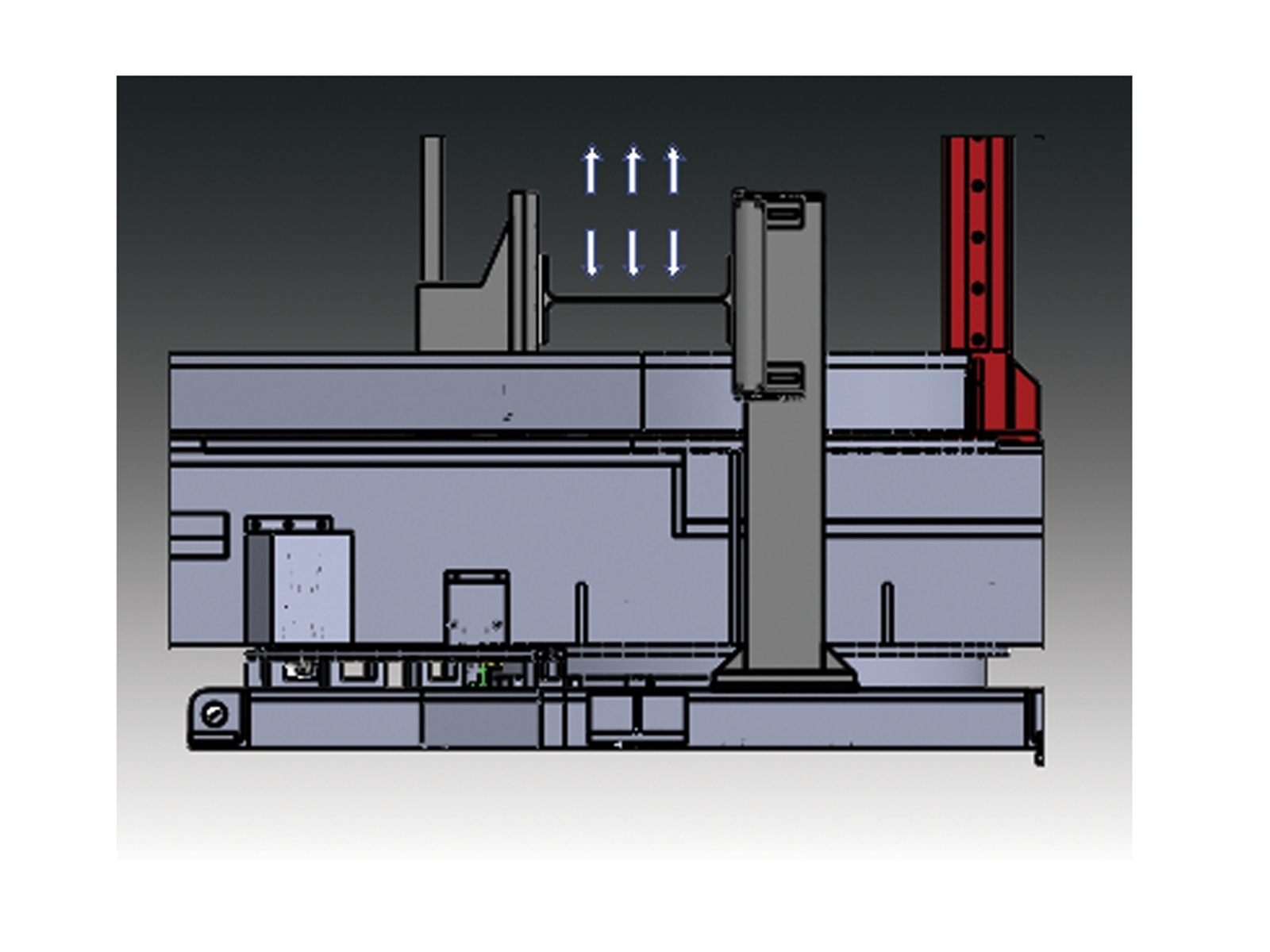

Band saw machines with columnar, semi-automatic, double-sided angled cutting. The upper body is turned to the desired angle and the angle is checked on the digital screen. It is generally used for angled cutting of H, U, I profiles, angles, pipes and profiles. Automatic angle adjustment feature optionally In addition, thanks to the optional downward moving table, friction does not occur during the material application.

90°	RECTANGLE	SQUARE	ROUND
	450×800	450	500
+ - 30°	RECTANGLE	SQUARE	ROUND
	450×680	450	500
+ - 45°	RECTANGLE	SQUARE	ROUND
	450×550	450	500
60°	RECTANGLE	SQUARE	ROUND
	450×370	370	370





Main Engine	4 kW 1500 rpm
Cooling Engine	0.09 kW 3000 rpm
Hydraulic Motor	0.75 kW 1500 rpm
Auto Angle	1 kW 2000 rpm (opt.)
Chip Conveyor	0.18 kW 1000 rpm
Cutting Speed	20-100 m/min
Tape Measure	7000x41x1.3mm
Loading Weight	3500 kg
Feeding Height	650mm
Working Dimensions	3550x3300x2250mm



• hydraulic descent system
• Inverter speed control
• Ribbon break plug
• coolant pump
• Cutting height adjustment

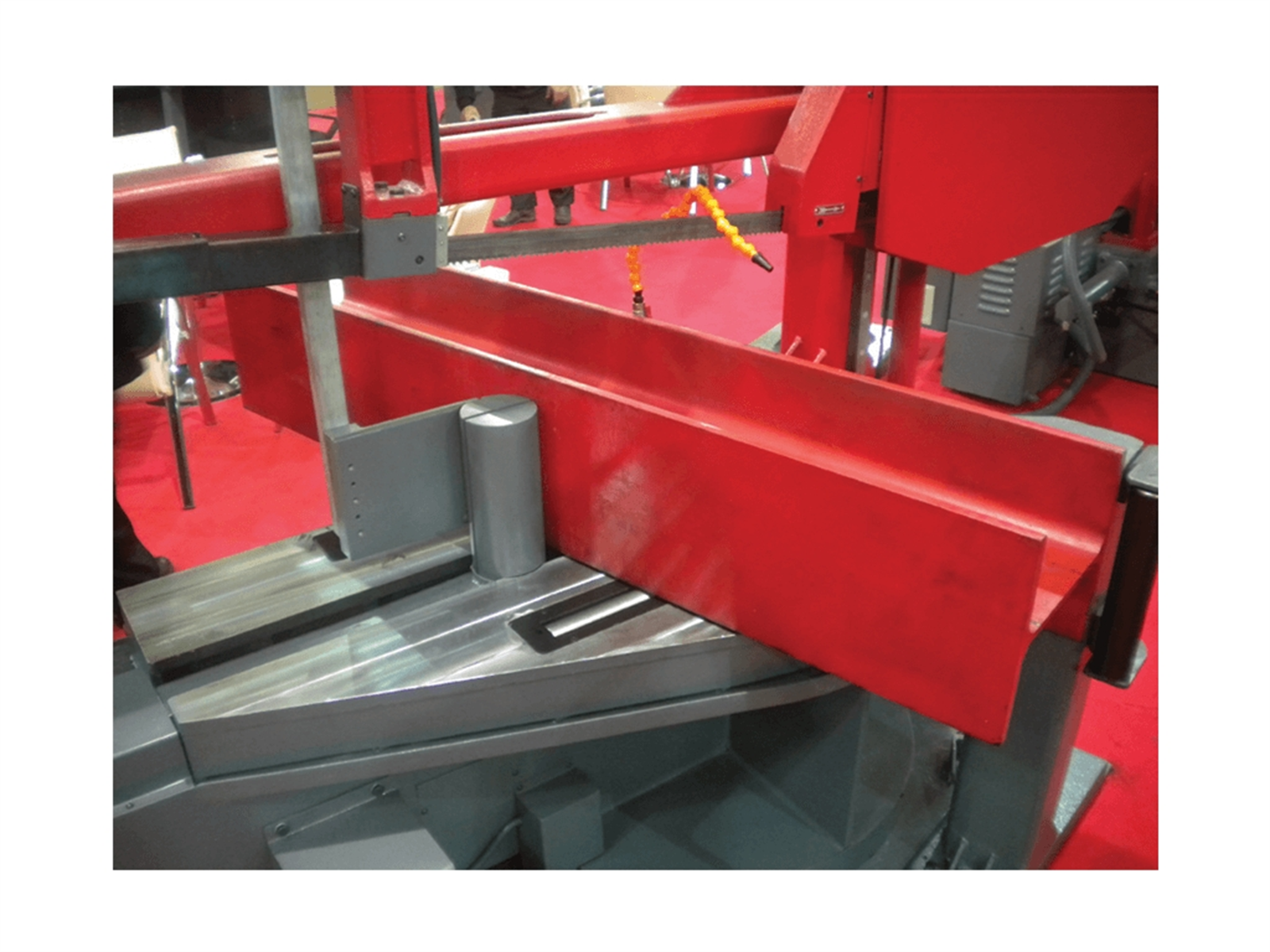

• Hydraulic Mengene
• Hydraulics
• hydraulic band tensioning
• hydraulic angle fixation
• Hydraulic shear descent speed control
