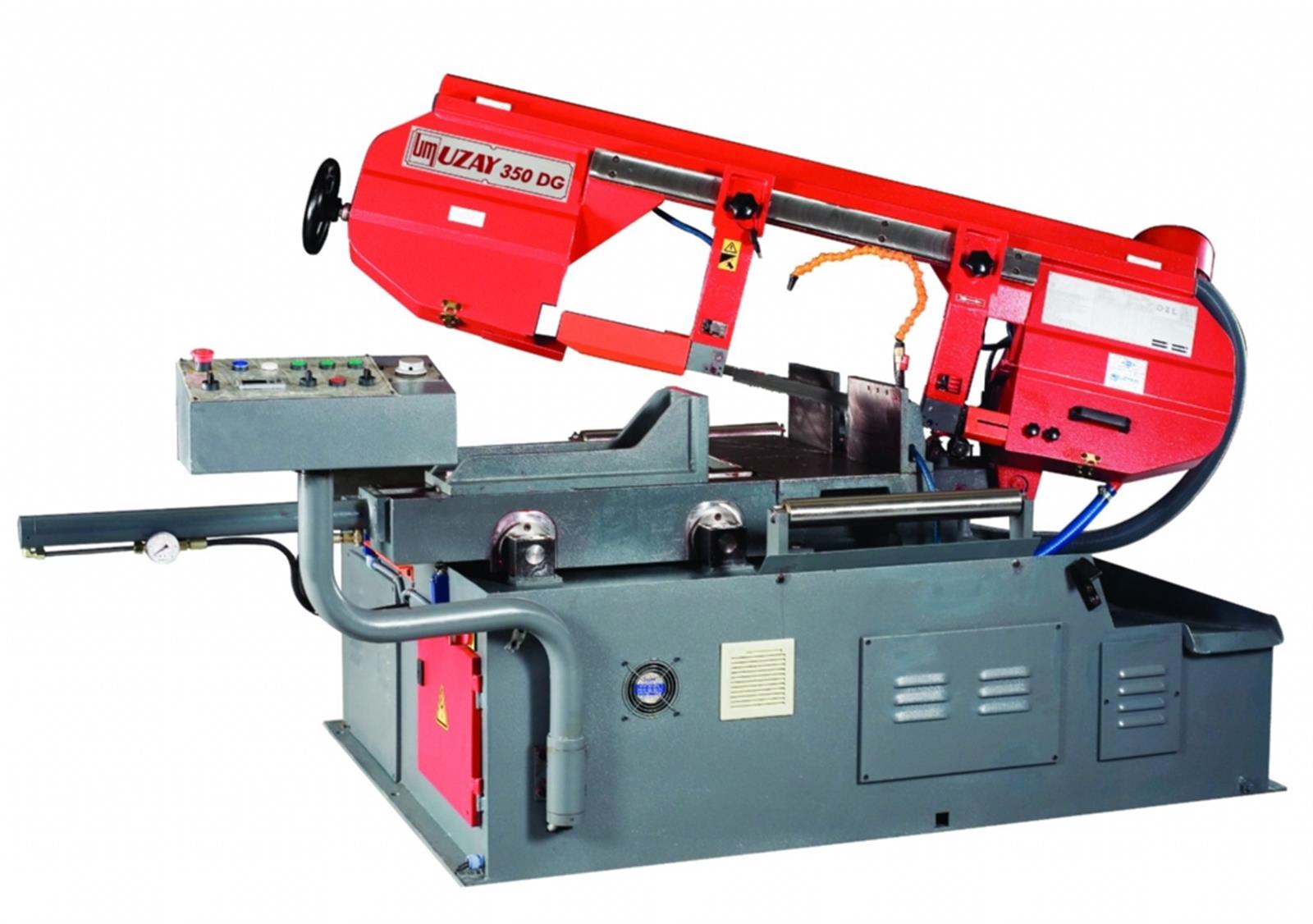

Uzay Makina UMSY 350 DG Angle-Cut Semi-Automatic Bandsaw Machine (UMSY 350 DG)

UMSY 350 G is hinged semi-automatic models that can cut in one direction by rotating the upper body. UMSY 350 LG model is a model developed with 1000 mm vice opening capacity. UMSY 280 DG / 350 DG model, on the other hand, is produced for angled cutting needs on both sides. The movement of the vise group to the right or left is hydraulic.

90°	RECTANGLE	SQUARE	ROUND
	320×500	320	350
30°	RECTANGLE	SQUARE	ROUND
	320×400	320	350
- 30°	RECTANGLE	SQUARE	ROUND
	320×400	330	350
45°	RECTANGLE	SQUARE	ROUND
	200×350	280	330
- 45°	RECTANGLE	SQUARE	ROUND
	200×320	280	300
60°	RECTANGLE	SQUARE	ROUND
	270×160	170	190



Main Engine	2.2 kW 1500 rpm
Cooling Engine	0.09 kW 3000 rpm
Hydraulic Motor	0.37 kW 1500 rpm
Cutting Speed	20-100 m/min
Tape Measure	4320x34x1.1mm
Loading Weight	1355 kg
Feeding Height	670mm
Working Dimensions	2950x2500x2000 mm

• Inverter motor control
• Ribbon break plug
• coolant pump
• Hydro-mechanical belt tensioning
• 1200 mm material stand
• Cutting height adjustment
• hydraulic vise
• Vise group right/left hydraulic movement
