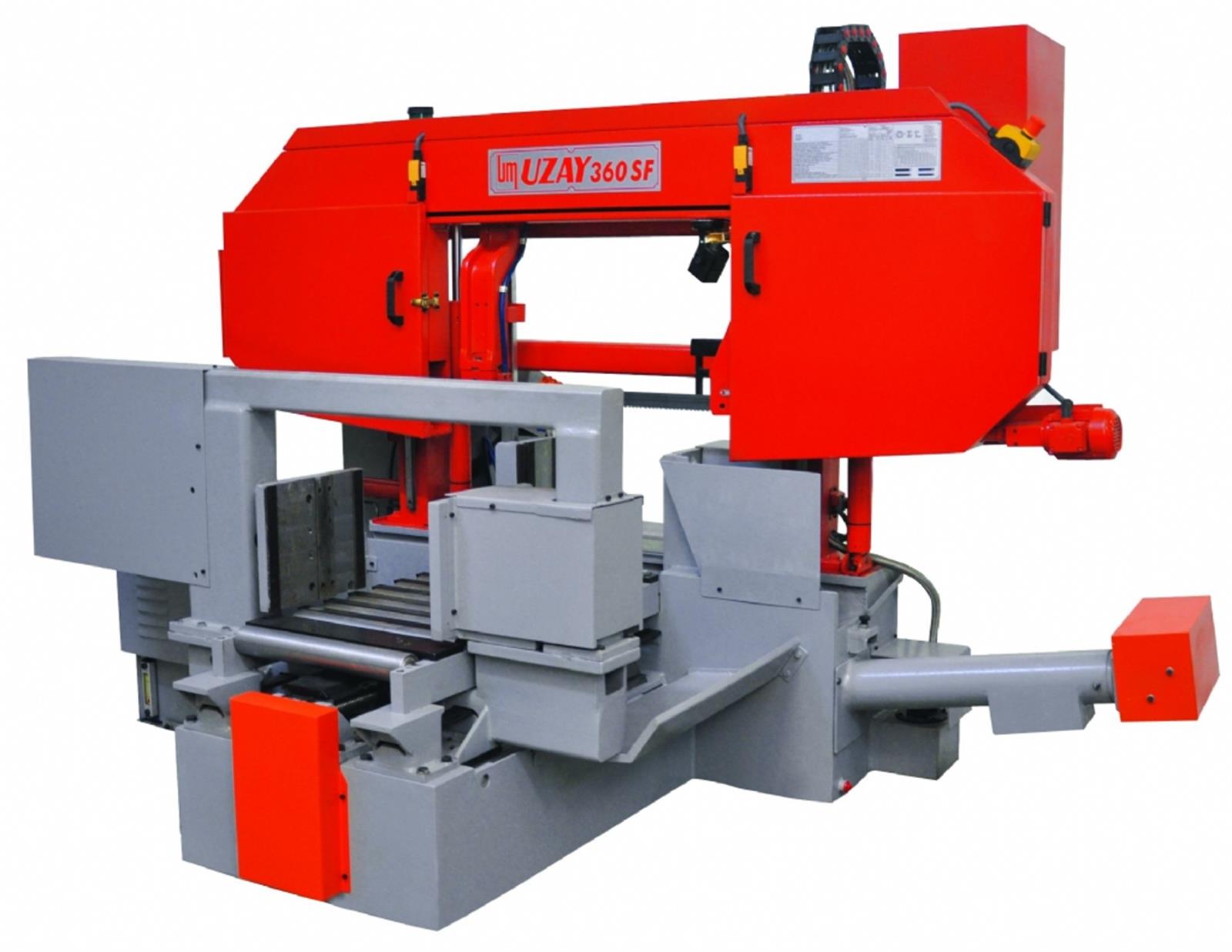

Uzay Makina UMSO 460 SF Programmable Full Automatic Bandsaw Machine

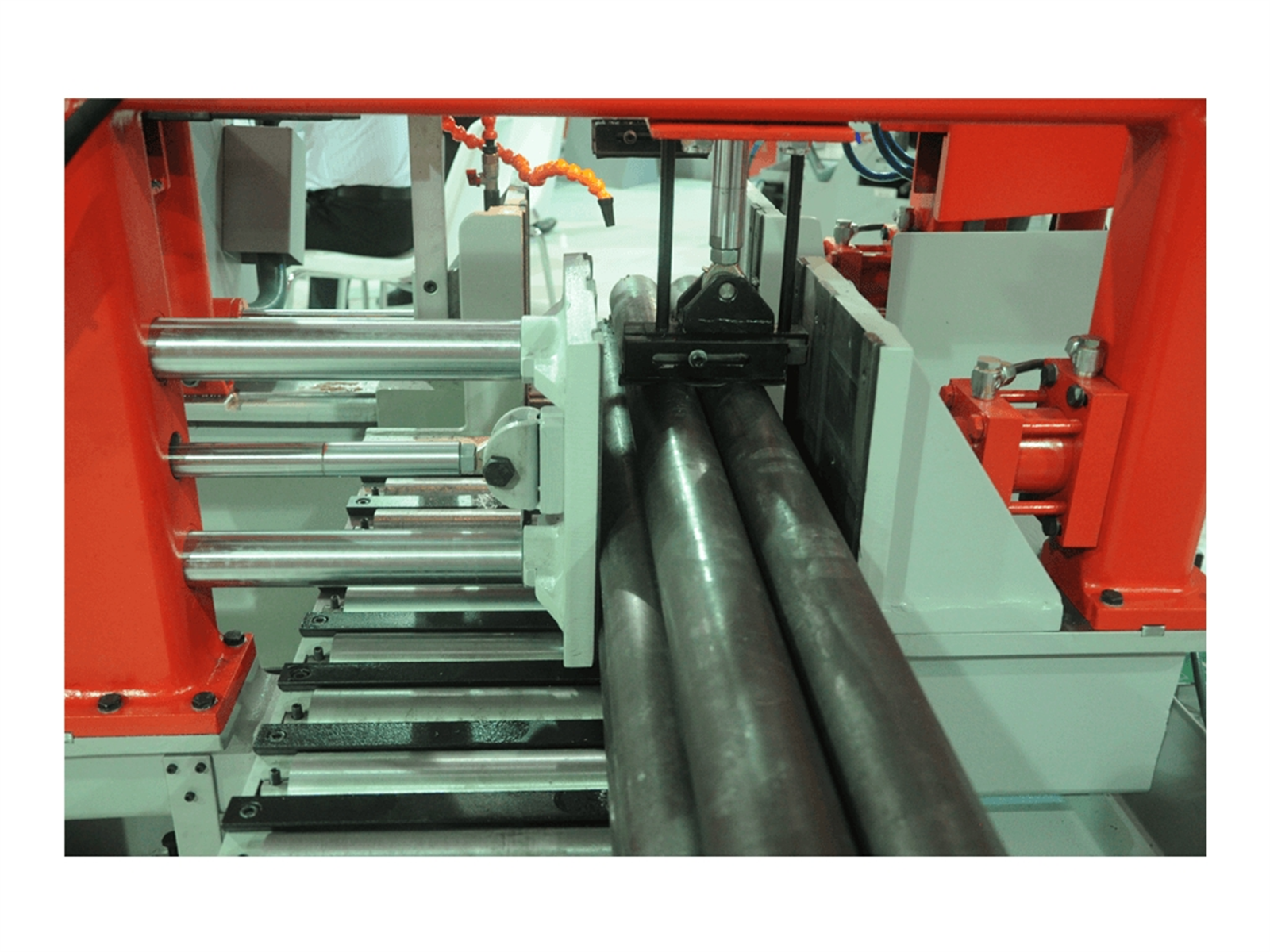

Column, programmable fully automatic band sawing bench. The bench has an easy to use PLC control unit. The material is driven by a servo motor driven driver (carrier) clamp group. The maximum standard driving length of the driver clamp group is 500 mm at a time. This length can be increased upon request. You can easily monitor or control the spare parts such as strip speed, feed rate, cutting height, cutting time and remaining time from a single model, conveniently for automotive spare parts and production of spare parts. Conel is designed and manufactured for a wide range of

90°	RECTANGLE	SQUARE	ROUND
	460×700	460	460



Main Engine	5.5 kW 1500 rpm
Cooling Engine	0.09 kW 3000 rpm
Hydraulic Motor	1.1 kW 1500 rpm
Servo-motor	4.78 NM 2000 rpm
Chip Conveyor	0.18 kW 1500 rpm
Chip Brush	0.09 kW 1500 rpm
Tape Measure	6100x41x1.1mm
Loading Weight	2700 kg
Feed Height	645mm
Working Dimensions	3850x2050x1900 mm

• Curve cut sensor
• hydraulic descent system
• Inverter lane speed control
• hydraulic band tensioning

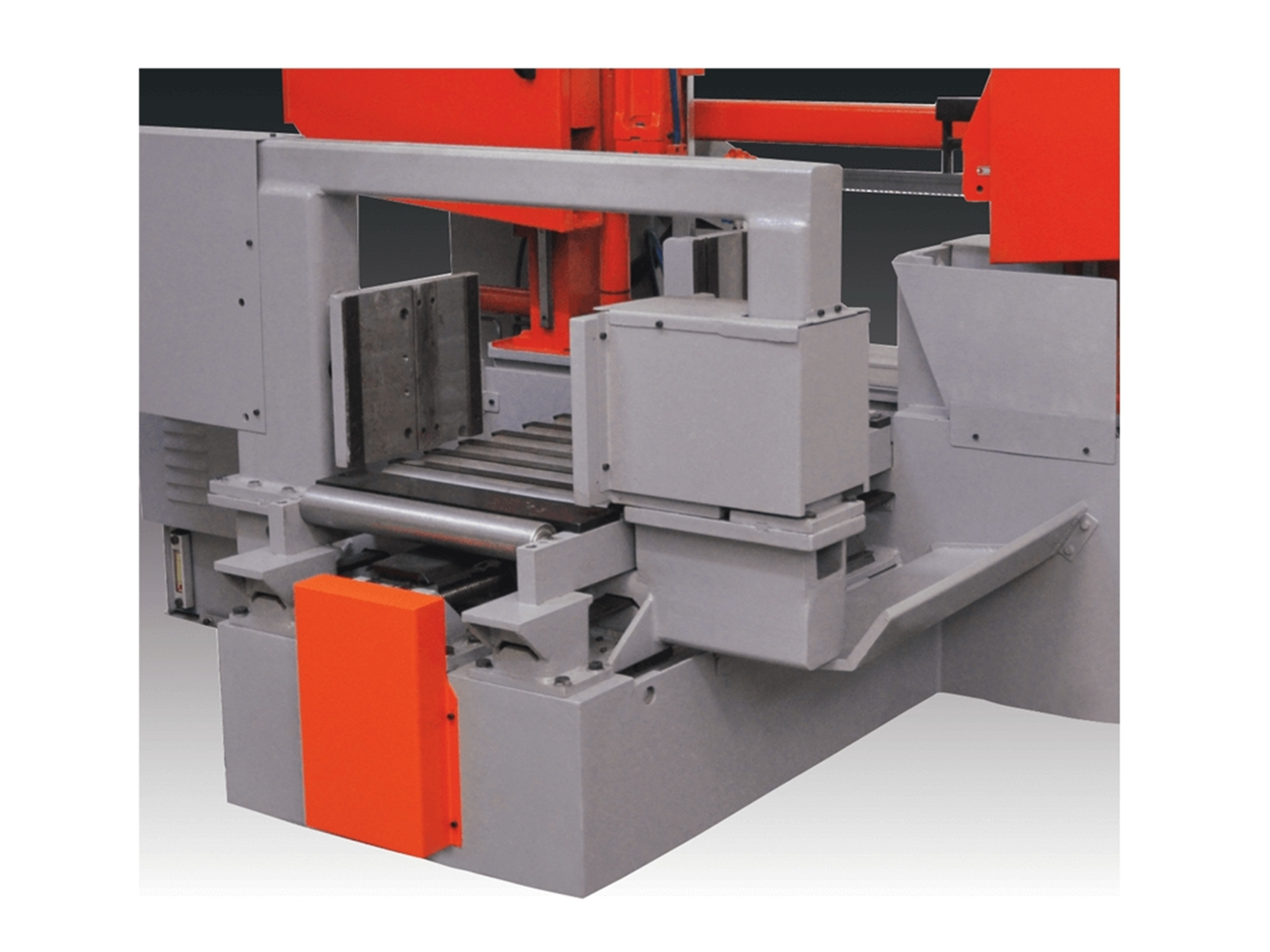

• hydraulic double vise
• Ribbon break plug
• coolant pump
• 2000 mm material stand
• Digital cutting height adjustment
• Programming 10 different sizes/pieces with PLC
• On linear slide with servo motor
• material application and height adjustment
• Chip conveyor
• Linear system hydraulic strip bedding
• Linear slide lever system
• Hydraulic shear descent speed control
• Fixed control panel
