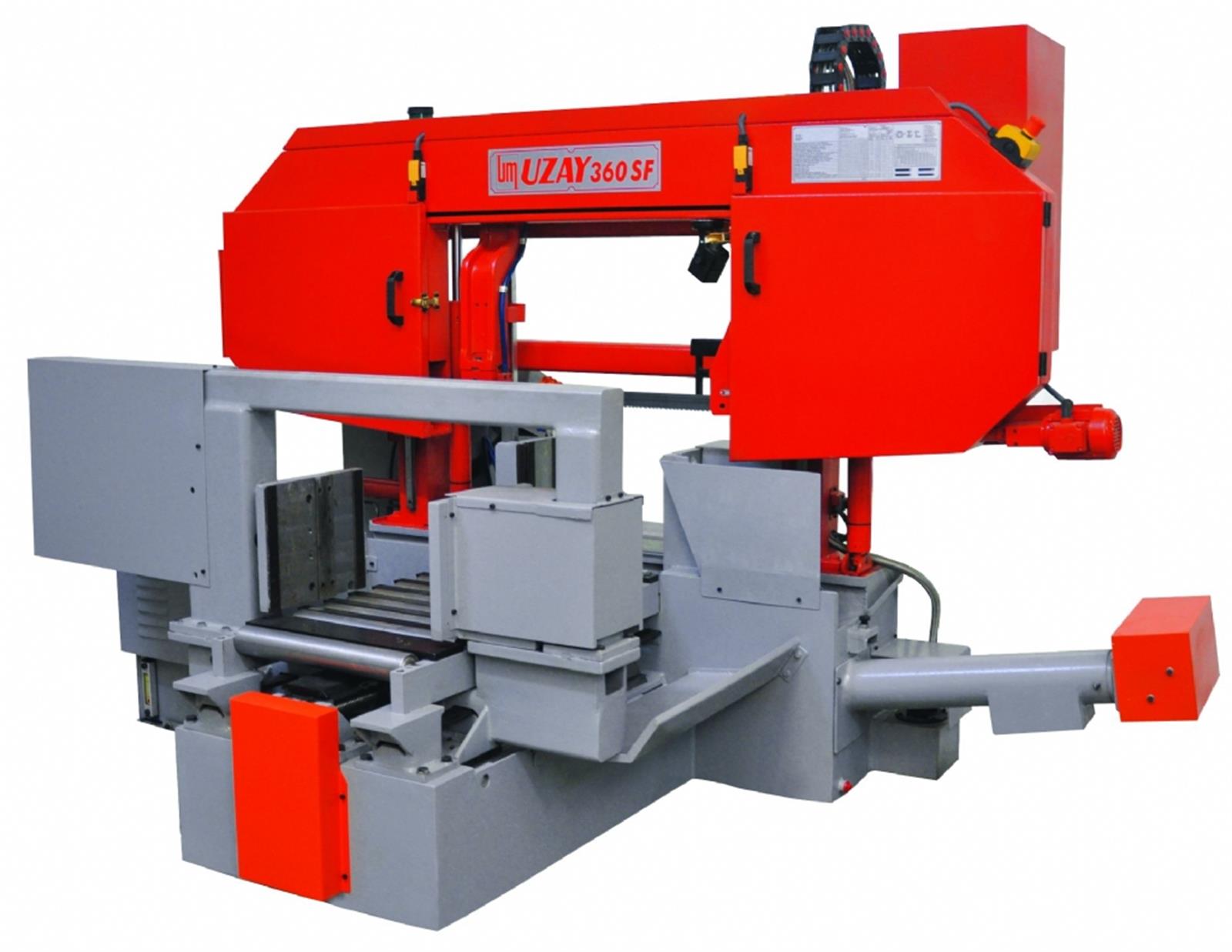

Uzay Makina UMSO 360 SF Programmable Full Automatic Bandsaw Machine (UMSO 360 SF)

Column, programmable fully automatic band sawing bench. The bench has an easy to use PLC control unit. The material is driven by a servo motor driven driver (carrier) clamp group. The maximum standard driving length of the driver clamp group is 500 mm at a time. This length can be increased upon request. You can easily monitor or control the spare parts such as strip speed, feed rate, cutting height, cutting time and remaining time from a single model, conveniently for automotive spare parts and production of spare parts. Conel is designed and manufactured for a wide range of





90°	RECTANGLE	SQUARE	ROUND
	360×450	360	360



Main Engine	4 kW 1500 d/d
Cooling Engine	0.09 kW 3000 d/d
Hydraulic Motor	1.1 kW 1500 d/d
Servo-motor	4.3 NM 3000 d/d
Chip Conveyor	0.18 kW 1500 d/d
Chip Brush	0.09 kW 3000 d/d
Tape Measure	5040x34x1.1 mm
Loading Weight	1950 kg
Feeding Height	620 mm
Working Dimensions	2800x1900x1750 mm

• Curve cut sensor
• hydraulic descent system
• Inverter lane speed control
• hydraulic band tensioning
• hydraulic double vise
• Ribbon break plug
• coolant pump
• 2000 mm material stand
• Digital cutting height adjustment
• Programming 10 different sizes/pieces with PLC
• On linear slide with servo motor
• material application and height adjustment
• Chip conveyor
• Linear system hydraulic strip bedding
• Linear slide lever system
• Hydraulic shear descent speed control
• Fixed control panel
