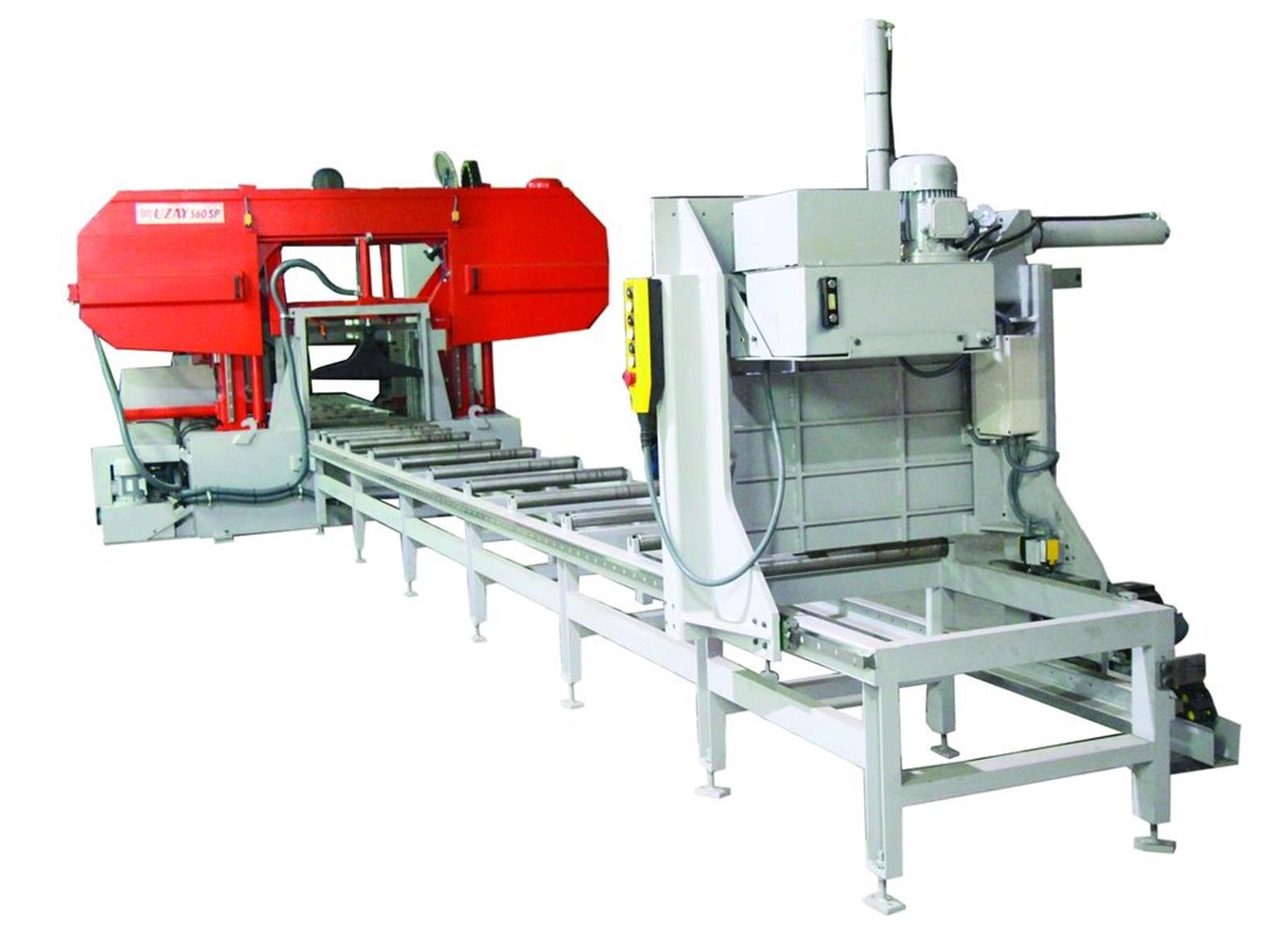

Uzay Makina UMSO 360 DSF Automated Production Full Automatic Bandsaw Machine (UMSO 360 DSF)

Column, programmable fully automatic band sawing bench. The bench has an easy-to-use PLC control unit, material feeding is carried out with a specially designed table with servo motor driven rack gear system. The drive table is 6 meters long as standard. 12 meters, 18 meters and 24 meters optionally. It can be manufactured in mt lengths. You can easily monitor or control the strip speed, feed rate, cutting height, cutting time and remaining time from the touch control unit. It is a model especially suitable for wide and heavy cutting applications where precise cutting is required.

90°	RECTANGLE	SQUARE	ROUND
	360×450	360	360



Main Engine	4 kW 1500 rpm
Hydraulic Motor	1.1 kW 1500 rpm
Hydraulic Motor 2	0.75 kW
Servo-motor	1 kW 2000 rpm
Chip Conveyor	0.18 kW 1500 rpm
Chip Brush	0.09 kW 3000 rpm
Chip Brush	0.09 kW 3000 rpm
Chip Brush	0.09 kW 3000 rpm
Tape Measure	5040x34x1.1mm
Loading Weight	1950 kg + Table
Feeding Height	620mm
Working Dimensions	2800x1900x1750+8200 mm

• Inverter lane speed control
• Fixed control panel
• Ribbon break plug
• hydraulic band tensioning
• coolant pump
• Hydraulic material clamping with double vice
• Servo, rack automatic material feeding
• 6 m material handling system
• (Hydraulic clamping, servo length controlled)
• 1.2 m material exit stand
• Screw type chip conveyor
• Linear skid column system
• Hydraulic shear descent speed control
• Strip guide arm on linear slide
• Length, quantity, height programming with PLC
