Uzay Makina UMSO 280 E Programmable Full Automatic Bandsaw Machine (UMSO 280 E)

They are fully automatic models with articulated PLC programming. The material application process is carried out with roller drivers in the vices. The sliding length is adjusted with an encoder. It is a recommended model for productions with flat and piece cuts.

90°	RECTANGLE	SQUARE	ROUND
	200×280	250	280



Main Engine	1,5 kW 1500 d/d
Cooling Engine	0.09 kW 3000 d/d
Hydraulic Motor	0,25 KW 1500 d/d
Drive Motor	0.25 kW 1500 d/d
Chip Conveyor	0,18 kW 1000 d/d
Cutting Speed	20 - 100 m/min
Tape Measure	3660x27x0.9
Loading Weight	614 Kg
Feeding Height	650 mm
Working Dimensions	2000x900x1730



• Automatic roll material feeding / length adjustment
• Inverter lane speed control
• Hydro-mechanical belt tensioning
• Ribbon break plug
• coolant pump
• 1200 m material stand
• hydraulic vise
• Cutting height adjustment
• Roller clamp system
• Height measurement with encoder
• Possibility to make 10 different programs with PLC control

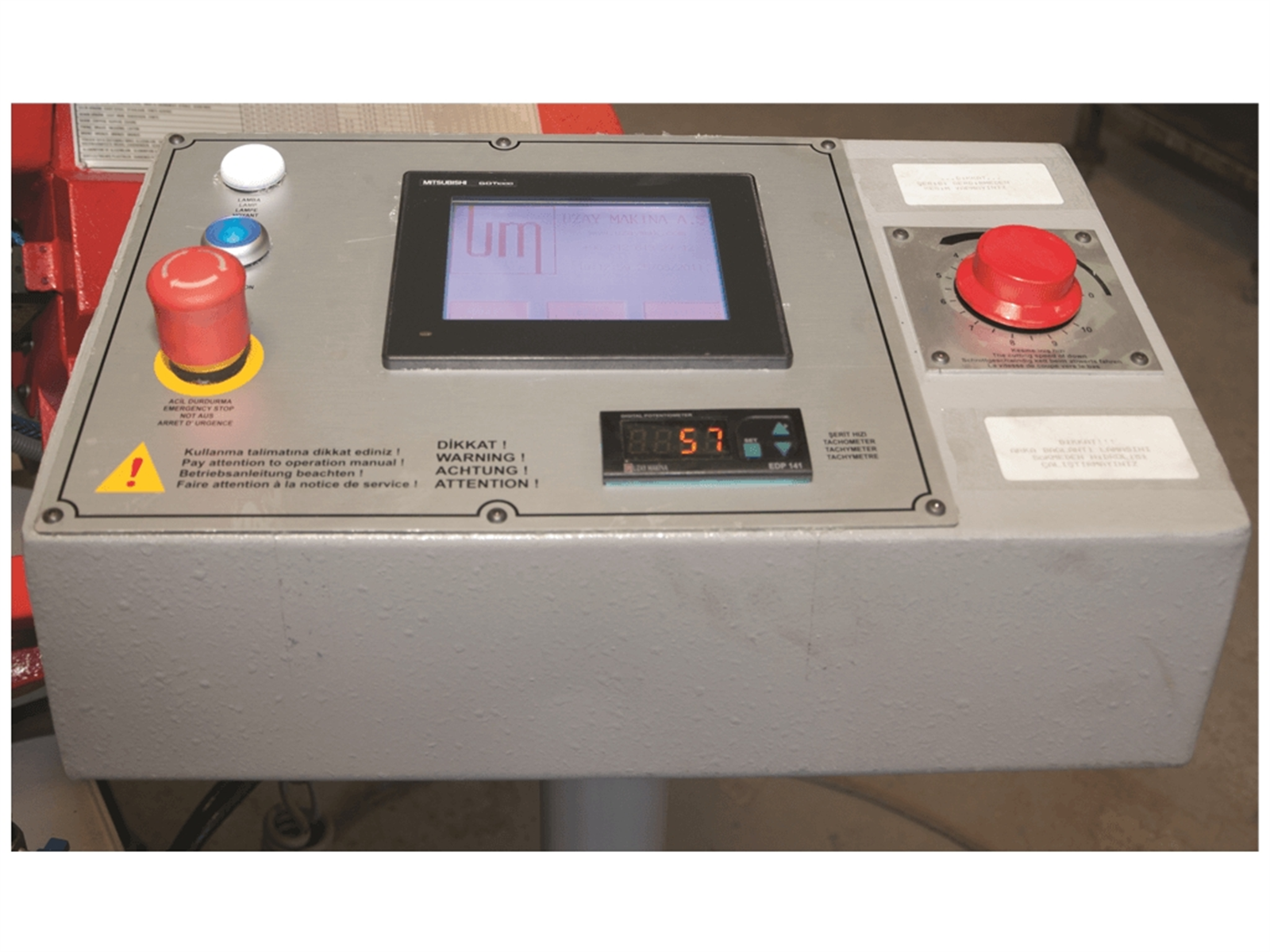

• Movable control panel
• Hydraulic shear descent speed control
