Uzay Makina UMSO 1600 HF Programmable Full Automatic Bandsaw Machine (UMSO 1600 HF)

Column, programmable fully automatic band sawing bench. The bench has an easy-to-use PLC control unit. The material is fed by a servo motor driven driver (carrier) clamp group. The maximum standard driving length of the driver clamp group is 500 mm at a time. You can easily monitor or control strip speed, feed rate, cutting height, cutting time and remaining time from the touch control unit. It is a model especially suitable for mass production such as automotive and spare parts manufacturing. It is made of high strength materials such as inconel, titanium, which is easy to cut. It

90°	RECTANGLE	SQUARE	ROUND
	1600×2200	1600	1600



Main Engine	15 kW 1500 rpm
Cooling Engine	0.37 kW 3000 rpm
Hydraulic Motor	3 kW 1500 rpm
Chip Conveyor	0.18 1000 rpm
Tracked Chip Conveyor	0.37 kW 1500 rpm
Chip Brush	0.09 kW 3000 rpm
Tape Measure	14000x80x1.6 mm
Loading Weight	19200 kg
Feeding Height	685mm
Working Dimensions	7200x6000x4500mm

• Curve cut sensor
• Digital drive length display
• hydraulic descent system
• Inverter lane speed control

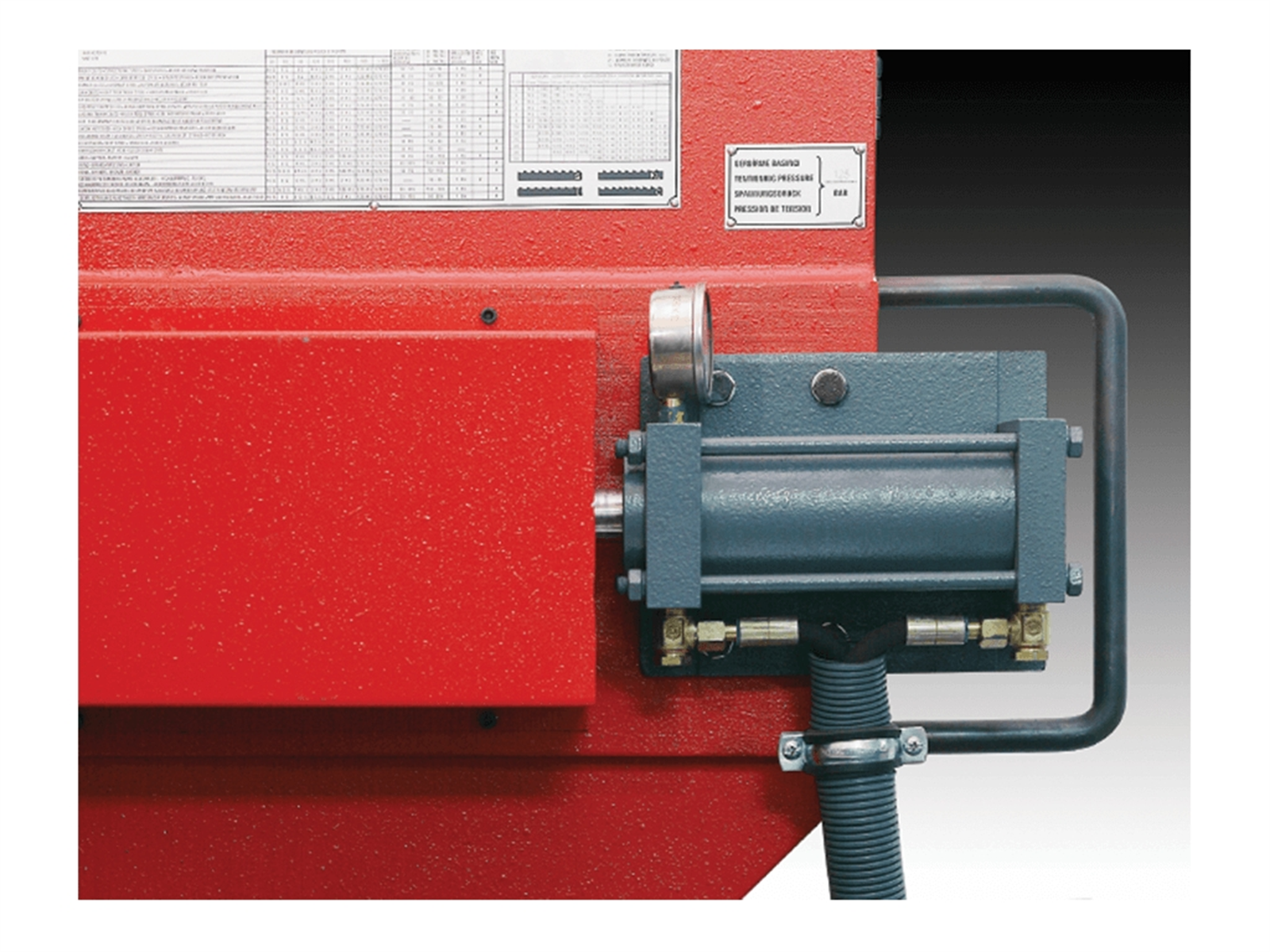

• hydraulic band tensioning
• Ribbon break plug
• coolant pump
• Cutting height adjustment
• Special body design

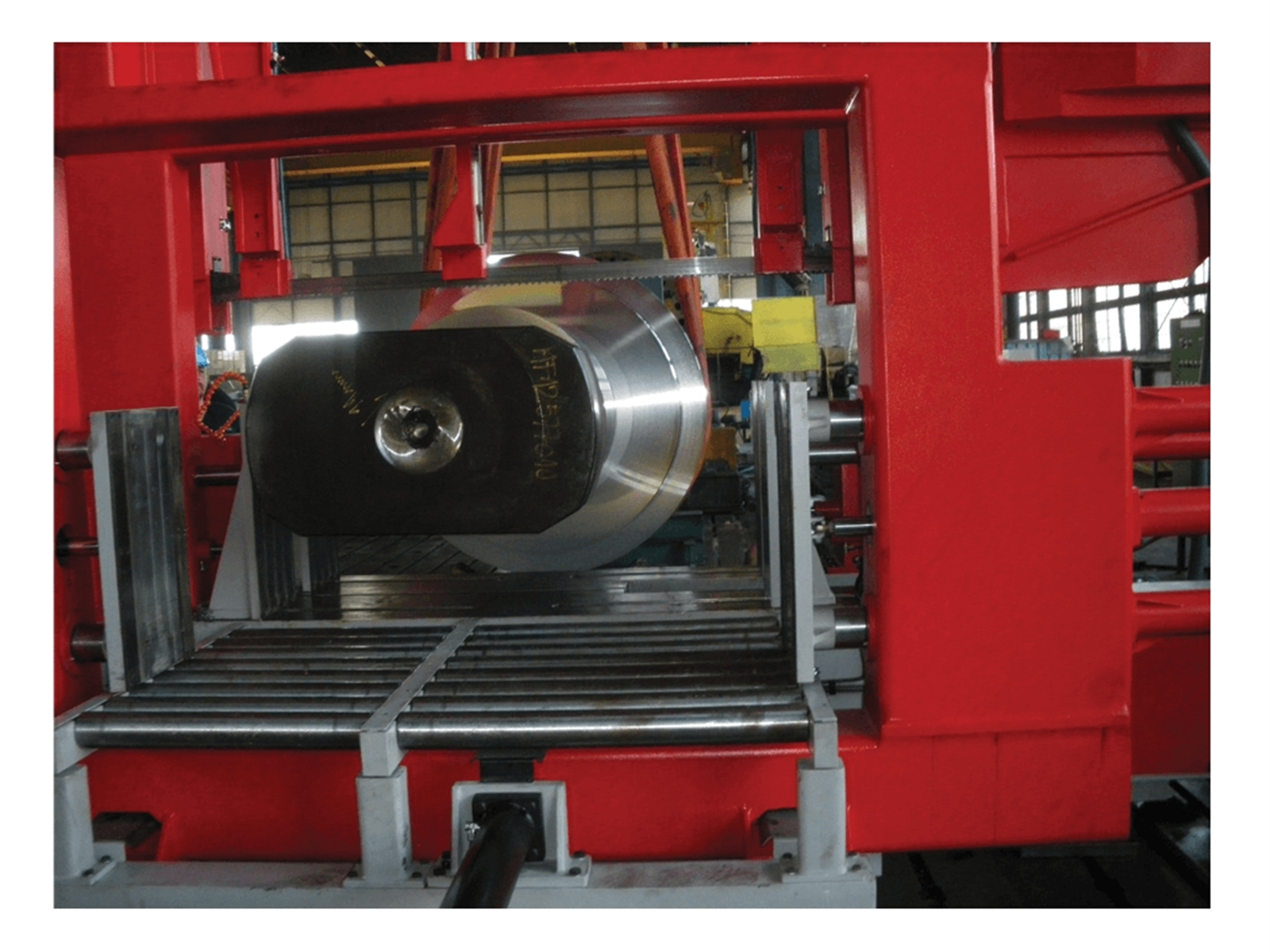

• Hydraulic material clamping with double vice
• Hydraulic automatic material feeding
• Pallet type chip conveyor

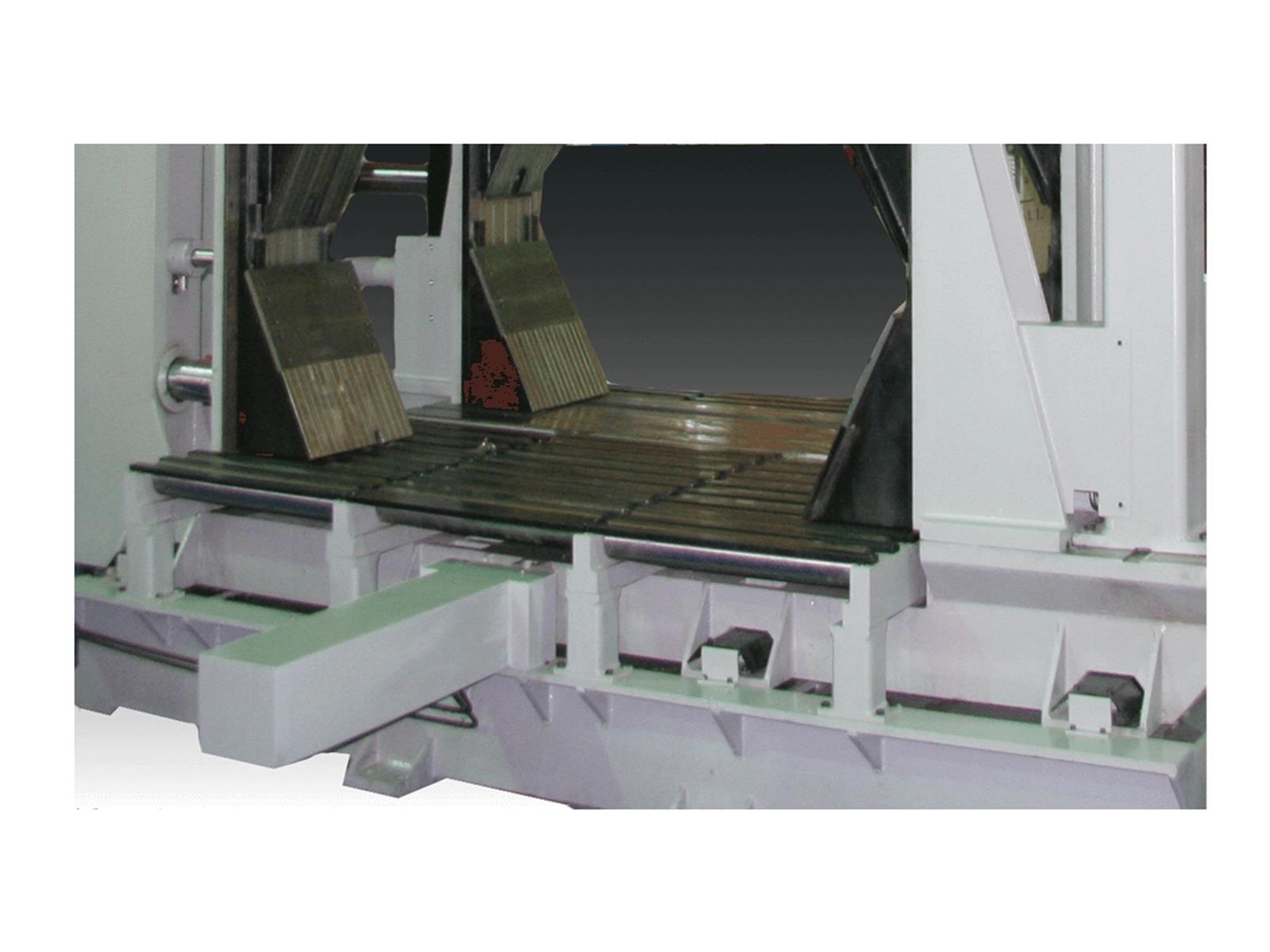

• Linear system material feeding body
• Linear slide lever system
• Linear system hydraulic strip bedding
• Hydraulic descent speed control
• 2500 mm material stand
