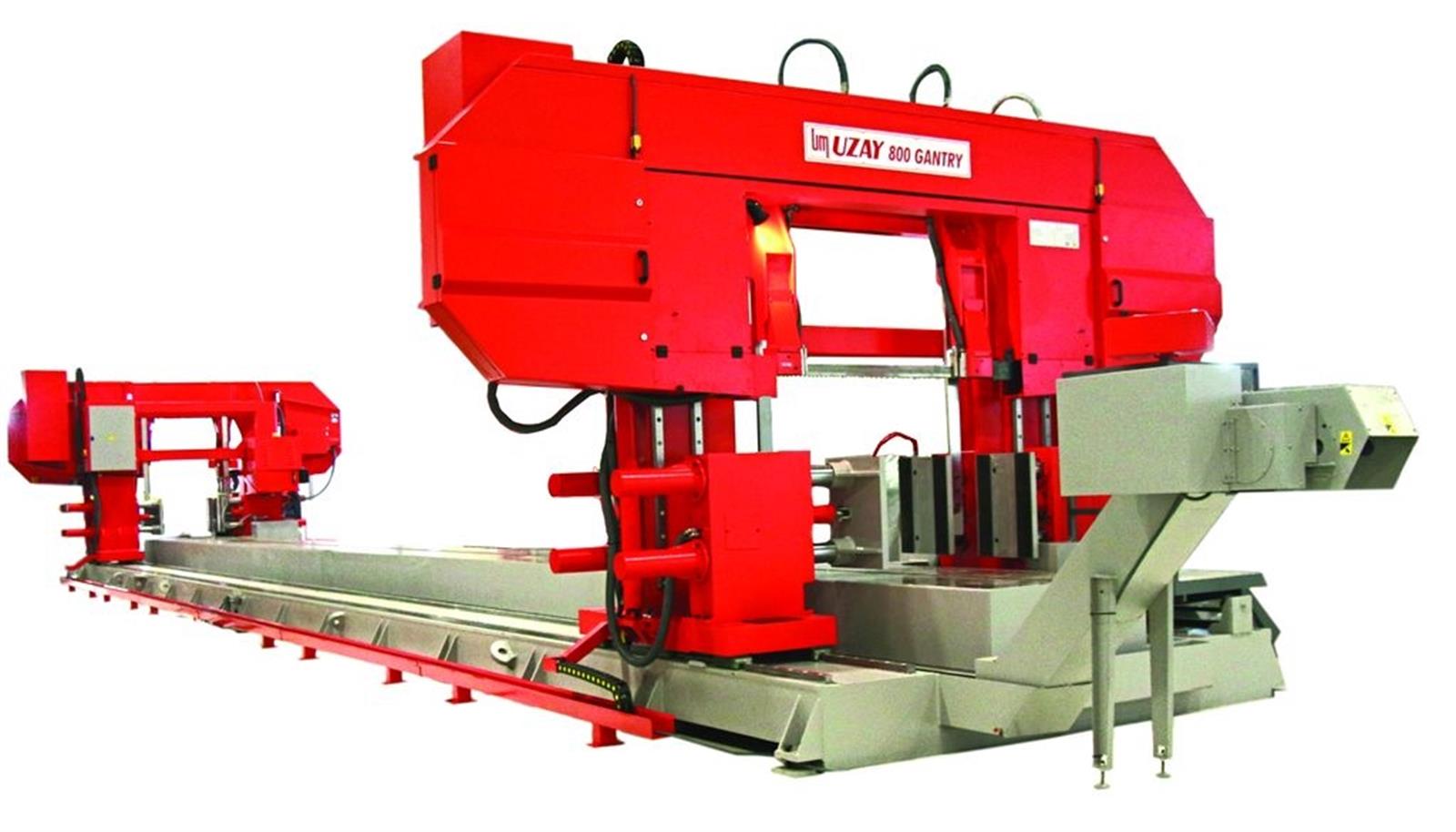

Uzay Makina UMSG 800 GANTRY Gantry Gezer Bandsaws Machine (UMSG 800 GANTRY)

They are models with heavy type floating column and fixed table. In these models, the workpiece is fixed on the table and the upper body moves along the cutting length. It is a model suitable for cutting very heavy workpieces such as billets, casting or forging materials or large materials belonging to steel stock vendors. Large mold manufacturers will be able to save time by using saws instead of milling. It is possible to make both horizontal and vertical cuts by turning the strip beds optionally. The clamps are located on the workbench

90°	RECTANGLE	SQUARE	ROUND
	800×800	800	12
90°	L
	1200



Main Engine	11 kW 1500 rpm
Cooling Engine	0.37 kW 3000 rpm
Hydraulic Motor	2.2 kW + 3 kW 750 rpm
Driver (2 Pieces)	0.55 kW 750 rpm
Chip Conveyor	0.75 kW 1500 rpm
Tape Measure	9800x67x1.6mm
Loading Weight	38500 kg
Feeding Height	640mm
Working Dimensions	21500x5000x3050 mm

• Inverter lane speed control
• Hydraulic double clamp system
• Double sided hydraulic sherry bedding
• coolant pump
• Strip break control with hydraulic pressure switch
• Digital cutting height adjustment
• Hydraulic shear descent speed control
• Linear system body longitudinal slide system
• Linear system body up and down slide system
• Chip conveyor
• Fixed material loading table
• Chip cleaning brush
• lighting sports lamp
• Telescopic linear guide sheet protection system
• laser line cut beacon light
• hydraulic band tensioning
