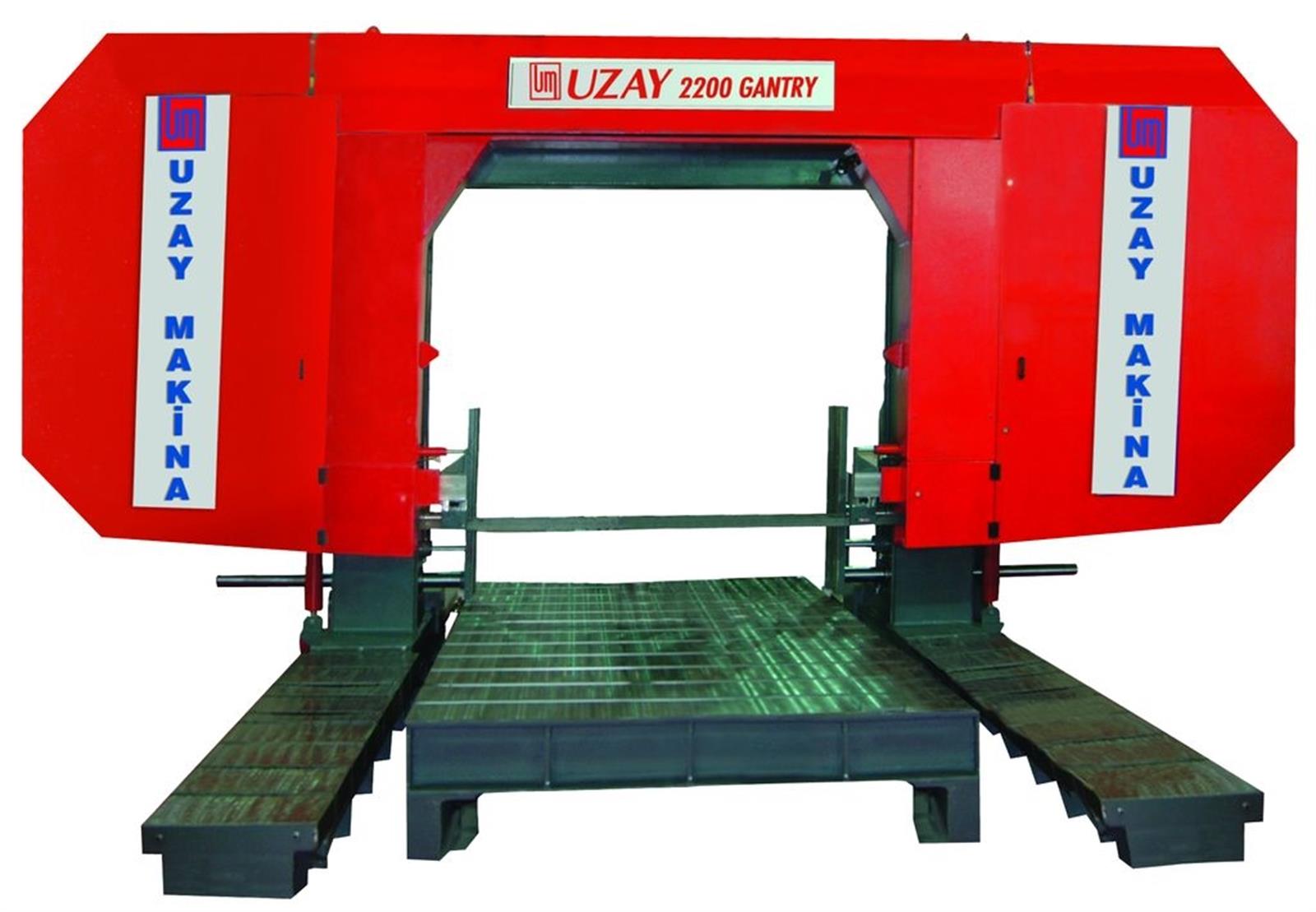

Uzay Makina UMSG 2200xL5000 Gantry Gezer Bandsaws Machine (UMSG 2200xL5000)

They are models with heavy type floating column and fixed table. In these models, the workpiece is fixed on the table and the upper body moves along the cutting length. It is a model suitable for cutting very heavy workpieces such as billets, casting or forging materials or large materials belonging to steel stock vendors. Large mold manufacturers will be able to save time by using saws instead of milling. It is possible to make both horizontal and vertical cuts by turning the strip beds optionally. The clamps are located on the workbench. Thanks to the bridge design, the area occupied by the

90°	RECTANGLE	SQUARE	ROUND
	2200×2200	2200	2200
90°	L
	4000×10000



Main Engine	15 kW 1000 rpm
Hydraulic Motor	4 kW + 1.1 kW 1500 rpm
Drive Motor	0.55 kW 750 rpm (2 Pieces)
Tape Measure	17875x80x1.6 mm
Working Height	615mm
Cooling Engine	0.37 kW 3000 rpm
Chip Conveyor	0.37 kW
Weight	37500 kg
Working Dimensions	8000x7400x6100 mm

• Inverter lane speed control
• Hydraulic double clamp system
• Double sided hydraulic sherry bedding
• coolant pump
• Strip break control with hydraulic pressure switch
• Digital cutting height adjustment
• Hydraulic shear descent speed control
• Linear system body longitudinal slide system
• Linear system body up and down slide system
• Chip conveyor
• Fixed material loading table
• Chip cleaning brush
• lighting sports lamp
• Telescopic linear guide sheet protection system
• laser line cut beacon light
• hydraulic band tensioning
