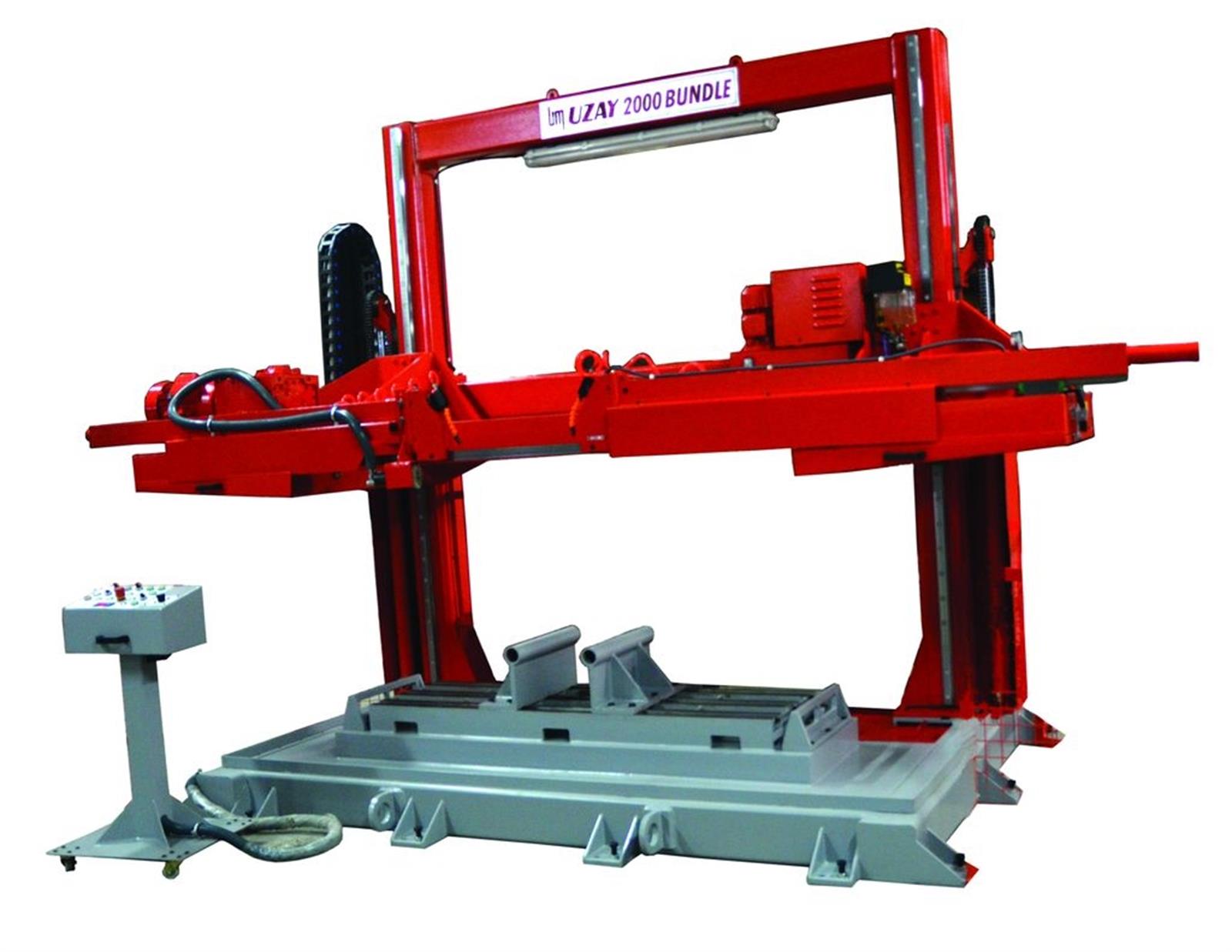

Uzay Makina UMSB 2000 BUNDLE CUT Heat Exchanger Sections Bandsaws Machine (UMSB 2000 BUNDLE CUT)

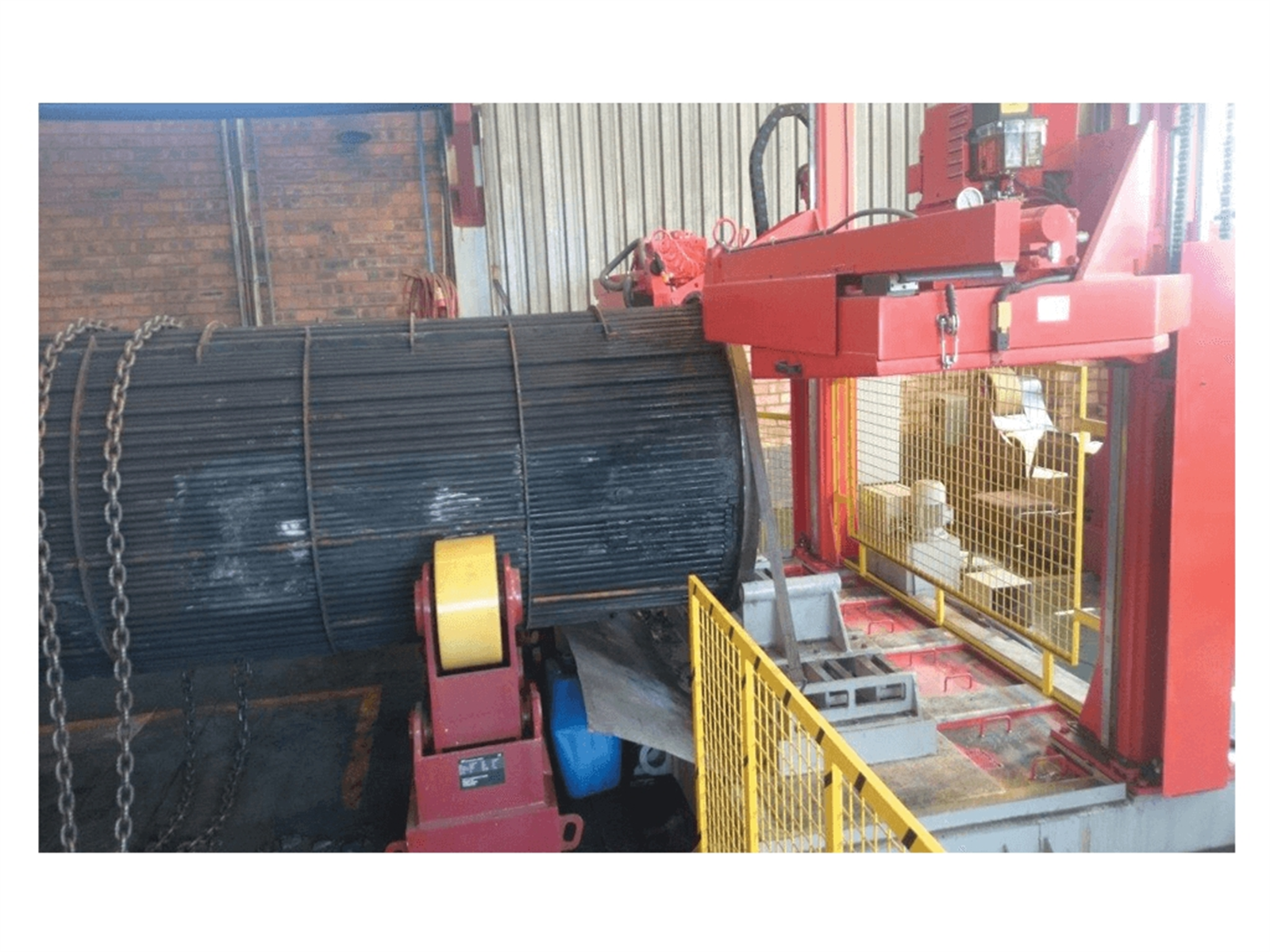

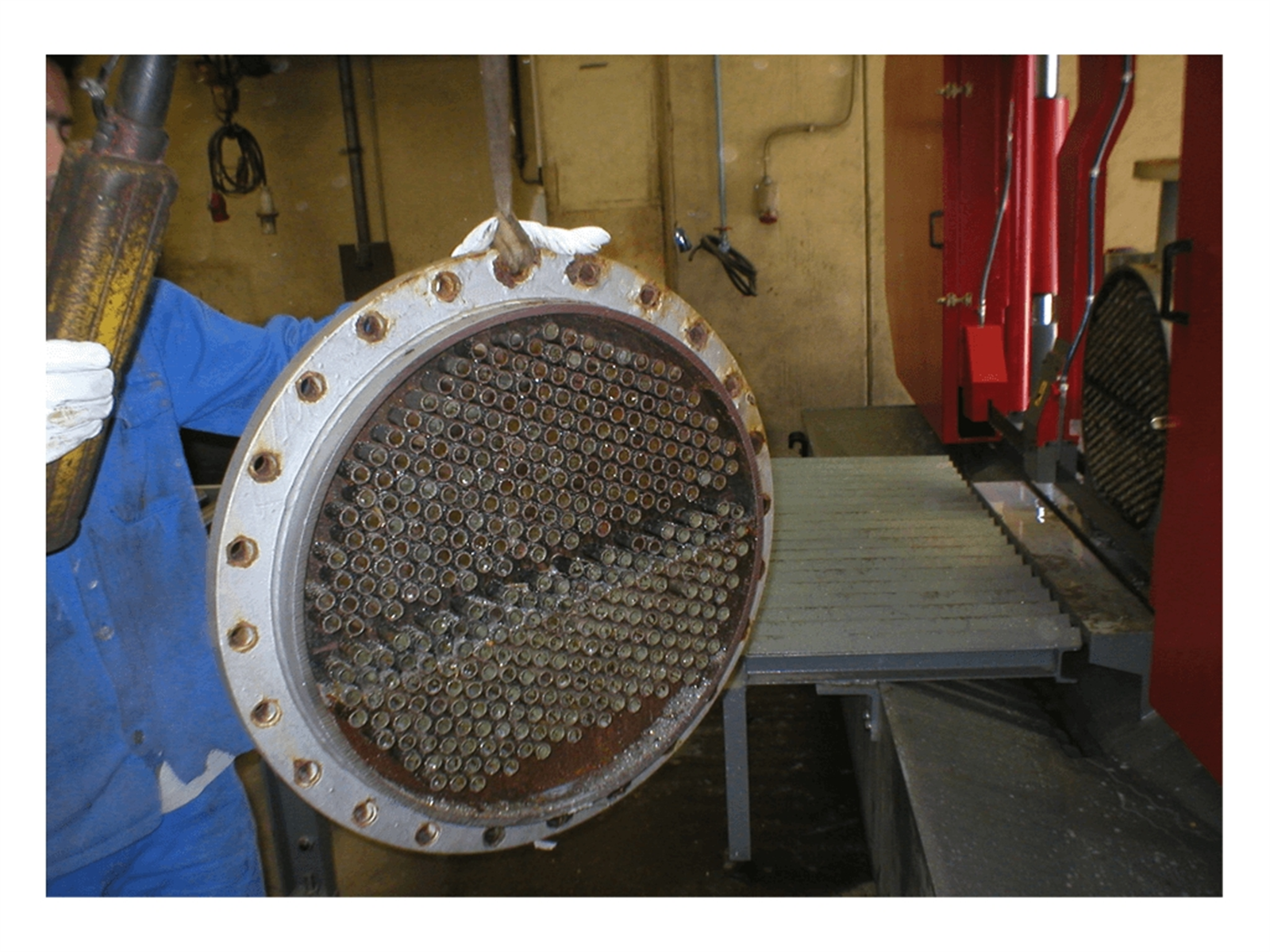

Bundle cut series is a model developed especially for heat exchanger companies. It is an economical and reliable saw bench designed for cutting pipe packages in heat exchangers. Loading and unloading of heat exchangers and preparation for cutting takes a very short time compared to standard benches. We have models up to 3000 mm cutting diameter.

Main Engine	7.5 kW
Hydraulic Motor	1.1 kW
Min.-Max. On-Off	100 - 2050
Tape Measure	8500x41x1.3 mm
Working Height	460mm
Cooling	0.37 kW
Hydraulic Motor 2	1.1 kW
Electrovariator	20 - 100
Weight	5500 kg
Working Dimensions	4850x2130x3200 mm

• Lighting Spotlight
• hydraulic band tensioning
• Band saw speed regulation system with inverter
• coolant pump system
• Minimal lubrication and air cooling system
• Safety system that stops the working mechanism when the lane breaks
• Hydraulic cutting speed control
• Fixed material loading table
• Linear guide system that facilitates working on columns
• Manual vise system adjustable for different diameters
• Hydromotor chip brush
• Hydraulically driven strip bedding system
• Control panel that does not prevent moving operation
• work area protection barrier
• 1 band saw. (Boiled to size and fitted on the machine)
