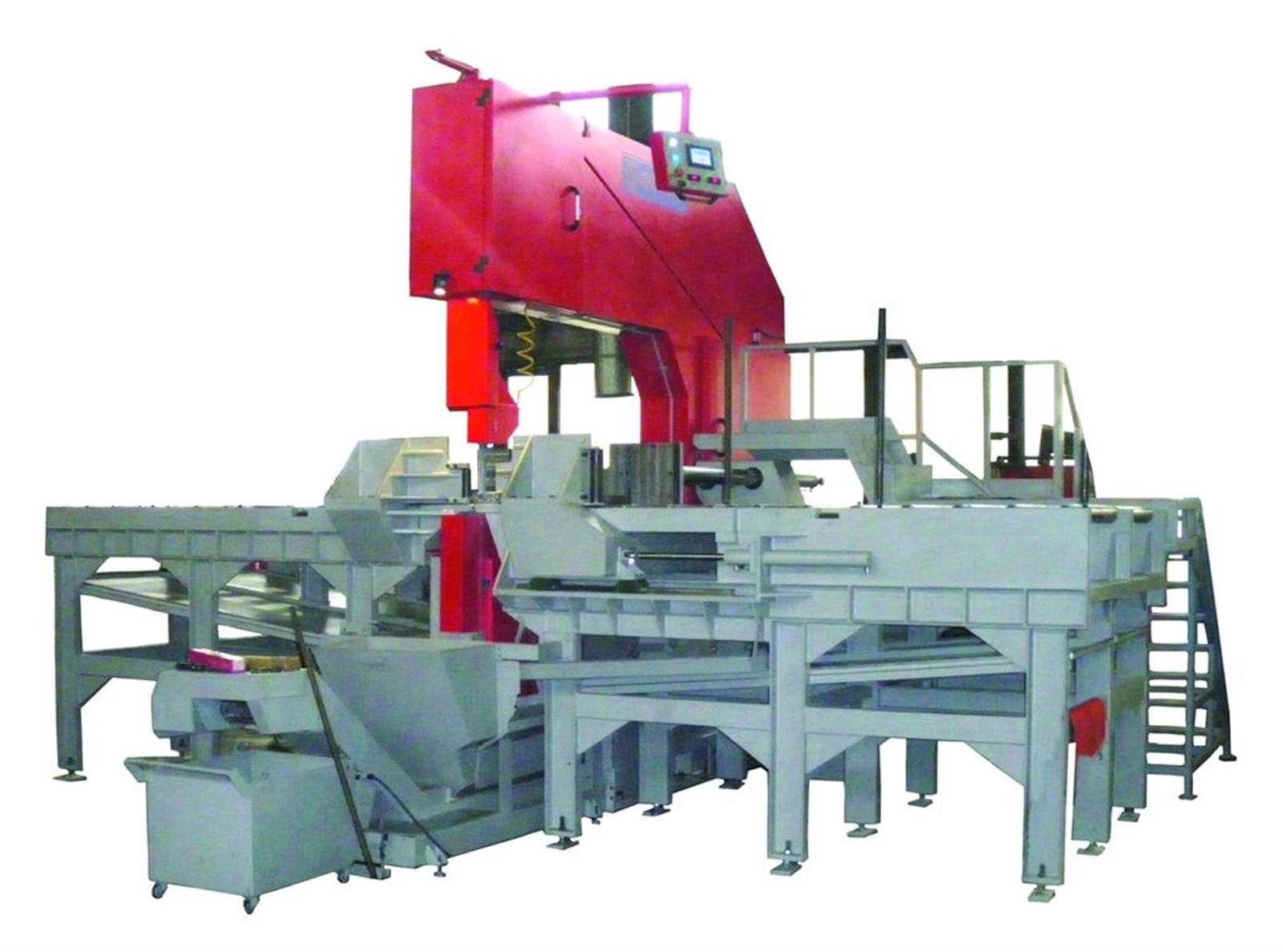

Uzay Makina UMCR 800-2000 Transverse Vertical Cut Bandsaws Machine

Uzay Makina UMCR 800-2000 Transverse Vertical Cut Bandsaws Machine (UMCR 800-2000)

Brand : Uzay Makina

Stock Amount : 0

Est. Delivery Time75 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTurkey

Minimum Order Quantity1 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

UZCR vertical cross-cut models; It is designed for cross cutting of block or plate materials. It is suitable for heavy working conditions and also very precise results can be obtained. Our standard models have a cutting height of up to 700 mm, standard widths are 1200 / 1800 / 2000 / 2500 mm.

90°	RECTANGLE	SQUARE
90°	800×2000	4000×4000

Main Engine	11 kW 1500 rpm
Cooling Engine	0.37 kW 1500 rpm
Hydraulic Motor	0.37 kW + 1.5 kW 1500 rpm
Chip Conveyor	0.37 kW 1500 rpm
Tape Measure	11875x67x1.6 mm
Loading Weight	22000 kg
Feeding Height	1800mm
Working Dimensions	6750x11000x4500 mm

lighting spotlight
Touch color control panel
NC controlled advance system with torque motor
Hydraulic band saw tensioning
Linear system strip guide arm movement
Hydraulic material handling on linear bearings
Hydraulic clamp on material outlet side
Band saw speed regulation system with inverter
laser line cut beacon light
Linear system body longitudinal slide system
Pallet type chip conveyor
Control panel that does not prevent stable operation
coolant pump system
Material length measurement
Material back and forth
Out of material alert
Chip cleaning brush

UMCR 800-2000
