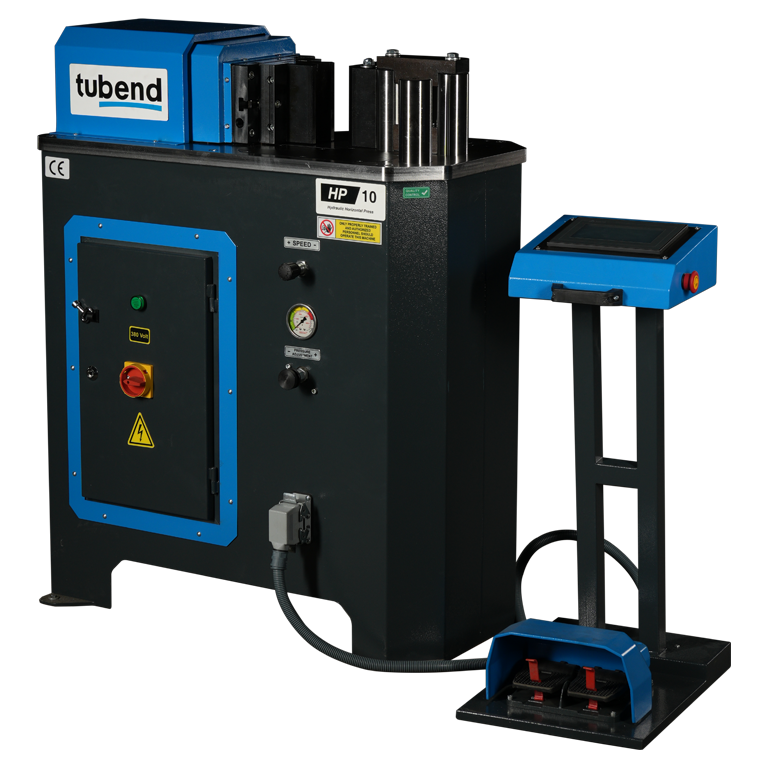

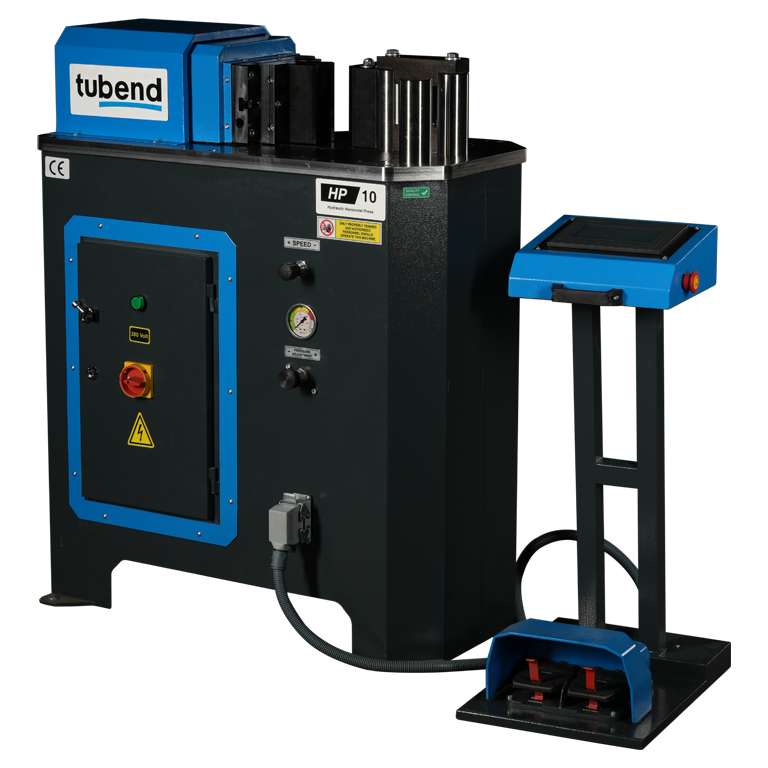

Tubend HP 10 Hydraulic Horizontal Press Machine (HP 10)

Brand : Tubend

Stock Amount : 0

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Est. Delivery Time45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms% 50 O.C, % 50 B.S.

Made In Türkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Delivery TermsEx-Works - Turkiye

Tubend HP-Series Hydraulic Horizontal Press Machines can easily make all operations such as bending, cutting, punching, shaping pipe, square profile, sheet metal with standard or special tools.

Standard Accessories

Ergonomic Tool Clamping Table
Hydraulic Speed and Pressure Adjustment
Easily Adjustable Back Gauge
Induction Hardened Support Pins
NC Control
Easy Tool Change

MODEL	HP 10
Max Pressure At 200 Bars	ton	10
Bending Capacity Flat Material	mm	150×6
Max Stroke	mm	200
Height Of Toolings	mm	150
Working Speed	mm/sec	10
Motor Power	kw	1,1
Net Weight	kg	400
Size Of The Machine (LxWxH)	mm	500 x 900 x 1150
