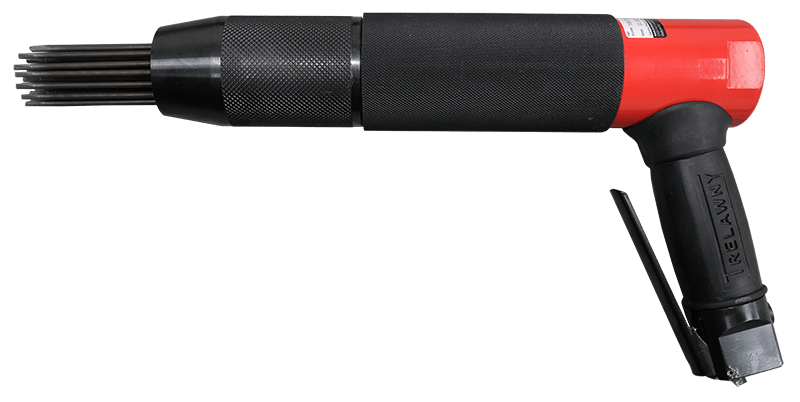

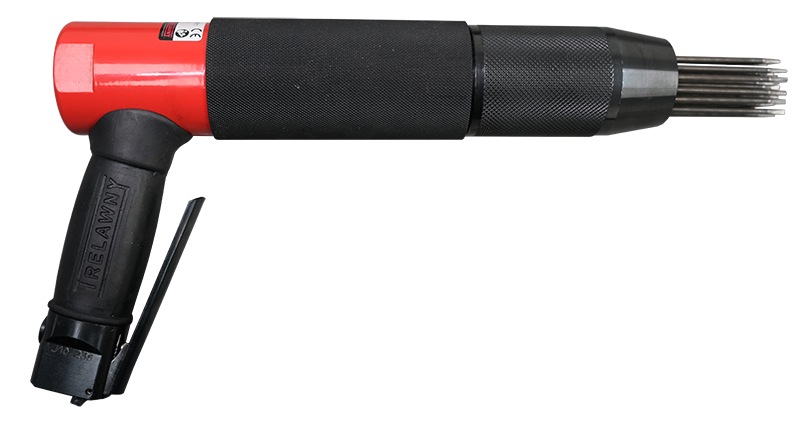

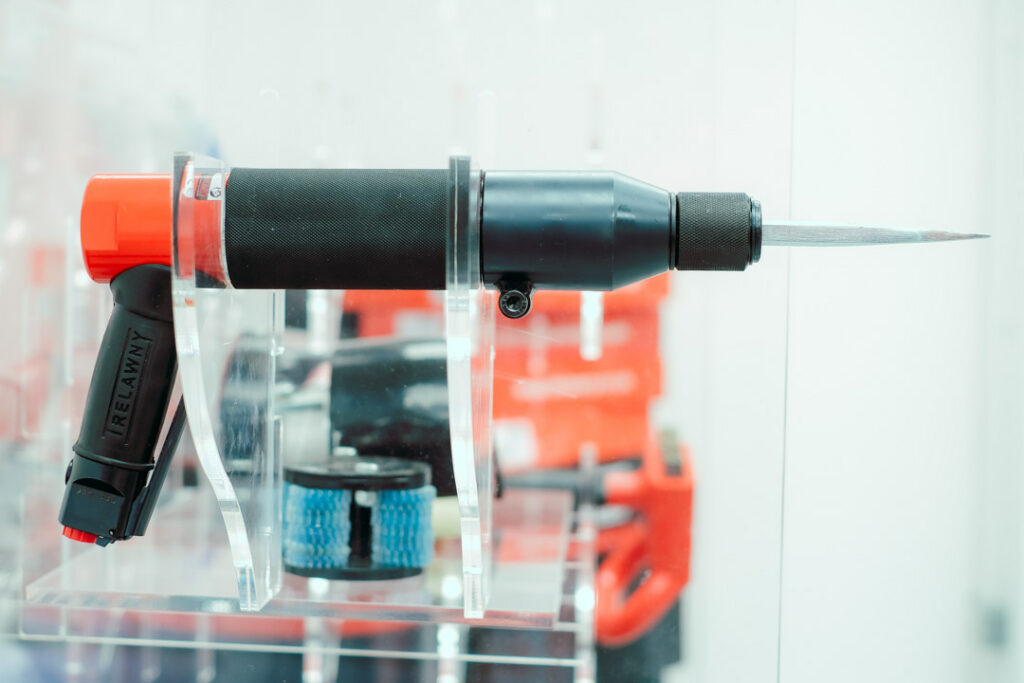

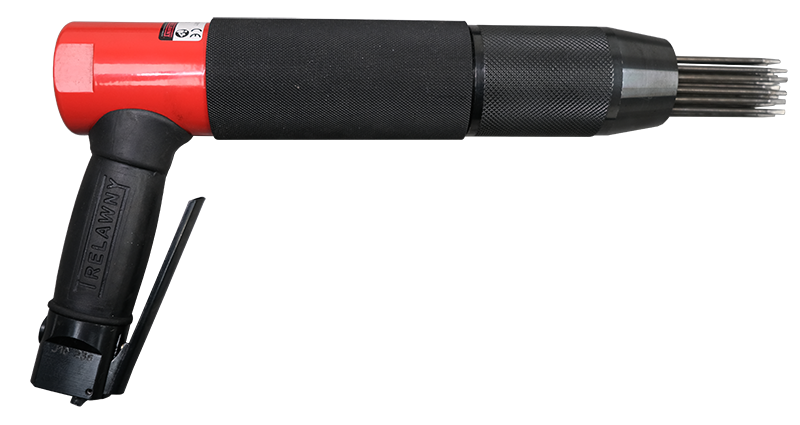

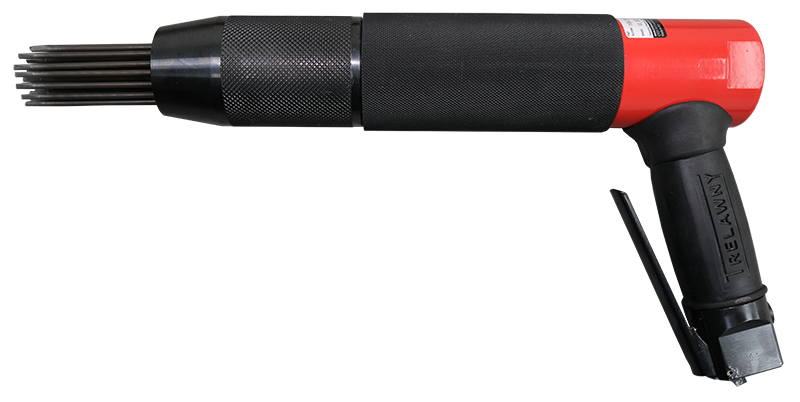

Trelawny VL303 Chisel Scaler Low Vibration Pneumatic Scaler

The Trelawny VL303 heavy duty low vibration needle/chisel scaler is a Pistol Grip tool designed for the most demanding applications. It makes light work of removing heavy coatings and corrosion. Featuring Trelawny’s unique Vibro Lo™ vibration reduction system the VL range offers unrivalled performance, reliability and reduction in levels of harmful vibration. Offered as both needle and chisel models or as a kit with both attachments for multiple applications.

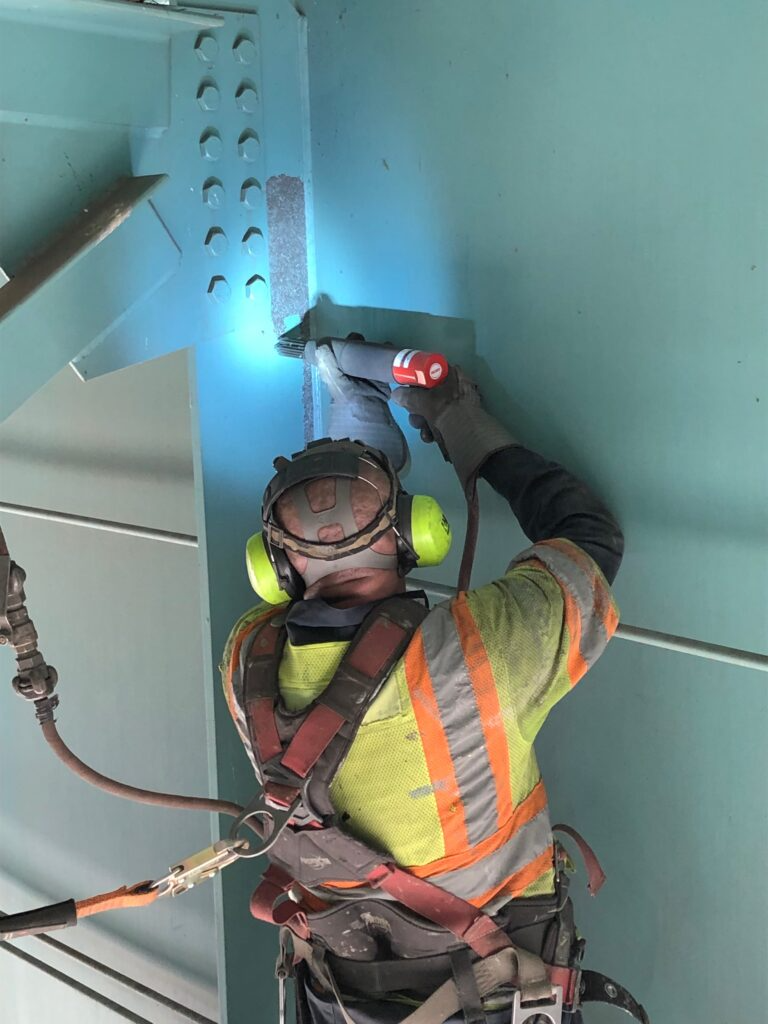

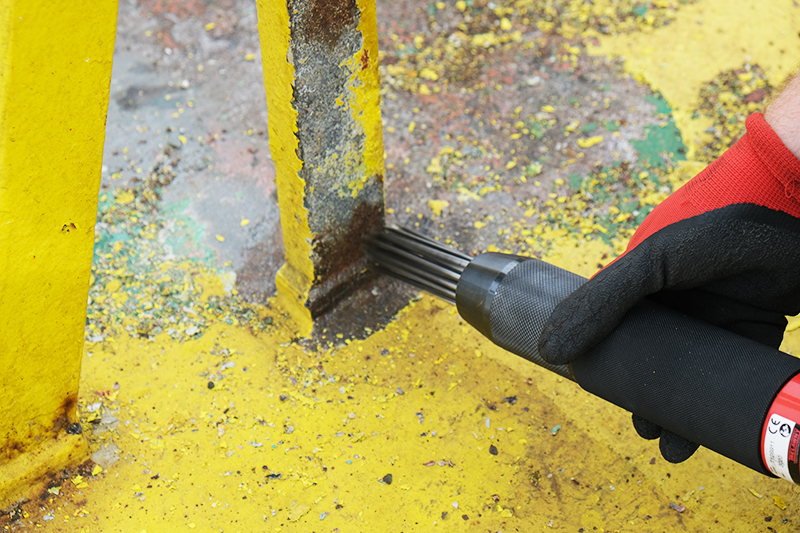

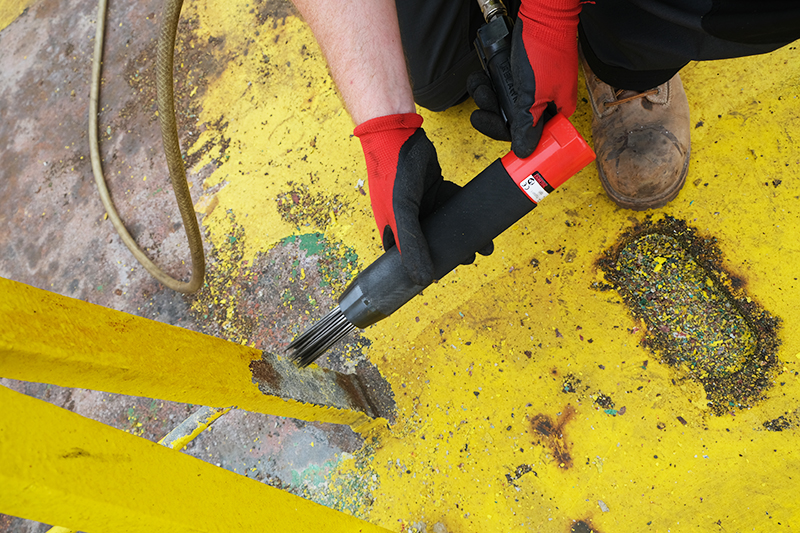

Removal of coatings, corrosion and other accumulated materials
Slag removal and stress relieving welds
Cleaning concrete for repair
Cleaning mixers, formwork and machinery

Heavy duty pistol grip
Unique Vibro-Lo™ vibration reduction system giving levels up to 8 times lower than standard
28 x 3mm needles
Dust shroud attachment available
Requires no additional tools for changing needles/chisels
Quality engineered to exceed industry expectations

Model	VL303 Chisel
Trelawny Part No.	196.3203
Type	Pistol Grip
Needle Quantity	-
Weight (kg)	4.25
Blows per min (BPM)	3000
Air Consumption (lps - cfm)	2.6 - 5.5
Air Inlet Size (BSP)	¼
Overall Length (mm)	400
Noise Level (LwA db(A))	78.2
Vibration Level (Aeq m/s2)	3.7

Model	VL303 Chisel
Trelawny Part No.	196.3203
Type	Pistol Grip
Needle Quantity	–
Weight (kg)	4.25
Blows per min (BPM)	3000
Air Consumption (lps – cfm)	2.6 – 5.5
Air Inlet Size (BSP)	¼
Overall Length (mm)	400
Noise Level (LwA db(A))	78.2
Vibration Level (Aeq m/s2)	3.7

Chisel Tip Needles

These needles will clean the same material as a pointed tip but will leave light surface markings.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	413.2112	3mm	6 x sets of 12 needles	1B
	413.2119	3mm	6 x sets of 19 needles	2B, 2BPG, VL203, VL223
	413.2128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.2110	3mm	Box of 100 needles	All Models
	443.2107	3mm	Box of 1000 needles	All Models

Flat Tip Needles

The flat tip needles will reduce marking on metal surfaces and can actually give a polishing finish.
For use on thin gauge metals and any surface where light treatment is required.
A 2mm needle used on a welding joint produces a similar effect to shot peening, reducing stress in the weld.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	412.1129	2mm	6 x sets of 29 needles	1B
	412.1151	2mm	6 x sets of 51 needles	2B,2BPG,VL203, VL223
	412.1165	2mm	6 x sets of 65 needles	3BPG, VL303, LRS
	452.1110	2mm	Box of 100 needles	All Models
	442.1107	2mm	Box of 2000 needles	All Models
	413.1112	3mm	6 x sets of 12 needles	1B
	413.1119	3mm	6 x sets of 19 needles	2B, 2BPG, VL203, VL223
	413.1128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.1110	3mm	Box of 100 needles	All Models
	443.1107	3mm	Box of 1000 needles	All Models
	414.1119	4mm	6 x setf of 19 needles	3PGS, VL303,LRS
	454.1105	4mm	Box of 50 needles	3PGS, VL303,LRS
	444.1107	4mm	Box of 500 needles	3PGS, VL303,LRS
	443.1105	3mm	1000 needles – 127mm	All Models
	443.1115	3mm	19 needles – 127mm	All Models

Spark Resistant Berryllium Copper

Available in 3mm flat tip only for use in potentially hazardous areas.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	403.1312	3mm	Box of 12 Needles	1B
	403.1319	3mm	Box of 19 Needles	2B, 2BPG, VL203, VL223, EX
	403.1328	3mm	Box of 28 Needles	3BPG, VL303, LRS, EX
	453.1310	3mm	Box of 100 Needles	All Models
	443.1307	3mm	Box of 500 Needles	All Models

Pointed Tip Needles

Sharpened to a conical point, these are the most effective in breaking through very hard scale on materials where some surface indentation is permissible – or where a roughening or keying of the surface is actually desirable

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	413.3112	3mm	6 x sets of 12 needles	1B
	413.3119	3mm	6 x sets of 19 needles	2B,2BPG, VL203, Vl223
	413.3128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.3110	3mm	Box of 100 needles	All Models
	443.3107	3mm	Box of 1000 needles	All Models
	414.3119	4mm	6 x sets of 19 needles	3BPG, VL303, LRS
	454.3105	4mm	Box of 50 needles	All Models
	444.3107	4mm	Box of 500 needles	All Models

Stainless Stain Needles

Available in 3mm flat tip form only, to be used in applications such as refurbishment of food processing machinery or areas of high humidity where the corrosive effect on needles would be prohibitive. Used on decorative concrete surfaces where contamination of the surface from carbon steel needles is undesirable.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	453.1207	3mm	Box of 100 Needles	All Models
	443.1207	3mm	Box of 500 Needles	All Models
