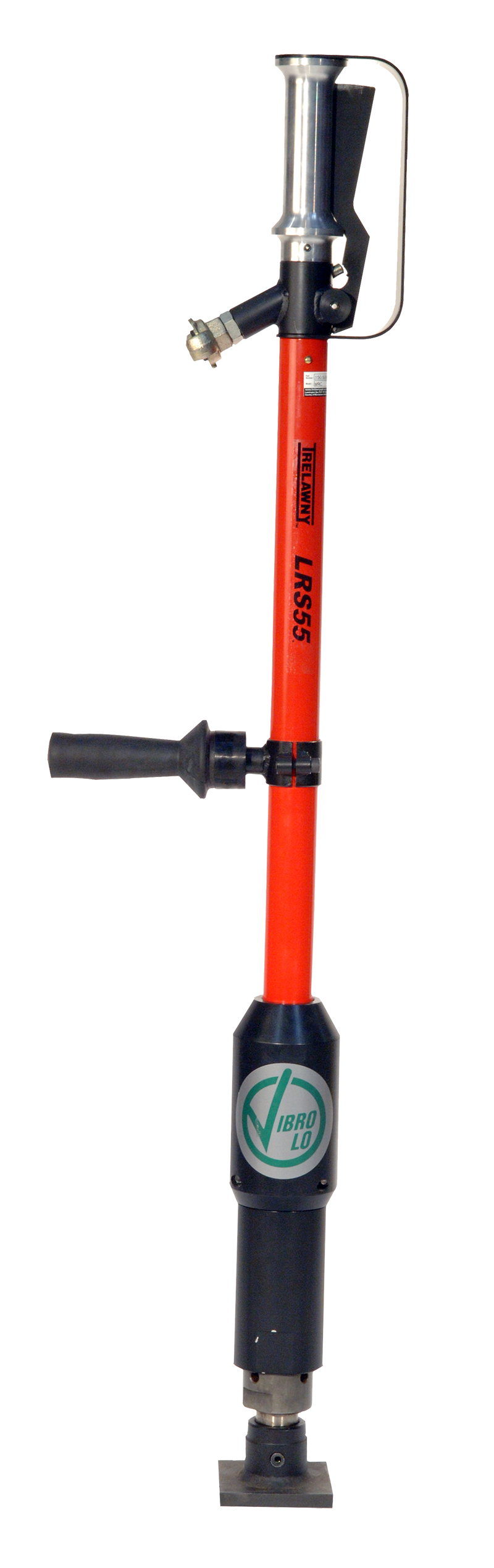

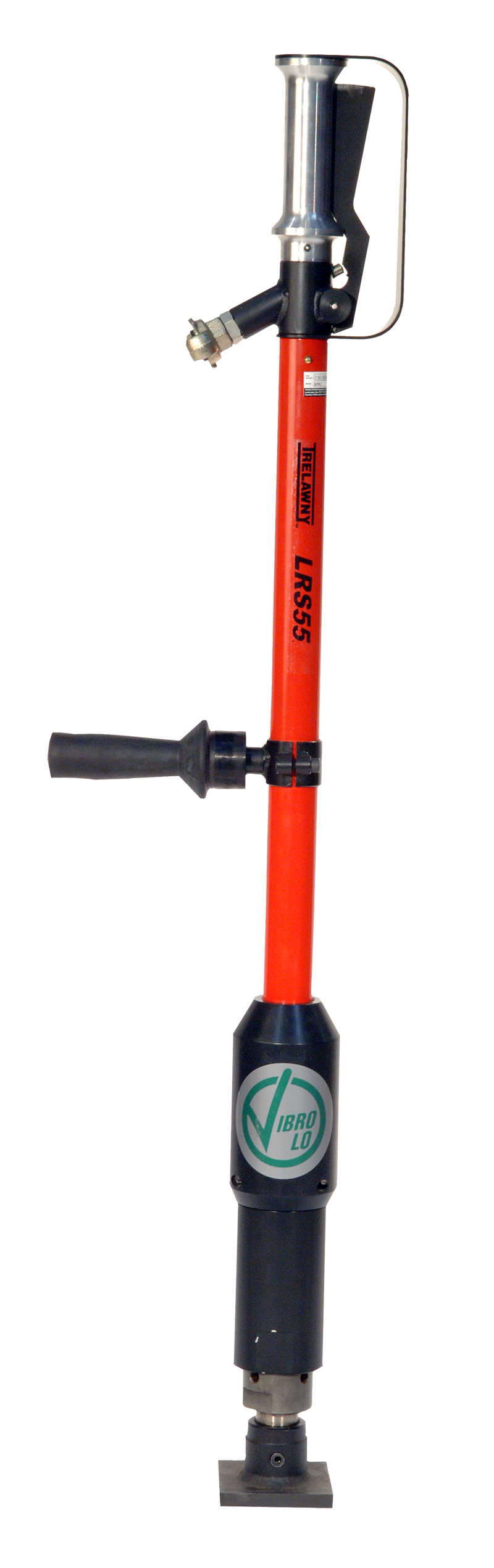

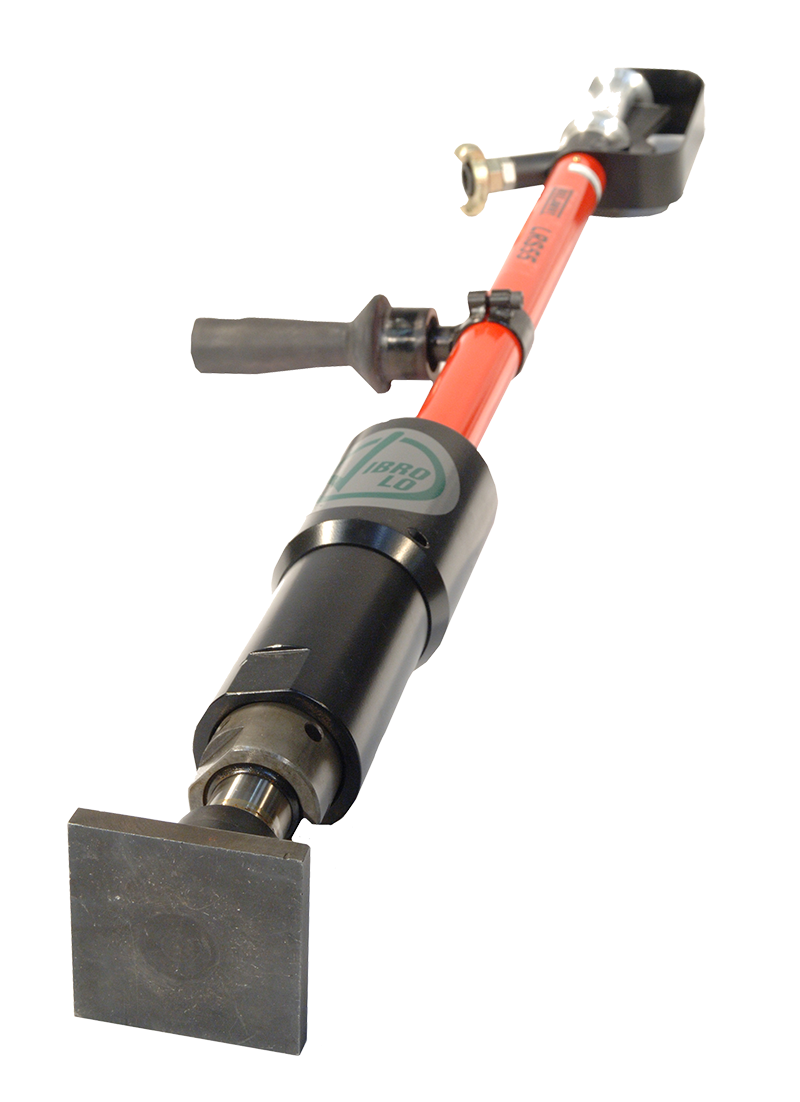

Trelawny VL LRS55 Pneumatic Low Vibration Pole Tamper (LRS55)

The VL LRS55 Pole tamper is a unique tool specifically designed for small area reinstatement tasks. Developed in association with utility companies and conforming with the New Roads and Streets Works Act (UK), it is perfect for water, electric and gas companies. The unique Vibro-Lo™ vibration damping system not only helps to protect the operator from vibration related injury it also ensures maximum control when working in tight, narrow trenches and around delicate utilities.

• Replaceable pin fit compactor feet
• Unique vibration dampening system
• Angled air inlet to direct hose away from operator
• Hand guard to protect operator
• Secondary handle for improved controllability
• Lightweight and compact

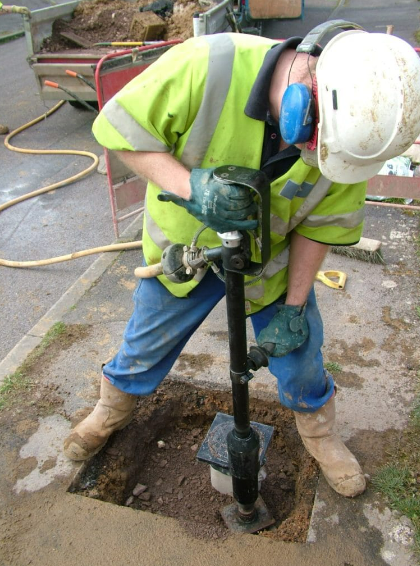

• Small reinstatement around water meters and stopcocks
• Narrow trench work carried out by cable companies
• Compaction of tarmacadam or asphalt
• Compacting close to walls and street fittings Back fill small areas
• HAUC Compliant compacts up to 2.19 tonnes/m3 Suitable for pathways & highway re-instatement

Part Number	150.5331
Weight (kg)	21.5
Length (mm)	1270
Blows Per Min (BPM)	1300
Air Consumption (lps – cfm)	11.6 – 24
Air Pressure	6.2 bar (90 psi)
Air Inlet	(1/2″ BSP Air Inlet)
Vibration level (Aeq m/s2) Primary	3.5
Vibration level (Aeq m/s2) Secondary	2.9
Sound Pressure Level	98.0

Part Number	150.5330
Weight (kg)	21.5
Length (mm)	1270
Blows Per Min (BPM)	1300
Air Consumption (lps – cfm)	11.6 – 24
Air Pressure	6.2 bar (90 psi)
Air Inlet	(1/2″ BSP Air Inlet)
Vibration level (Aeq m/s2) Primary	Compactor: 3.5m/s² (K= -0% + 40%)
Vibration level (Aeq m/s2) Secondary	Compactor: 2.9m/s² (K= -0% +40%)
Sound Pressure Level	98.0db(A)

Part Number	150.5335
Weight (kg)	21.5
Length (mm)	1270
Blows Per Min (BPM)	1300
Air Consumption (lps – cfm)	11.6 – 24
Air Pressure	6.2 bar (90 psi)
Air Inlet	(1/2″ BSP Air Inlet)
Vibration level (Aeq m/s2) Primary	3.5
Vibration level (Aeq m/s2) Secondary	2.9
Sound Pressure Level	98.0

Part Number	150.5430
Weight (kg)	21.5
Length (mm)	1670
Blows Per Min (BPM)	1300
Air Consumption (lps – cfm)	11.6 – 24
Air Pressure	6.2 bar (90 psi)
Air Inlet	(1/2″ BSP Air Inlet)
Vibration level (Aeq m/s2) Primary	3.5
Vibration level (Aeq m/s2) Secondary	2.9
Sound Pressure Level	98.0

Image	Part Number	Description
	450.5017	Round Foot Compactor – 127 mm (5” Round)   Pin fit
	450.5011	Square Foot Compactor – 100 x 100mm (4” x 4”)   Pin fit
	450.5013	Compactor Foot – 152 x 127mm   (6” x 5”) Pin fit
	450.5016	Compactor Foot – 100 x 200mm   (4” x 8”) Pin fit
	446.5000	VL LRS55 Service Kit   Consists of: – Valve Spring, Valve Seat O’Ring, Throttle Lever Roll Pin, Thrust Ring, Circlip, Spring, (1each) – Piston O’Ring, Wiper Seal, Valve Stem O’Ring, Piston Roll Pin (1 each) – Locking Pin, Centre Bar O’Ring (2 each)

Image	Part Number	Description
	815.5550	Whip Check
	859.1580	¾’’ BSP Inline Lubricator
	458.1580	Whip Hose & Oiler Assembly   Consists of whip hose, whip check and ¾’’ lubricator
	843.0752	¾’’ Air Hose   Complete with couplings 15m length
