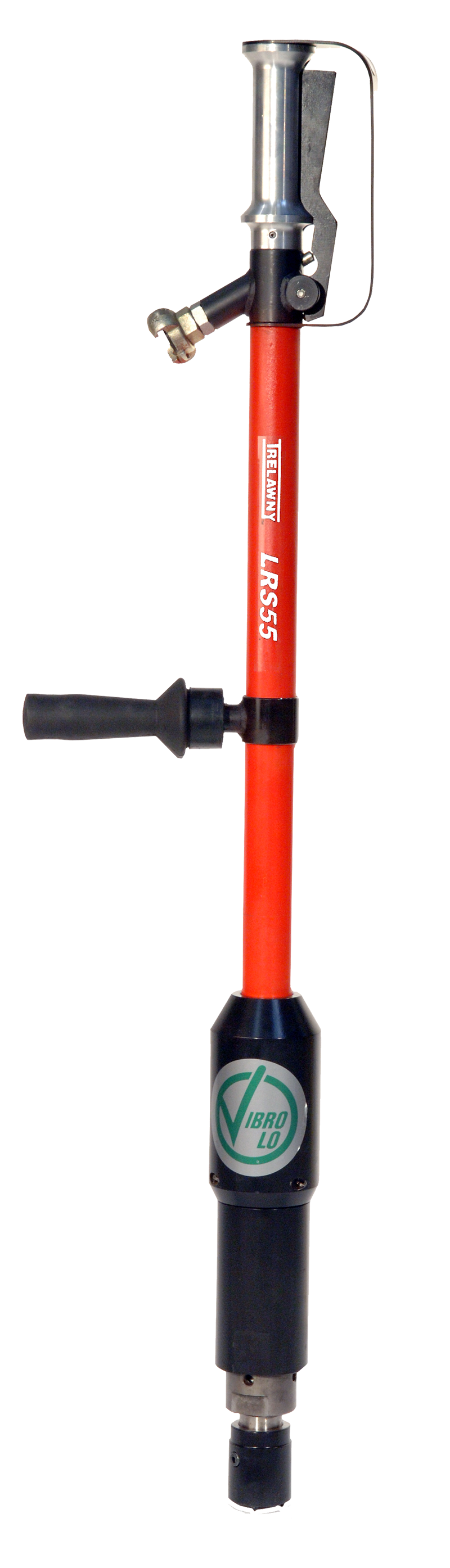

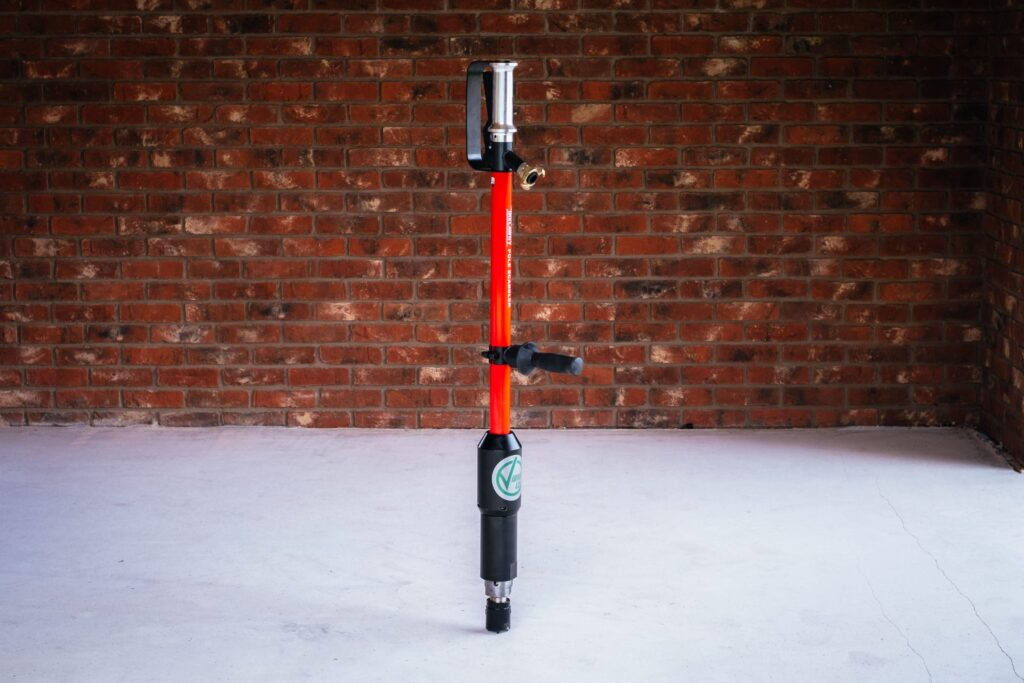

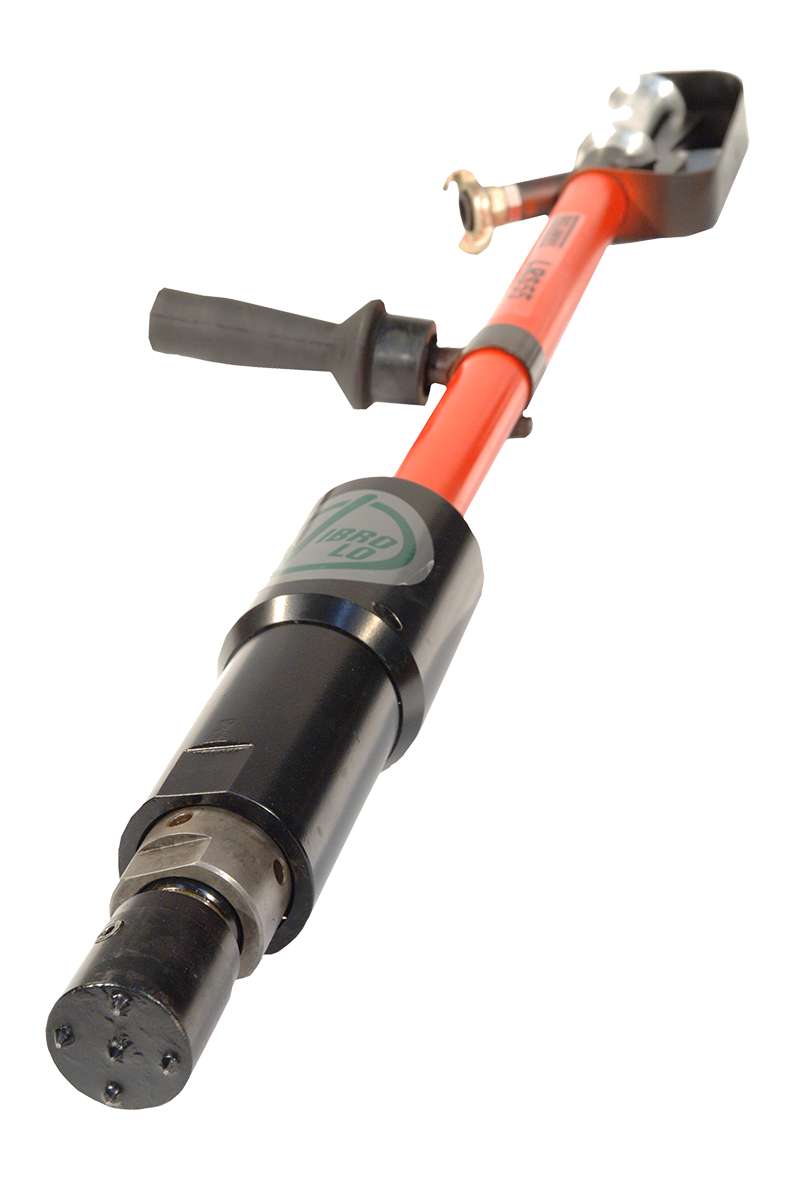

The VL LRS55 is a powerful long reach scabbler for vertically preparing hard to reach areas. At 1.4 metres in length it allows scabbling below the reinforcement bar. The powerful blow quickly removes concrete without damaging the underlying substrate. Vibro-Lo™ low vibration system fitted as standard, helping to reduce risks to operators of vibration related injuries.

Replaceable pin fit carbide tipped scabbling heads
Long handle for extended reach into inaccessible areas
Angled air inlet to direct hose away from operator
Hand guard to protect operator

Heavy scabbling of hard to access areas such as below re-inforcement bars and between shuttering
Scabbling of corners, edges and joints
Fast removal of material
Aggressive keying without damaging the substrate

Part Number	150.5320
Weight (kg)	21.5
Length (mm)	1270
Blows Per Min (BPM)	1300
Air Consumption (lps – cfm)	11.6 – 24.6
Air Pressure	6.2 bar (90 psi)
Air Inlet	(1/2″ BSP Air Inlet)
Vibration level (Aeq m/s2) Primary	4.2m/s² (K= -0% + 40%)
Vibration level (Aeq m/s2) Secondary	3.9m/s² (K= -0% +40%)
Sound Pressure Level	98

Part Number	150.5321
Weight (kg)	21.5
Length (mm)	1270
Blows Per Min (BPM)	1300
Air Consumption (lps – cfm)	11.6 – 24.6
Air Pressure	6.2 bar (90 psi)
Air Inlet	(1/2″ BSP Air Inlet)
Vibration level (Aeq m/s2) Primary	4.2m/s² (K= -0% + 40%)
Vibration level (Aeq m/s2) Secondary	3.9m/s² (K= -0% +40%)
Sound Pressure Level	98.0

Image	Part Number	Description
	441.5359	Scabbler Head 5 Point Bush Pin fit – including pin Rough pitted profile, ideal for application of fresh concrete or coatings
	441.5369	Scabbler Head 9 Point Bush Pin fit – including pin Rough pitted profile, ideal for application of fresh concrete or coatings
	441.5360	Scabbler Head Cruciform Pin fit – including pin Flatter surface profile, ideal for fast reduction of material
	446.5000	VL LRS55 Service Kit Consists of: – Valve Spring, Valve Seat O’Ring, Throttle Lever Roll Pin, Thrust Ring, Circlip, Spring, (1each) – Piston O’Ring, Wiper Seal, Valve Stem O’Ring, Piston Roll Pin (1 each) – Locking Pin, Centre Bar O’Ring (2 each)

Image	Part Number	Description
	815.5550	Whip Check
	859.1580	¾’’ BSP Inline Lubricator
	458.1580	Whip Hose & Oiler Assembly Consists of whip hose, whip check and ¾’’ lubricator
	843.0752	¾’’ Air Hose Complete with couplings 15m length
