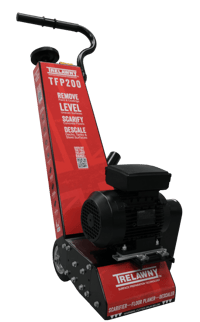

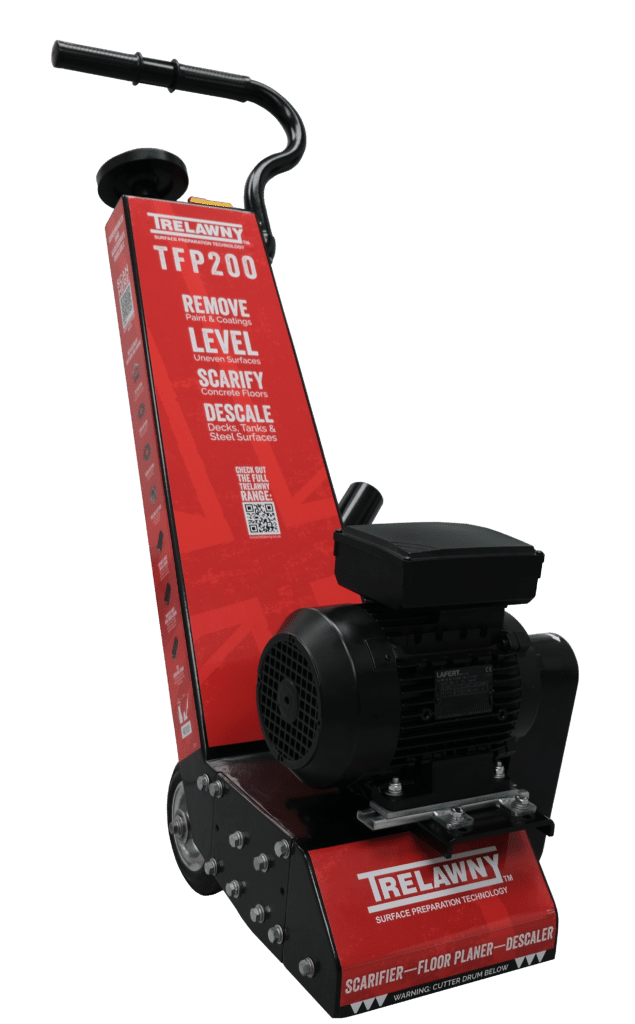

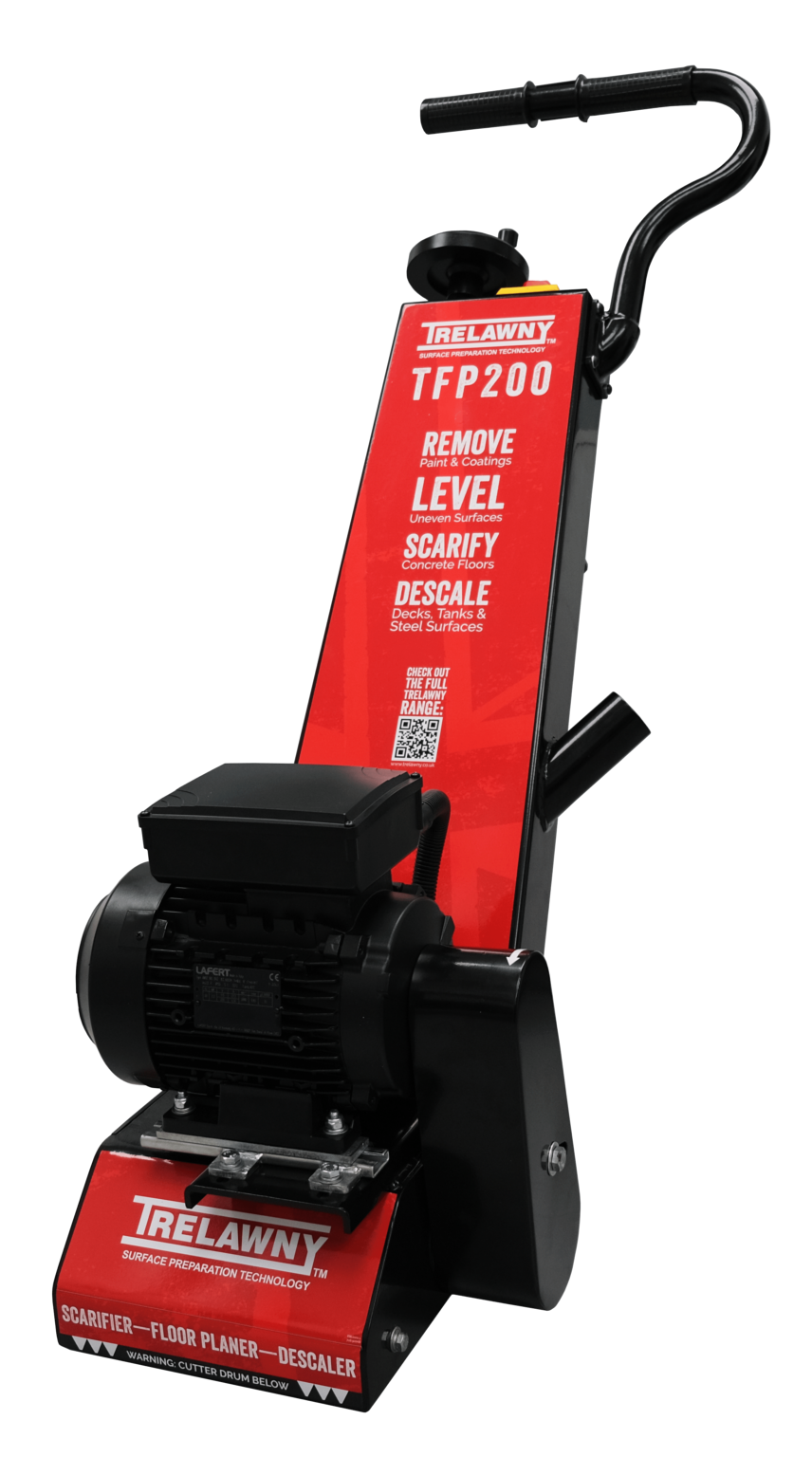

Trelawny TFP200 200MM Floor Scarifier Petrol, Electric & Pneumatic Power Options TFP 200 Air TCT

The smallest in the TFP range of scarifiers, the TFP200 is perfect for small to medium jobs. The rigid steel chassis ensures a strong, stable machine suitable for accurate surface preparation of concrete and steel surfaces, removing coatings, levelling and texturing. The TFP200 has undergone a number of changes recently, as part of Trelawny's continual product improvement program. The changes include a new rear-mounted starter box enclosure and plug location, offering greater protection from accidental damage and improved safety to this area of the machine. A new handle-mounted push-button system with an isolation safety switch makes starting and operating the machines even easier than before. A fresh new look and colour scheme has also been introduced with a heavy-duty vinyl wrap system, allowing Trelawny to offer bespoke branded machines to OEM customers & hire companies wanting their own branding on their machines. Retaining all the power, performance and quality customers have come to expect from TFP range.

• Suitable when manoeuvrability is important
• Removal of hard coatings
• Levelling and removing layers of hard materials such as concrete
• Removing painted lines
• Grooving and texturing concrete
• Removal of coatings and scale from steel surfaces

• 200mm cutting width
• Easy to use, maintain and manoeuvre
• Rear mounted electrical switchgear utilizing vibration resistant components
• Precise screw type cutter height adjustment for accurate removal and milling

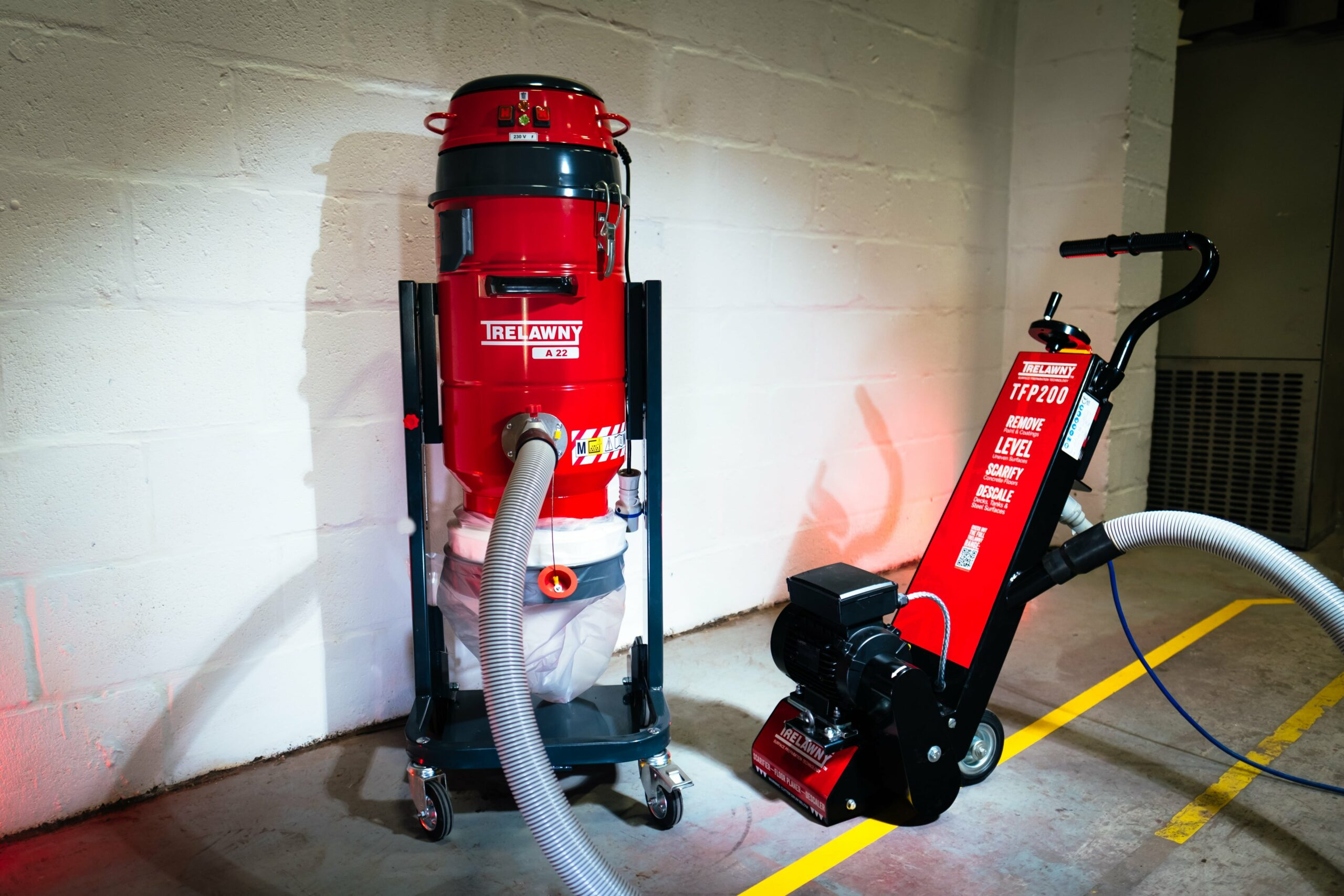

• Angled dust port allows connection of industrial dust collector, giving virtually dust free performance

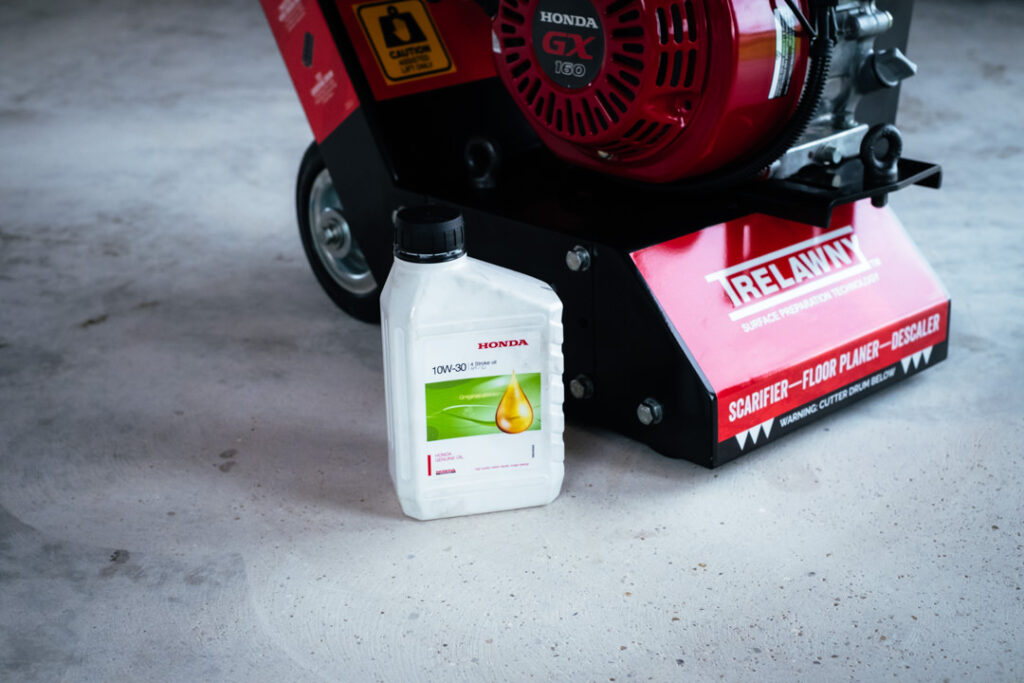

• Choice of electric, petrol and pneumatic power sources for operation in a wide range of applications

Model	TFP200 Air TCT
Part Number	320.2412T
Weight (Kg)	62
Power (HP-kW)	3.5 - 2.6
Voltage (v)	-
Cycle (h2)	-
Cutter Speed (RPM)	1528
Plug Size	-
Transformer Size	-
Recommended Cable Size  (CSA)	-
Recommended Cable Length	-
Engine Type	-
Air Consumption	78lps-165cfm
Vibration Level (Aeq m/s2)	4.Nis

Working Width  (mm)	200
Length  (mm)	900
Width  (mm)	350
Height  (mm)	900
Maximum Cutting Depth (mm)	3
Working Distance from Wall (mm)	55
Vacuum Take Off Diameter (mm)	50

Part Number	320.2412T
Height (mm)	900
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1528
Working distance from wall	55mm
Weight (Dependent on power unit)	62
Power (HP- kW)	3.5 – 2.6
Vibration Levels	4.4
Air Consumption (lps – cfm)	78 -165
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

Image	Part Number	Description	Further Information
	Trelawny: 320.002H IMPA: 59.22.49 ISSA: 55.096.16	Heavy Duty Drum Complete with 12mm shafts	Fitted as standard on all TFP200 machines
	Trelawny: 320.0020 IMPA: 59.22.49 ISSA: 55.096.18	Cutter Shafts 12mm Diameter	4 pieces required per drum
	Trelawny: 320.5500 IMPA: 59.22.41 ISSA: 55.096.10	Tungsten Carbide Tipped Cutters 5 tips	80 pieces required per drum
	Trelawny: 320.7006	Tungsten Carbide Tipped Cutters 6 tips	80 pieces required per drum
	Trelawny: 320.3658 IMPA: 59.22.42 ISSA: 55.096.11	Star Cutters	208 pieces required per drum
	Trelawny: 320.5120 IMPA: 59.22.43 ISSA: 55.096.12	Beam Cutters	264 pieces required per drum
	Trelawny: 320.4140	Spacers Used to create a gap in between TCT cutters	88 pieces required per drum – TCT
	Trelawny: 320.9622	Twisted Knot Wire Brush Refill	21 pieces required per drum
	Trelawny: 320.9612	Crimped Wire Brush Refill	14 Pieces required per drum
	Trelawny: 320.1020ST	Drum Assembly TCT Cutters	Consists of drum, 4 12mm shafts, 80 TCT cutters & 88 spacers
	Trelawny: 320.1020SS	Drum Assembly Star Cutters	Consists of drum, 4 12mm shafts, 80 TCT cutters & 88 spacers
	Trelawny: 320.1020SB	Drum Assembly Beam Cutters	Consists of drum, 4 12mm shafts & 208 star cutters
	Trelawny: 320.9620 IMPA: 59.22.45 ISSA: 55.096.13	Drum Assembly Twisted Knot Wire Brush	Consists of drum & 21 twisted wire brush segments
	Trelawny: 320.9610 IMPA: 59.22.44 ISSA: 55.096.14	Drum Assembly Crimped Wire Brush	Consists of drum & 14 crimped wire brush segments

Image	Part Number	>Description
	Trelawny: 669.3121   IMPA: N/A ISSA: N/A	110v Power Cable   20m length
	Trelawny: 669.3122   IMPA: N/A ISSA: N/A	230v Power Cable   20m length
	Trelawny: 669.3124   IMPA: N/A ISSA: N/A	440v Power Cable   20m length
	Trelawny: 843.0752   IMPA: N/A ISSA: N/A	¾’’ air hose   Complete with couplings 15m length
