Trelawny TFP200 200MM Floor Scarifier Petrol, Electric & Pneumatic Power Options TVF200 Petrol

Trelawny TFP200 200MM Floor Scarifier Petrol, Electric & Pneumatic Power Options TFP 200 230V TCT (TFP 200 230V TCT)

Brand : Trelawny

Stock Amount : 0

Delivery Time Ready In Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In United Kingdom

Min. Order Qty.1 Pcs.

Warranty1 year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

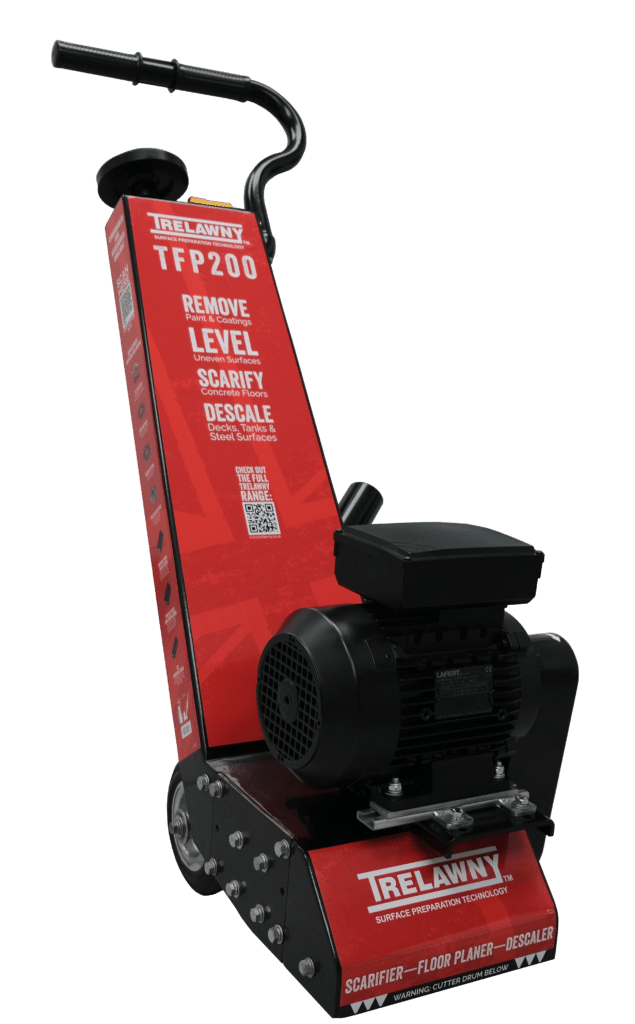

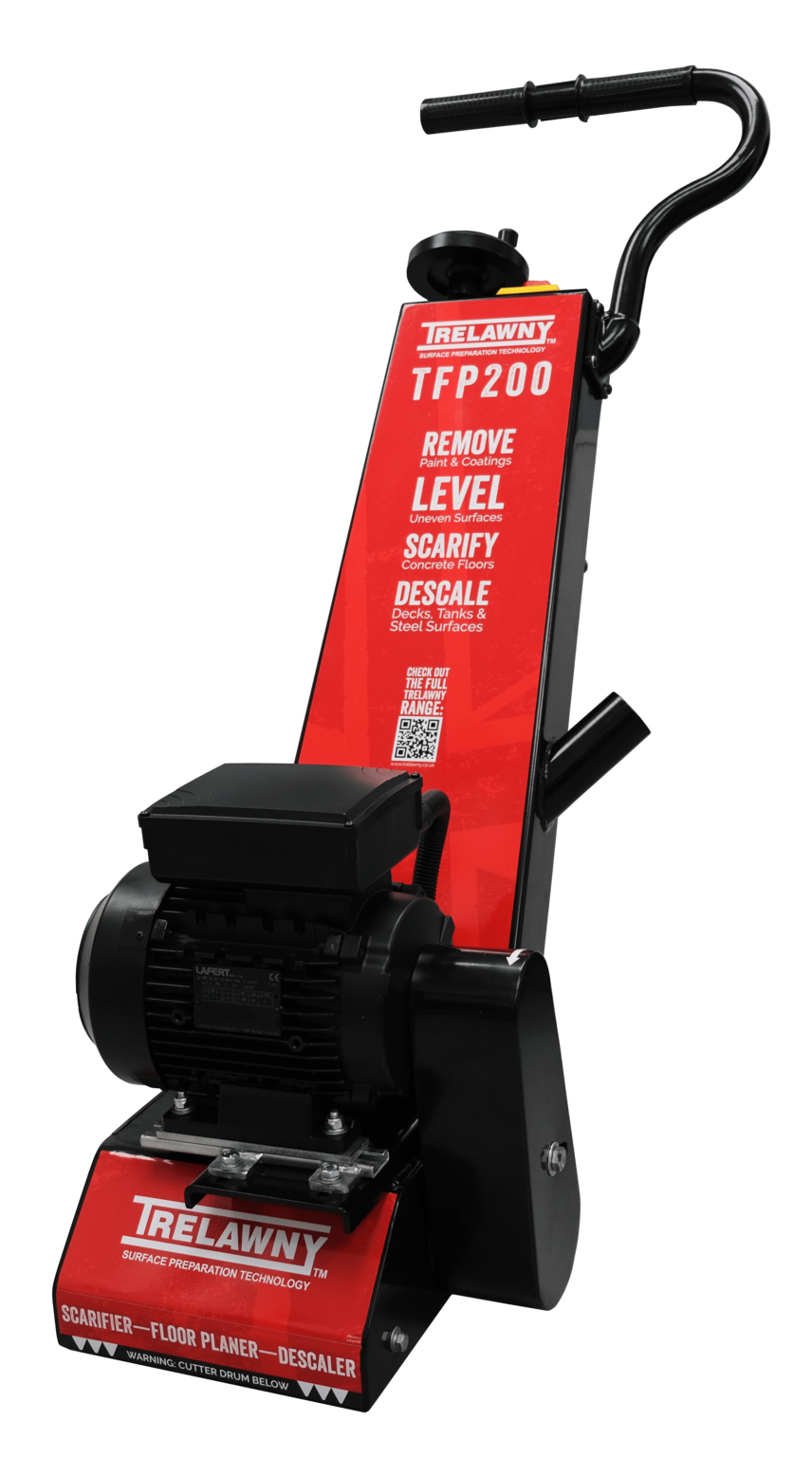

The smallest in the TFP range of scarifiers, the TFP200 is perfect for small to medium jobs. The rigid steel chassis ensures a strong, stable machine suitable for accurate surface preparation of concrete and steel surfaces, removing coatings, levelling and texturing. The TFP200 has undergone a number of changes recently, as part of Trelawny's continual product improvement program. The changes include a new rear-mounted starter box enclosure and plug location, offering greater protection from accidental damage and improved safety to this area of the machine. A new handle-mounted push-button system with an isolation safety switch makes starting and operating the machines even easier than before. A fresh new look and colour scheme has also been introduced with a heavy-duty vinyl wrap system, allowing Trelawny to offer bespoke branded machines to OEM customers & hire companies wanting their own branding on their machines. Retaining all the power, performance and quality customers have come to expect from TFP range.

Suitable when manoeuvrability is important
Removal of hard coatings
Levelling and removing layers of hard materials such as concrete
Removing painted lines
Grooving and texturing concrete
Removal of coatings and scale from steel surfaces

200mm cutting width
Easy to use, maintain and manoeuvre
Rear mounted electrical switchgear utilizing vibration resistant components
Precise screw type cutter height adjustment for accurate removal and milling

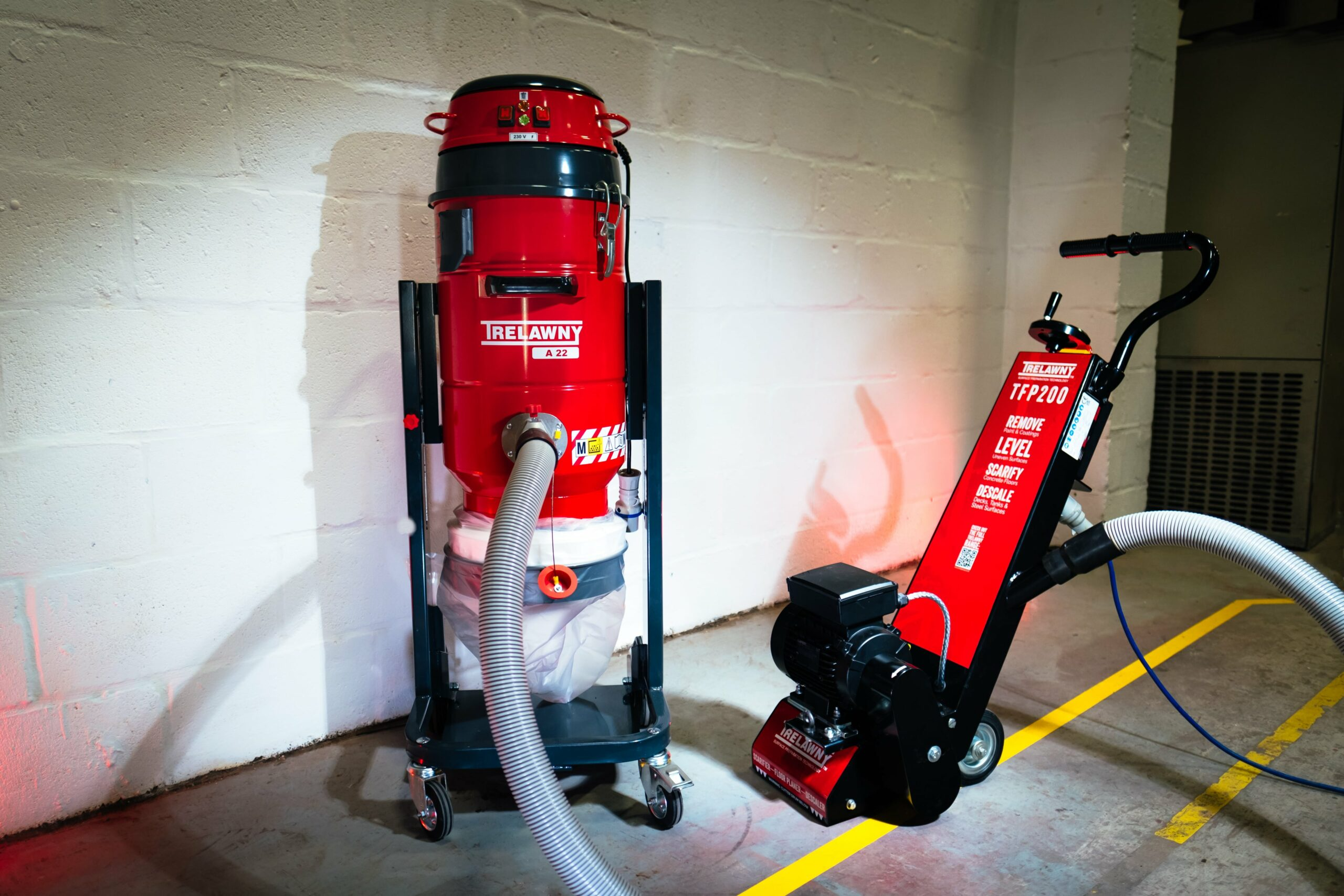

Angled dust port allows connection of industrial dust collector, giving virtually dust free performance

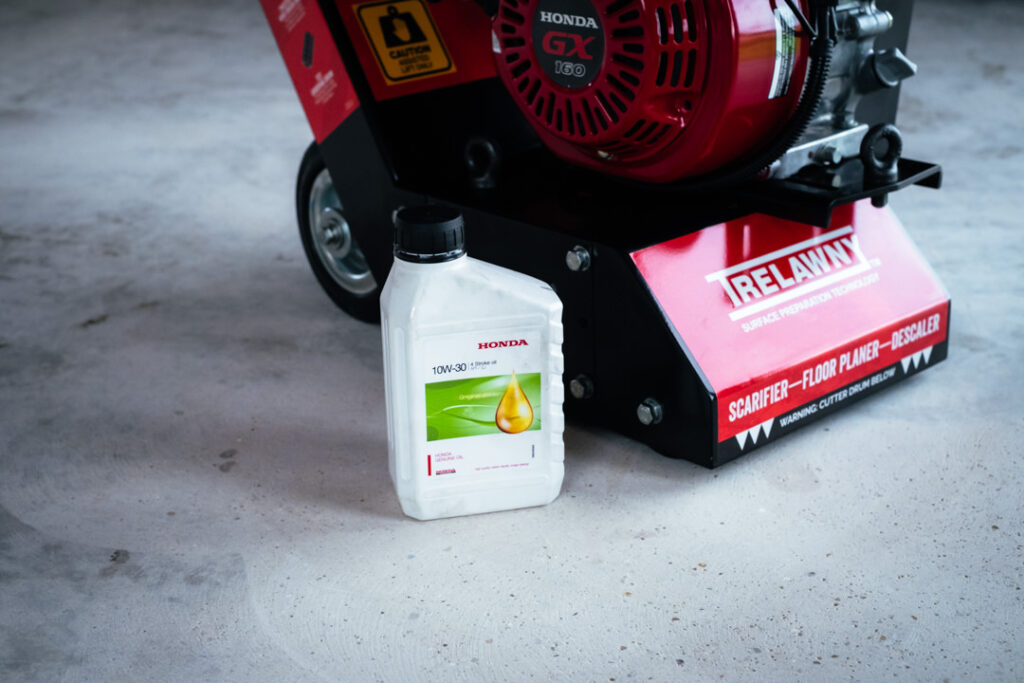

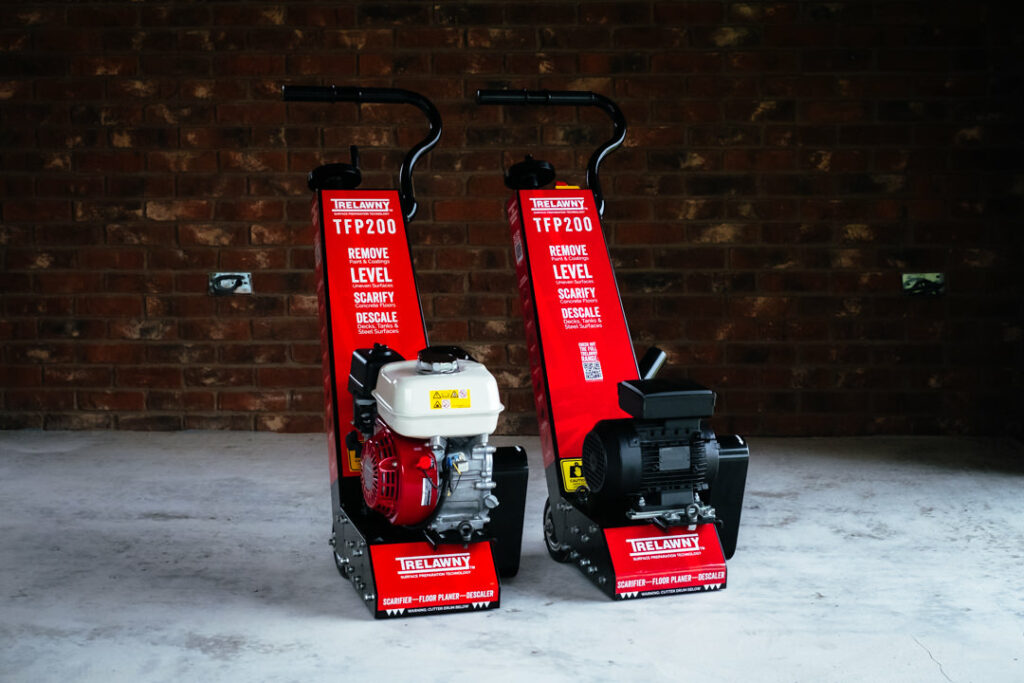

Choice of electric, petrol and pneumatic power sources for operation in a wide range of applications

Model	TFP200 230v TCT
Part Number	320.2404T
Weight (Kg)	71
Power (HP-kW)	3.02.2002
Voltage (v)	230
Cycle (h2)	50 / 60
Cutter Speed (RPM)	1650
Plug Size	16Amp
Transformer Size	-
Recommended Cable Size (CSA)	4mm
Recommended Cable Length	40m
Engine Type	-
Air Consumption	-
Vibration Level (Aeq m/s2)	4.Nis

Working Width (mm)	200
Length (mm)	900
Width (mm)	350
Height (mm)	900
Maximum Cutting Depth (mm)	3
Working Distance from Wall (mm)	55
Vacuum Take Off Diameter (mm)	50

Part Number	320.2404T
Height (mm)	900mm
Width	350
Length (mm)	900
Cutting width (Dependent on Cutters) (mm)	195
Cutter head speed	1650
Working distance from wall	55mm
Weight (Dependent on power unit)	71
Voltage (V)	230
Cycle (Hz)	50 / 60
Plug Size	16 Amp 3 Pin
Cable Size (mm)	Min 2.5 core
Cable Length (m)	30
Power (HP- kW)	3 – 2.2
Vibration Levels	4.4
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Electric & Pneumatic Motor)
TCT Cutters (concrete)	4.4m/s2 (K=+1.43m/s2)
TCT Cutters (steel)	2.9m/s2 (K=+0.63m/s2)
Star Cutters (concrete)	3.7m/s2 (K=+0.7m/s2)
Star Cutters (steel)	3.8m/s2 (K=+0.98m/s2)
Beam Cutters (concrete)	4.8m/s2 (K=+0.79m/s2)
Beam Cutters (steel)	5.4m/s2 (K=+0.9m/s2)
Milling Cutters (concrete)	7.0m/s2 (K=+1.41m/s2)
Milling Cutters (steel)	4.8m/s2 (K=+1.3m/s2)
Wire Brush (concrete)	2.4m/s2 (K=+0.92m/s2)
Wire Brush (steel)	3.8m/s2 (K=0.79m/s2)

Image	Part Number	Description	Further Information
	Trelawny: 320.002H IMPA: 59.22.49 ISSA: 55.096.16	Heavy Duty Drum Complete with 12mm shafts	Fitted as standard on all TFP200 machines
	Trelawny: 320.0020 IMPA: 59.22.49 ISSA: 55.096.18	Cutter Shafts 12mm Diameter	4 pieces required per drum
	Trelawny: 320.5500 IMPA: 59.22.41 ISSA: 55.096.10	Tungsten Carbide Tipped Cutters 5 tips	80 pieces required per drum
	Trelawny: 320.7006	Tungsten Carbide Tipped Cutters 6 tips	80 pieces required per drum
	Trelawny: 320.3658 IMPA: 59.22.42 ISSA: 55.096.11	Star Cutters	208 pieces required per drum
	Trelawny: 320.5120 IMPA: 59.22.43 ISSA: 55.096.12	Beam Cutters	264 pieces required per drum
	Trelawny: 320.4140	Spacers Used to create a gap in between TCT cutters	88 pieces required per drum – TCT
	Trelawny: 320.9622	Twisted Knot Wire Brush Refill	21 pieces required per drum
	Trelawny: 320.9612	Crimped Wire Brush Refill	14 Pieces required per drum
	Trelawny: 320.1020ST	Drum Assembly TCT Cutters	Consists of drum, 4 12mm shafts, 80 TCT cutters & 88 spacers
	Trelawny: 320.1020SS	Drum Assembly Star Cutters	Consists of drum, 4 12mm shafts, 80 TCT cutters & 88 spacers
	Trelawny: 320.1020SB	Drum Assembly Beam Cutters	Consists of drum, 4 12mm shafts & 208 star cutters
	Trelawny: 320.9620 IMPA: 59.22.45 ISSA: 55.096.13	Drum Assembly Twisted Knot Wire Brush	Consists of drum & 21 twisted wire brush segments
	Trelawny: 320.9610 IMPA: 59.22.44 ISSA: 55.096.14	Drum Assembly Crimped Wire Brush	Consists of drum & 14 crimped wire brush segments
