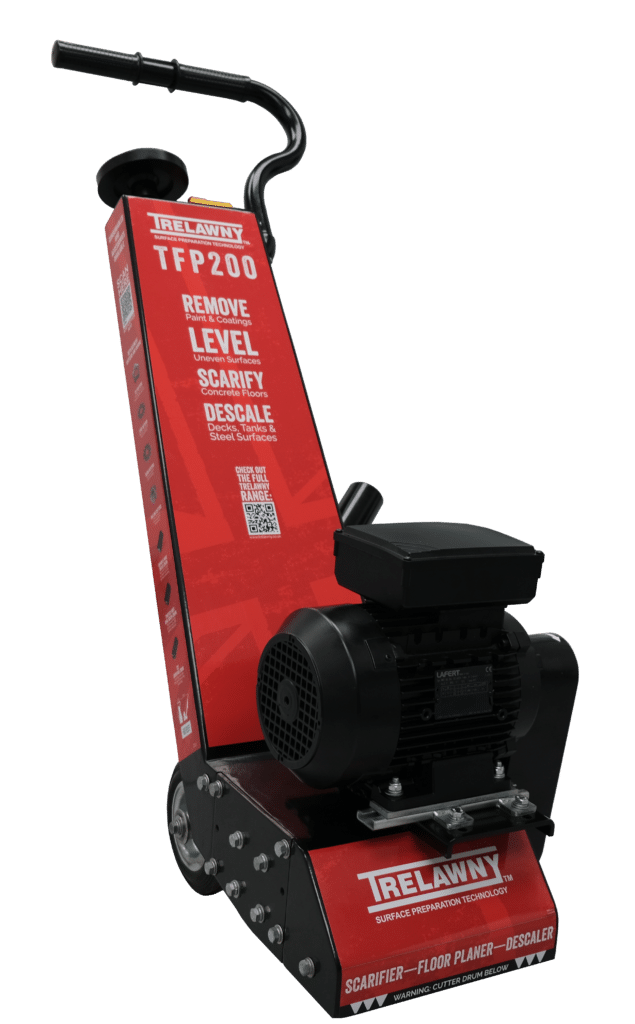

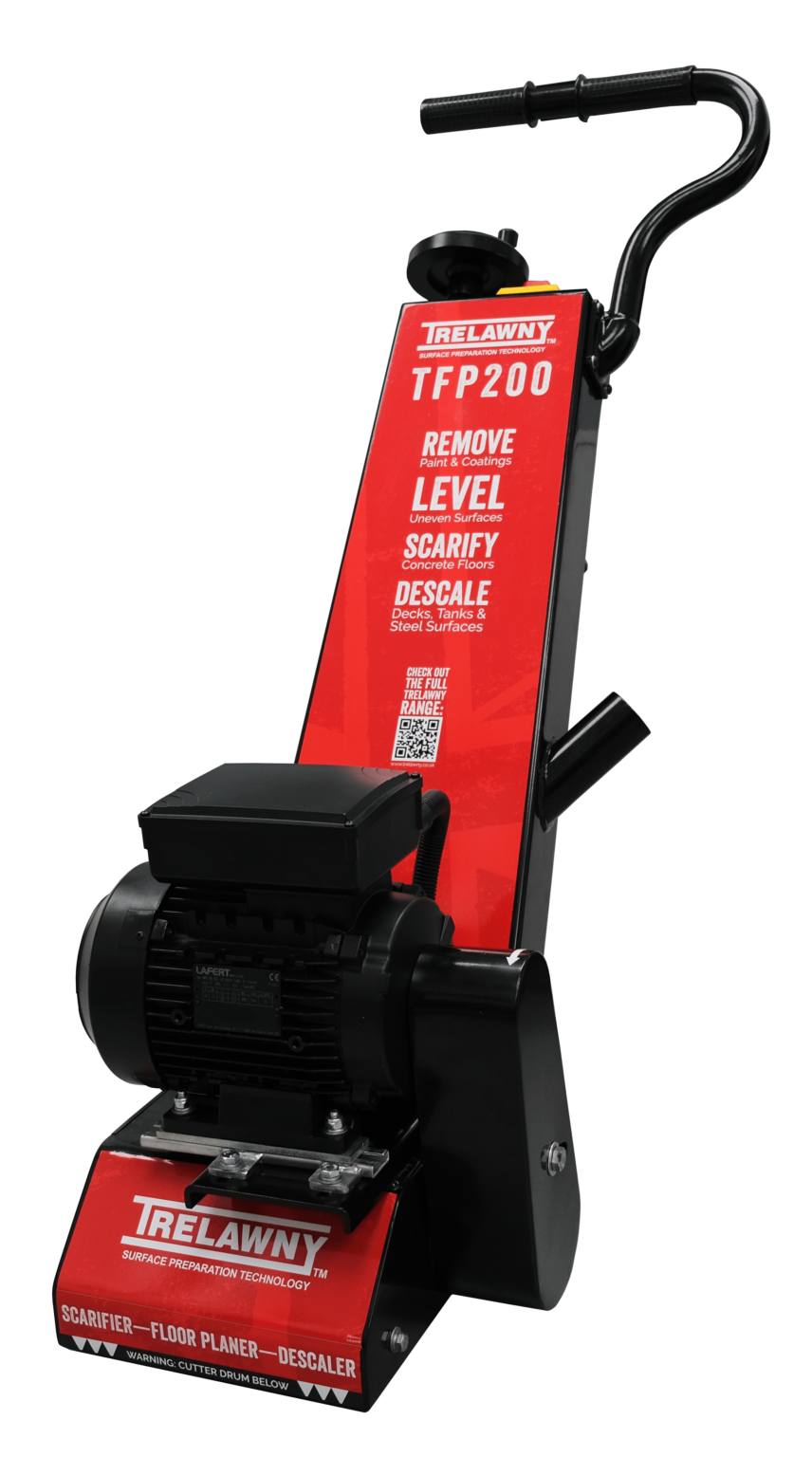

Trelawny TFP 200 200MM Deck Scaler Petrol, Electric & Pneumatic Power Options TFP200 Petrol TCT

Trelawny TFP 200 200MM Deck Scaler Petrol, Electric & Pneumatic Power Options TFP200 Petrol TCT (TFP200 Petrol TCT)

Brand : Trelawny

Stock Amount : 0

Delivery Time Ready In Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In United Kingdom

Min. Order Qty.1 Pcs.

Warranty1 year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

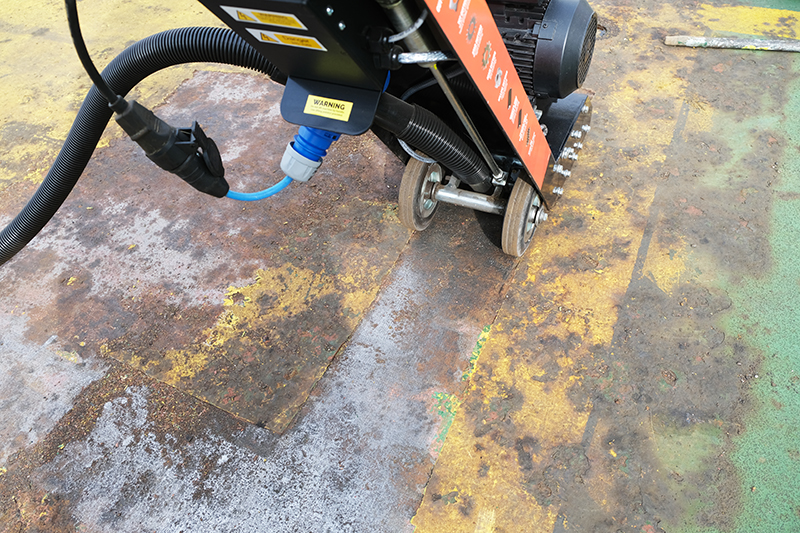

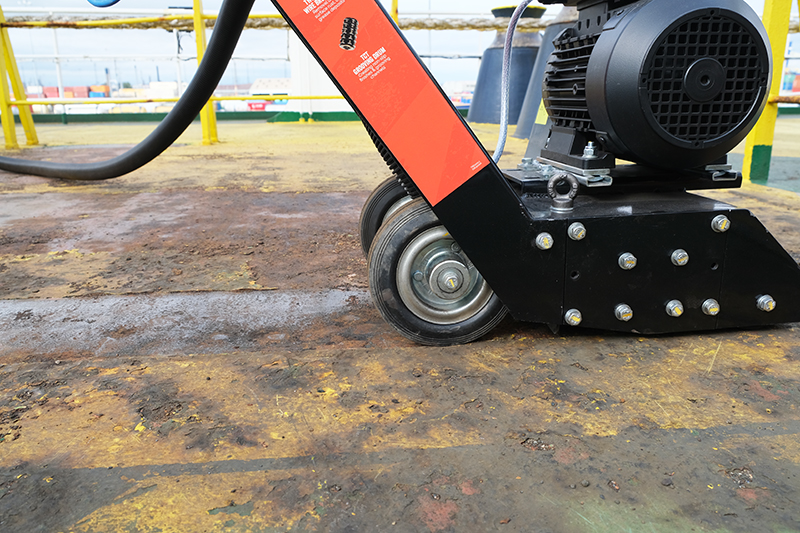

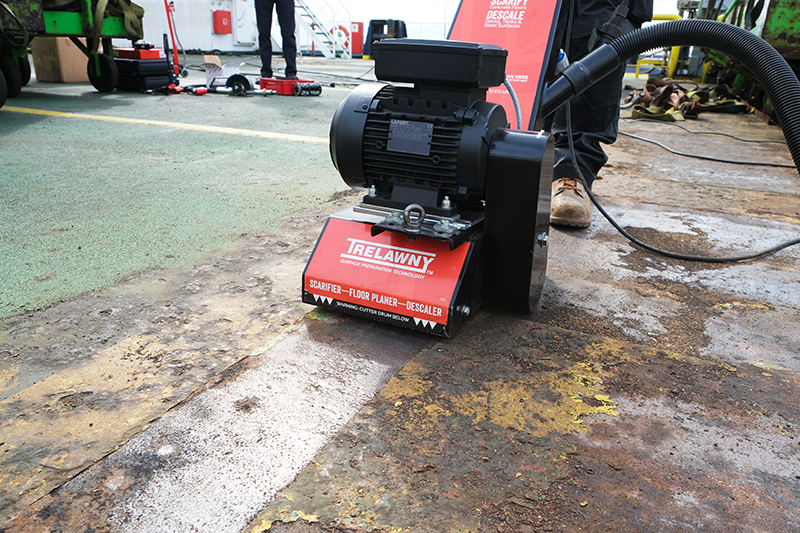

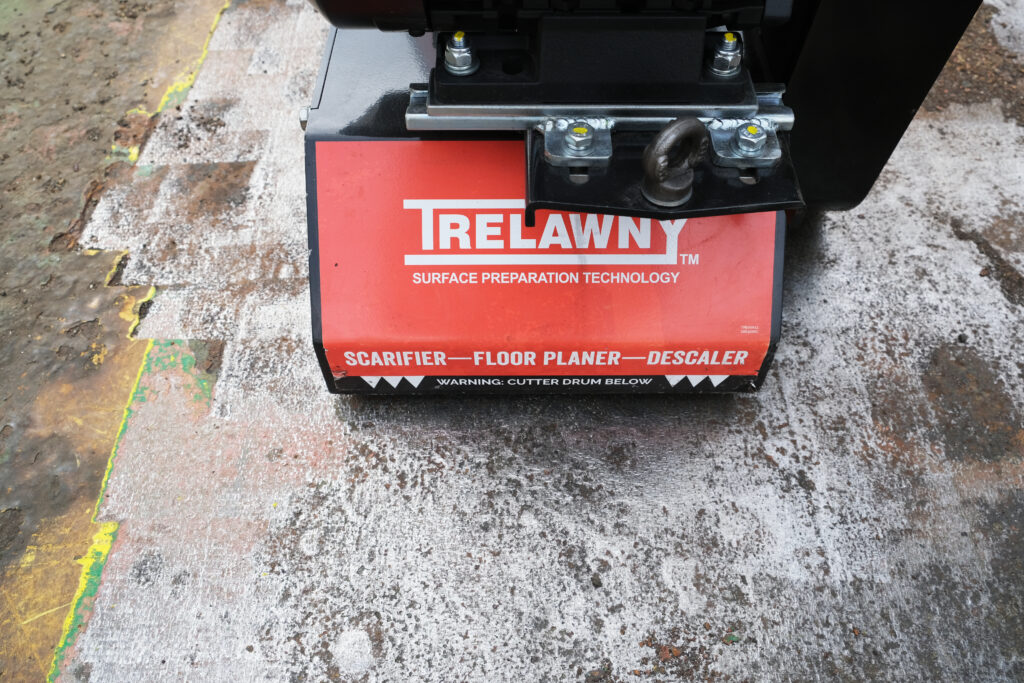

The TFP200 Deck Scaler is perfect for removing coatings and corrosion from decks, hatches and tank bottoms. The rigid steel chassis ensures a strong, stable machine suitable for accurate surface preparation. A wide range of attachments are available for light corrosion and cleaning through to heavy descaling. Full "voyage packages" are available complete with consumables, power cables and spares to ensure work doesn't stop. Production rates up to 30m² per hour. The TFP200 has undergone a number of changes recently, as part of Trelawny's continual product improvement program. The changes include a new rear-mounted starter box enclosure and plug location, offering greater protection from accidental damage and improved safety to this area of the machine, and a new handle-mounted push-button system with an isolation safety switch which makes starting and operating the machines even easier than before. A fresh new look and colour scheme has also been introduced with a heavy-duty vinyl wrap system, allowing Trelawny to offer bespoke branded machines to OEM customers & hire companies wanting their own branding on their machines. Retaining all the power, performance and quality customers have come to expect from these machines in the past.

Suitable for large area descaling while remaining compact for easy manoeuvrability
Removal of hard coatings
Removal of painted lines
Removal of coatings and scale from steel surfaces

195mm cutting width
Easy to use, maintain and manoeuvre
Precise screw type scaling head adjustment
Angled dust port allows connection of industrial dust collector giving virtually dust free performance
Choice of electric, petrol and pneumatic power sources
Supplied complete & ready to work with cutter head

Model	TFP200 Petrol TCT
Trelawny Part No.	320.2400T
IMPA Part No:	N/A
ISSA Part No:	N/A
Power (HP - kW)	5.5 - 4.1
Voltage (v)	-
Cycle (Hz)	-
Cutter Speed (RPM)	1833
Weight (Kg)	59
Plug Size	-
Cable Size (mm)	-
Cable Length	-
Engine Type	Honda GX160
Air Consumption	-

Part Number	320.2400T
Height (mm)	900
Width	350
Length (Working Position)	900
Cutting width (Dependent on Cutters)	195
Cutter head speed	1833 rpm
Working distance from wall	55mm
Weight (Dependent on power unit)	64kg
Engine Type	Honda GX160 Petrol
Petrol Power unit	5.5hp Honda
Approximate Fuel Consumption	1.32 litre per hour
Power (HP- kW)	5.5 – 4.1
Vibration Levels	6.9
Maximum Cutting Depth (mm)	3
Vacuum Take off Diameter (mm)	50
Vibration at Handlebar (Petrol Engine)
TCT Cutters (concrete)	6.9
TCT Cutters (steel)	7.6
Star Cutters (concrete)	8.2
Star Cutters (steel)	9.5
Beam Cutters (concrete)	13.0
Beam Cutters (steel)	12.2
Milling Cutters (concrete)	9.5
Milling Cutters (steel)	12.6
Wire Brush (concrete)	7.6
Wire Brush (steel)	11.9

Image	Part Number	Description	Further Information
	Trelawny: 320.002H IMPA: 59.22.49 ISSA: 55.096.16	Heavy Duty Drum Complete with 12mm shafts	Fitted as standard on all TFP200 machines
	Trelawny: 320.0020 IMPA: 59.22.49 ISSA: 55.096.18	Cutter Shafts 12mm Diameter	4 pieces required per drum
	Trelawny: 320.5500 IMPA: 59.22.41 ISSA: 55.096.10	Tungsten Carbide Tipped Cutters 5 tips	80 pieces required per drum
	Trelawny: 320.7006	Tungsten Carbide Tipped Cutters 6 tips	80 pieces required per drum
	Trelawny: 320.3658 IMPA: 59.22.42 ISSA: 55.096.11	Star Cutters	208 pieces required per drum
	Trelawny: 320.5120 IMPA: 59.22.43 ISSA: 55.096.12	Beam Cutters	264 pieces required per drum
	Trelawny: 320.4140	Spacers Used to create a gap in between TCT cutters	88 pieces required per drum – TCT
	Trelawny: 320.9622	Twisted Knot Wire Brush Refill	21 pieces required per drum
	Trelawny: 320.9612	Crimped Wire Brush Refill	14 Pieces required per drum
	Trelawny: 320.1020ST	Drum Assembly TCT Cutters	Consists of drum, 4 12mm shafts, 80 TCT cutters & 88 spacers
	Trelawny: 320.1020SS	Drum Assembly Star Cutters	Consists of drum, 4 12mm shafts, 80 TCT cutters & 88 spacers
	Trelawny: 320.1020SB	Drum Assembly Beam Cutters	Consists of drum, 4 12mm shafts & 208 star cutters
	Trelawny: 320.9620 IMPA: 59.22.45 ISSA: 55.096.13	Drum Assembly Twisted Knot Wire Brush	Consists of drum & 21 twisted wire brush segments
	Trelawny: 320.9610 IMPA: 59.22.44 ISSA: 55.096.14	Drum Assembly Crimped Wire Brush	Consists of drum & 14 crimped wire brush segments
