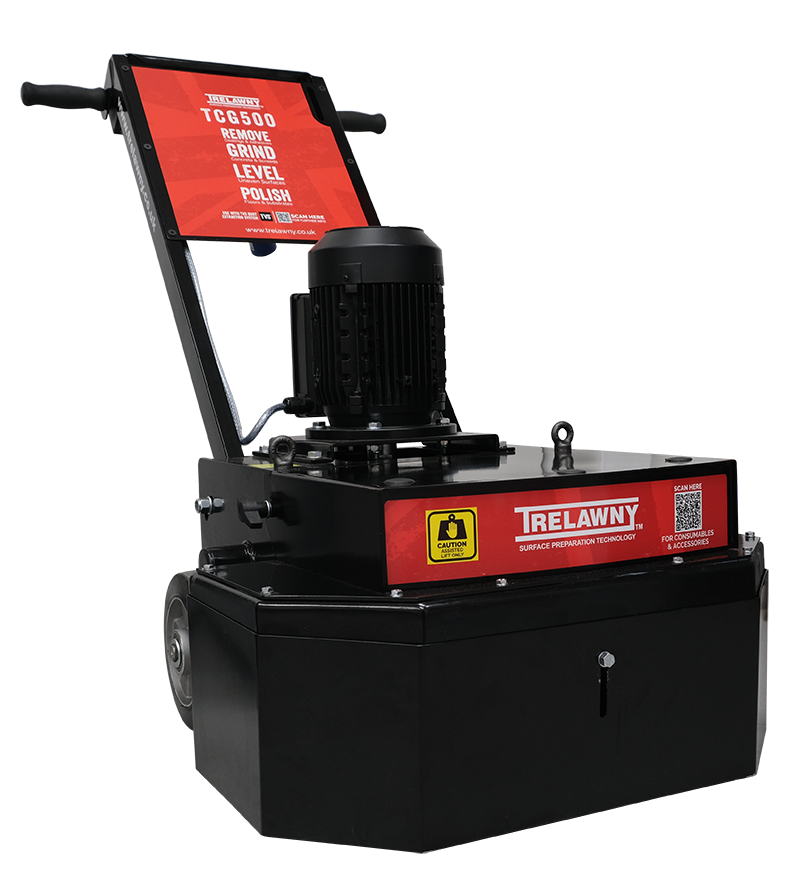

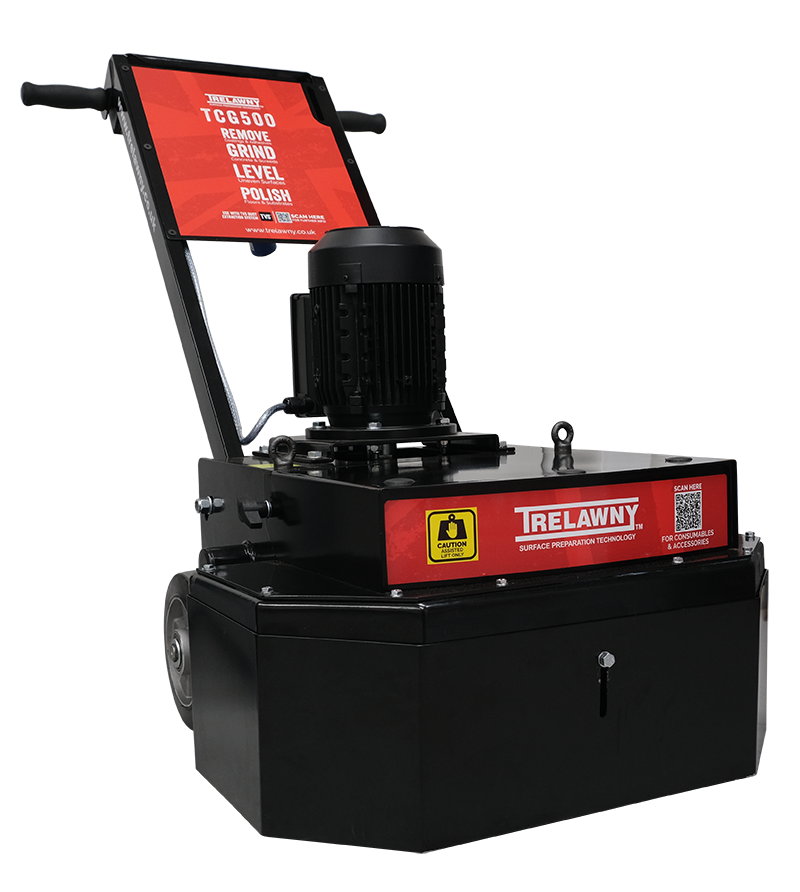

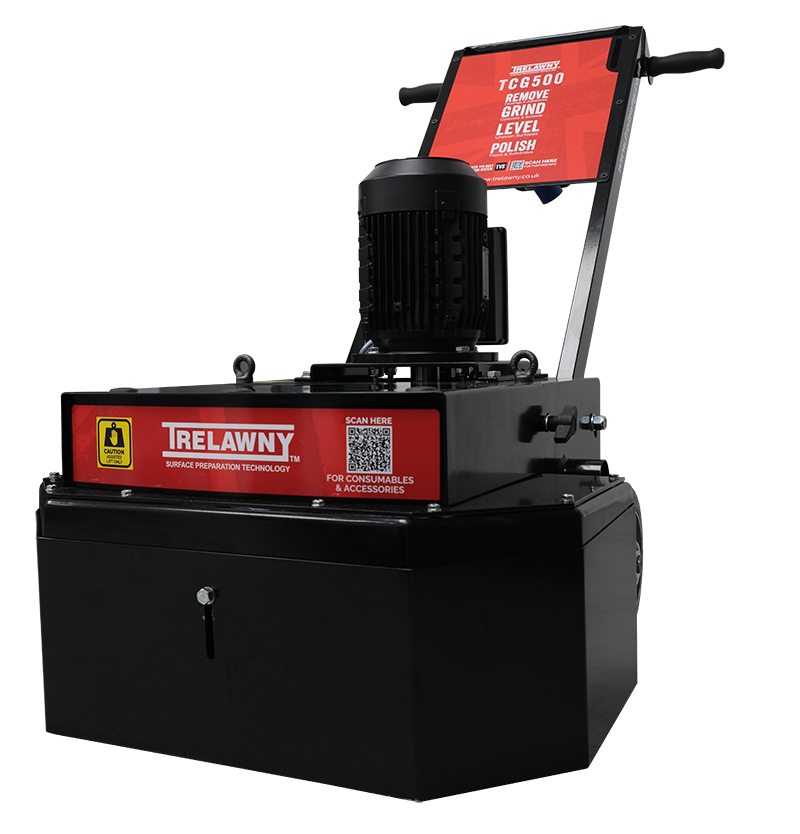

Trelawny TCG500 500MM Floor Grinder - Petrol & Electric Power Options TCG500 110V (TCG500 110V)

The TCG500 is the workhorse of choice for contractors looking for a reliable, productive floor grinder. Dual counter-rotating grinding heads ensure balanced operation, while the flexible disc coupling ensures maximum contact and usage of the diamond while working over rough surfaces. The additional weight system and flexible tooling allow fine adjustment of performance and make the TCG500 a versatile package for a wide range of applications. Dual counter-rotating grinding heads ensure balanced operation, while the flexible disc coupling ensures maximum contact and usage of the diamond while working over rough surfaces. The additional weight system and flexible tooling allow fine adjustment of performance and make the TCG500 a versatile package for a wide range of applications.

• Suitable for medium to large jobs
• Levelling and smoothing of concrete
• Removal of coatings and adhesives
• Preparation for new coatings
• Repairing rain-damaged concrete
• Polishing of concrete and other materials

• 500mm grinding width
• Dual dust ports for virtually dust-free working
• Available with Trelawny Quick Release tooling (QR) for a wide range of applications
• Additional weights for increased production
• Trelawny Vibro-Lo™ vibration reduction for operator comfort and safety
• Available in a wide range of electric and petrol options

Model	TCG500 110V
Part Number	350.2402QR
Weight (Kg)	114
Fitted With	QR Plate
Disc Speed (rpm)	360
Output Power (Hp - kW)	3.02.2002
Voltage (v)	110
Cycle (Hz)	50
Plug Size (Amp)	32
Recommended Cable Size (CSA)	4mm
Recommended  Cable Length	20
Engine Type	-
Vibration Level (Aeq m/s2)	1.Haz

Grinding Width (mm)	590
Disc Size (mm)	250 x 2
Length (mm)	1220
Width (mm)	660
Height (mm)	914
Vacuum Take Off Dia. (mm)	50

Part Number	350.2402QR
Cutter disc speed	360
Weight (kg)	114
Fitted with:	Black Diamond Disc
Length (mm)	1220
Width (mm)	660
Height (mm)	914
Grinding Width (mm)	590
Average Depth of Cut (dependant on concrete)	1mm
Disc Size (mm)	250 x2
Vacuum Take Off Dia. (mm)	50
Output Power (Hp – kW)	3 – 2.2
Voltage (v)	110
Phase	1
Cycle (Hz)	50
Plug Size (Amp) (“supply” in manual)	32
Cable Size (mm)	2.5 to 4
Cable Length (m)	15 – 30
Working Distance from Wall	48mm
Motor Noise LwA SWL	93.5dB (A)
Vibration
Vibration (AEQ) at the Handle Bar	1.6

Diamond Disc

Image	Part Number	Description
	350.5610RA 350.5616RA 350.5620RA	10 Segment Soft Bond Grinding Disc 16 Segment Soft Bond Grinding Disc 20 Segment Soft Bond Grinding Disc
	350.5610B 350.5616B 350.5620B	10 Segment Medium Bond Grinding Disc 16 Segment Medium Bond Grinding Disc 20 Segment Medium Bond Grinding Disc
	350.5610R 350.5616R 350.5620R	10 Segment Hard Bond Grinding Disc 16 Segment Hard Bond Grinding Disc 20 Segment Hard Bond Grinding Disc

Removal Diamonds

Image	Part Number	Description
	365.5495L	PCD Removal Diamond Anti-Clockwise For removal of coatings, adhesives &toppings
	365.5495R	PCD Removal Diamond Clockwise For removal of coatings, adhesives and toppings
	365.5500	16 Grit Double (Quick release) Soft Bond For very course grinding and thin coatings removal
	365.5500/2	16 Grit Double (Quick Release) Soft Bond For very course grinding and thin coatings removal

General Grinding and Levelling

Image	Part Number	Description
	365.5501	30 Grit Single (Quick Release) Soft Bond For Hard Concrete
	365.5502	30 Grit Single (Quick Release) Medium Bond For Medium Hardness Concrete
	365.5503	30 Grit Single (Quick Release) Hard Bond For Soft Concrete or very rough concrete
	365.5501/2	30 Grit Double (Quick Release) Soft Bond For Hard Concrete
	365.5502/2	30 Grit Double (Quick Release) Medium Bond For Medium Hardness Concrete
	365.5503/2	30 Grit Double (Quick Release) Hard Bond For very soft concrete or very rough concrete

Fine Grinding

Image	Part Number	Description
	365.5504/2	60 Grit Double (Quick Release) Medium Bond For Light Grinding/Scratch Removal
	365.5506/2	120 Grit Double (Quick Release) Medium Bond For Light Grinding/Scratch Removal

Polishing Tools

Image	Part Number	Description
	356.5605	50 Grit Hybrid
	365.5610	100 Grit Hybrid
	365.5620	200 Grit Resin Bond
	365.5602A	200 Grit Resin Bond
	365.5604A	400 Grit Resin Bond
	365.5608A	800 Grit Resin Bond
	365.5618A	1500 Grit Resin Bond
	365.5635A	3000 Grit Resin Bond



Image	Part Number	Description
	365.5725	3 Segment Quick Release Diamond Plates (Set of 3) For use with the Trelawny TPG Floor Grinders
	350.5660	6 Segment Quick Release Diamond Plate For use with the Trelawny TCG Floor Grinders
	350.5666	Polishing Plates Used to attached the “Polishing Tools” to the Quick Release Plate
	350.9135	Additional Weight   2 required per machine Adds 35kg to machine weight
	669.3125	110v Power Cable   15 metres
	669.3150	230v Power Cable   30 metres
	669.3175	400v Power Cable   30 metres
