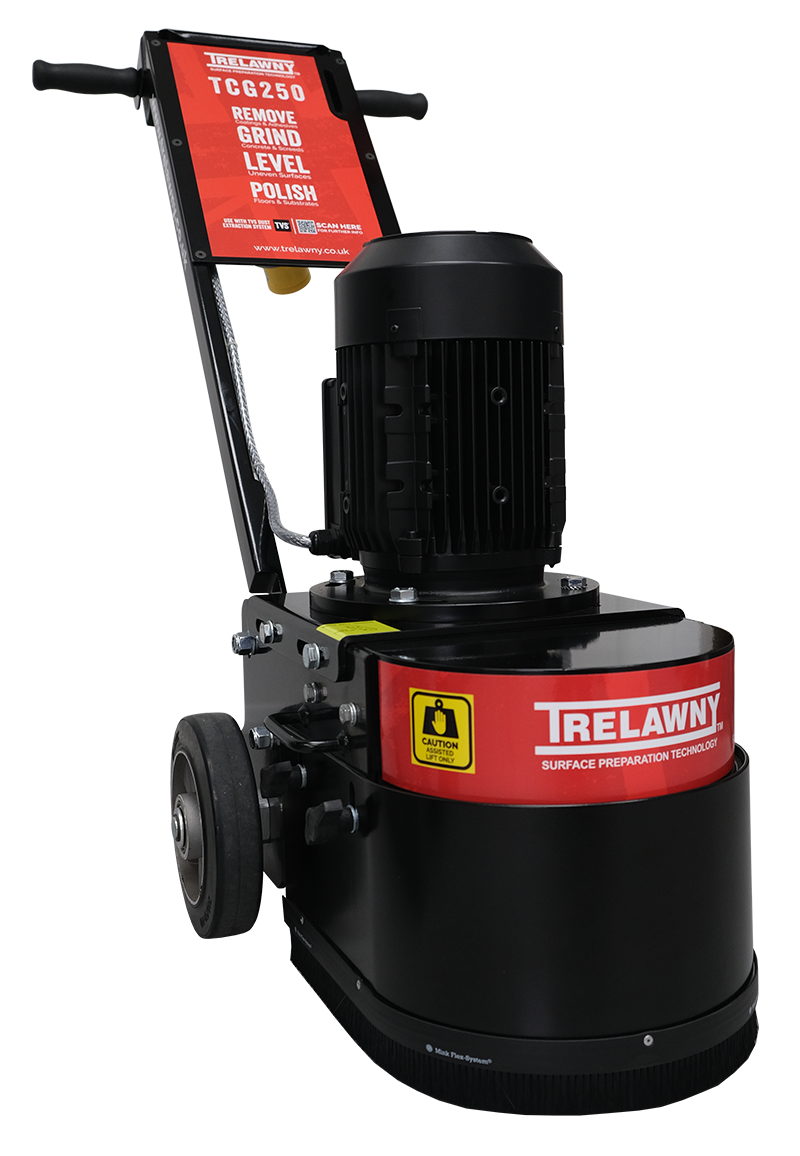

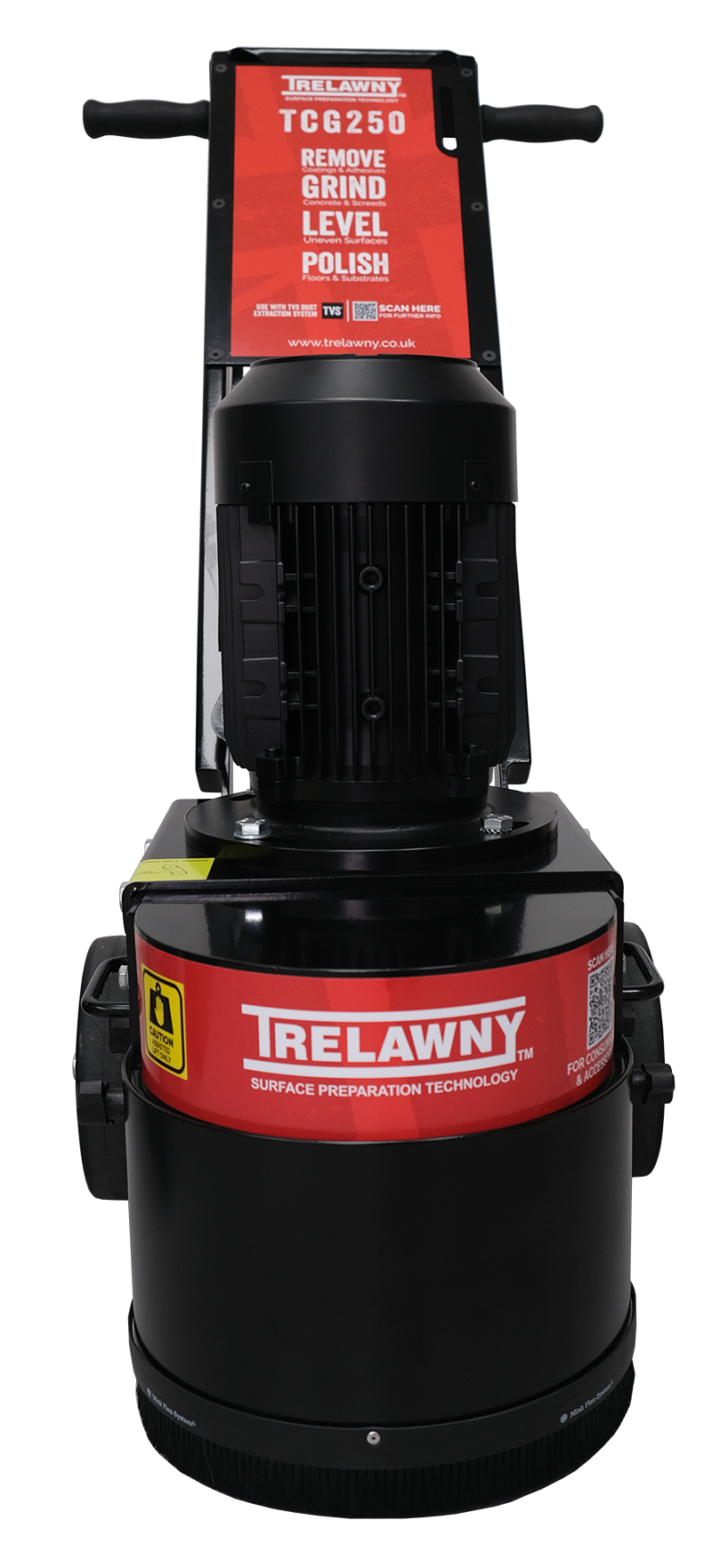

Trelawny TCG250 Floor Grinder - Petrol & Electric Power Options TCG250 110V (TCG250 110V)

The TCG250 is a heavy-duty single head grinder for levelling and preparation of small to medium areas. The flexible grinding head ensures maximum contact and usage of the diamond while working over rough surfaces. Robust design and optimised grinding pressure while maintaining overall compactness together with manoeuvrability make the TCG250 the choice for a wide range of jobs. It is the ideal partner for both specialist contractors and the hire industry. A flexible range of tooling options completes the perfect package providing a versatile solution to many grinding applications.

• Suitable for medium to large jobs
• Levelling and smoothing of concrete
• Removal of coatings and adhesives
• Preparation for new coatings
• Repairing rain-damaged concrete
• Polishing of concrete and other materials

• 250mm grinding diameter
• Optimised grinding pressure and speed for high productivity
• Angled dust port for virtually dust free working
• Available with Trelawny quick release tooling (QR) for a wide range of applications
•  Optional weight for more aggressive production
• Heavy weight construction but compact for excellent performance with easy manoeuvrability

Model	TCG250 110V
Part Number	345.2402QR
Weight (Kg)	90
Fitted With	QR Plate
Disc Speed (rpm)	953
Output Power (Hp - kW)	2.5 - 1.8
Voltage (v)	110
Cycle (Hz)	50
Plug Size (Amp)	32
Recommended Cable Size (CSA)	4mm
Recommended  Cable Length	20m
Engine Type	-
Vibration Level (Aeq m/s2)	Oca.25

Grinding Width (mm)	250
Disc Size (mm)	250
Length (mm)	1100
Width (mm)	450
Height (mm)	980
Vacuum Take Off Dia. (mm)	50

Part Number	350.2402QR
Cutter disc speed	360
Weight (kg)	114
Fitted with:	Black Diamond Disc
Length (mm)	1220
Width (mm)	660
Height (mm)	914
Grinding Width (mm)	590
Average Depth of Cut (dependant on concrete)	1mm
Disc Size (mm)	250 x2
Vacuum Take Off Dia. (mm)	50
Output Power (Hp – kW)	3 – 2.2
Voltage (v)	110
Phase	1
Cycle (Hz)	50
Plug Size (Amp) (“supply” in manual)	32
Cable Size (mm)	2.5 to 4
Cable Length (m)	15 – 30
Working Distance from Wall	48mm
Motor Noise LwA SWL	93.5dB (A)
Vibration
Vibration (AEQ) at the Handle Bar	1.6

Image	Part Number	Description
	350.5525	Scarifying Block   3 Required Per Plate
	350.5575	Diamond Grinding Block   3 Required Per Plate
	350.5502	Hardwood Wedge   3 Required Per Plate
	350.5505   350.5507 350.5509	Fine Abrasive Block   Medium Abrasive Block Coarse Abrasive Block

Diamnond disc

Image	Part Number	Description
	350.5610RA 350.5616RA 350.5620RA	10 Segment Soft Bond Grinding Disc 16 Segment Soft Bond Grinding Disc 20 Segment Soft Bond Grinding Disc
	350.5610B 350.5616B 350.5620B	10 Segment Medium Bond Grinding Disc 16 Segment Medium Bond Grinding Disc 20 Segment Medium Bond Grinding Disc
	350.5610R 350.5616R 350.5620R	10 Segment Hard Bond Grinding Disc 16 Segment Hard Bond Grinding Disc 20 Segment Hard Bond Grinding Disc

Removal Diamonds

Image	Part Number	Description
	365.5495L	PCD Removal Diamond Anti-Clockwise For removal of coatings, adhesives &toppings
	365.5495R	PCD Removal Diamond Clockwise For removal of coatings, adhesives and toppings
	365.5500	16 Grit Double (Quick release) Soft Bond For very course grinding and thin coatings removal
	365.5500/2	16 Grit Double (Quick Release) Soft Bond For very course grinding and thin coatings removal

General Grinding and Leveling

Image	Part Number	Description
	365.5501	30 Grit Single (Quick Release) Soft Bond For Hard Concrete
	365.5502	30 Grit Single (Quick Release) Medium Bond For Medium Hardness Concrete
	365.5503	30 Grit Single (Quick Release) Hard Bond For Soft Concrete or very rough concrete
	365.5501/2	30 Grit Double (Quick Release) Soft Bond For Hard Concrete
	365.5502/2	30 Grit Double (Quick Release) Medium Bond For Medium Hardness Concrete
	365.5503/2	30 Grit Double (Quick Release) Hard Bond For very soft concrete or very rough concrete

Fine Grinding

Image	Part Number	Description
	365.5504/2	60 Grit Double (Quick Release) Medium Bond For Light Grinding/Scratch Removal
	365.5506/2	120 Grit Double (Quick Release) Medium Bond For Light Grinding/Scratch Removal

Polishing Tools

Image	Part Number	Description
	356.5605	50 Grit Hybrid
	365.5610	100 Grit Hybrid
	365.5620	200 Grit Resin Bond
	365.5602A	200 Grit Resin Bond
	365.5604A	400 Grit Resin Bond
	365.5608A	800 Grit Resin Bond
	365.5618A	1500 Grit Resin Bond
	365.5635A	3000 Grit Resin Bond



Image	Part Number	Description
	365.5725	3 Segment Quick Release Diamond Plates (Set of 3) For use with the Trelawny TPG Floor Grinders
	350.5660	6 Segment Quick Release Diamond Plate For use with the Trelawny TCG Floor Grinders
	350.5666	Polishing Plates Used to attached the “Polishing Tools” to the Quick Release Plate
	350.9135	Additional Weight   2 required per machine Adds 35kg to machine weight
	669.3125	110v Power Cable   15 metres
	669.3150	230v Power Cable   30 metres
	669.3175	400v Power Cable   30 metres
