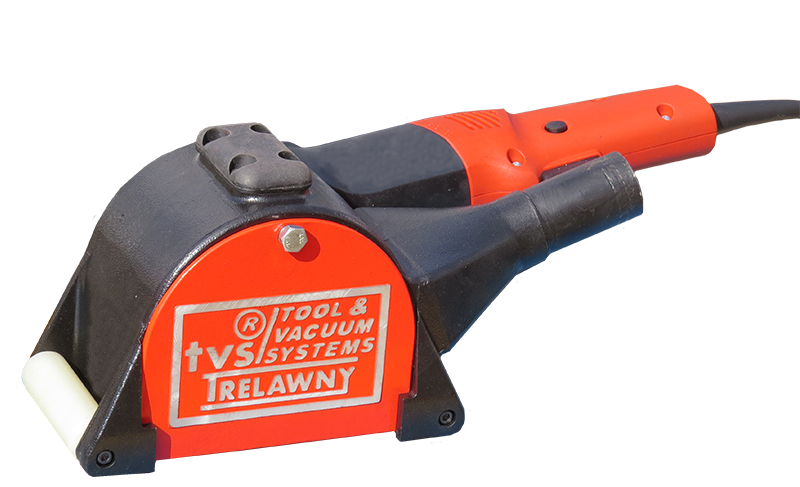

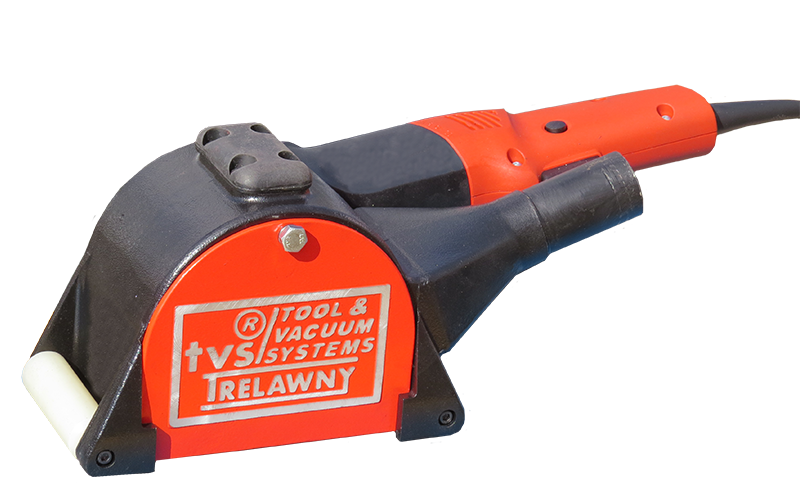

Trelawny PPT Handheld Deck Scaler Electric & Air Power Options (PPT)

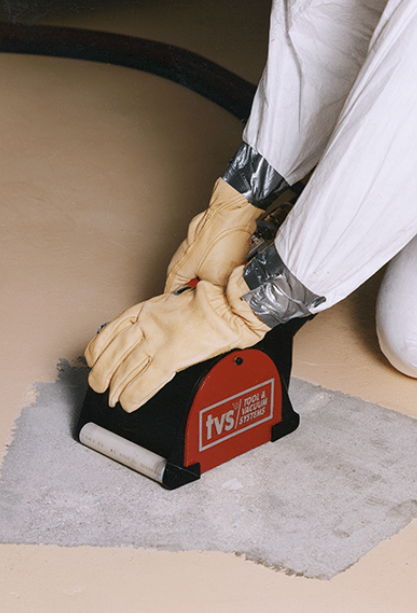

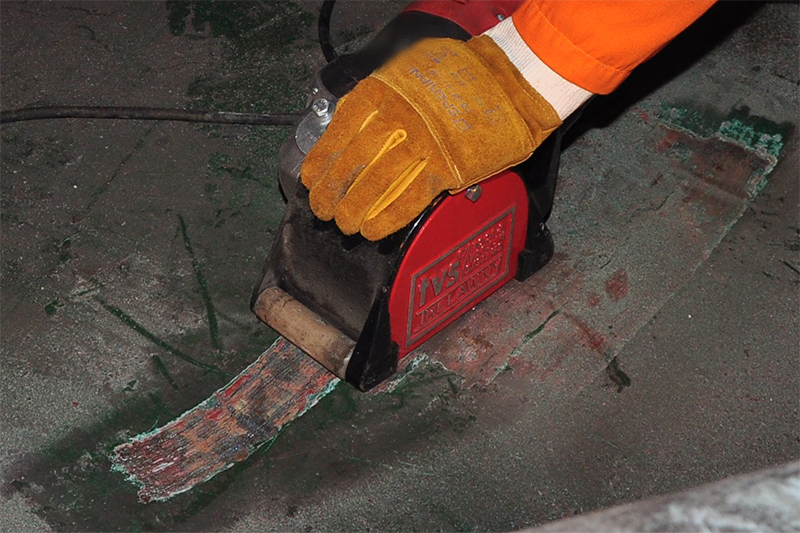

The real alternative to small area shot blasting. Trelawny's Peening Preparation Tool (PPT) is designed for application where open blasting may not be possible or simply as a fast economical way of effectively carrying out surface preparation in small or remote areas. It is ideal for preparing flat or large vertical areas such as beams, girders and tanks. The PPT fitted with "Rotopeen™” abrasive flaps will remove coatings, scale and corrosion while cleaning the surface to a near white metal finish providing up to 100 micron anchor profile perfect for reapplication of coatings.

• Fast removal of coatings, scale and contamination
• Preparation of surfaces for recoating
• Suitable alternative to small area blasting

• Available in 50mm (2”) or 100 (4”)
• Range of abrasives available
• Fully shrouded Tool (TVS®)

Part No.	195.1215
Cutting width (mm)	50 (2”)
Power	110v 1ph 50Hz
R.P.M	2000
Weight (kg)	4.4
Vibration level (Aeq m/s2)	3.6

Part No.	195.C216
Cutting width (mm)	50 (2”)
Power	110v 1ph 50Hz
R.P.M	2000
Weight (kg)	4.56
Vibration level (Aeq m/s2)	7.8

Part No.	195.1220
Cutting width (mm)	50 (2”)
Power	230v 1ph 50Hz
R.P.M	2000
Weight (kg)	4.4
Vibration level (Aeq m/s2)	3.6

Part No.	195.C221
Cutting width (mm)	50 (2”)
Power	230v 1ph 50Hz
R.P.M	2000
Weight (kg)	4.56
Vibration level (Aeq m/s2)	7.8

Part No.	195.1415
Cutting width (mm)	100 (4”)
Power	110v 1ph 50Hz
R.P.M	2000
Weight (kg)	5.23
Vibration level (Aeq m/s2)	5.2

Part No.	195.C416
Cutting width (mm)	100 (4”)
Power	110v 1ph 50Hz
R.P.M	2000
Weight (kg)	6.47
Vibration level (Aeq m/s2)	7.8

Part No.	195.1420
Cutting width (mm)	100 (4”)
Power	230v 1ph 50Hz
R.P.M	2000
Weight (kg)	5.23
Vibration level (Aeq m/s2)	5.2

Part No.	195.C421
Cutting width (mm)	100 (4”)
Power	230v 1ph 50Hz
R.P.M	2000
Weight (kg)	6.47
Vibration level (Aeq m/s2)	7.8

Part No.	194.0205
Cutting width (mm)	50 (2”)
Power	Air
R.P.M	2700
Air Consumption (cfm – lpm)	30 – 840
Weight (kg)	3.4
Vibration level (Aeq m/s2)	3.5

Part No.	194.C205
Cutting width (mm)	50 (2”)
Power	Air
R.P.M	2700
Air Consumption (cfm – lpm)	30 – 840
Weight (kg)	5.2
Vibration level (Aeq m/s2)	6.0

Part No.	194.0405
Cutting width (mm)	100 (4”)
Power	Air
R.P.M	2700
Air Consumption (lps – cfm)	30 – 840
Weight (kg)	4.1
Vibration level (Aeq m/s2)	3.1

Part No.	194.C405
Cutting width (mm)	100 (4”)
Power	Air
R.P.M	2700
Air Consumption (cfm – lps)	30 – 840
Weight (kg)	6.4
Vibration level (Aeq m/s2)	4.6

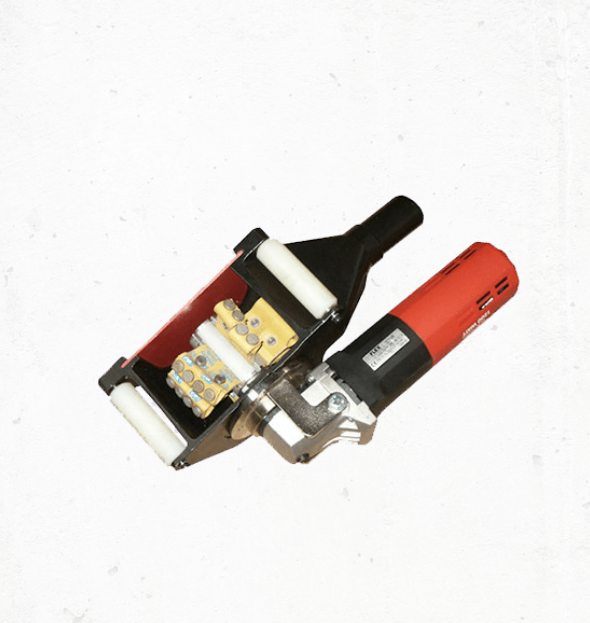

Star/Beam Cutter Consumables



Image	Part Number	Description
	438.0209   438.0409	2” Cutter Hub Assembly   4” Cutter Hub Assembly
	438.0220     438.0420	2” Cutter Hub Assembly c/w Star Cutters     4” Cutter Hub Assembly c/w Star Cutters
	438.0225       438.0425	2” Cutter Hub Assembly c/w Beam Cutters     4” Cutter Hub Assembly c/w Beam Cutters
	312.D210     312.D410	2” Axle (4 per set) for Star / Beam Cutters     4” Axle (4 per set) for Star / Beam Cutters
	312.S200	Star Cutter   80 Required for 2” Drum 160 Required for 4” Drum
	312.R200	Beam Cutter   56 Required for 2” Drum 112 Required for 4” Drum



Image	Part Number	Description
	438.0235     438.0435	2” Rotopeen Assembly “C-Flaps”     4” Rotopeen Assembly “C-Flaps”
	312.MRPC	Rotopeen Flap (Type C)
	312.D213     312.D413	2” Pin set (6 Per Set) (Flap retaining)     4” Pin set (6 Per Set) (Flap retaining)
	312.D205     12.D405	2” Rotopeen Hub     4” Rotopeen Hub
	38.0205     438.0405	2” Rotopeen Hub – Includes Pins     4” Rotopeen Hub – Includes Pins
