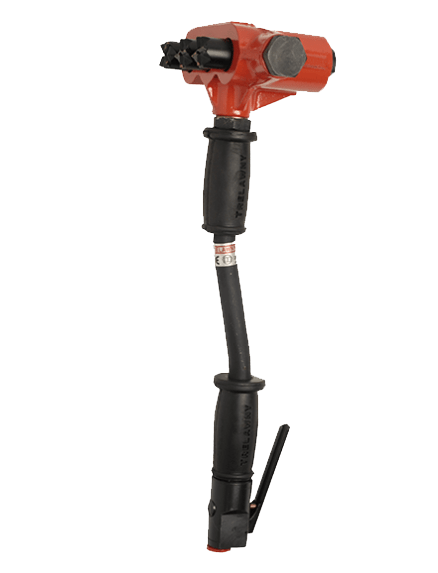

Trelawny Pneumatic Scaling Hammer SF3 Triple Head Cruciform

Trelawny Pneumatic Scaling Hammer SF3 Triple Head Cruciform

Trelawny Pneumatic Scaling Hammer SF3 Triple Head Cruciform

Trelawny Pneumatic Scaling Hammer SF3 Triple Head Cruciform

Trelawny Pneumatic Scaling Hammer SF3 Triple Head Single Piece Steel Piston (SF3 Triple Head Single piece steel piston)

Brand : Trelawny

Stock Amount : 20

Delivery Time Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In United Kingdom

Min. Order Qty. 20 Pcs.

Warranty1 year

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

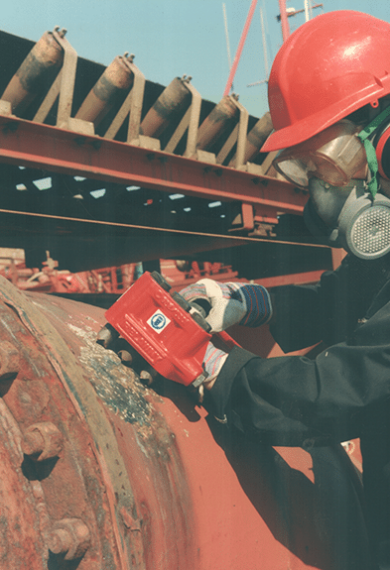

Trelawny's SF range of scaling hammers are highly effective for quick removal of heavy scale and coatings. The SF3 three head tools give faster production for more open areas.

Quick Removal of heavy coatings and rust
Preparation before blasting
Oil platform maintenance
Cleaning pipes

Option of replaceable carbide tipped scaling heads or economical hardened steel single piece pistons
Beryllium copper spark resistant heads for use in potentially explosive environments
ATEX approved model for use without hot work permits
Ergonomic handle for ease of use – also available with a short handle and/or inline for tight areas
Simple and robust design for low and easy maintenance

Part No.	151.5380
IMPA Part No.	N.A
ISSA Part No.	N.A
Weight (kg)	3.7
Length (mm)	485
Working Height (mm)	152.5
Blows Per Min (BPM)	3000 x 3
Air Consumption (lps – cfm)	5.2 – 11
Noise Level (db (A))	92.7
Vibration level (Aeq m/s2)	13.4

Image	Trelawny Part No.	IMPA Part No.	ISSA Part No.	Description
	426.5351	59.03.85	55.093.12	Cruciform taper fit cutter head Tungsten carbide tipped head – for fracturing and removal of coatings. To fit 151.5100 / 196.5095 / 153.5300
	606.5303	59.03.89	55.093.13	Cruciform taper fit cutter head Beryllium copper spark resistant – for fracturing and removal of coatings. To fit 196.5110 / 153.5310
	426.5252	N.A	N.A	Bush hammer taper fit cutter head Tungsten carbide tipped head – creates a heavier key on the surface. To fit 151.5105 / 153.5305

Image	Part Number	IMPA Part Number	ISSA Part Number	Description
	614.5301	N.A	N.A	Brush Seal
	815.5550	N.A	55.091.73	Whip Check Safety whip check for securing air hose 1/2″ – 1 1/4″
	458.1555	N.A	N.A	Whip Hose & Oiler Assembly Consists of whip hose, whip check and 1/2” lubricator
