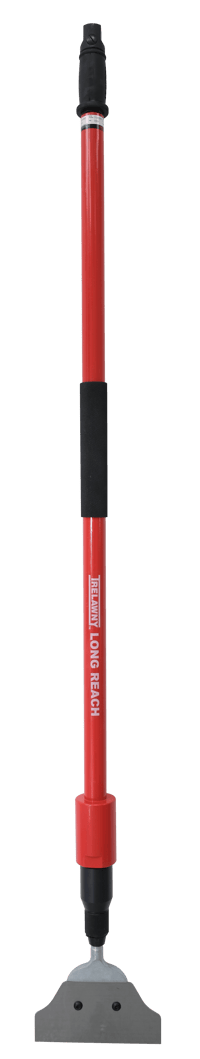

Trelawny Pneumatic Long Reach Chisel Scaler 6ft Chisel (6ft Chisel)

The Trelawny Long reach scraper range are versatile tools for chipping and scraping tiles, adhesives, screed and vinyl along with many other cleaning and industrial applications. Available in a range of lengths from 2ft up to 6ft, Long reach tools eliminate the need for manual labour, they are quite literally a back saver! The aluminium "Lite" version is perfect for jobs that require working overhead or accessing hard-to-reach areas such as tank cleaning. Available with a wide selection of chisels and blades, they are perfect for renovation, flooring contractors, roofing, demolition and asbestos abatement.

• Tiles removal
• Removal of ice, residues and other adhesives
• Removal of carpet, lino
• Chemical spillage removal
• Bituminous products removal

• Quick change chisel release
• Unique ‘LITE’ range: Lightweight models

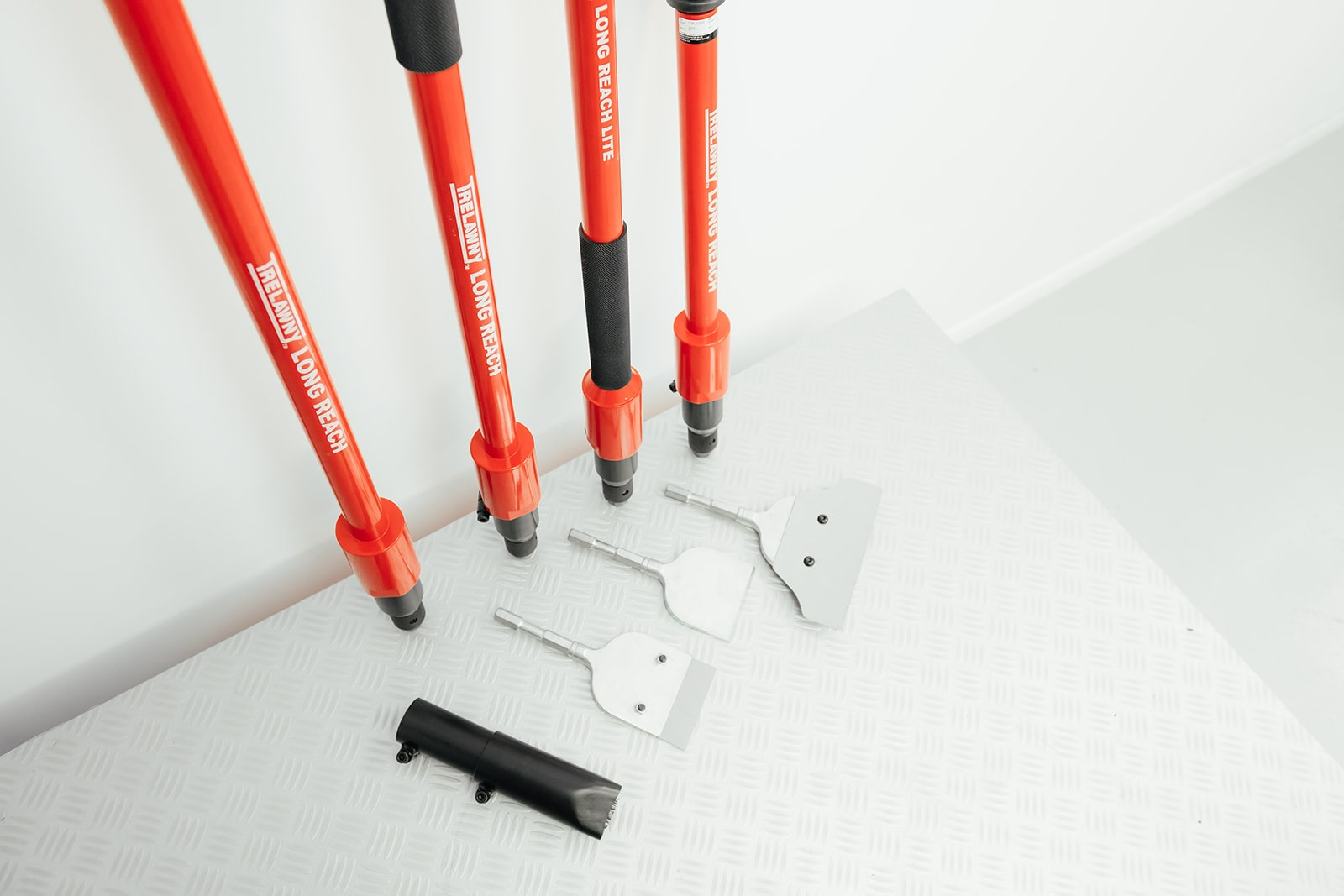

• Available in 2ft, 4ft, 5ft and 6ft lengths
• Three tools in one: chipping, scraping, de-scaling
• Requires only 4.5 CFM of air: extremely cost effective needing only a small portable compressor
• Perfect tool for equipment hire companies

Part Number	136.3600
Piston Diameter (mm)	28.6mm
Piston Stroke (mm)	39
Blows Per Minute	2200
Air Consumption (lps – cfm)	2.1 – 4.5
Air Inlet	1/4” BSP (c/w 1/4”BSP to 3/8” hose tail)
Overall Length	1710
Nett* Weight (kg)	6.9
Type	Standard
Noise Level Lpa db(A) – Chisel Scaler	84.3
Noise Level Lwa db(A) – Chisel Scaler	116
Vibration Level	7.7

Chisel Replacement for Long Reach

A range of replacement chisels that are compatible with the Long Reach Scalers

Image	Trelawny Part No:	IMPA Part No:	ISSA Part No:	Shank Type	Description
	705.1100	N/A	55.094.16	5/8 Hexagon	299m long chisel with 50mm wide blade. Spark resistant aluminium bronze for use in hazardous areas
	705.1101	59.25.21	55.094.21	5/8 Hexagon	229m long chisel with 25mm Wide Blade. Flat chisel for sand cast chipping
	705.1102	59.04.56	55.094.15	5/8 Hexagon	203mm long chisel with 100m wide blade. General chipping applications & paint removal
	705.1106	59.04.55	55.094.11	5/8 Hexagon	229m long chisel with 50mm wide blade. Chipping rust
	705.1112	59.04.30	55.094.17	5/8 Hexagon	203mm long chisel with 100mm wide blade.Spark resistant aluminium bronze for use in hazardous areas

Blade Replacement for Long Reach

A range of replacement scraper blades that are compatible with the Long Reach Scaler.

Image	Trelawny Part No:	IMPA Part No:	ISSA Part No:	Shank Type	Description
	641.3512 806.0816 824.0800	N/A N/A N/A	N/A N/A N/A	N/A N/A N/A	Blade Holder (Includes 806.0816 & 824.0800) Button Head Screw Nylon Insert Nut
	431.3504   439.3504	59.04.45   N/A	55.094.09   N/A	5/8 Hexagon   N/A	102mm wide flat edge scraper blade assembly Removal of adhesives and paint Replacement 102mm wide flat edge scraper blade (pack of 5) Removal of adhesives and paint
	431.3508   439.3508	59.04.57   N/A	55.094.10     N/A	5/8 Hexagon   N/A	203mm wide flat edge scraper blade assembly Removal of paint and coating spillage   Replacement 203mm wide flat edge scraper blade (pack of 5) removal of paint and coating spillage
	431.3512   439.3512	59.04.58   N/A	55.094.12   N/A	5/8 Hexagon N/A	305mm wide flat edge scraper blade assembly Removal of carpet and tiles Replacement 305mm wide flat edge scraper blade (pack of 4) Removal of carpet and tiles
	431.3904   439.3524	59.25.25   N/A	55.094.25   55.094.26	5/8 Hexagon N/A	102mm wide bevelled scraper blade assembly Removal of stubborn adhesives Replacement 102mm wide bevelled scraper blade (pack of 5) Removal of stubborn adhesives
	431.3908   439.3528	59.25.26   N/A	N/A   N/A	5/8 Hexagon N/A	203mm wide bevelled scraper blade assembly Removal of carpet and tiles Replacement 203mm wide bevelled scraper blade assemblyRemoval of carpet and tiles
	431.3912   439.3522	59.25.27   N/A	N/A   55.094.27	5/8 Hexagon N/A	305mm wide bevelled scraper blade assembly Removal of stubborn adhesive Replacement 305mm wide bevelled scraper blade (pack of 4) Removal of stubborn adhesives

Image	Part Number	Description
	815.5550	Whip Check
	859.1530	¼ BSP Inline Lubricator
	421.3450	Whip Hose   Consists of air hose ¼’’ BSP claw – 2m
	458.1530	¼ BSP Inline Lubricator Assembly   Consists of whip hose, whip check and ¼ lubricator
