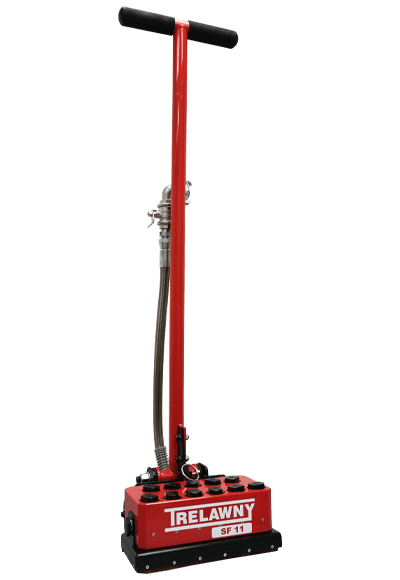

Trelawny Pneumatic Deck Hammer SF11Ex ATEX Deck Hammer (SF11Ex ATEX Deck Hammer)

For fast scaling of decks the walk behind SF11 is a fast, effective means of removing hard coatings and corrosion. 11 carbide tipped heads quickly fracture even the toughest materials, perfect for on-going maintenance or preparation pre blast cleaning to speed up removal and save costs on abrasives. The floating head design allows the SF11 to easily follow deformations in the surface meaning coatings will be removed evenly and consistently.

• 11 scaling heads
• Option for replaceable carbide tipped heads or single piece steel pistons
• Optional Berllium copper spark resistant heads for use in potentially explosive environments
• ATEX approved model for use without hot work permits
• Trelawny Vibro-Lo™ vibration reduction for operator comfort and safety
• Optional Trelawny TVS® vacuum shroud system for protection of operators and surrounding environment

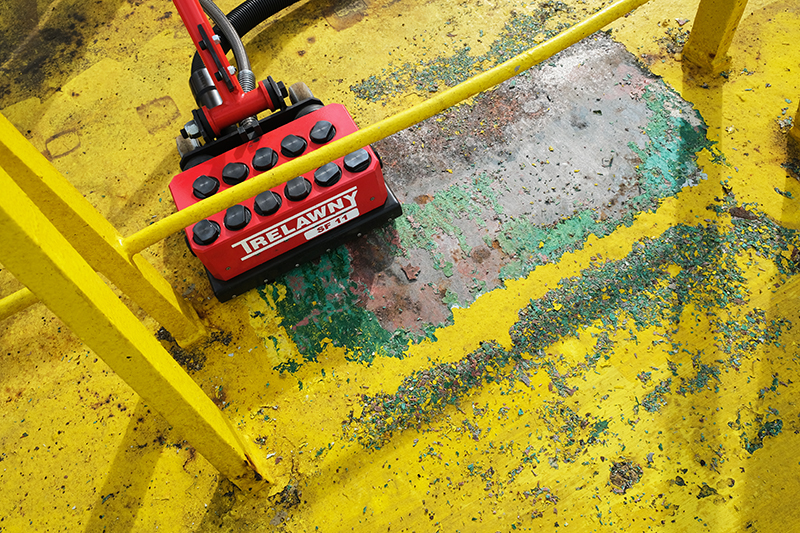

• Ship decks, tank tops, bridge decks and floating platform descaling
• Use ahead of grit blasting to breakdown coatings
• Aggressive pre-preparation on thick coatings ahead of shot blasting

Part No.	159.5930
IMPA Part No.	59.04.00
ISSA Part No.	55.095.01
Cutter Heads	Beryllium Copper Cruciform Taper Fit
Air Consumption (lps – cfm)	33 – 70
Noise Level (db (A))	113.1
Blows Per Min (BPM)	3000 x 11
Weight (kg)	38
Vibration Level (Aeq m/s²)	5.76

Image	Trelawny Part No.	IMPA Part No.	ISSA Part No.	Description
	426.5351	59.03.85	55.093.12	Cruciform taper fit cutter head Tungsten carbide tipped head – for fracturing and removal of coatings. To fit 151.5100 / 196.5095 / 153.5300
	606.5303	59.03.89	55.093.13	Cruciform taper fit cutter head Beryllium copper spark resistant – for fracturing and removal of coatings. To fit 196.5110 / 153.5310
	426.5252	N.A	N.A	Bush hammer taper fit cutter head Tungsten carbide tipped head – creates a heavier key on the surface. To fit 151.5105 / 153.5305

Image	Part Number	IMPA Part Number	ISSA Part Number	Description
	614.5301	N.A	N.A	Brush Seal
	815.5550	N.A	55.091.73	Whip Check Safety whip check for securing air hose 1/2″ – 1 1/4″
	458.1555	N.A	N.A	Whip Hose & Oiler Assembly Consists of whip hose, whip check and 1/2” lubricator
