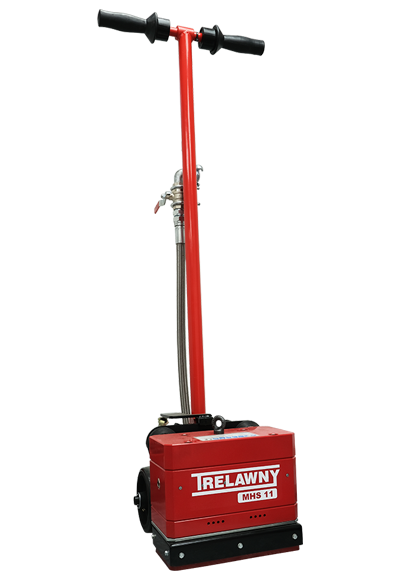

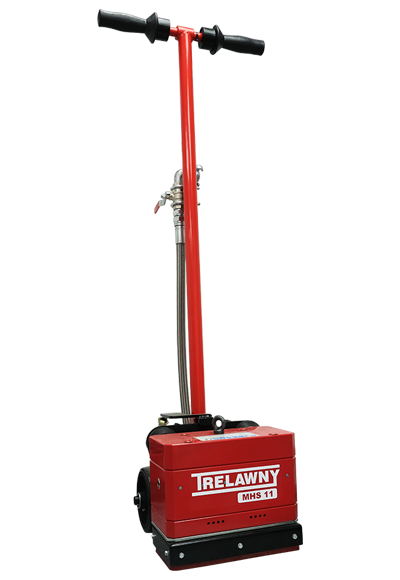

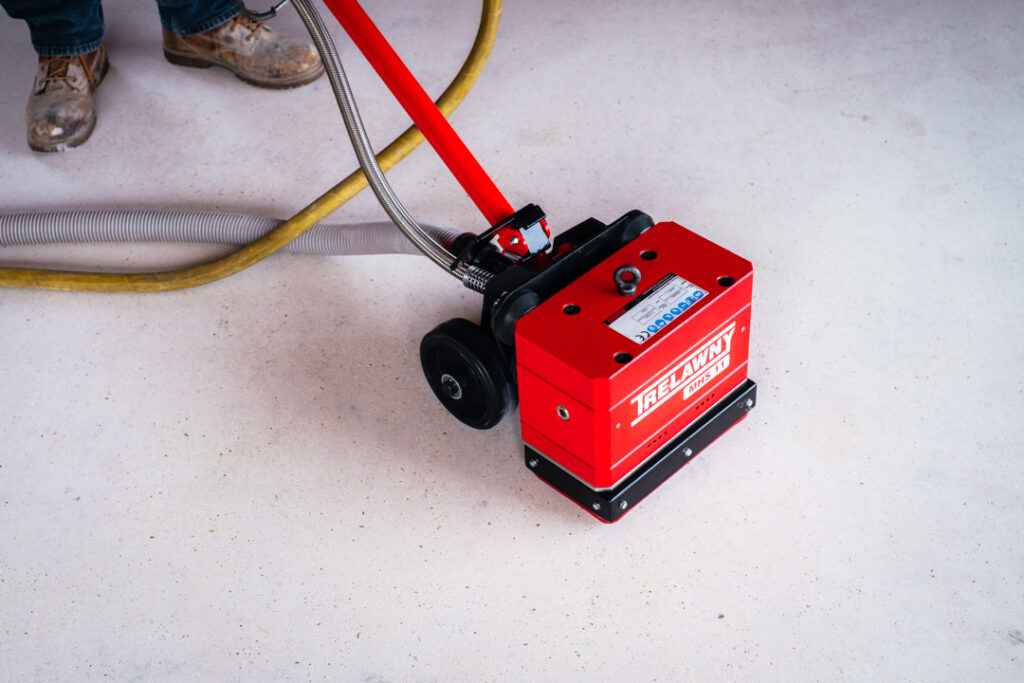

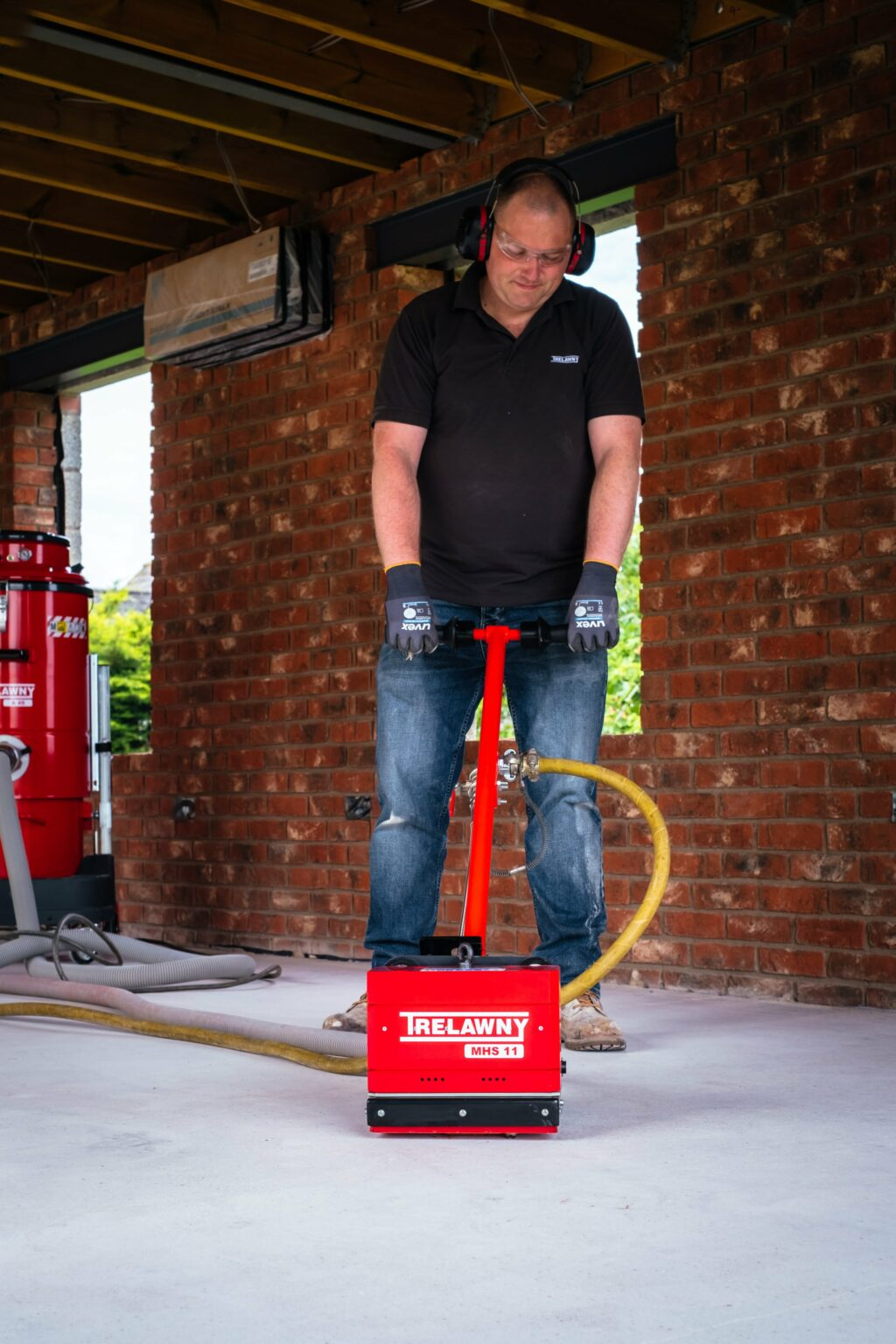

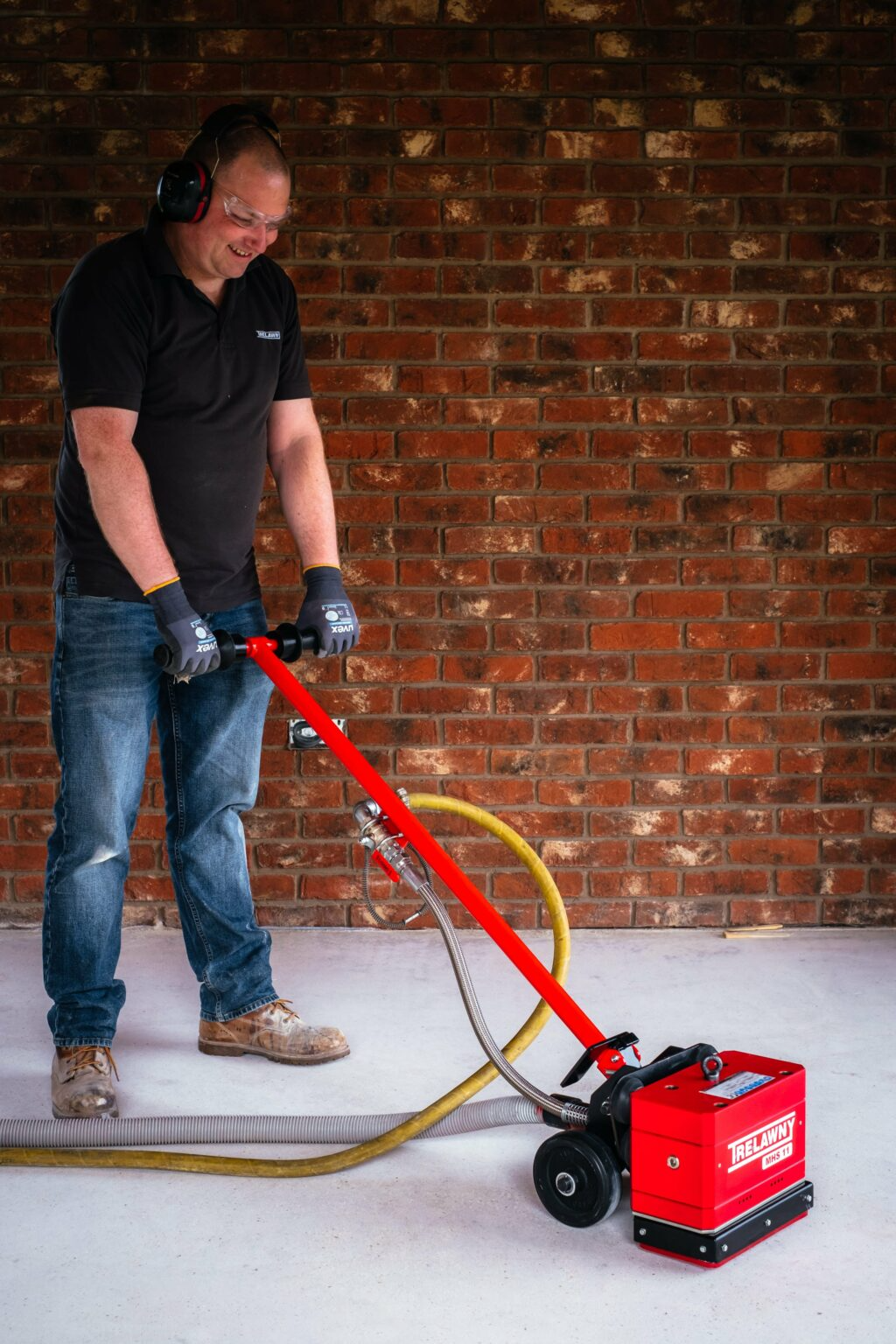

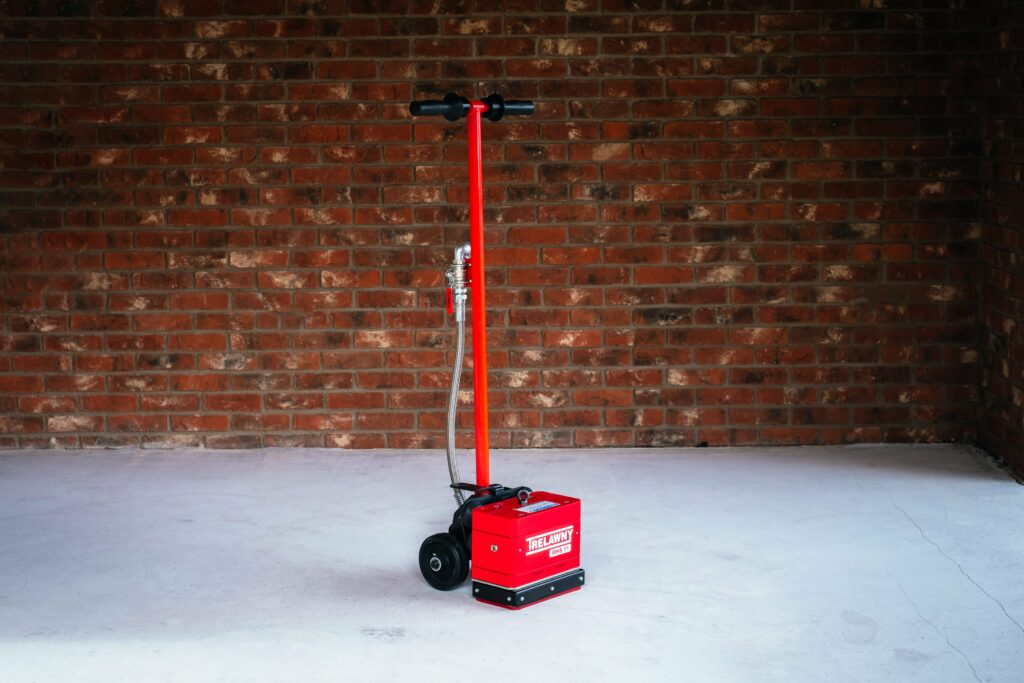

Trelawny MHS11 Pneumatic Concrete Floor Scabbler

Trelawny MHS11 Pneumatic Concrete Floor Scabbler (MHS11)

Brand : Trelawny

Stock Amount : 0

Delivery Time Ready In Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In United Kingdom

Min. Order Qty. 1 Pcs.

Warranty1 year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

The LPS55 is a powerful long reach scabbler for vertically preparing hard-to-reach areas. At 1.4 metres in length, it allows scabbling below the reinforcement bar. The powerful blows quickly remove concrete without damaging the underlying substrate.

Fast reduction of levels
Correct preparation for new applications of concrete
Removal of heavy coatings
Removal of contaminated materials and coatings with safe containment via standard fit Trelawny TVS® vacuum shroud

5 replaceable carbide tipped pin fit scabbling heads
Height adjustable handle for operator comfort
Heavy body gives control, performance and long service life
Efficient design gives 45% lower air consumption than the main competition without sacrificing performance
Fitted with a Trelawny Vibro-Lo™ vibration dampening system for operator comfort

Part Number	159.5050
Weight (kg)	114
Length (mm)	1100
Height (mm)	970
Width (mm)	720
Width at Handle Bar / Block Width	720 (28.34”) / 346 (13.62”)
Cutting Width (mm)	290 (11.4”)
Closest cut to wall	25 (.98”)
Blows Per Min (BPM)	1300 x 5
Air Hose Bore (Inlet Coupling 3/4″ BSP claw)	19mm (0.75”)
Removal Rate	30m 2/hr (323ft 2/hr)
Depth of cut (Average) *	3.0mm (1/8””), dependent on operator
Air Consumption (lps – cfm)	38 – 80
Noise Level (db (A))	94.7
Vibration level (Aeq m/s2)	16.5
Vibration level (Aeq m/s2) (secondary	23.1

Part Number	159.6000
Weight (kg)	72
Length (mm)	340
Height (mm)	1290
Working Height (mm)	1295
Width (mm)	285
Cutting Width (mm)	250
Packaged Dimensions	305mm W x 356mm L x 813mm H
Blows Per Min (BPM)	2200 x 11
Air Hose Bore (Air Inlet Adaptor 3/4″ BSP)	19mm (0.75”)
Removal Rate	28m 2/hr (300ft 2/hr)
Depth of cut (Average) *	3.0mm (.118”)
Air Consumption (lps – cfm)	26 – 55
Noise Level (db (A))	97
Noise LPA SPL	97.4 dB (A)
Noise LWA SWL	110.5dB (A)
Vibration level	5.0

Image	Part Number	Description
	612.0125	One Piece Piston, Tungsten Carbide Tipped, Bush Hammer Head To suit models 159.6050
	612.0120	Screw Fit Piston to Fit Replaceable Head To suit model 159.6000
	426.5355	Screw Fit Bush Head To suit model 159.6000
	446.6000	MHS11 Service Kit (1 Piece Piston) Consists of: Single Piece Piston, Brush Seal & O’Ring (11 each)

Image	Part Number	Description
	437.0120	Vacuum Shroud
	815.5560	Whip Check
	859.1580	¾’’ BSP Inline Lubricator
	458.1580	Whip Hose & Oiler Assembly Consists of whip hose, whip check and ¾’’ lubricator
	843.0752	¾’’ Air Hose Complete with couplings 15m length
