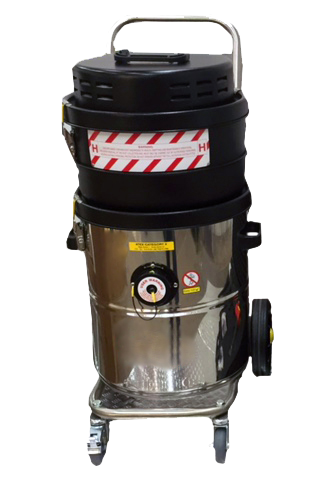

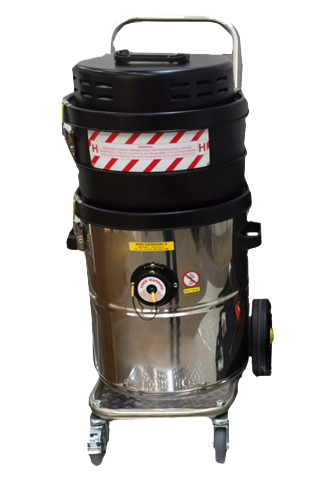

Trelawny KAV30 Pneumatic Wet & Dry Vacuum (KAV30)

The KAV30 is ATEX approved for Gas Zone 1 and Dust Zone 21 under category 2 of the ATEX Directive. The K series range of industrial dust collectors form an integral part of Trelawny's TVS® (Tool and Vacuum system). Uniquely available with a fully conductive accessory kit, stainless steel canisters mounted on a stainless steel caddy fitted with conductive braked castors & wheels. Each machine is issued with an earth path continuity certificate and where applicable the Type H versions include a filtration test certificate. The K series range of industrial dust collector form an integral part of Trelawny's TVS®, Tool and Vacuum System, for our range of smaller hand held surface preparation equipment.

• Suitable for use with Trelawny’s TVS® range of handheld scaling tools
• Collection of dust in hazardous environments categorised under category 2 of the ATEX directive
• Collection of dry dust and wet materials
• Dry model complete with: 38 mm Tool Kit (Part No. 303.1085), 14″ Standard Filter Assembly (Part No. 303.1025), 5 x K4 Disposable Paper Bags
• Wet & dry models complete with: 38 mm Tool Kit (Part No. 303.1095/WD), 14″ Antistatic Float Assembly (Part No. 303.1050/AS), 14” Standard Filter Assembly (Part No. 303.1025), 5 x K4 Disposable Paper Bags
• Dry HEPA models complete with: 38 mm Tool Kit (Part No. 303.1085), 14″ Standard Filter Assembly (Part No. 303.1025), 5 x K4 Disposable Paper Bags

• 30 litre capacity
• ATEX certified with certificate
• Optional certified Type H version
• Supplied with conductive tool kit
• Optional wet use version
• TRELAWNY KAV30 VACUUM ATEX CLASSIFICATION:
  EX II GD C II C T50⁰C (T6)
  *CERTIFIED FOR USE IN GAS ZONE 1

Part Number	303.10KAV30/D
Capcity (litres)	30
Output Flow (M³ per h / Lt per sec)	110 – 33
Air Consumption (Lt per sec / cfm)	16 – 35
Maximum vacuum at 100psi (mm H20)	2500mm / water gauge
Dimensions (mm)	890 x 460 x 500
Weight (kg)	14.5

Part Number	303.10KAV30/DH
Capcity (litres)	30
Output Flow (M³ per h / Lt per sec)	110 – 33
Air Consumption (Lt per sec / cfm)	16 – 35
Maximum vacuum at 100psi (mm H20)	2500mm / water gauge
Dimensions (mm)	1110 x 460 x 500
Weight (kg)	20.8

Part Number	303.10KA30/WD
Capcity (litres)	30
Output Flow (M³ per h / Lt per sec)	110 – 33
Air Consumption (Lt per sec / cfm)	16 – 35
Maximum vacuum at 100psi (mm H20)	2500mm / water gauge
Dimensions (mm)	890 x 460 x 500
Weight (kg)	14.5

Image	Part Number	Description
	303.1075/AS	38mm x 3m Hose   Antistatic option
	303.1025   303.1025/AS	14’’ Standard Filter Assembly   Antistatic option
	303.1035	14’’ Permaflow Filter (Optional)
	303.1050   303.1050/AS	14’’ Float Assembly – Wet use   Antistatic option
	303.1060   303.1060/AS	HEPA filter (Optional) Antistatic option
	303.1085   303.1085/AS	38mm Dry Tool Kit   Antistatic option
	303.1095/WD   303.1095/AS	38mm Wet Tool Kit   Antistatic option
	303.1100	38mm Multipurpose Tool with Brushes
	303.1105   303.1105/AS	38mm x 125mm Dusting Brush   Antistatic option
	303.1110	38mm Stainless Steel Taper Tube   For joining hoses
	303.1005	K4 Disposable Bags – Pack of 10 –   For disposing of sealed waste such as hazardous dust
	303.1030	K6 Paper Filter – Pack of 10 –   For dry use applications

Image	Part Number	Description
	303.1075/AS	38mm x 3m Hose   Antistatic option
	303.1025   303.1025/AS	14’’ Standard Filter Assembly   Antistatic option
	303.1035	14’’ Permaflow Filter (Optional)
	303.1050   303.1050/AS	14’’ Float Assembly – Wet use   Antistatic option
	303.1060   303.1060/AS	HEPA filter (Optional) Antistatic option
	303.1085   303.1085/AS	38mm Dry Tool Kit   Antistatic option
	303.1095/WD   303.1095/AS	38mm Wet Tool Kit   Antistatic option
	303.1100	38mm Multipurpose Tool with Brushes
	303.1105   303.1105/AS	38mm x 125mm Dusting Brush   Antistatic option
	303.1110	38mm Stainless Steel Taper Tube   For joining hoses
	303.1005	K4 Disposable Bags – Pack of 10 –   For disposing of sealed waste such as hazardous dust
	303.1030	K6 Paper Filter – Pack of 10 –   For dry use applications
