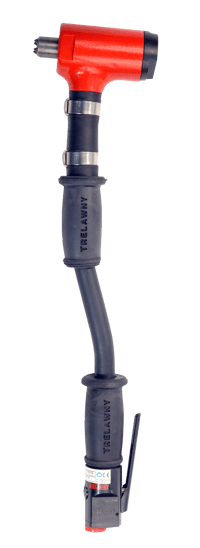

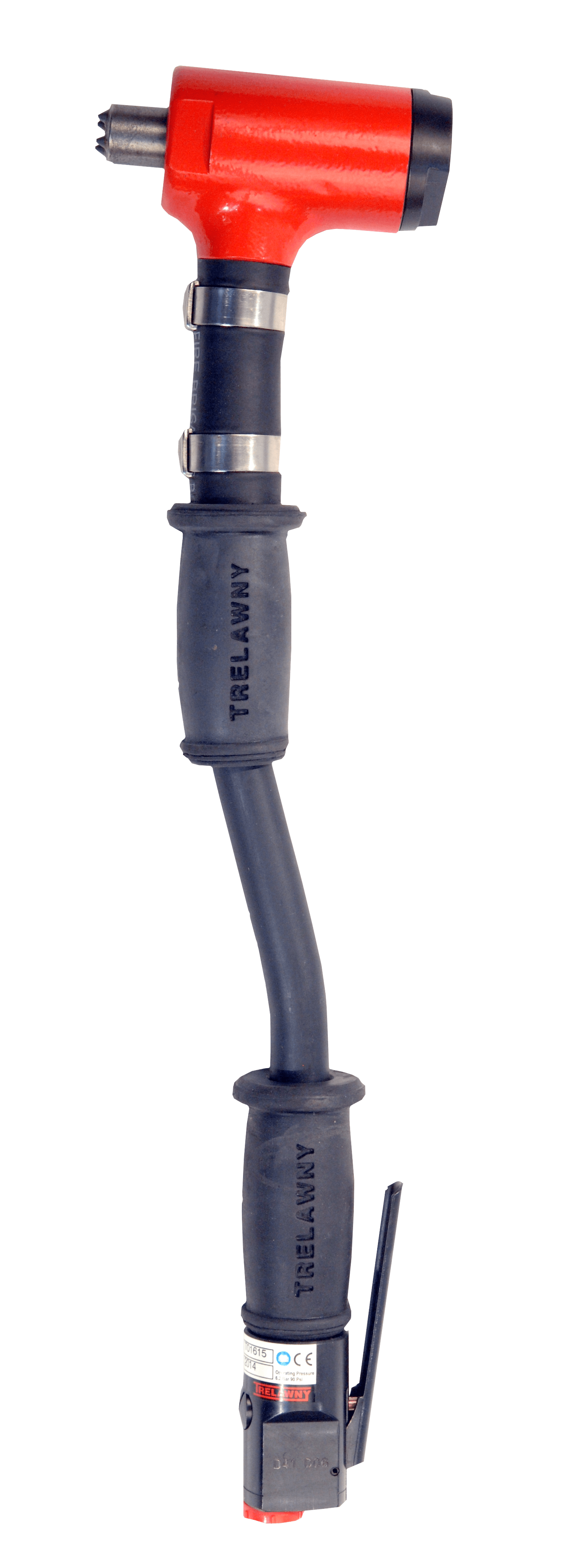

Trelawny Atex Approved Scaling Hammers Handheld ATEX SF3 Scaling Hammer (ATEX SF3 Scaling Hammer)

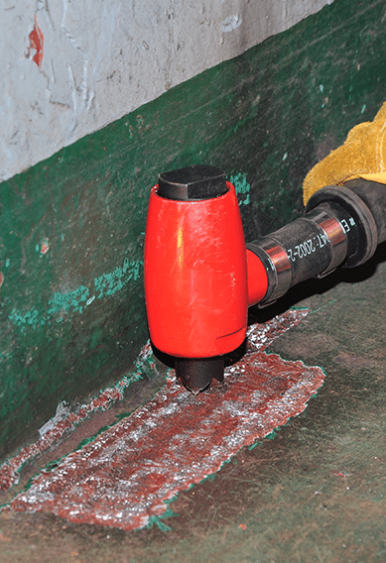

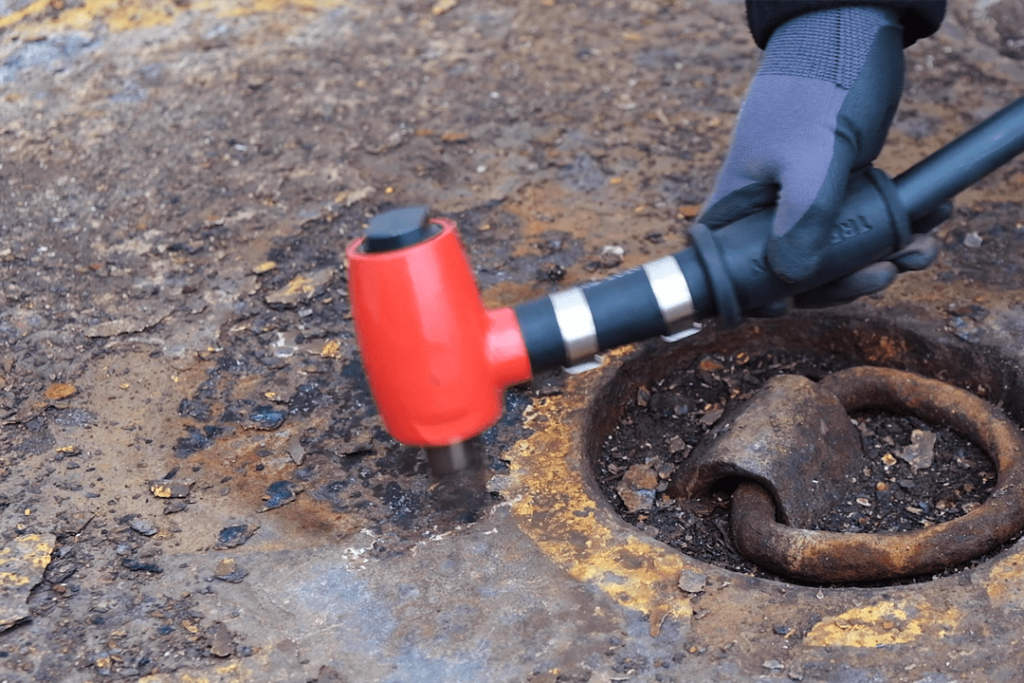

The single head model is suitable for smaller and hard to reach areas. Being lightweight and easy to handle they are perfect for reaching behind structures and up against bulkheads. The additional Vibro-Lo dampening system adds additional safety protecting the operator from harmful vibration. The triple head model give faster production for more open areas. All models feature easily replaceable beryllium copper heads which fracture heavy rust and coatings.

• Removal of thick coatings, rust, and other accumulated materials
• Coating spot repairs
• Cleaning gas lines in preparation for inspection and repair.
• Machinery and equipment cleaning in plants and factories
• Concrete scabbling and preparation
• For Gas Ex Zone Applications on rigs, petrochemical plants,
  pipelines, vessels, and shipyards
• For Dust Ex Zones Applications such as cleaning machinery in
  processing industries where dust and powders are present

• Single and triple head models suits a wide range of
  applications
• ATEX certified for use without hot work permits
• Low vibration model (single) protects operators
• Quick fit beryllium copper heads fracture tough materials
• Flexible handle options allow in-line and short handle
  configurations
• Standardised components overall SF Ex models for cost
  effective maintenance
• The simple and robust design offers reduced and simple
  maintenance

Part No.	153.5310
IMPA Part No.	N.A
ISSA Part No.	N.A
Weight (kg)	3.7
Length (mm)	450
Working Height (mm)	152.5
Blows Per Min (BPM)	3000 x 3
Air Consumption (lps – cfm)	5.2 – 11
Noise Level (db (A))	92.7
Vibration level (Aeq m/s2)	13.4

Image	Trelawny Part No.	IMPA Part No.	ISSA Part No.	Description
	606.5303	59.03.89	55.093.13	Cruciform taper fit cutter head Beryllium copper spark resistant – for fracturing and removal of coatings To fit 196.5110
	612.5301	N.A	N.A	Piston to fit cutter heads

Image	Part Number	IMPA Part Number	ISSA Part Number	Description
	446.1510X   446.1530X	N.A	N.A	VLSF1-EX Service Kit   VLSF1-EX Service Kit
	614.5301	N.A	N.A	Brush Seal
	421.3530	N.A	N.A	Anti-static Air hose 10 meters.
