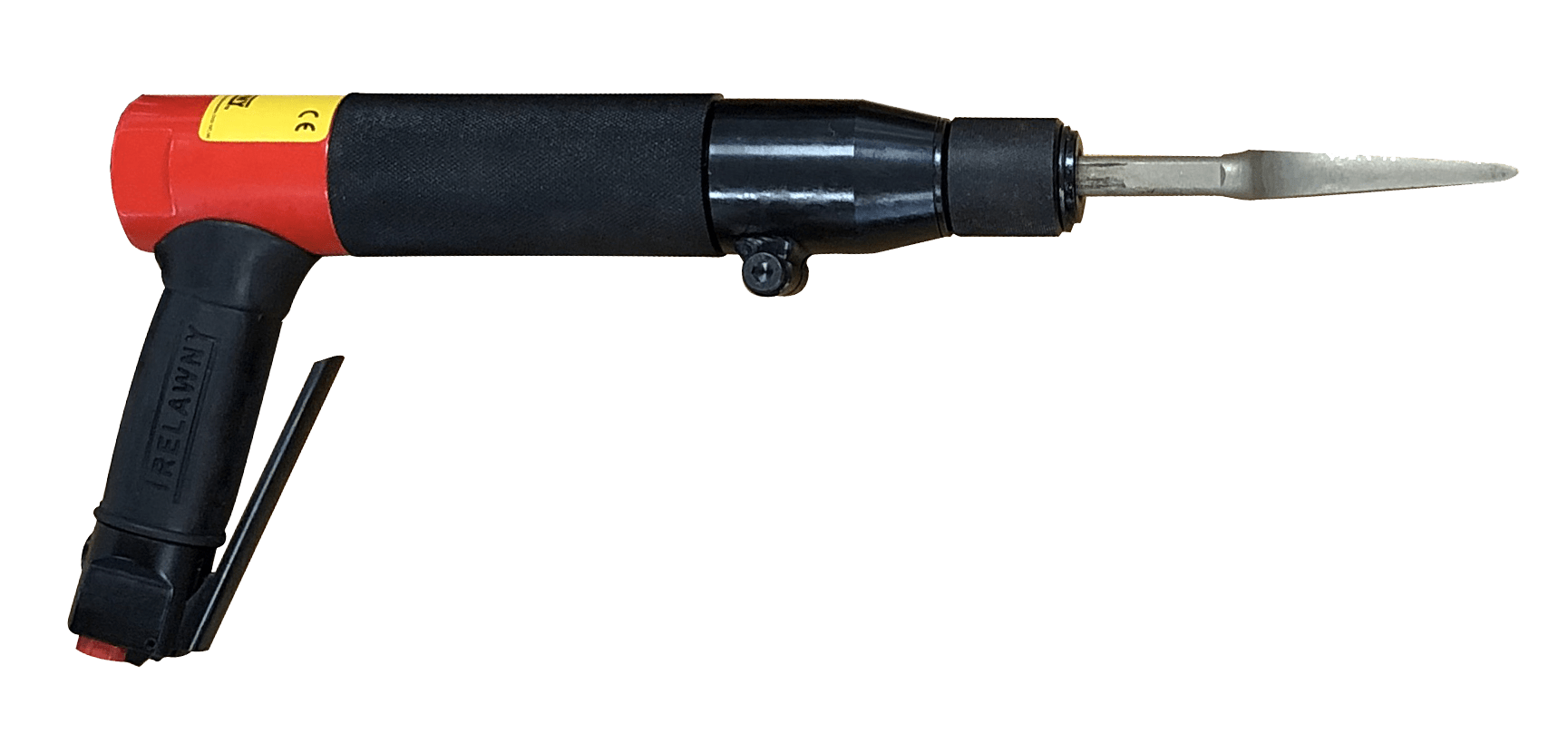

Trelawny Atex Approved Needle Scalers Low Vibration Pneumatic Scaler VL203Ex Needle (VL203Ex Needle)

ATEX certified quality design and low vibration Trelawny’s VL (Vibro-Lo ™) Needle scalers have long been the market leading tools for descaling, offering unparalleled reductions in harmful vibration, containment of hazardous dust and drop protection. In our aim to produce the highest performing, safest tools for use in hazardous environments Trelawny offer our ATEX certified versions of the full VL range of needle scalers. The VL Ex series is based around our VL303 & VL203 pistol grip scalers and the VL223 in line scaler. Trelawny’s VL Ex series is the solution for corrosion management in high risk surroundings such as natural-gas installations, oil and LNG tankers, gas works, oil drilling platforms, refineries, petrochemical plants and shipyards.

• Trelawny’s VL Ex series is the solution for corrosion management in high risk surroundings such as natural gas installations, oil and LNG tankers, gas works, oil drilling platforms, refineries, petrochemical plants and shipyards
• Removal of coatings, corrosion and other accumulated materials
• Slag removal and stress relieving welds

• Beryllium Copper needles fitted as standard – Beryllium copper provides high strength with non-sparking and non-magnetic properties
• TVS® Dust shroud options available – Ensures that operators are protected from hazardous dust present in the coating and corrosion they are removing, dust from Beryllium copper is hazardous and we strongly recommend that the VL Ex series is used in conjunction with the KAV Ex range of dust collectors
• Fall arrestors – A simple drop protection solution is available on all VL Ex tools, eliminating the risks of dropping the tool which could cause injury, equipment damage and downtime
• Vibro-Lo™ vibration reduction – Our VL Ex needle scalers produce up to 8 times lower levels of harmful Hand Arm Vibration (HAV) than that of standard tools protecting operators and increasing usable working time and productivity

Part Number	196.2207
IMPA Part Number	N.A
ISSA Part Number	N.A
Type	Pistol Grip
Needle/Chisel Supplied	19 x 3mm
Weight (kg)	2.7
Blows Per Minute	2400
Air Consumption (lps – cfm)	1.89 – 4
Air Inlet Size (BSP)	1/4
Noise Level (LwA db(A))	90.7
Vibration Level (Aeq m/s²)	2.75

Spark Resistant Berryllium Copper

Available in 3mm flat tip only for use in potentially hazardous areas.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	403.1312	3mm	Box of 12 Needles	1B
	403.1319	3mm	Box of 19 Needles	2B, 2BPG, VL203, VL223, EX
	403.1328	3mm	Box of 28 Needles	3BPG, VL303, LRS, EX
	453.1310	3mm	Box of 100 Needles	All Models
	443.1307	3mm	Box of 500 Needles	All Models

Chisel Tip Needles

These needles will clean the same material as a pointed tip but will leave light surface markings.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	413.2112	3mm	6 x sets of 12 needles	1B
	413.2119	3mm	6 x sets of 19 needles	2B, 2BPG, VL203, VL223
	413.2128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.2110	3mm	Box of 100 needles	All Models
	443.2107	3mm	Box of 1000 needles	All Models

Flat Tip Needles

The flat tip needles will reduce marking on metal surfaces and can actually give a polishing finish.
For use on thin gauge metals and any surface where light treatment is required.
A 2mm needle used on a welding joint produces a similar effect to shot peening, reducing stress in the weld.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	412.1129	2mm	6 x sets of 29 needles	1B
	412.1151	2mm	6 x sets of 51 needles	2B,2BPG,VL203, VL223
	412.1165	2mm	6 x sets of 65 needles	3BPG, VL303, LRS
	452.1110	2mm	Box of 100 needles	All Models
	442.1107	2mm	Box of 2000 needles	All Models
	413.1112	3mm	6 x sets of 12 needles	1B
	413.1119	3mm	6 x sets of 19 needles	2B, 2BPG, VL203, VL223
	413.1128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.1110	3mm	Box of 100 needles	All Models
	443.1107	3mm	Box of 1000 needles	All Models
	414.1119	4mm	6 x setf of 19 needles	3PGS, VL303,LRS
	454.1105	4mm	Box of 50 needles	3PGS, VL303,LRS
	444.1107	4mm	Box of 500 needles	3PGS, VL303,LRS
	443.1105	3mm	1000 needles – 127mm	All Models
	443.1115	3mm	19 needles – 127mm	All Models

Pointed Tip Needles

Sharpened to a conical point, these are the most effective in breaking through very hard scale on materials where some surface indentation is permissible – or where a roughening or keying of the surface is actually desirable

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	413.3112	3mm	6 x sets of 12 needles	1B
	413.3119	3mm	6 x sets of 19 needles	2B,2BPG, VL203, Vl223
	413.3128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.3110	3mm	Box of 100 needles	All Models
	443.3107	3mm	Box of 1000 needles	All Models
	414.3119	4mm	6 x sets of 19 needles	3BPG, VL303, LRS
	454.3105	4mm	Box of 50 needles	All Models
	444.3107	4mm	Box of 500 needles	All Models

Stainless Steel Needles

Available in 3mm flat tip form only, to be used in applications such as refurbishment of food processing machinery or areas of high humidity where the corrosive effect on needles would be prohibitive. Used on decorative concrete surfaces where contamination of the surface from carbon steel needles is undesirable.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	453.1207	3mm	Box of 100 Needles	All Models
	443.1207	3mm	Box of 500 Needles	All Models

Chisels

Image	Trelawny Part No:	Shank Type	Length (mm)	Blade Width (mm)	Applications
	704.3101	½ Square	178mm	19mm	Weld spatter removal & Chipping rust
	704.3103	½ Square	178mm	64mm	Wide Flat Chisel for the removal of peeling paint and rust
	704.3107	½ Square	254mm	19mm	Flat chisel for weld spatter and sand cast cleaning
	704.3110	½ Square	178mm	50mm	Spark resistant aluminium bronze for use in hazardous areas
	704.3205	½ Square	178mm	35mm Cranked	Weld flux and thick coating removal

Image	Trelawny Part No.	Description
	418.2003     418.3003	TVS Vacuum Shroud VL203/223     TVS Vacuum Shroud VL303 (Includes flat cuff)
	446.2003X     446.3003X	Service Kit for VL203/223     Service Kit for VL303
	415.3003	Anti-Static Lanyard
