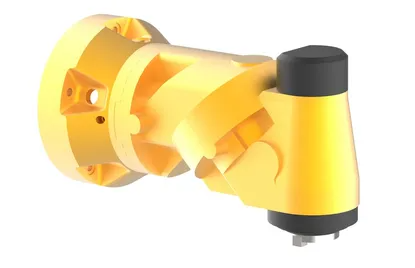

Tos Varndorf HUR 50 Milling Heads (HUR 50)

The universal manually positioned HUR 50 head consists of three compactly connected basic parts with the possibility of their mutual rotation to achieve the required general position of the main spindle of the head. Adjustment angles are readable in 0.1° increments on perimeter scales equipped with a vernier. For setting the parts of the head into a total of 8 basic positions (in the vertical joint plane 4x90°, in the oblique dividing plane 2x180° – setting pins are used).

HUR 50
Number of axes:	2
Speed (rpm):	3.000
Power (kW):	20
Torque (Nm):	1.000
Weight (kg):	manual
Positioning:	300
