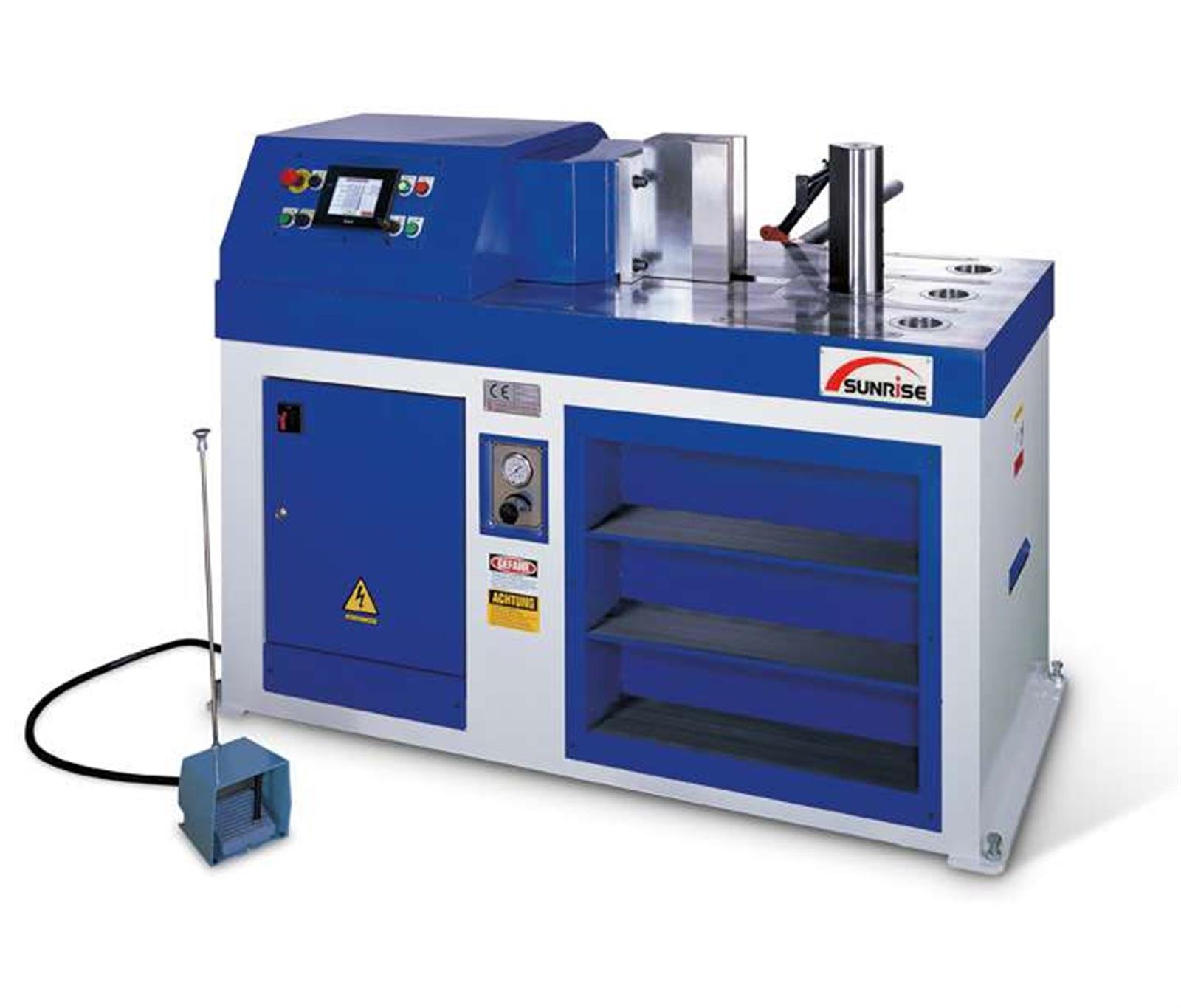

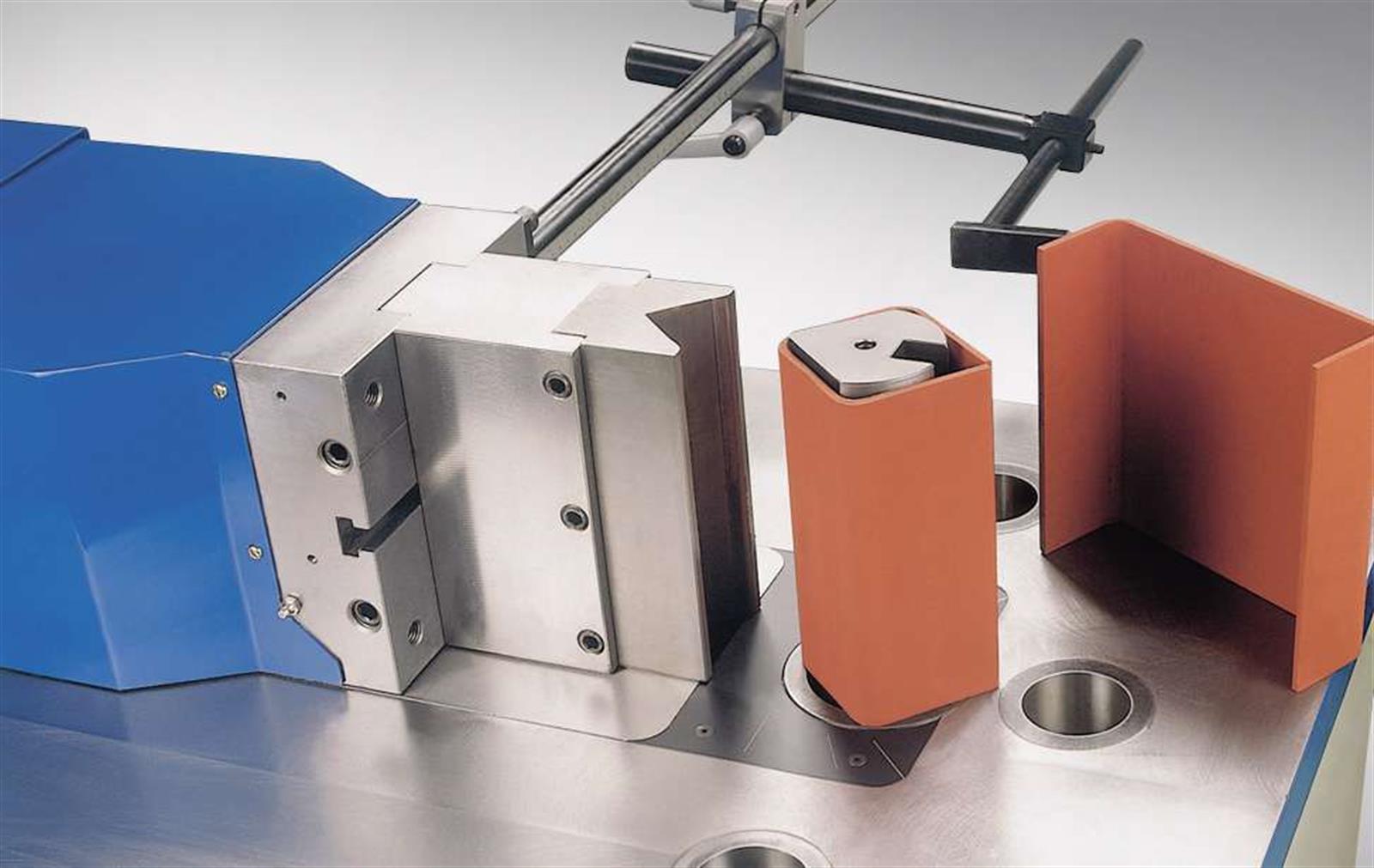

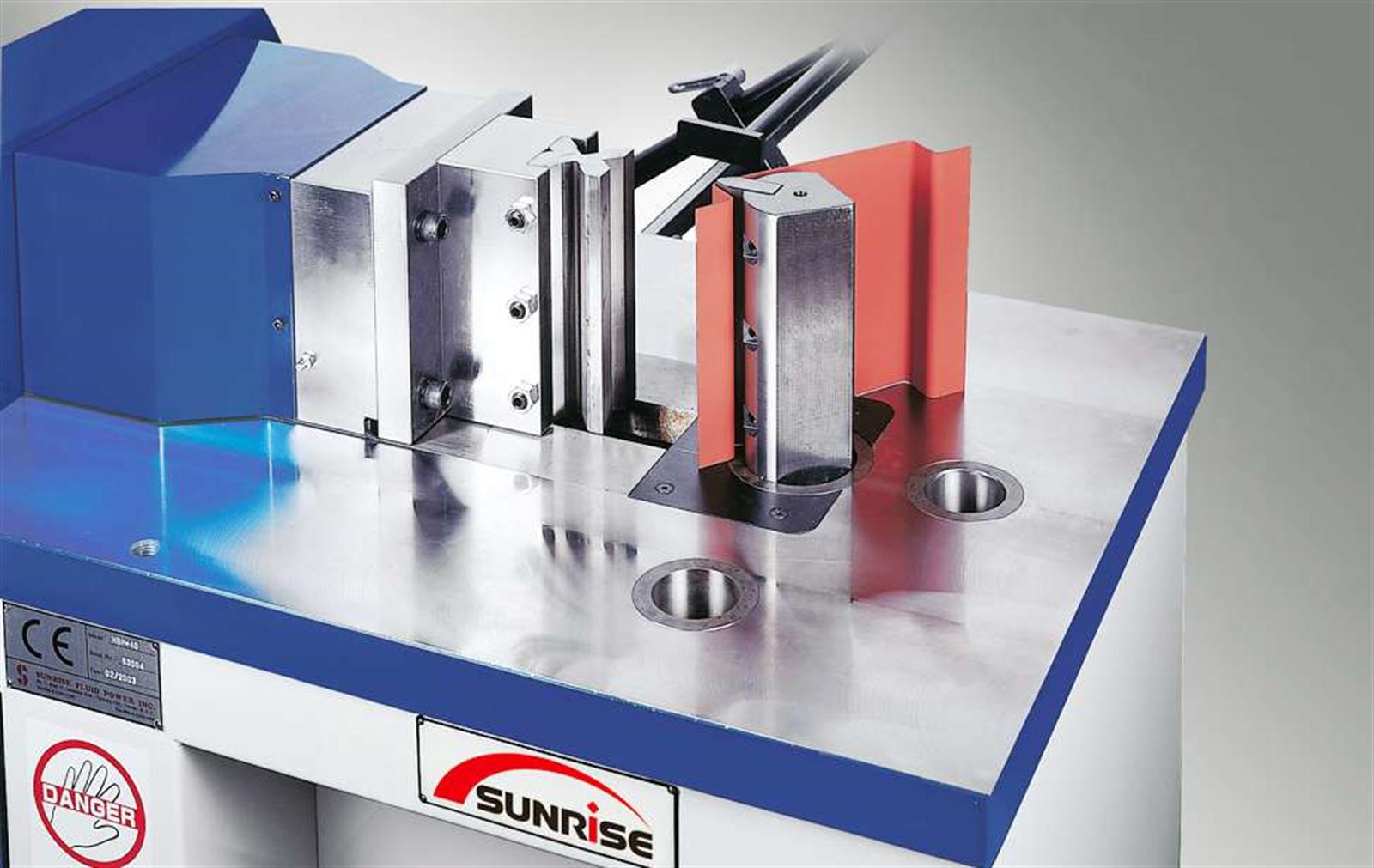

Hydraulic Bending Machines

HBM-40 / HBM-75

The hydraulic bending machine is the new addition to the SUNRISE product line of high quality and reliable hydraulic metal working machines. A wide range of tooling is available for different bending operations. We also customize special tooling for specific requirements

•  Excellent repeatability of cylinder stroke at accuracy of ±0.1mm (±0.004”).
•  Easy to learn programmable controller.
•  Name-brand electric and hydraulic components ensure reliability of entire machine.
•  Manual backgauge is included for accurate positioning.

Model	HBM-75 (HBM-82) HBM-75NC (HBM-82NC)
	Metric (mm)	Imperial (inch)
Cylinder force	75 Tons	82 Short Tons
Cylinder stroke length	350mm	13-3/4"
Forward speed	8.9mm/sec	0.35"/sec
Return speed	9.9mm/sec	0.93"/sec
Fixing holes	ø118mm x 1 ø83mm x 3	ø4-5/8" x 1 ø3-1/4" x 3
Bending punch height	300mm	12"

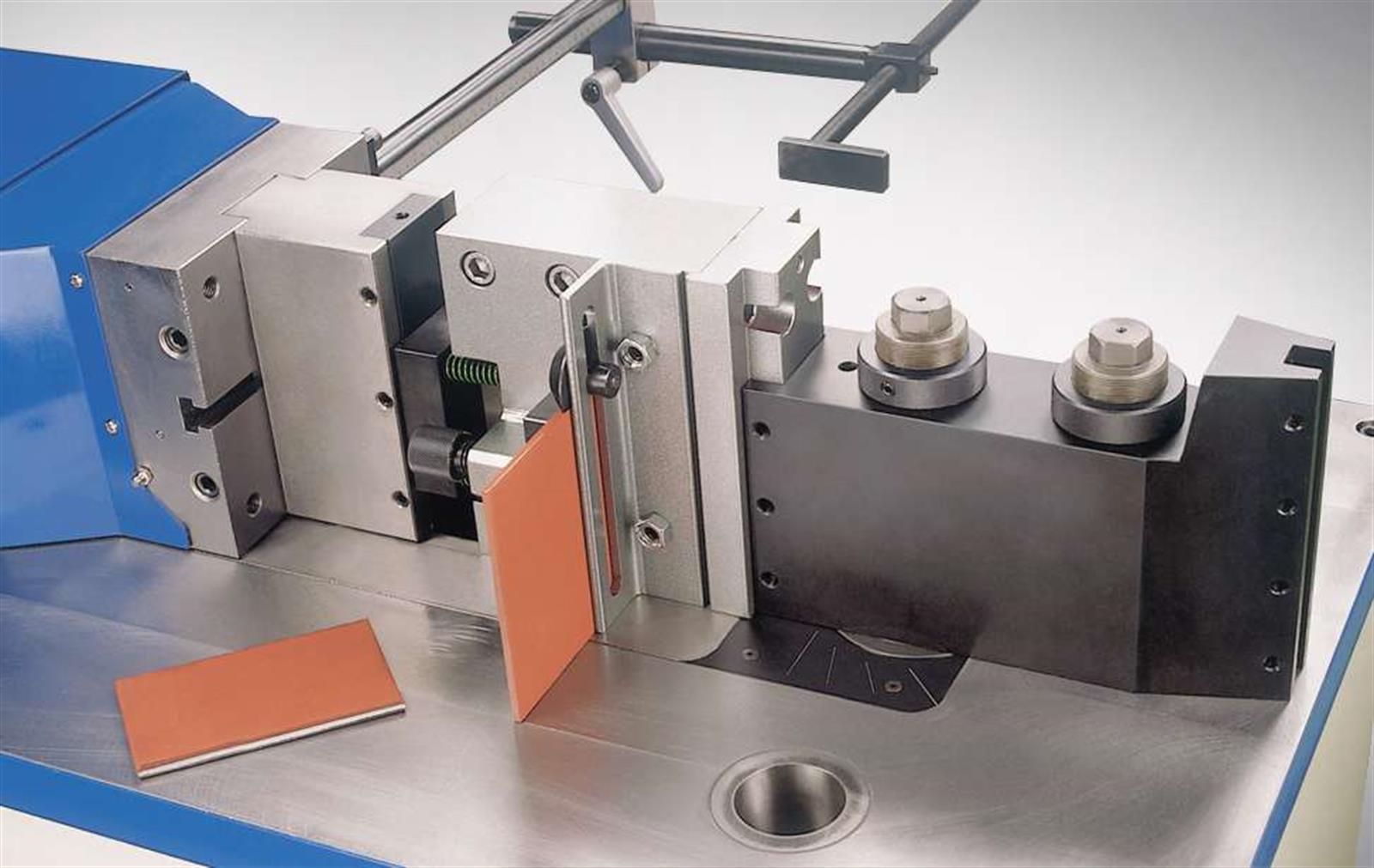

Bending capacity (Single-V die)	300mm x 12mm	12" x 1/2"
NC backgauge (HBM-NC models only)	1016mm	40"

Design and specifications are subject to change without prior notice.

Model	HBM-75 (HBM-82) HBM-75NC (HBM-82NC)
	Metric (mm)	Imperial (inch)

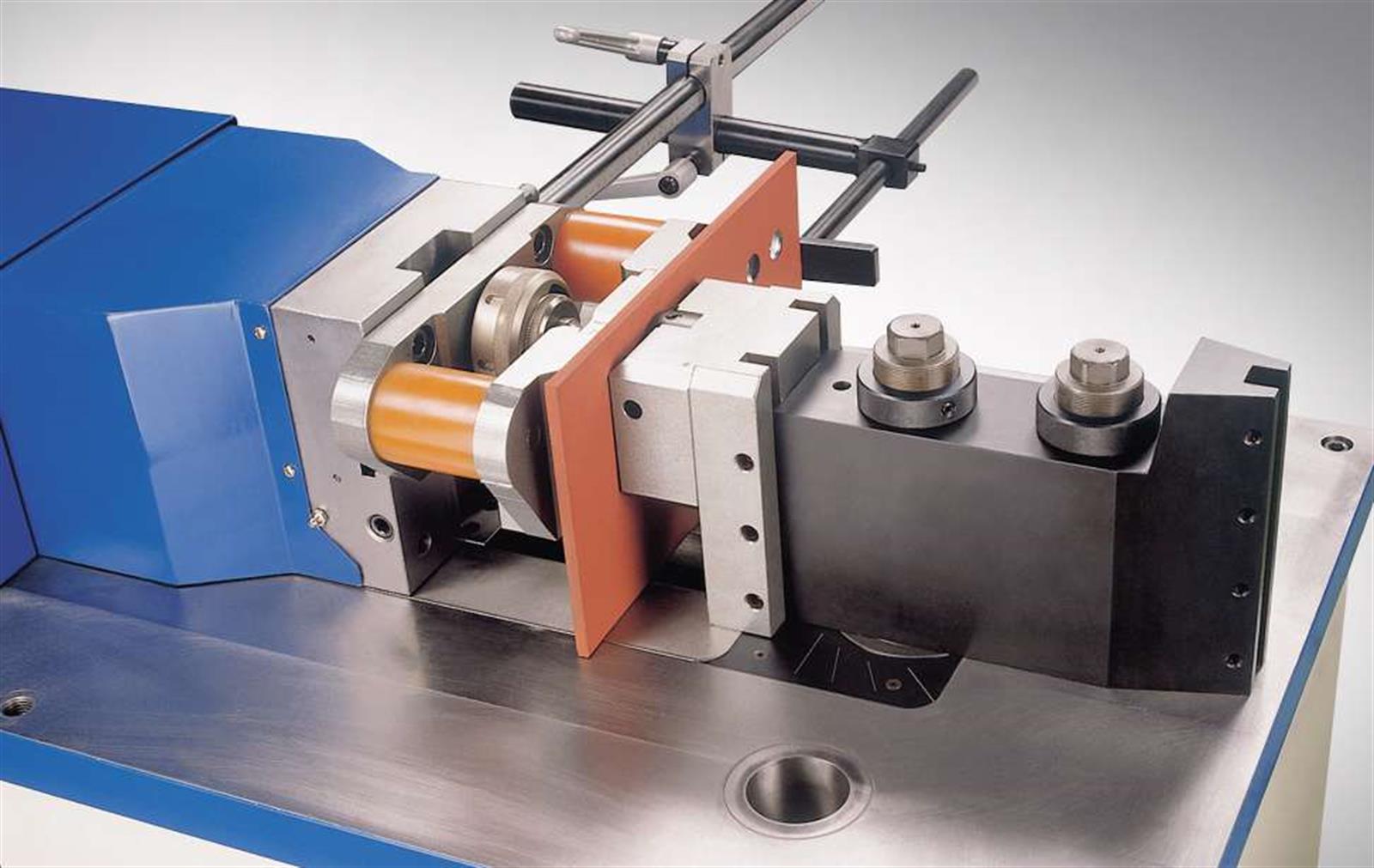

Punching tool capacity	ø30mm x 15mm	ø1-1/8" x 5/8"
Flat plate shear (W x T)	170mm x 16mm	6-21/32" x 5/8"

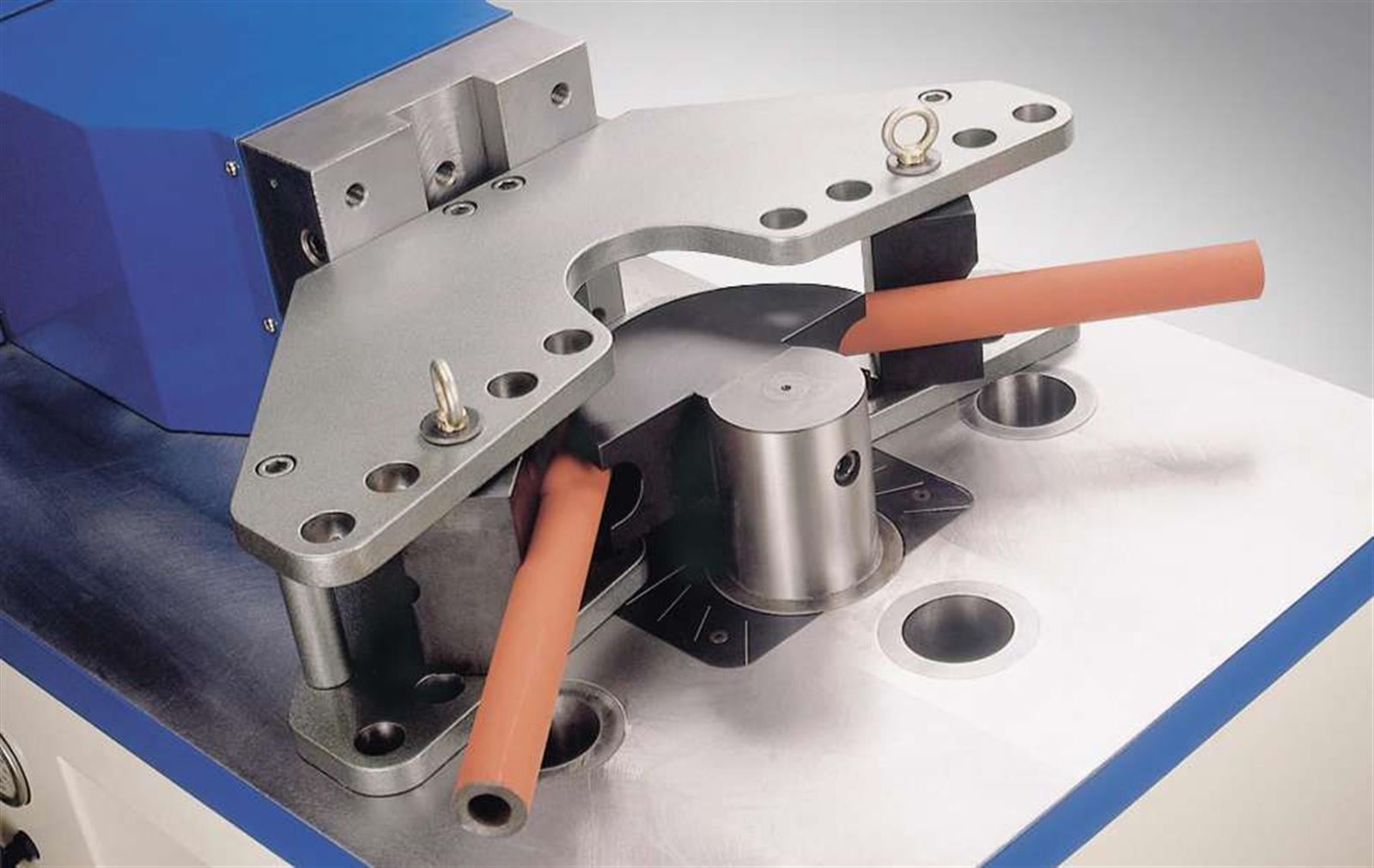

Pipe bending range (90◦ bend)	ø3/8" ~ ø2"	ø3/8" ~ ø2"

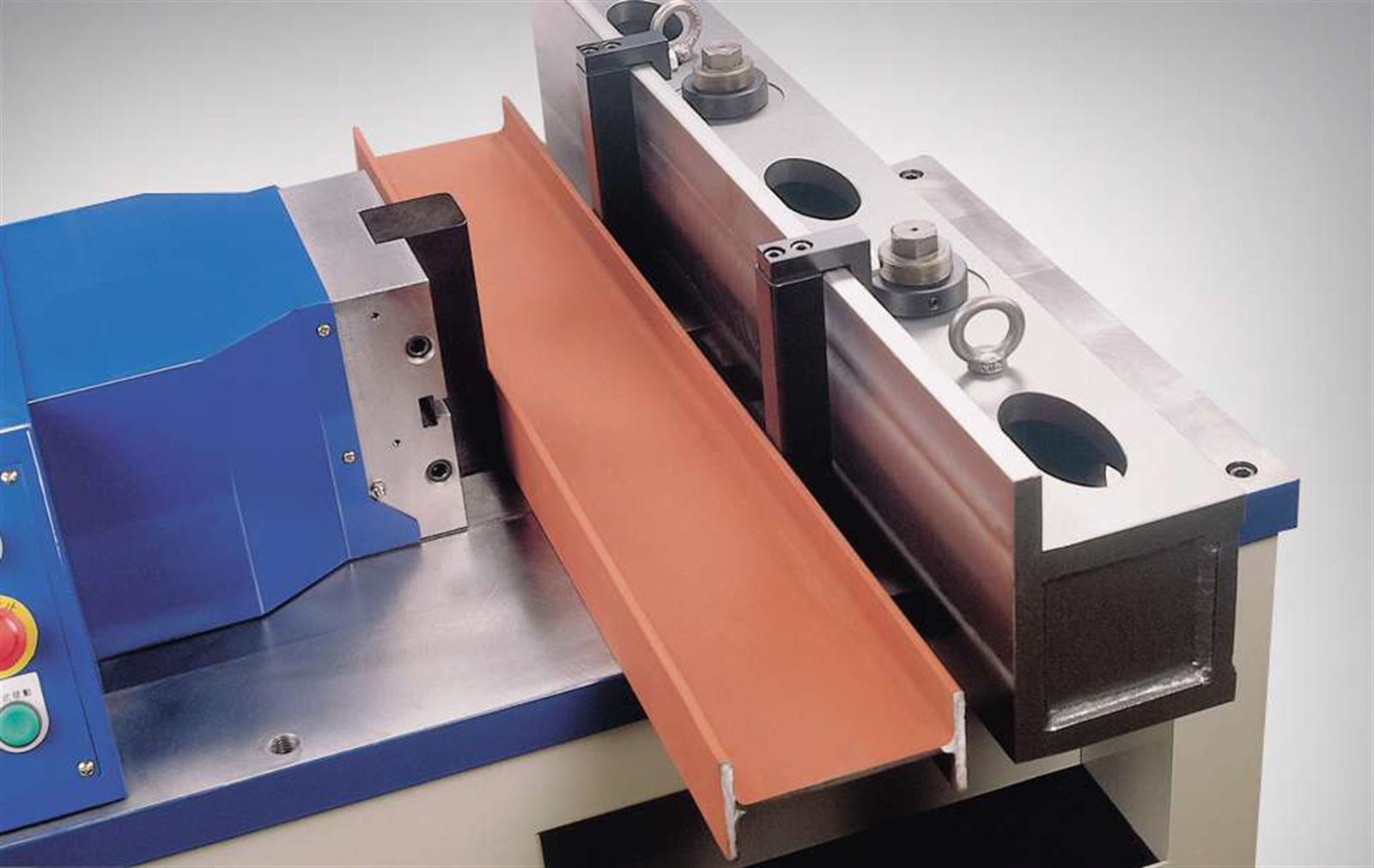

Straightening tool (Max profile)	300mm	12"

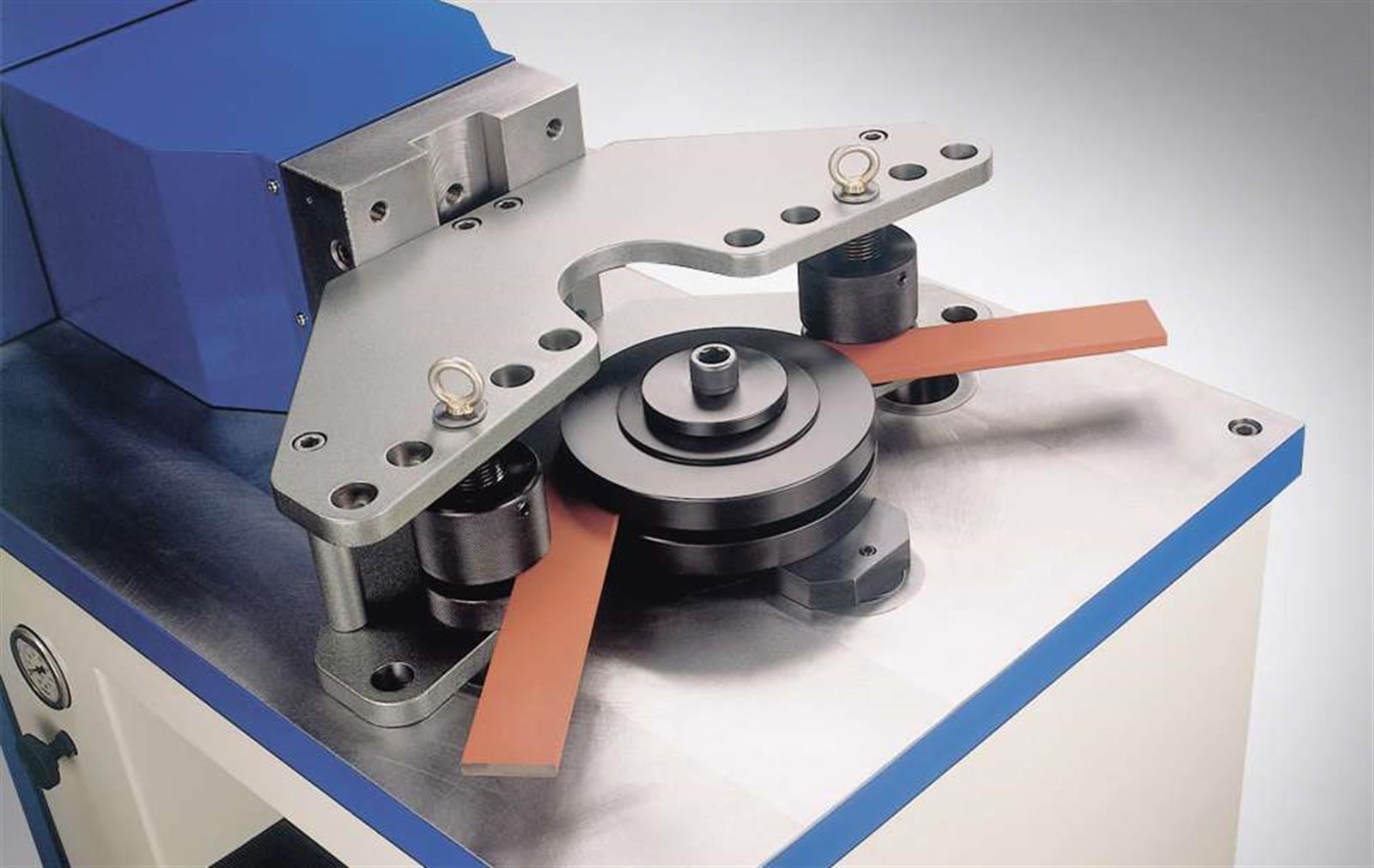

Flat plate edge bending (W x T)	50mm x 12mm	2" x 15/32"
Working height	950mm	37-1/2"
Electric power	7.5HP	7.5HP

Design and specifications are subject to change without prior notice.

Model	HBM-75 (HBM-82)
	Metric (mm)	Imperial (inch)
Net weight (Apr.)	1880kgs	4150lb
Gross weight (Apr.)	2025kgs	4460lb
Machine dimension (Apr.)	1780 x 910 x 1250mm	70" x 36" x 50"
Packing dimension (Apr.)	2020 x 1130 x 1500mm	80" x 45" x 60"

Model	HBM-75NC (HBM-82NC)
	Metric (mm)	Imperial (inch)
Net weight (Apr.)	2010kgs	4430lb
Gross weight (Apr.)	2190kgs	4820lb
Machine dimension (Apr.)	1780 x 2155 x 1250mm	70" x 85" x 50"
Packing dimension (Apr.)	2020 x 1480 x 1500mm	80" x 59" x 60"

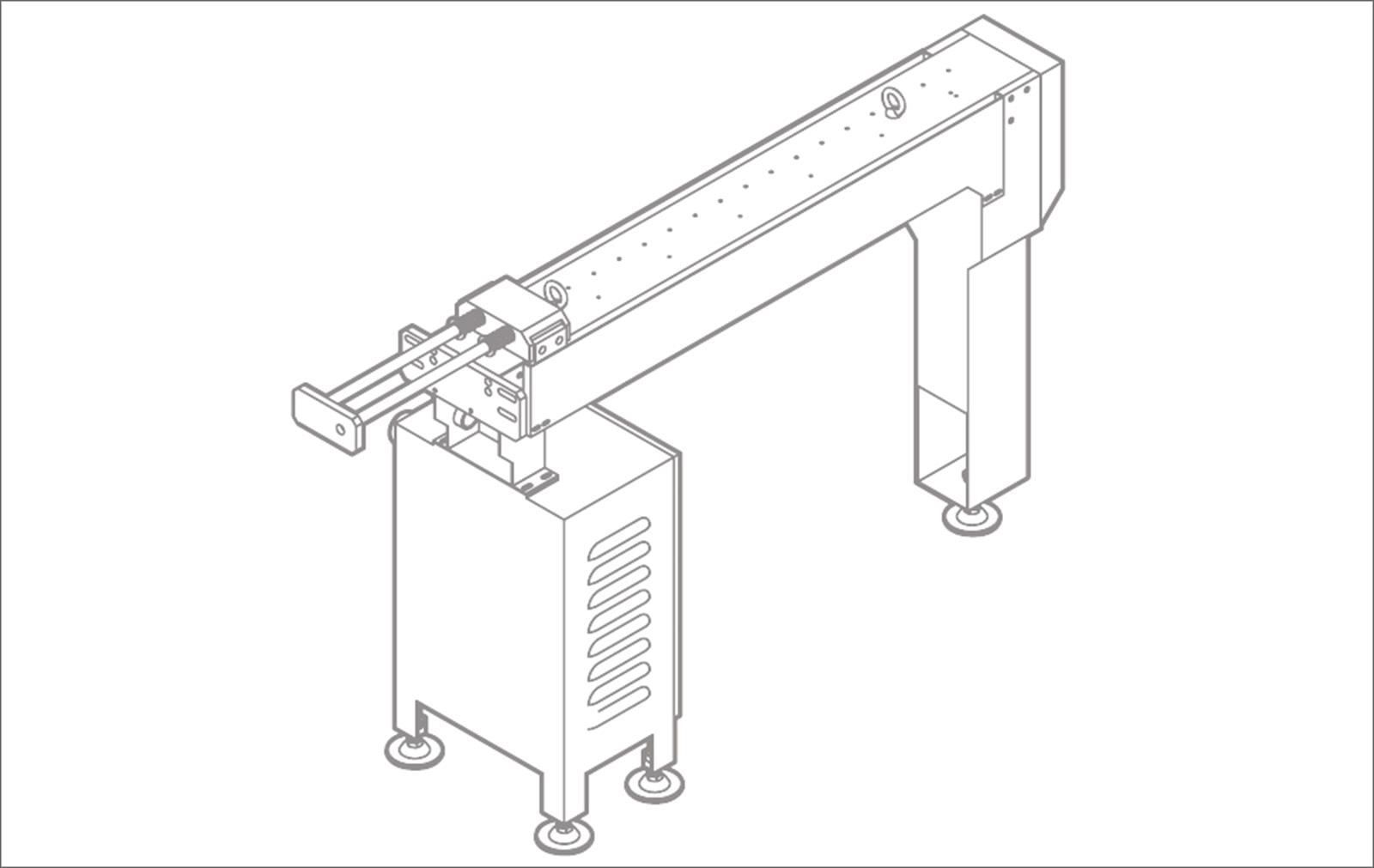

- 1,016mm (40") travel distance.
- Extends accuracy and efficiency of standard bending machine.

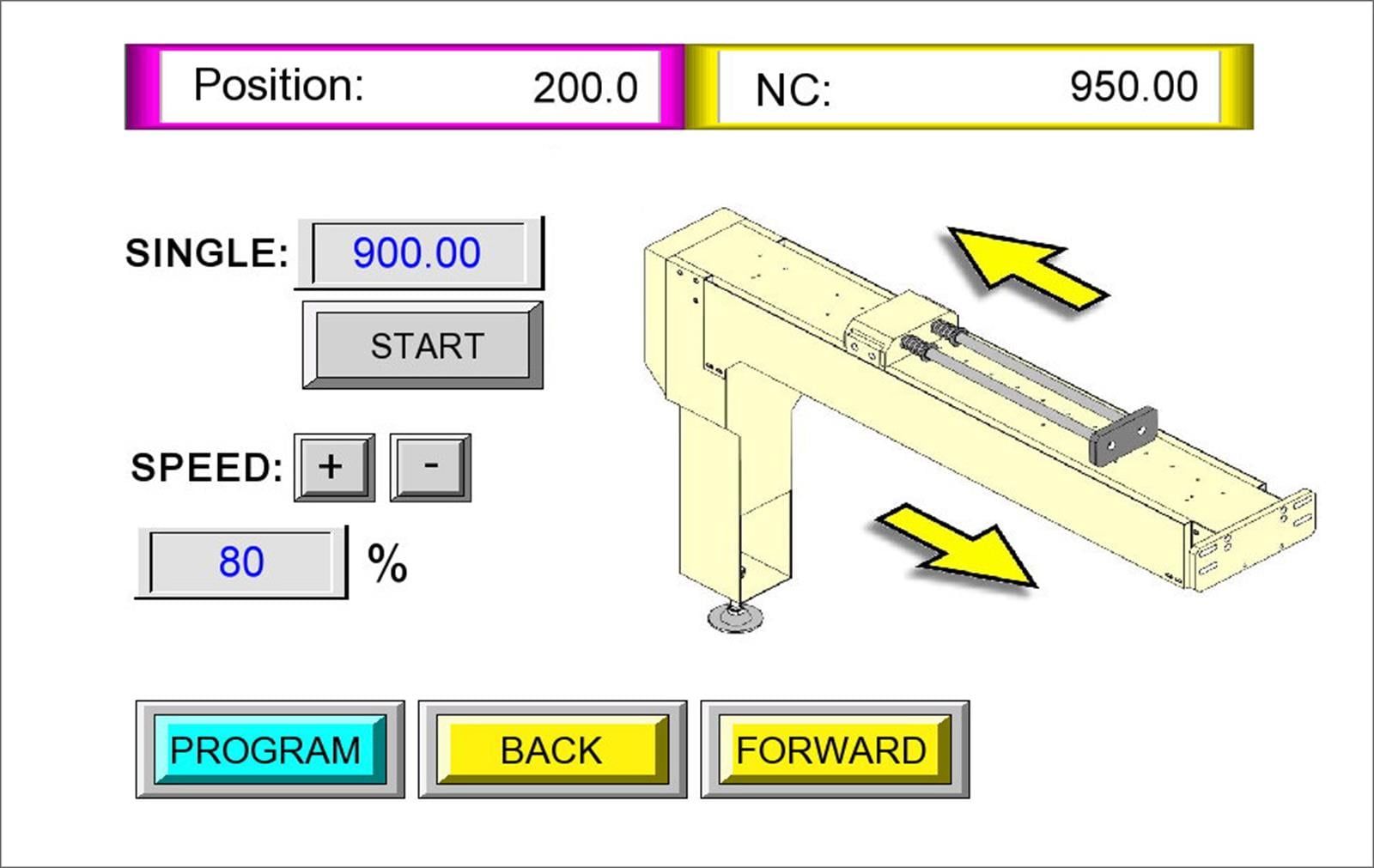

- Operated by a color touch screen controller.
- Integrated action with the main cylinder movement, or can be turned off for manual mode.
