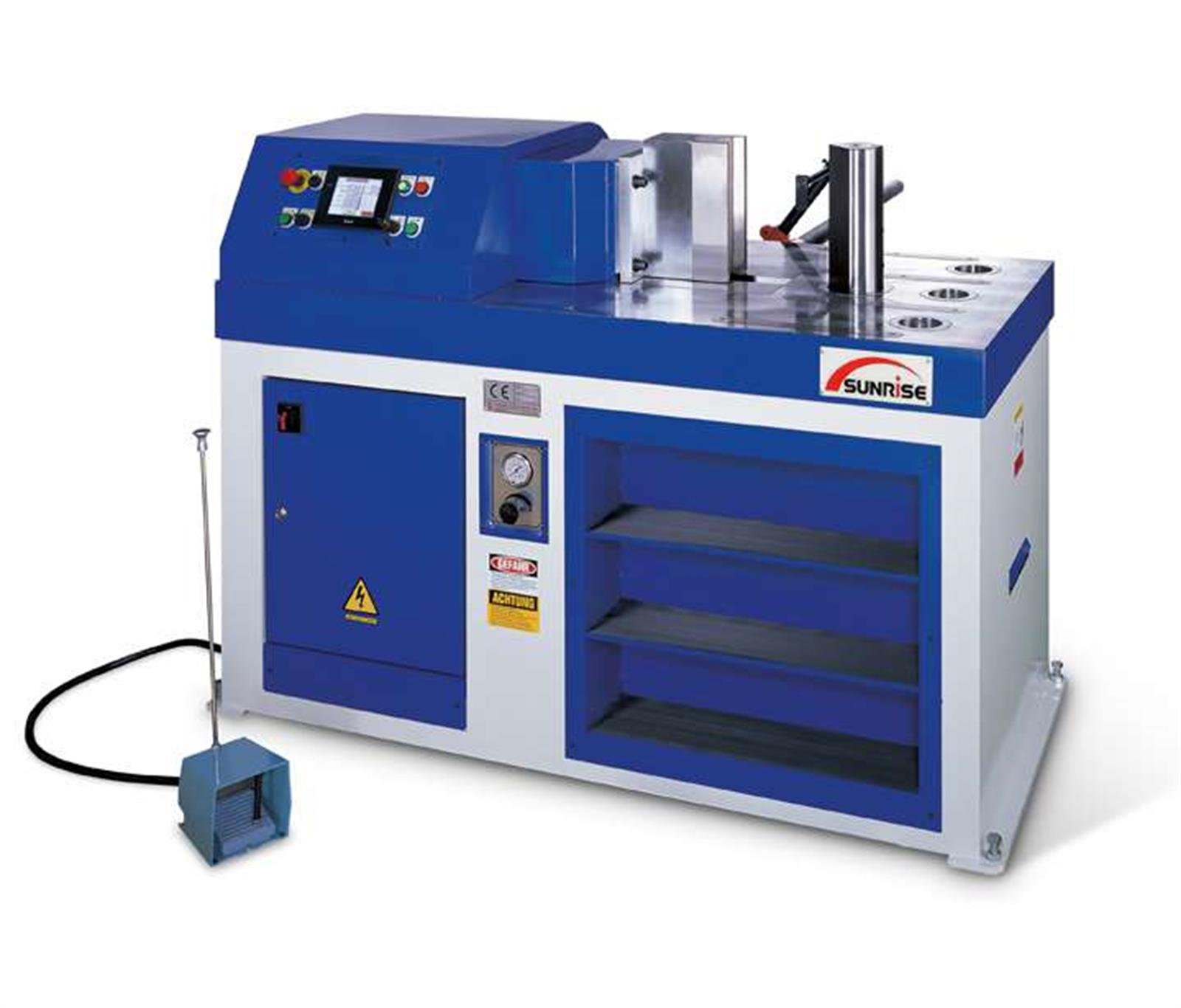

Hydraulic Bending Machines

HBM-40 / HBM-75

The hydraulic bending machine is the new addition to the SUNRISE product line of high quality and reliable hydraulic metal working machines. A wide range of tooling is available for different bending operations. We also customize special tooling for specific requirements

•  Excellent repeatability of cylinder stroke at accuracy of ±0.1mm (±0.004”).
•  Easy to learn programmable controller.
•  Name-brand electric and hydraulic components ensure reliability of entire machine.
•  Manual backgauge is included for accurate positioning.

Model	HBM-40M (HBM-45M) HBM-40 (HBM-45) HBM-40NC (HBM-45NC)
	Metric (mm)	Imperial (inch)
Cylinder force	40 Tons	45 Short Tons
Cylinder stroke length	250mm	10"
Forward speed	9.6mm/sec	0.38"/sec
Return speed	14.5mm/sec	0.57"/sec
Fixing holes	ø83mm x 1 ø58mm x 3	ø3-1/4" x 1 ø2-9/32" x 3
Bending punch height	200mm	8"

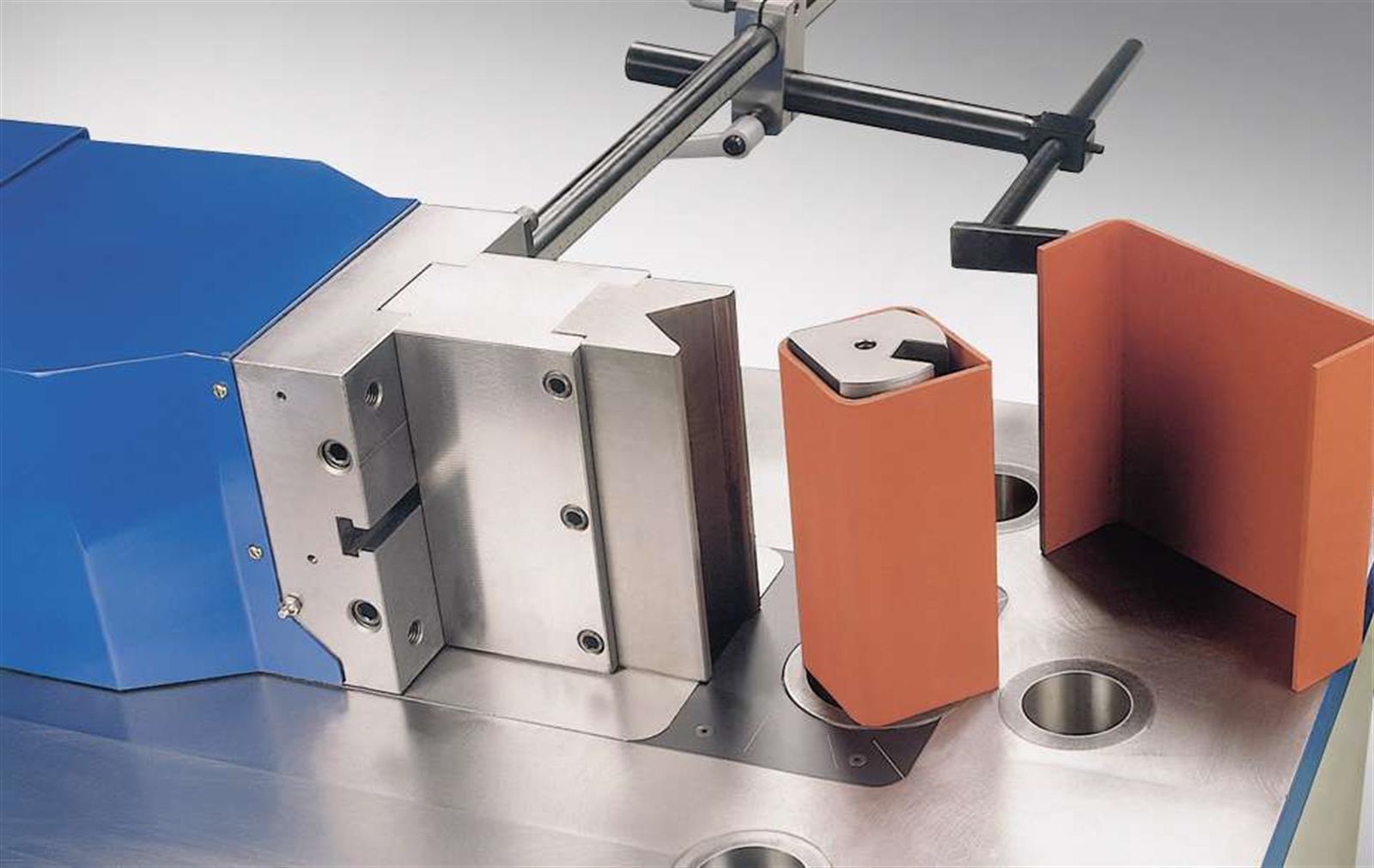

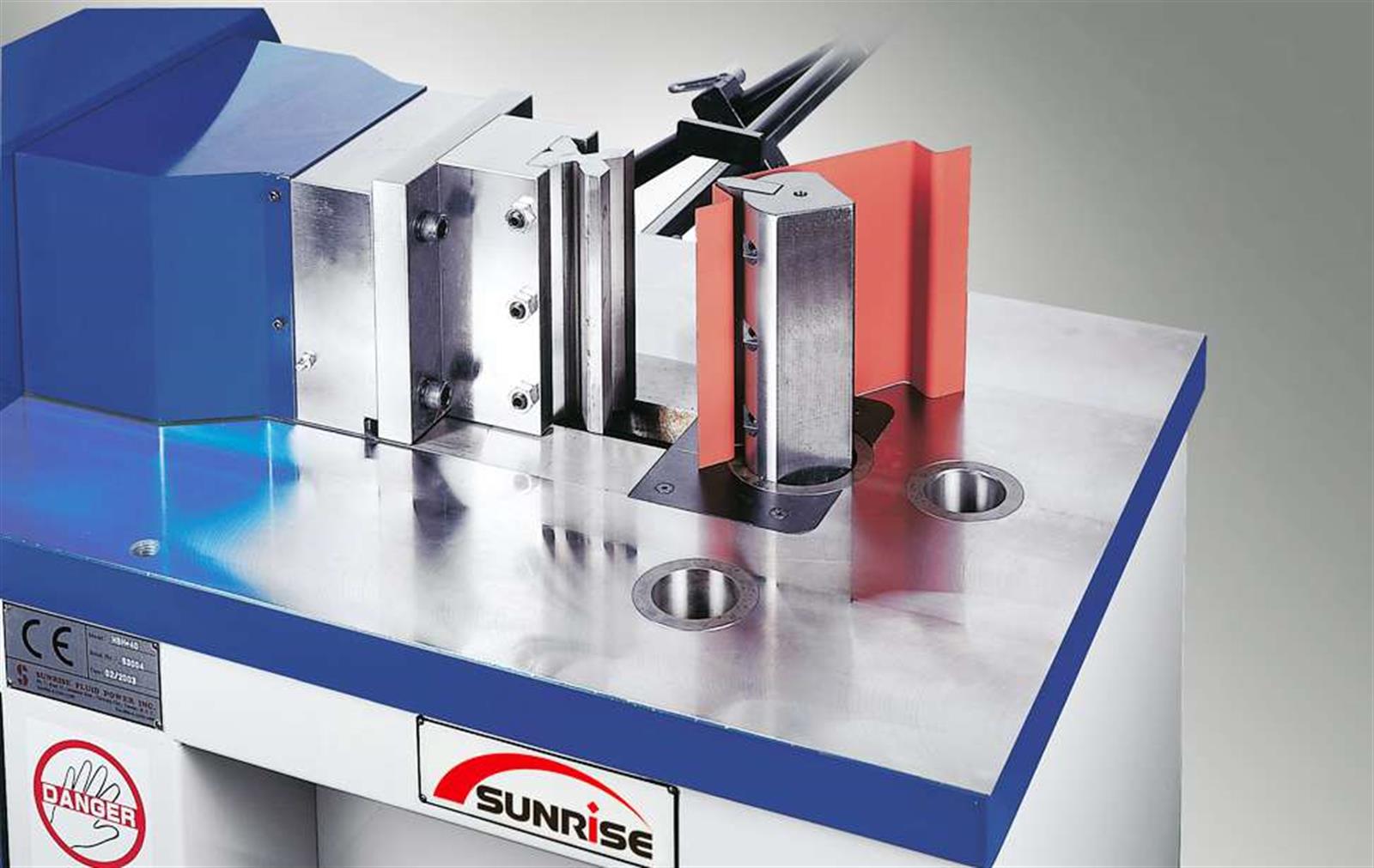

Bending capacity (Single-V die)	200mm x 12mm	8" x 1/2"
NC backgauge (HBM-NC models only)	1016mm	40"

Design and specifications are subject to change without prior notice.

Model	HBM-40M (HBM-45M) HBM-40 (HBM-45) HBM-40NC (HBM-45NC)
	Metric (mm)	Imperial (inch)
Punching tool capacity	ø30mm x 9mm	ø1-1/8" x 3/8"
Flat plate shear (W x T)	170mm x 12mm	6-21/32" x 15/32"

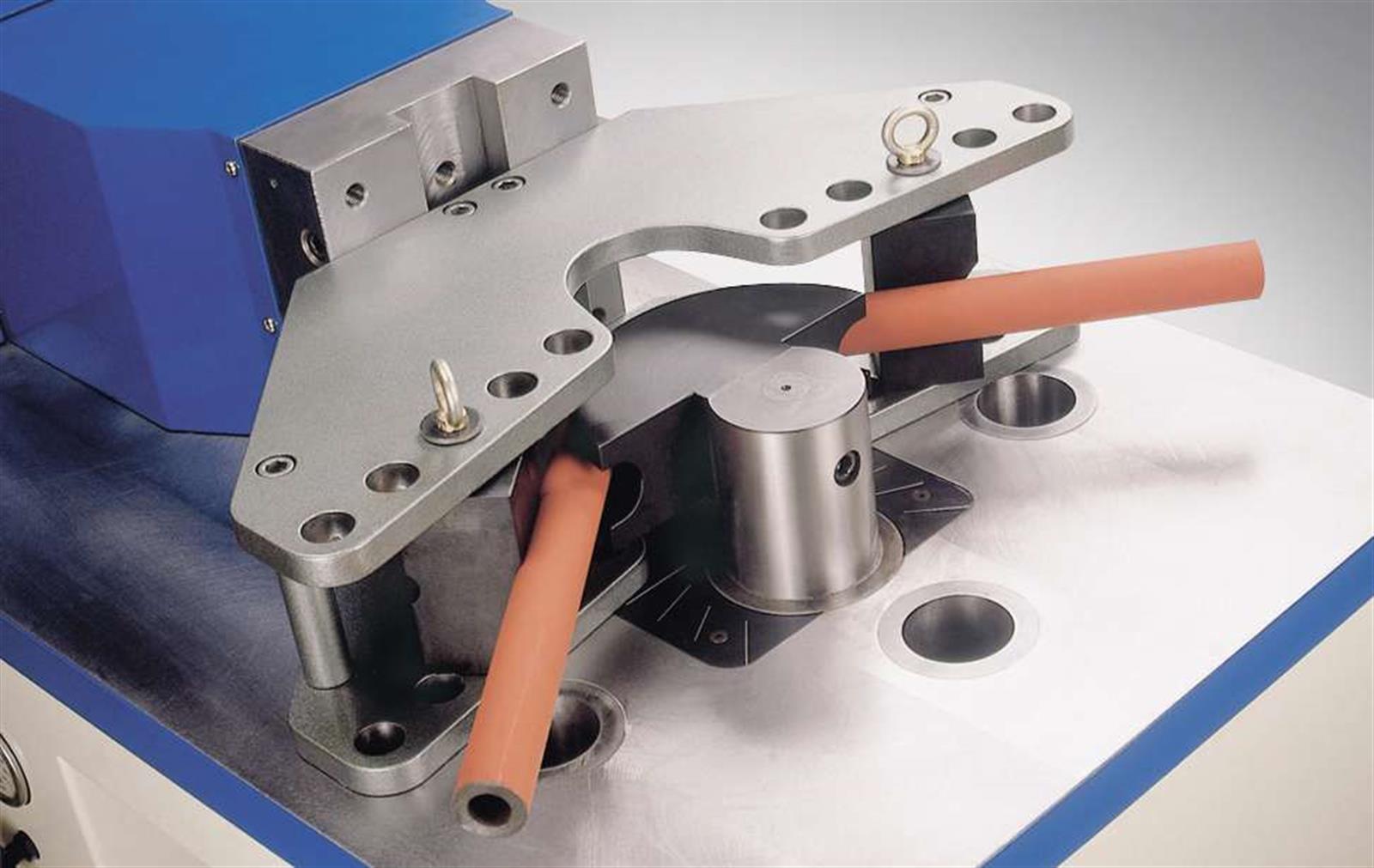

Pipe bending range (90◦ bend)	ø3/8" ~ ø2"	ø3/8" ~ ø2"

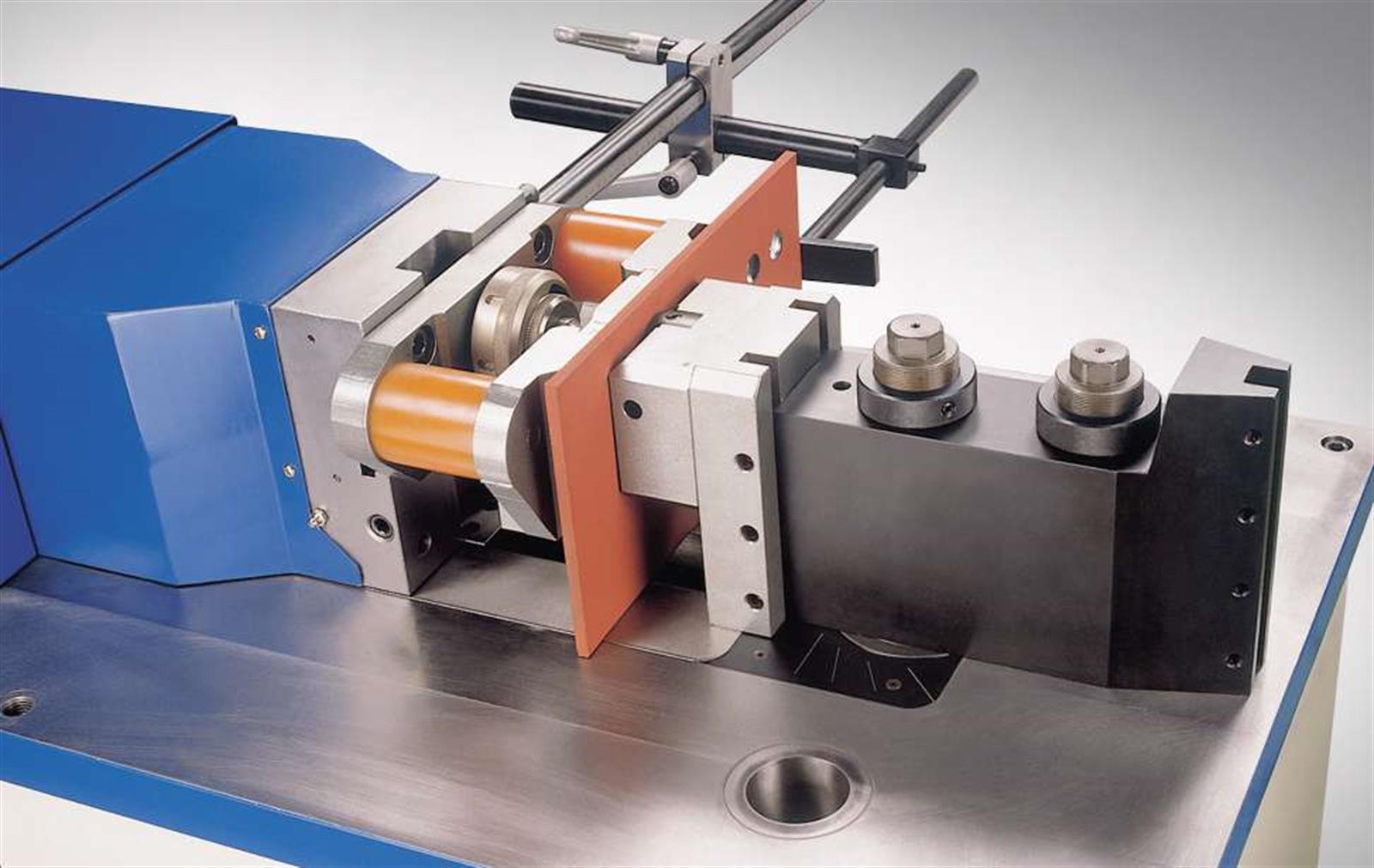

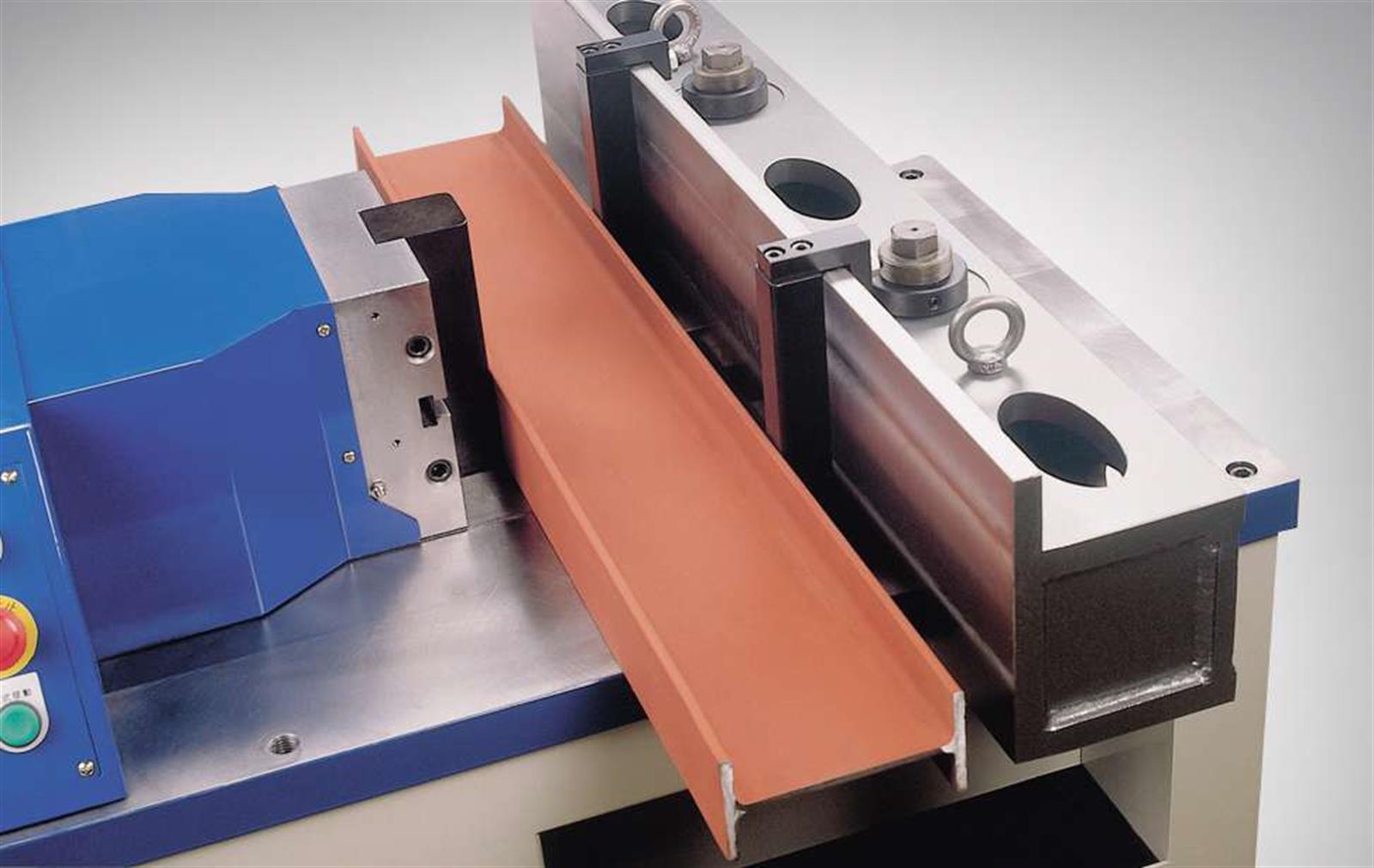

Straightening tool (Max profile)	200mm	8"

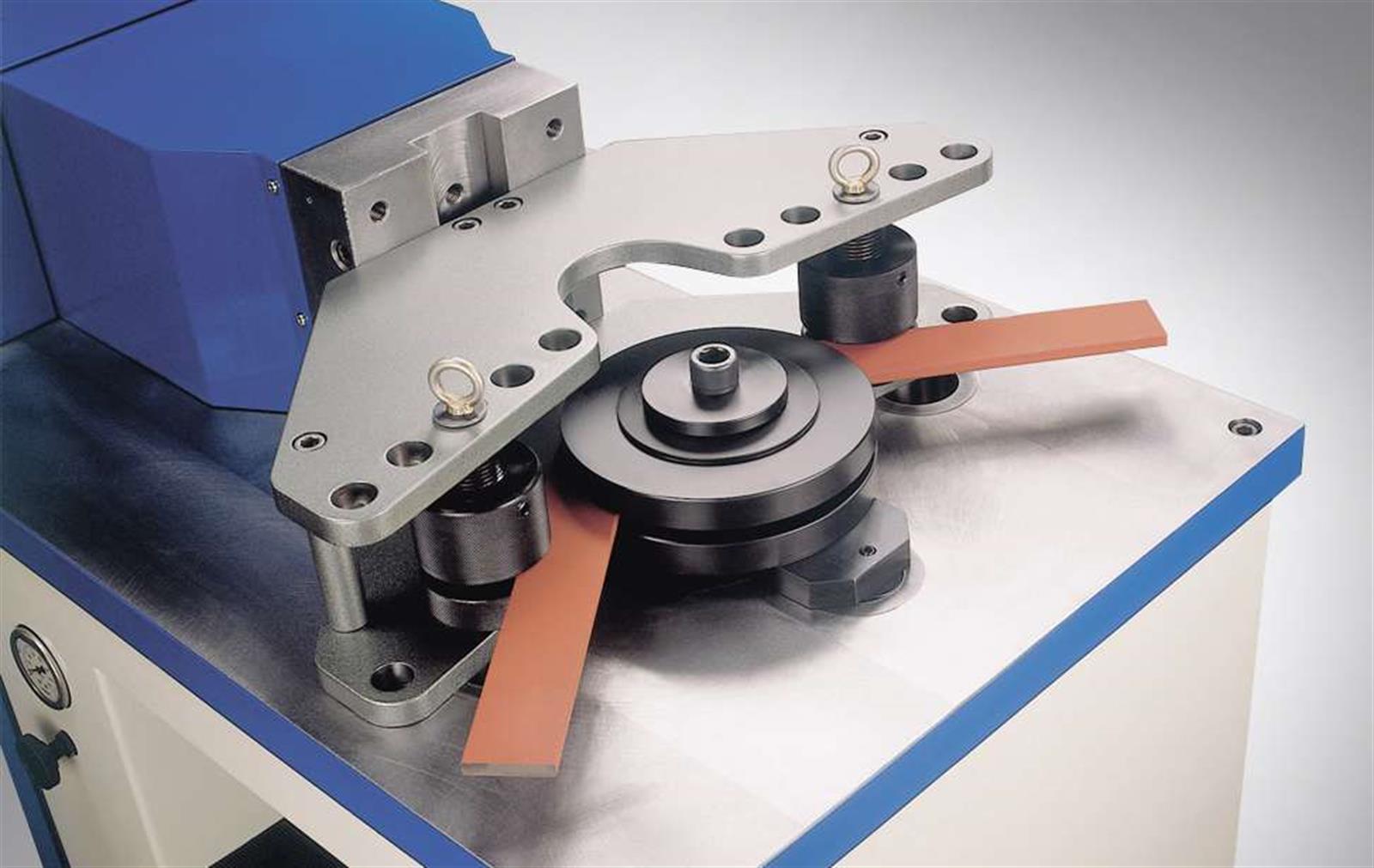

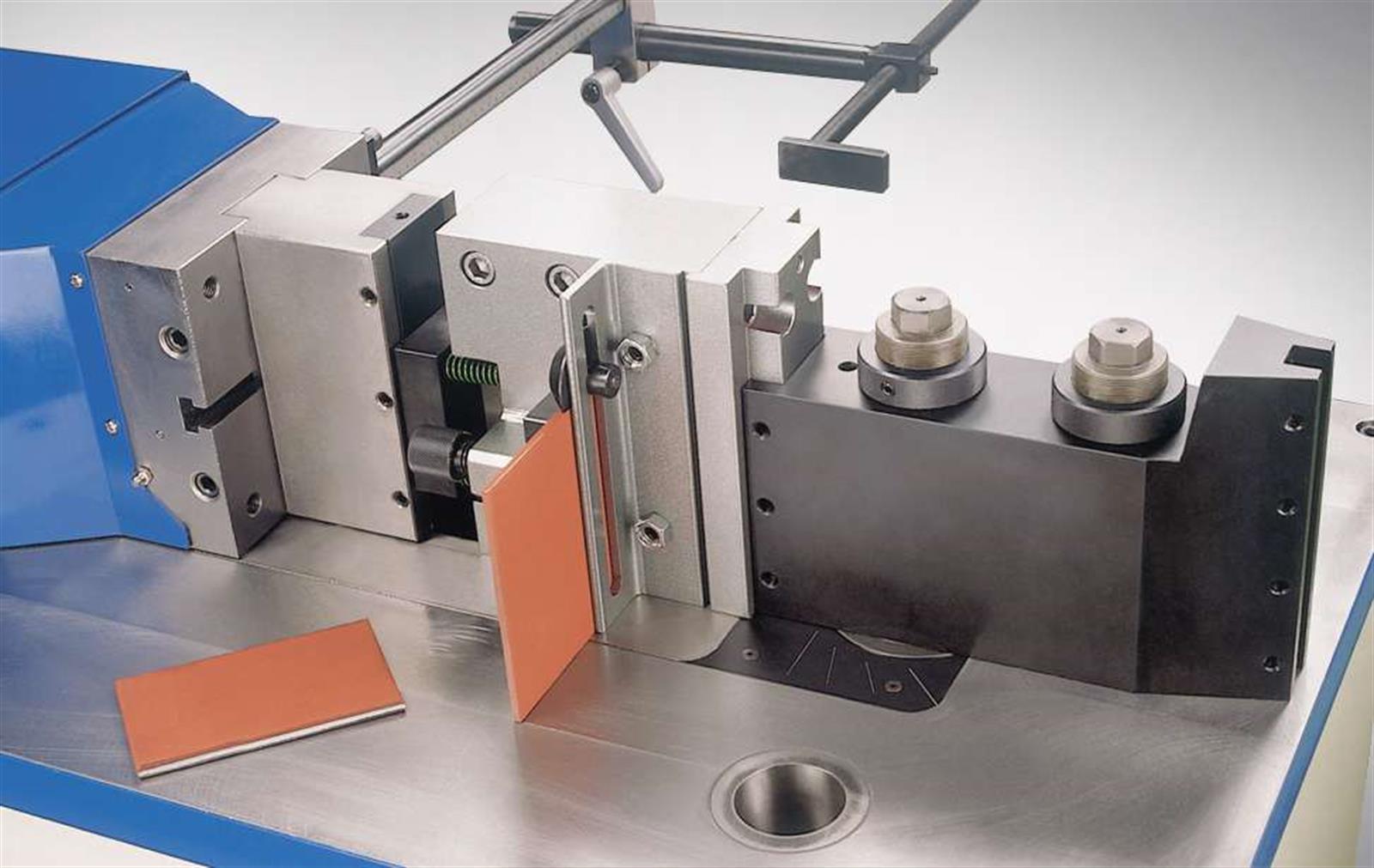

Flat plate edge bending (W x T)	50mm x 12mm	2" x 15/32"
Working height	930mm	37"
Electric power	5HP	5HP

Design and specifications are subject to change without prior notice.

Model	HBM-40M (HBM-45M) HBM-40 (HBM-45)
	Metric (mm)	Imperial (inch)
Net weight (Apr.)	880kgs	1940lb
Gross weight (Apr.)	990kgs	2180lb
Machine dimension (Apr.)	1340 x 760 x 1185mm	53" x 30" x 47"
Packing dimension (Apr.)	1590 x 980 x 1415mm	63" x 39" x 56"

Model	HBM-40NC (HBM-45NC)
	Metric (mm)	Imperial (inch)
Net weight (Apr.)	1010kgs	2230lb
Gross weight (Apr.)	1145kgs	2520lb
Machine dimension (Apr.)	1340 x 2015 x 1185mm	53" x 80" x 47"
Packing dimension (Apr.)	1590 x 1330 x 1415mm	63" x 53" x 56"

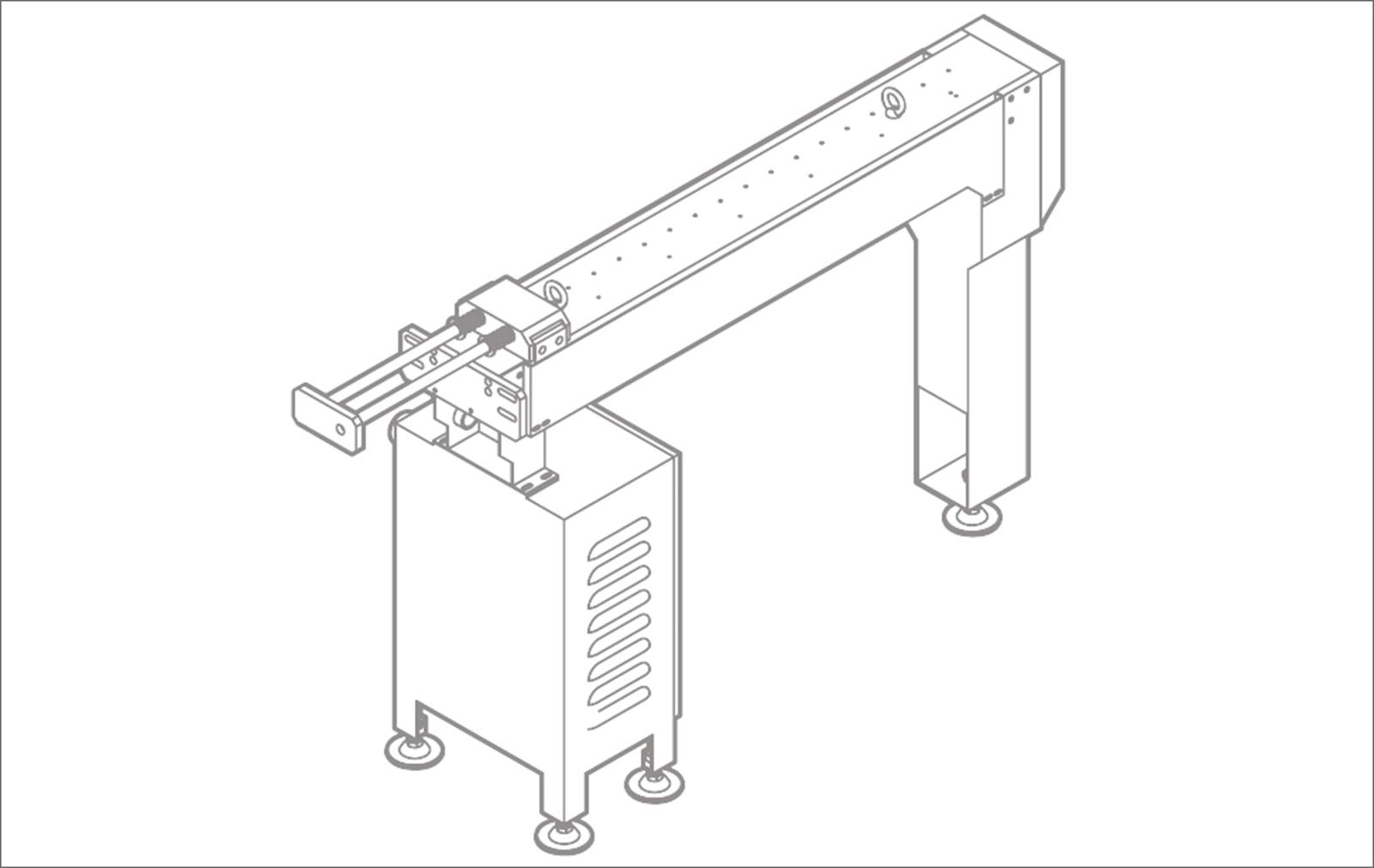

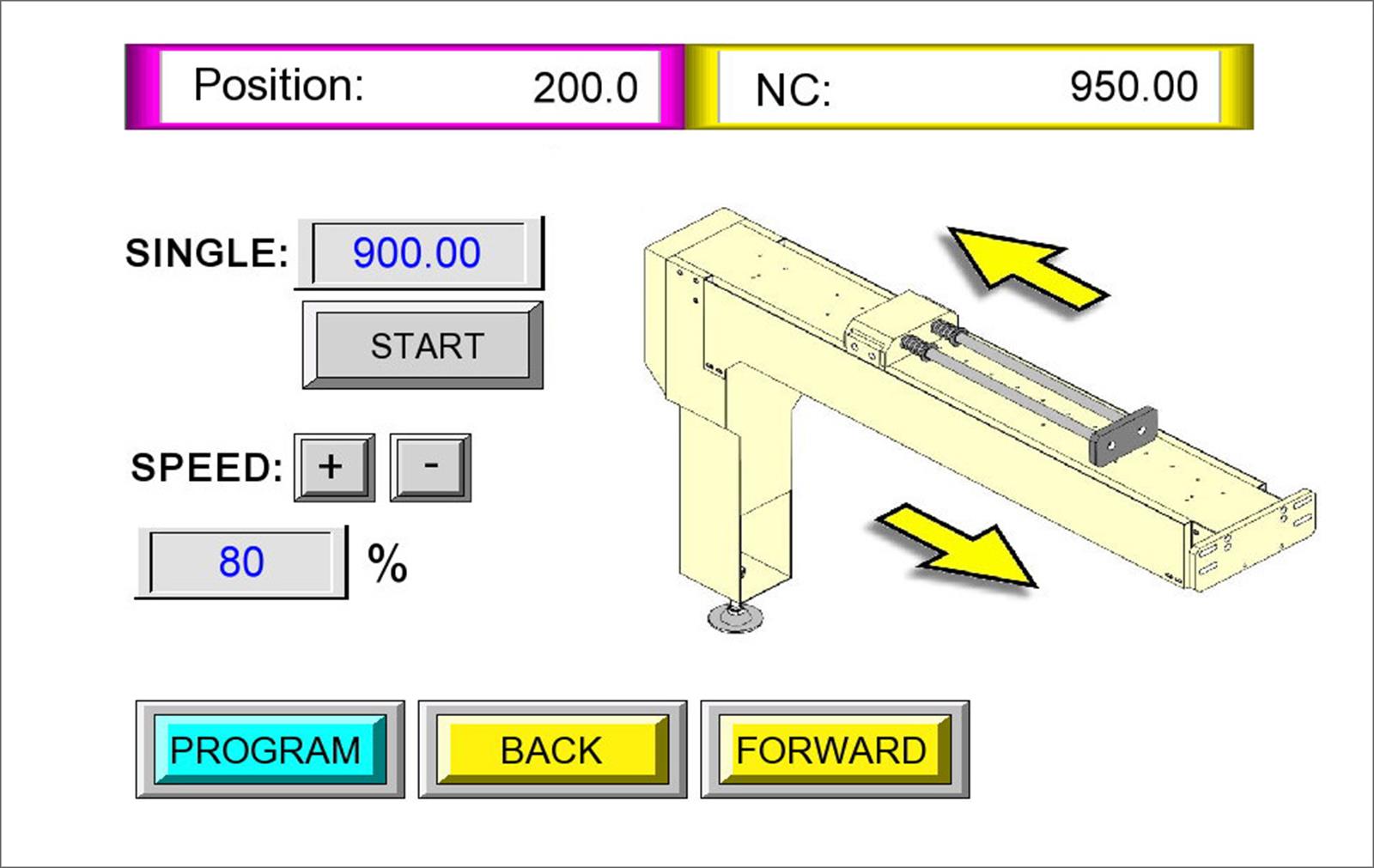

- 1,016mm (40") travel distance.
- Extends accuracy and efficiency of standard bending machine.
- Operated by a color touch screen controller.
- Integrated action with the main cylinder movement, or can be turned off for manual mode.
