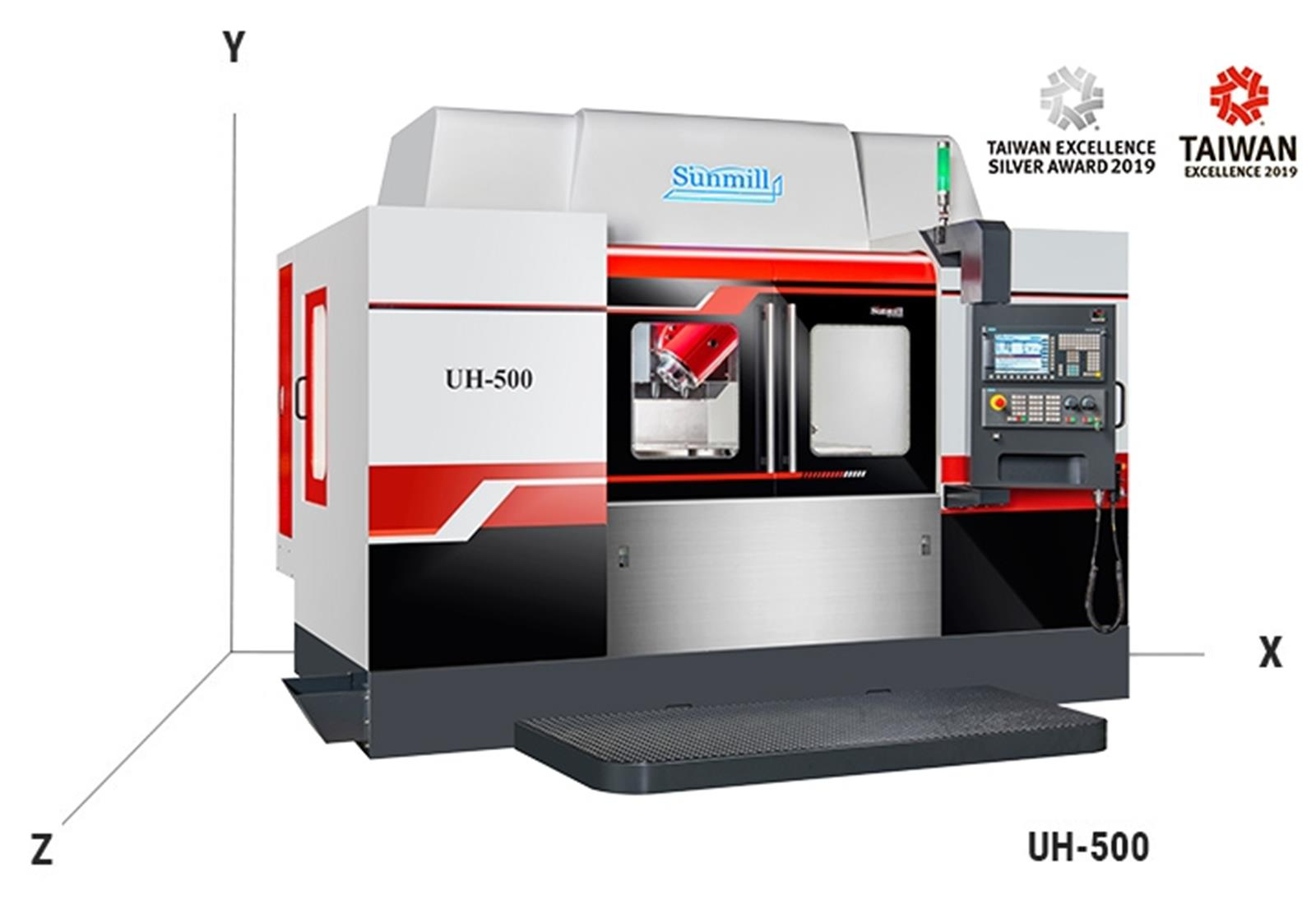

Sunmill UH-500 5-Axis Machining Center (UH-500)

Built-in spinde speed 15000rpm (BBT40)
Arm type ATC 24-tools
Full sealed splash guarding
Roller type linear guideways
Z axis ballscrews with oil chiller
Chain type chip conveyor
Rigid tapping
Cutting coolant nozzle
Cutting air blast system
Spindle splash ring
Spindle oil chiller
Auto lubrication system
Heat exchanger
LED warning light
Air gun
Coolant gun
LED work lamp

Coolant through spindle 20bar / 70bar
Arm type tool changer 30-tools
X/Y axes ballscrew with oil chiller
C axis optical encoder
Tool measurement system
Workpiece measurement system
Air conditioner for electical cabinet
Transformer
Stablizer
Disc type oil skimmer

CONTENTS	ITEMS	UNITS	UH-500
Travel	X axis travel	mm	1100
	Y axis travel	mm	600
	Z axis travel (Vertical)	mm	610
	Z axis travel (Horizontal)	mm	710
	Table area	mm	1250 x 620
	T-slot	mm	18 x 125 x 5
	Spindle nose to worke table surface (vertical)	mm	50~660
	Spindle center to work table surface (horizontal)	mm	195~905
	3 axes guideways type	mm	Roller Linear (45/45/45)
	Ballscrew diameter X/Y/Z	mm	45 / 40 / 40
	Pitch of ballscrew X/Y/Z	mm	10 / 10 / 12

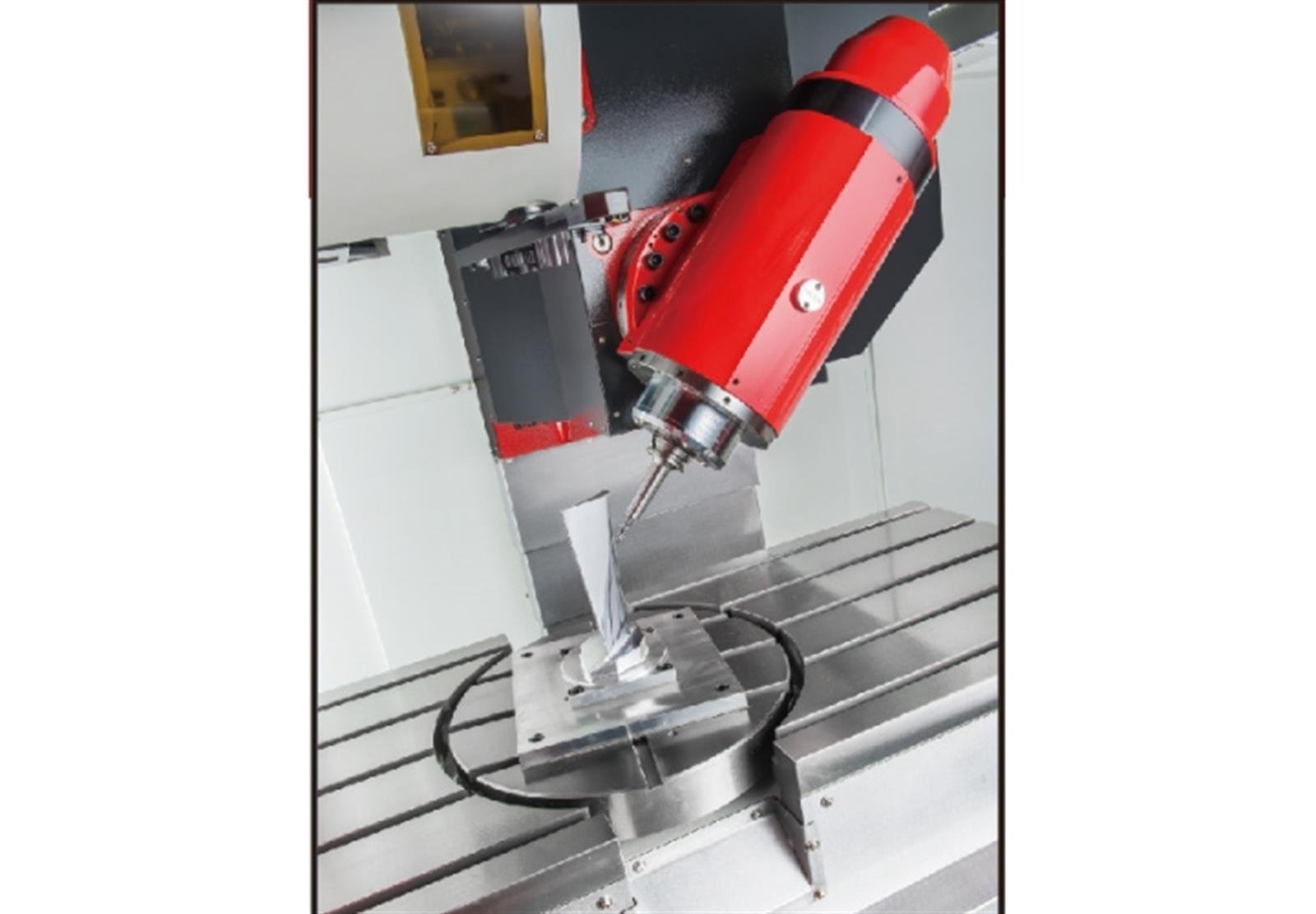

Swivel head (B axis)	Built-in spindle max. speed	rpm	15000
	Spindle power (Fanuc)	kw	15 / 18.5
	Spindle power (Siemens)	kw	21 / 25

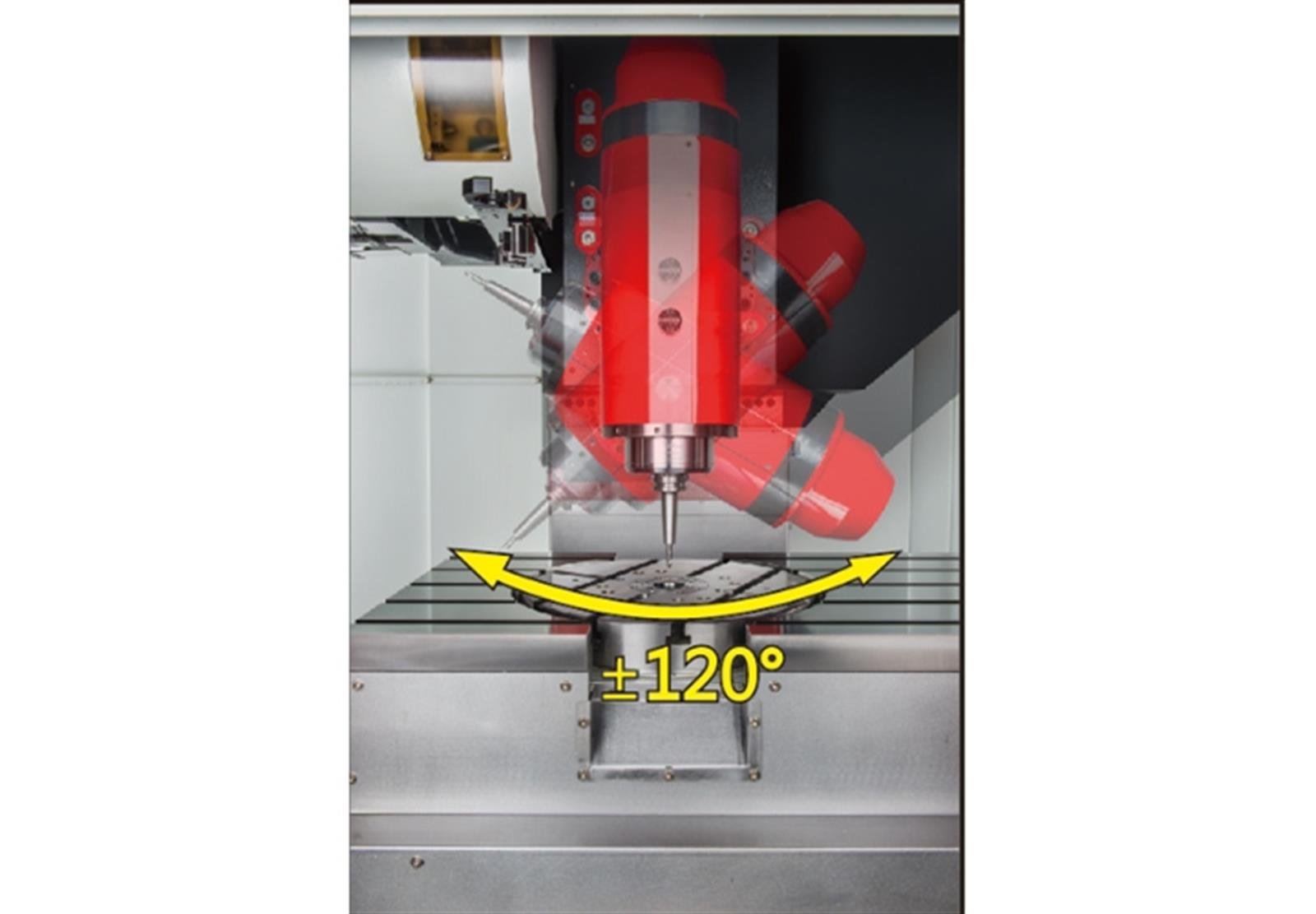

	B axis swivelling range	°	120°~ –120°
	Spindle taper		BBT-40 / HSKA63  (opt.)
	Indexing accuracy (B axis)	sec	20"
	Repeatability (B axis)	sec	6"
Rotary table (C axis)	Rotary table diameter	mm	∮500
	Indexing resolution	degree	0.001°
	Drive method		Worm wheel
	Max. speed	rpm	25
	Max. table load	kgs	500
Feed Rate	Cutting feedrate	m/min	1-10m/min
	X/Y/Z axis servo motor (Fanuc)	kw	4 / 4 / 7
	X/Y/Z axis servo motor (Siemens)	kw	4.9 / 4.9 / 4.4
	Rapid traverse(X/Y/Z)	m/min	30 / 30 / 24
Auto Tool Changer	Magazine type		Arm type
	Tool magazine capacity	set	24 / 30  (opt.)
	Max. tool weight	kgs	7
	Max. tool length	mm	250
Others	Air supply required	kgs/cm²	6
	Power supply required	KVA	40
	Machine weight	kgs	9200
	Floor space (L x W x H)	mm	4500 x 2565 x 3050
