Sunmill JMV-1800 Vertical Machining Center

Full splash guard
Belt type spindle 6000 rpm BT50
Spindle motor 15/18.5 kw
Arm type ATC 24 tools, BT50
Rigid tapping
Cooling system
Auto lubrication system
Spindle oil cooler unit
Heat exchanger
Telescopic cover for 3 axes
Work lamp
Three-color call light
Tool box
Coolant gun

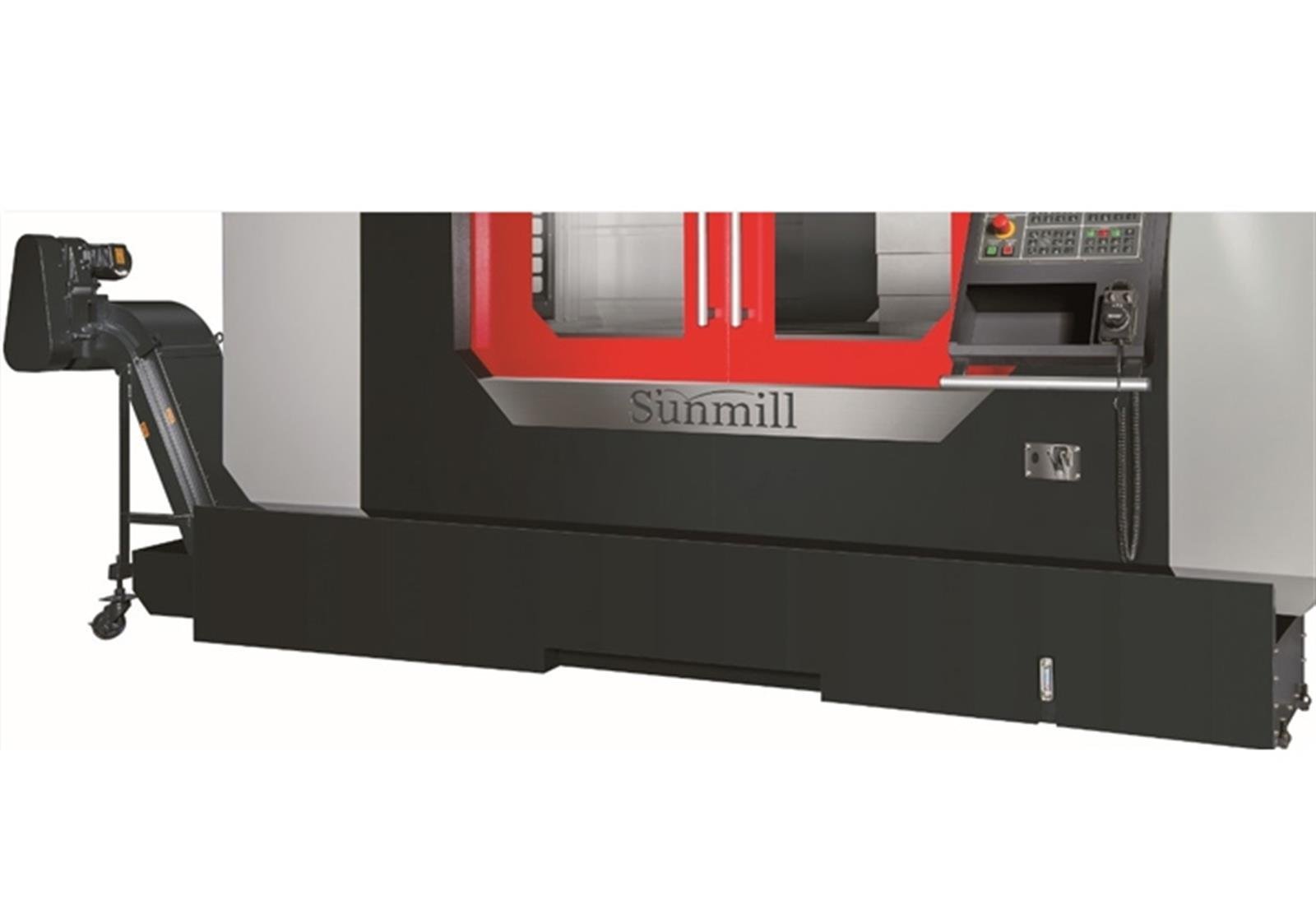

Screw type chip conveyor with chip cart

Transformer
CE Mark
Chain type ATC 32/40 tools, BT50
Belt type spindle speed 8000rpm, BT50
Gear head 6000rpm, BT50
Rear coolant flushing device
Disk type oil skimmer
Coolant through spindle (With sealed splash guard)
Chain type chip conveyor with chip cart
4th axis rotary table
CNC Tilting & rotary table
Gear headstock Armless ATC not available

CONTENTS	ITEMS	UNITS	JMV-1800
3- Axes travel	X axis travel	mm	1800
	Y axis travel	mm	850
	Z axis travel	mm	750
	Distance from spindle nose to table surface	mm	150-900
	Spindle center to column surface	mm	950
Table	Table area	mm	2000 x 850
	Max. load of table	kgs	2500
	T- slot	mm	5 x 18 x 150
Spindle	Spindle taper	type	BT-50
	Spindle speed	rpm	6000
	Spindle drive	rpm	Belt	Gear head(opt.)
	Spindle motor	kw	15 / 18.5
	Spindle cooling	type	oil cooler
Feed Rate	Rapid traverse (X,Y,Z)	m/min	18 / 18 / 15
	Cutting feed rate	mm/min	1-10000
	Ballscrew	mm	ø50 / 10
	X,Y,Z axis servo motor	kw	7 / 7 / 7
A.T.C	Magazine type	type	Arm	Chain type(opt.)
	Tool magazine capacity	pcs	24	32
	Max. tool diameter	mm	110 / 220	125 / 250
	Max. tool length	mm	300
	Max. tool weight	kgs	15	15
	Tool selection	type	Random
Others	Power consumption	KVA	40
	Floor space (L x W x H)	mm	5100 x 3750 x 3360
	Machine weight	kgs	16000
