This sawing system is a true production saw - a 'must see' for the aluminum extrusion market!

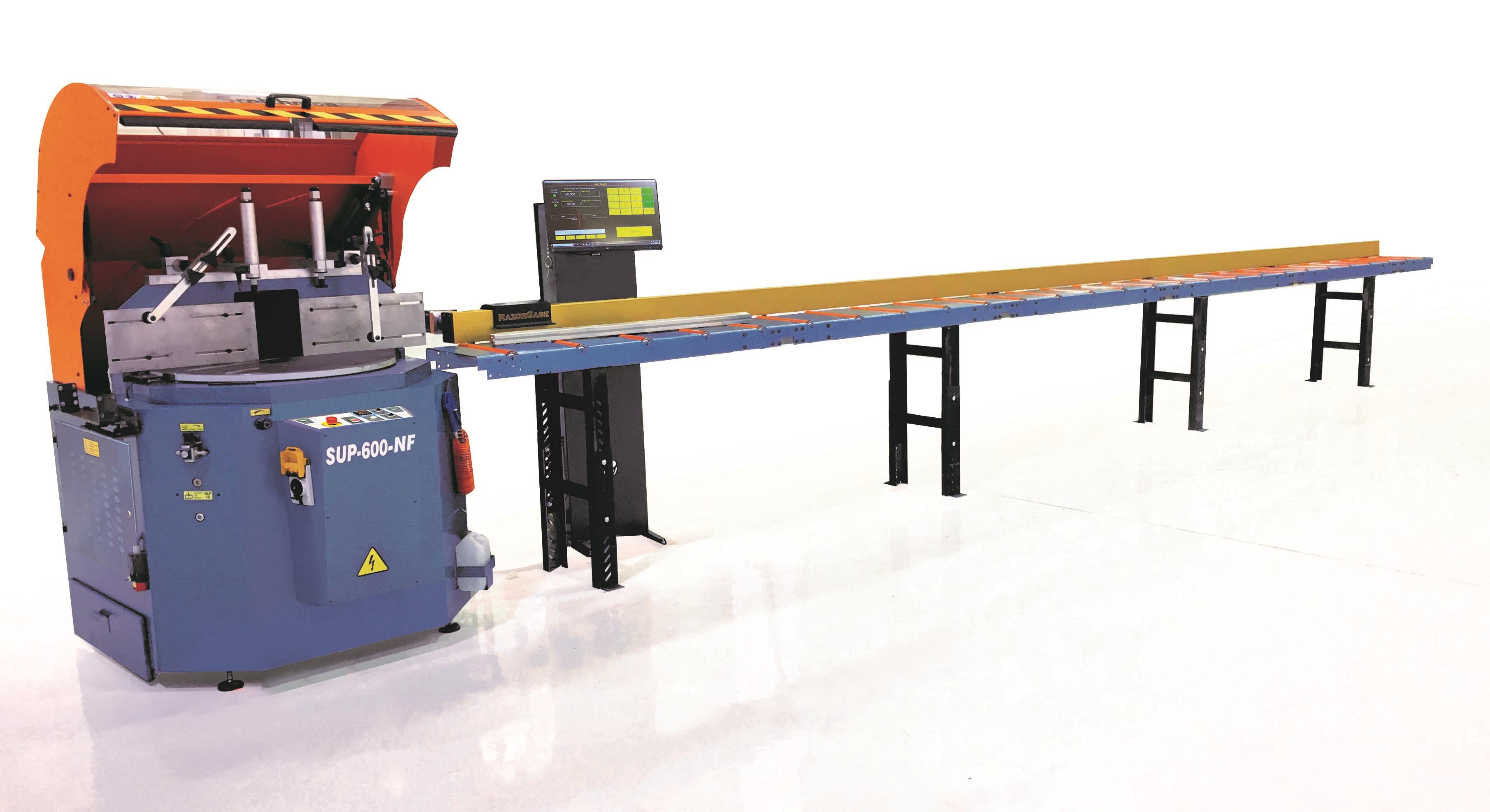

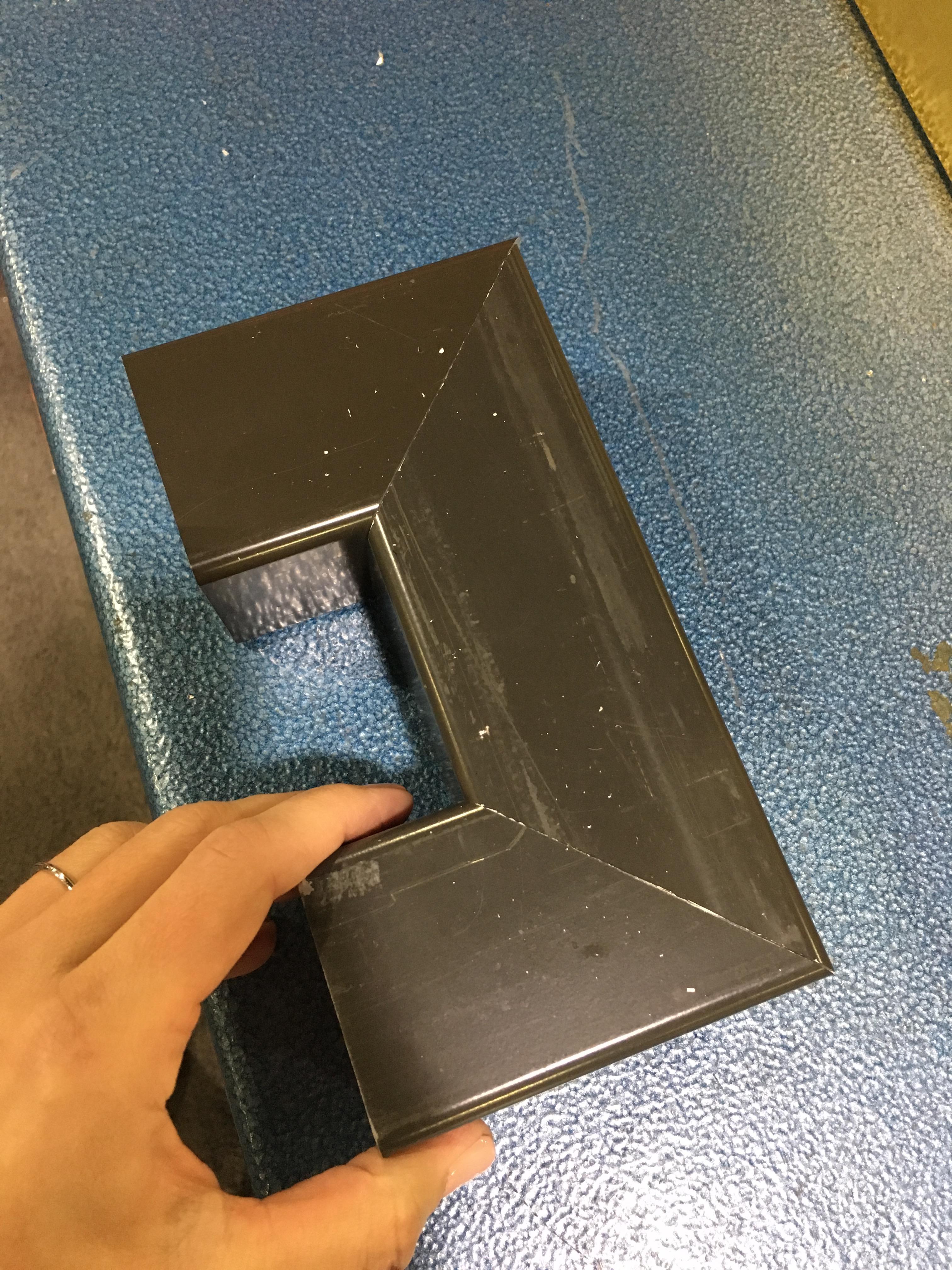

The SUP-600 NF saw is a large capacity mitering up-cut circular cold saw designed specifically for cutting non-ferrous material. Featuring a 24" (600 mm), 132 tooth carbide blade, it is capable of producing burr free cuts on round material up to 8" in diameter, square material up to 7" and rectangular cuts up to 9" x 5".

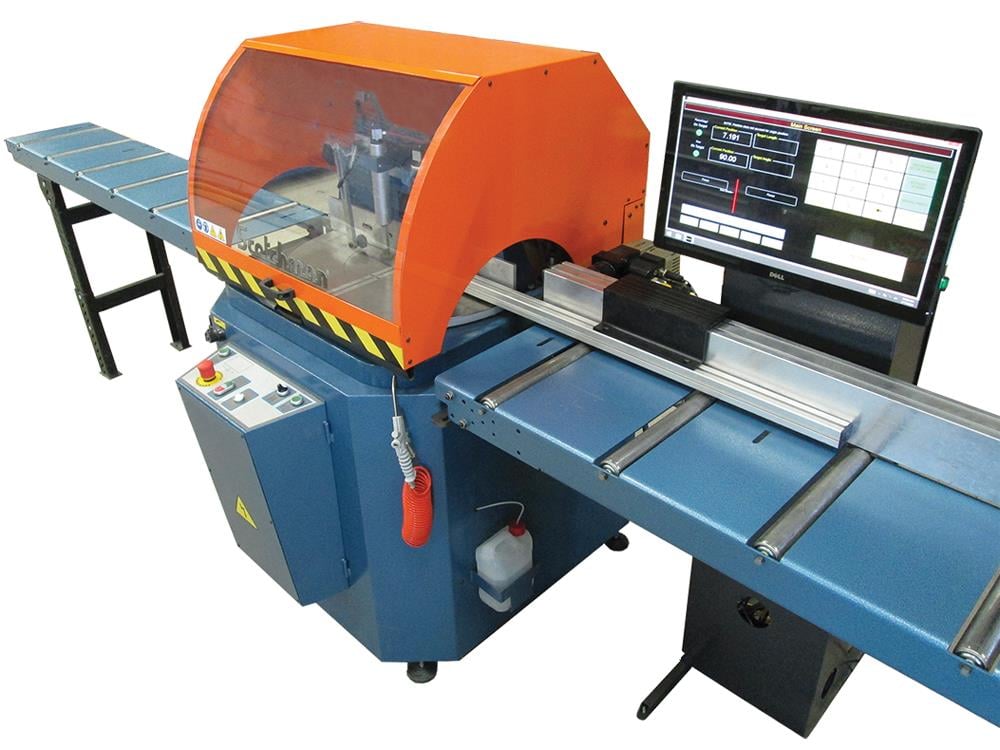

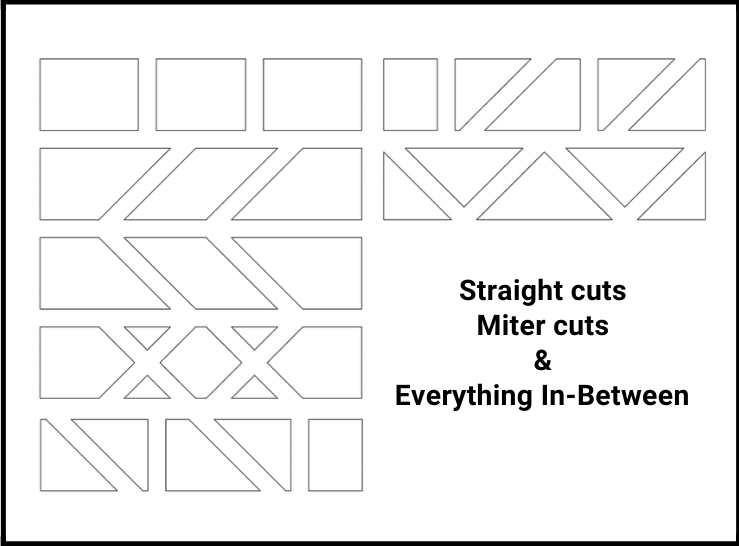

This precision up-cut saw coupled with our AngleMaster digital material positioning system, creates a semi-automatic programmable saw system that will automatically rotate to cut any angle, push feed material into the saw, then automatically rotate to the next desired angle giving you a completely finished part. Plus, cut lists can be stored on its touch screen control.
Standard features include an adjustable feed rate, mitering degree range of 22° to 159°, two horizontal and two vertical pneumatic clamps to secure material being cut, and a 4-3/4" port for chip collection plus a drawer under the bottom of the saw.

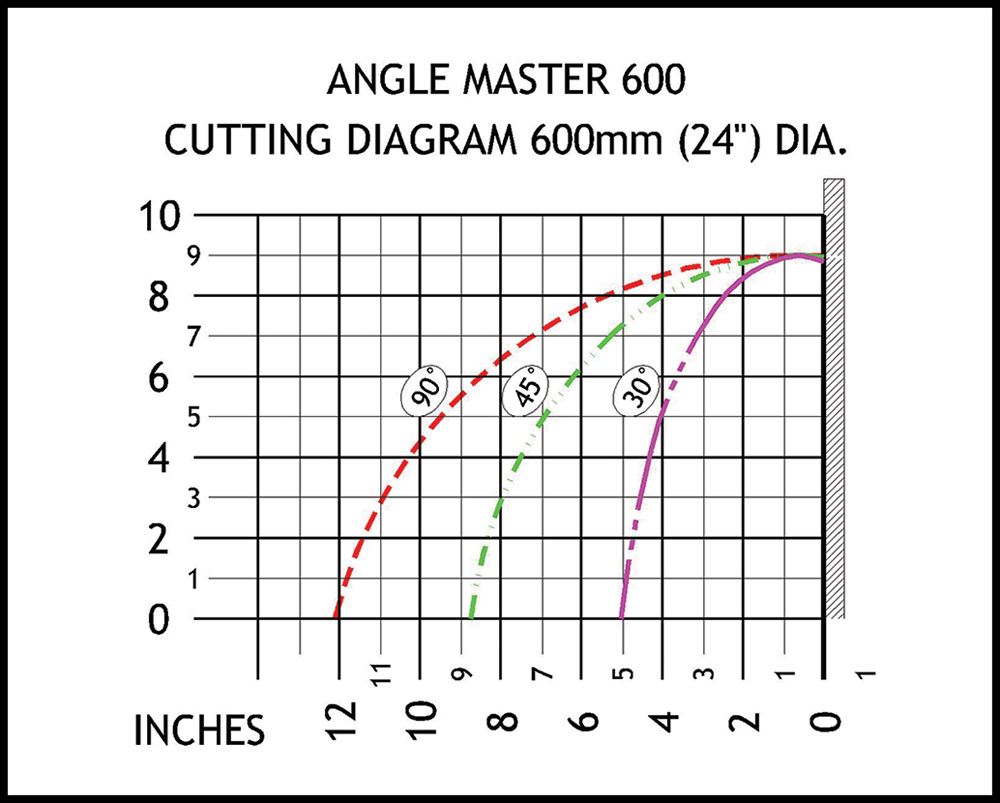

Maximum Cutting Capacities (NF) (Non-Ferrous & PVC )
Round Square Rectangle
90 Degree 8" 7" 9" x 5"
45 Degree 7" 6" 7" x 4-3/4"
Mitering Degree Range
22° to 159°
Feed Length Available
10' to 30'
Feed Direction
Right to Left
Cutting Speed
3,000 RPM
Motor Rate
5.5 HP
Motor Options (Factory Wired)
Specify: 230/460v, 3 ph
Air Pressure
90 psi
Maximum Diameter Blade
600 mm
Arbor Bore
50 mm
Width of Saw (less feed system)
49-1/4"
126 cm
Depth
54-1/2"
139 cm
Height (top of hood)
64-3/8"
164 cm
Height (floor to table)
38-5/8"
98 cm
