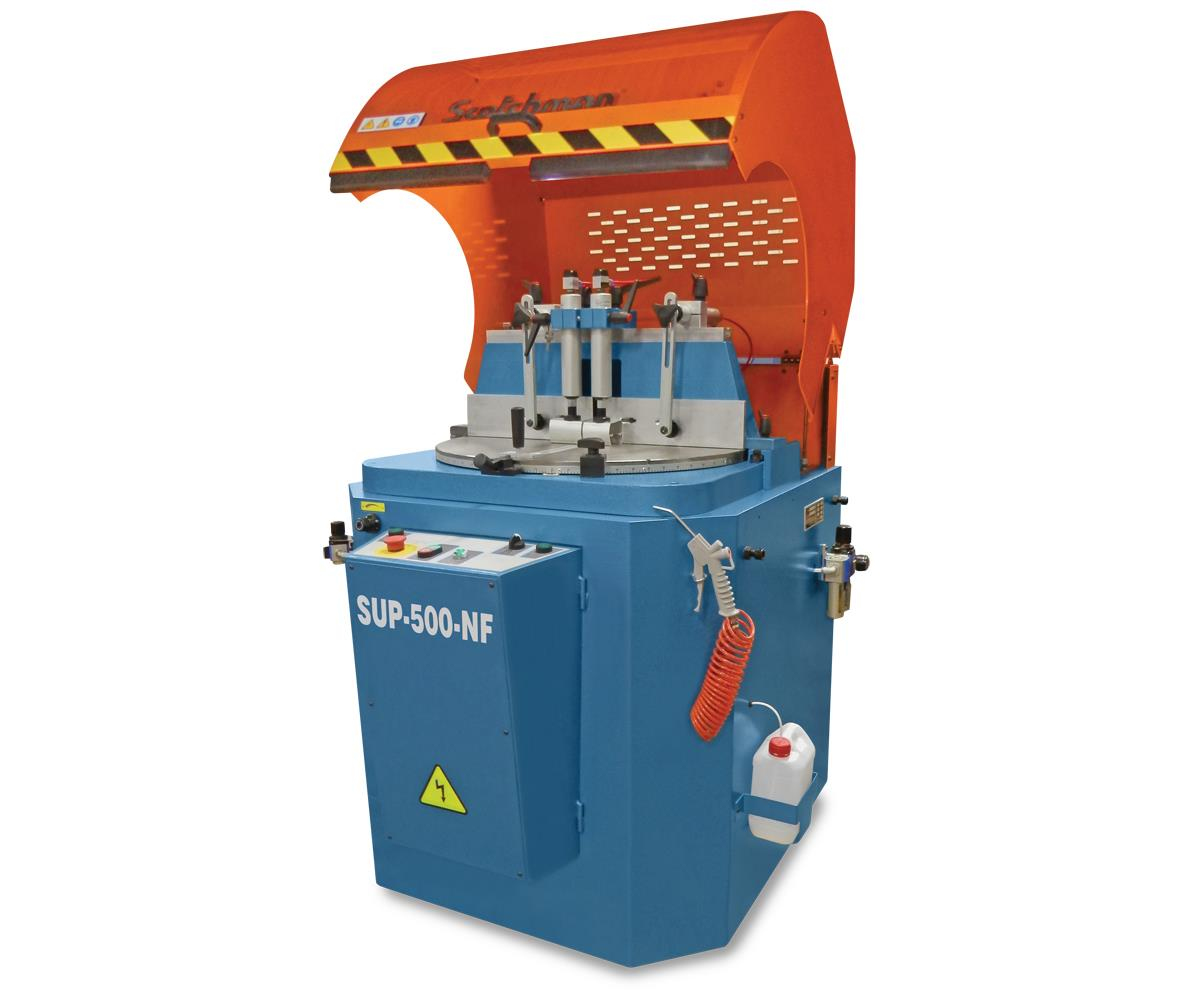

The SUP-500 NF is a large capacity mitering up-cut circular cold saw designed specifically for cutting aluminum, copper, plastic and other nonferrous materials. Featuring a 20" (500 mm), 120 tooth carbide blade, it's capable of producing burr free cuts on round material up to 7" in diameter, square material up to 6" and rectangular cuts up to 12' x 4". The SUP 500 NF saw offers an increased cutting capacity not found in traditional pivot down saws.
Standard features include an adjustable feed rate, mitering capabilities with fixed stops at 22.5°, 45°, 135°, and 157.5°, four pneumatic clamps to secure material being cut, and an integrated debris collection. Safety features include dual hand operation and a safety interlock that will prevent the saw from operating with the hood open.
Upgrade this saw with a measuring system (manual to full-auto feed systems available) for accurate cuts at specific lengths, reducing waste and increasing production efficiency.

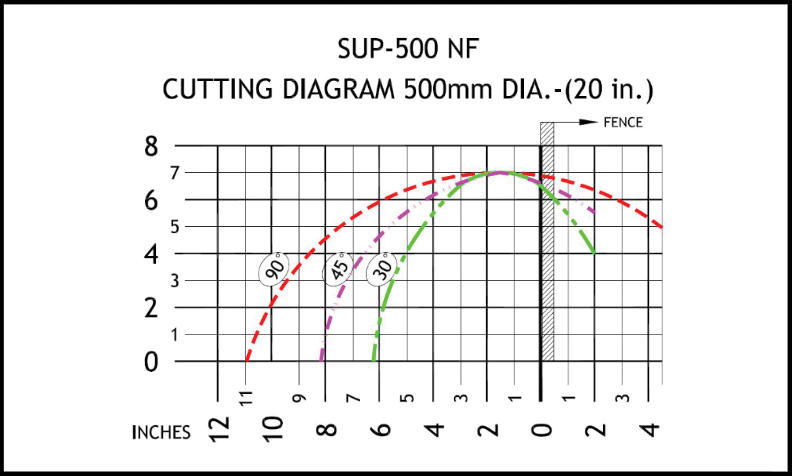

Maximum Cutting Capacities (NF) (Non-Ferrous & PVC )
Round Square Rectangle
90 Degree 7" 6" 11-3/4" x 5"
45 Degree 7" 4-3/4" 5-3/4" x 4-3/4"
Cutting Speed
3,000 RPM
Motor Rate
5.5 HP
Motor Options (Factory Wired)
Specify: 230/460v, 3 ph
Air Pressure
90 psi
Maximum Diameter Blade
500 mm
Arbor Bore
50 mm
Width
42"
107 cm
Depth
45-3/8"
115 cm
Height (top of hood)
60-1/4"
153 cm
Height (floor to table)
38-5/8"
98 cm
Shipping Weight (may vary)
1,200 lbs.
545 kg
