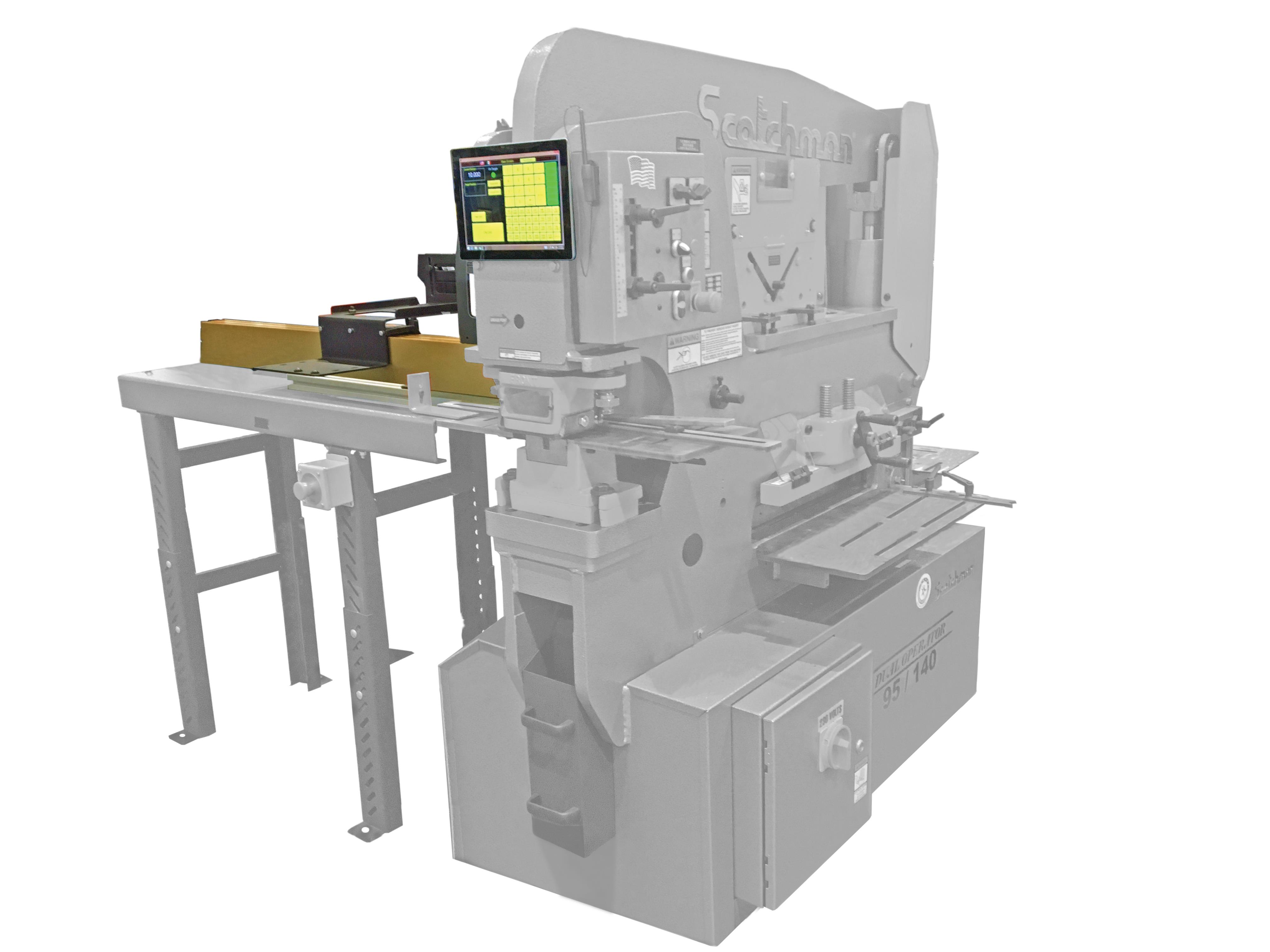

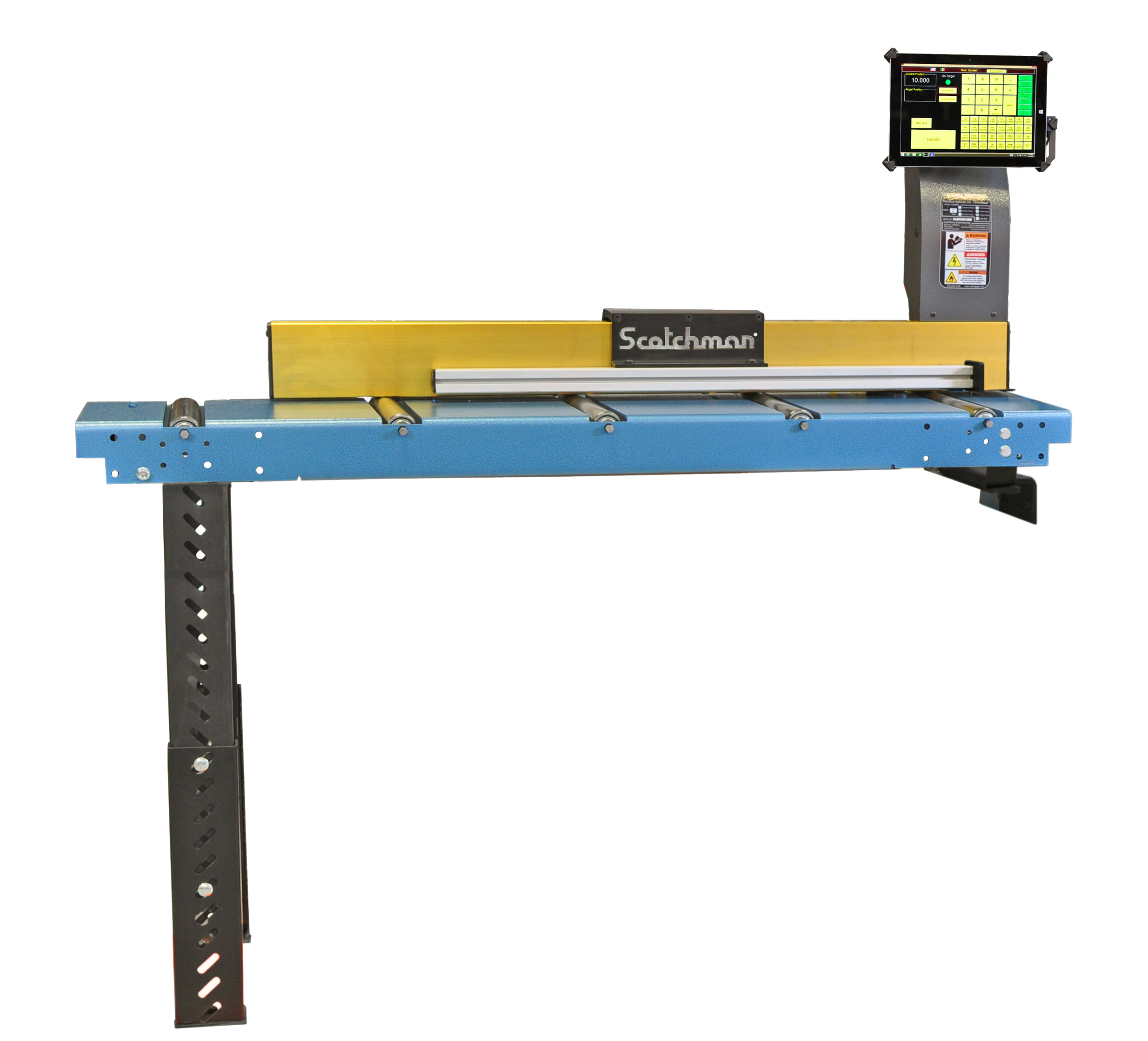

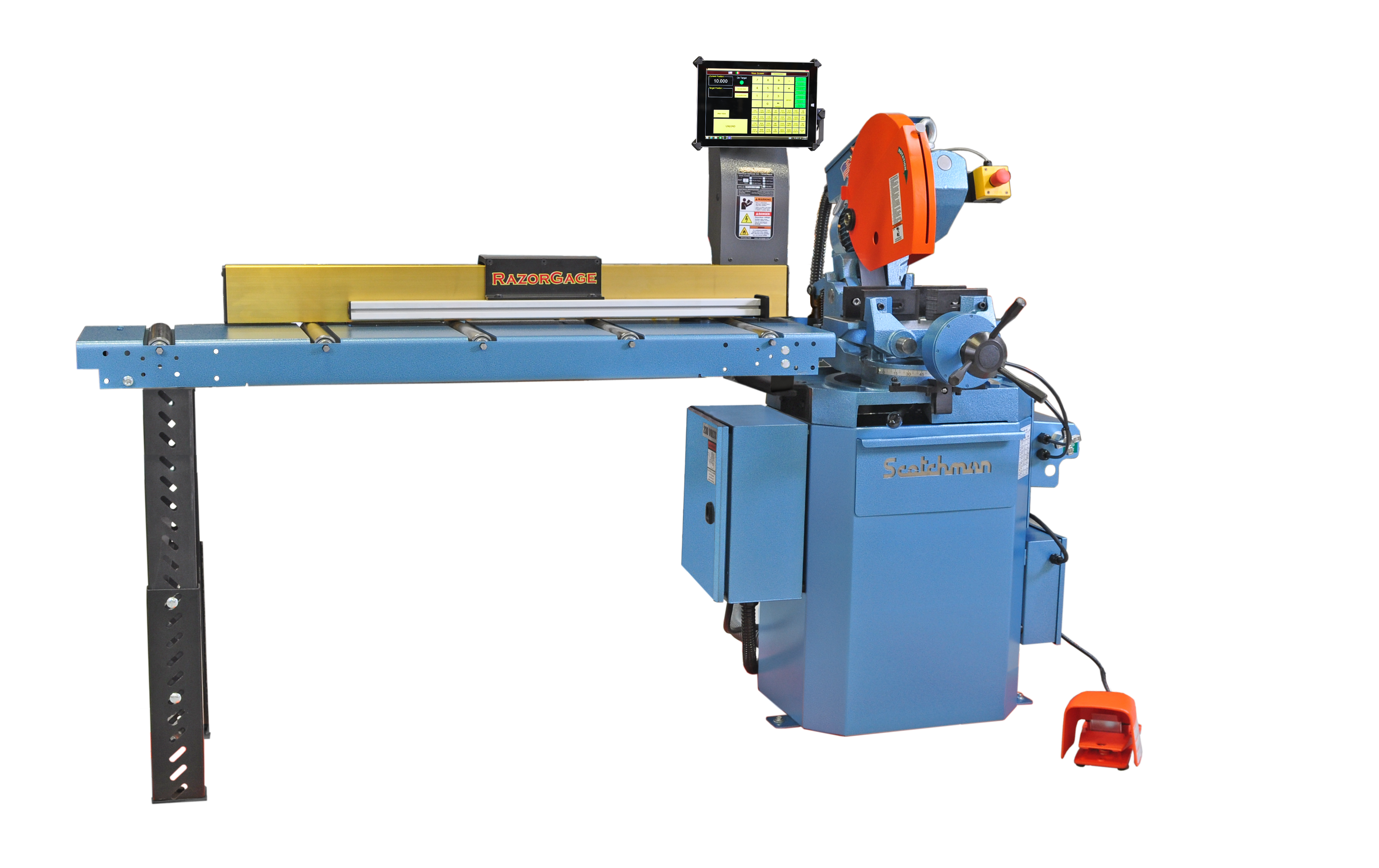

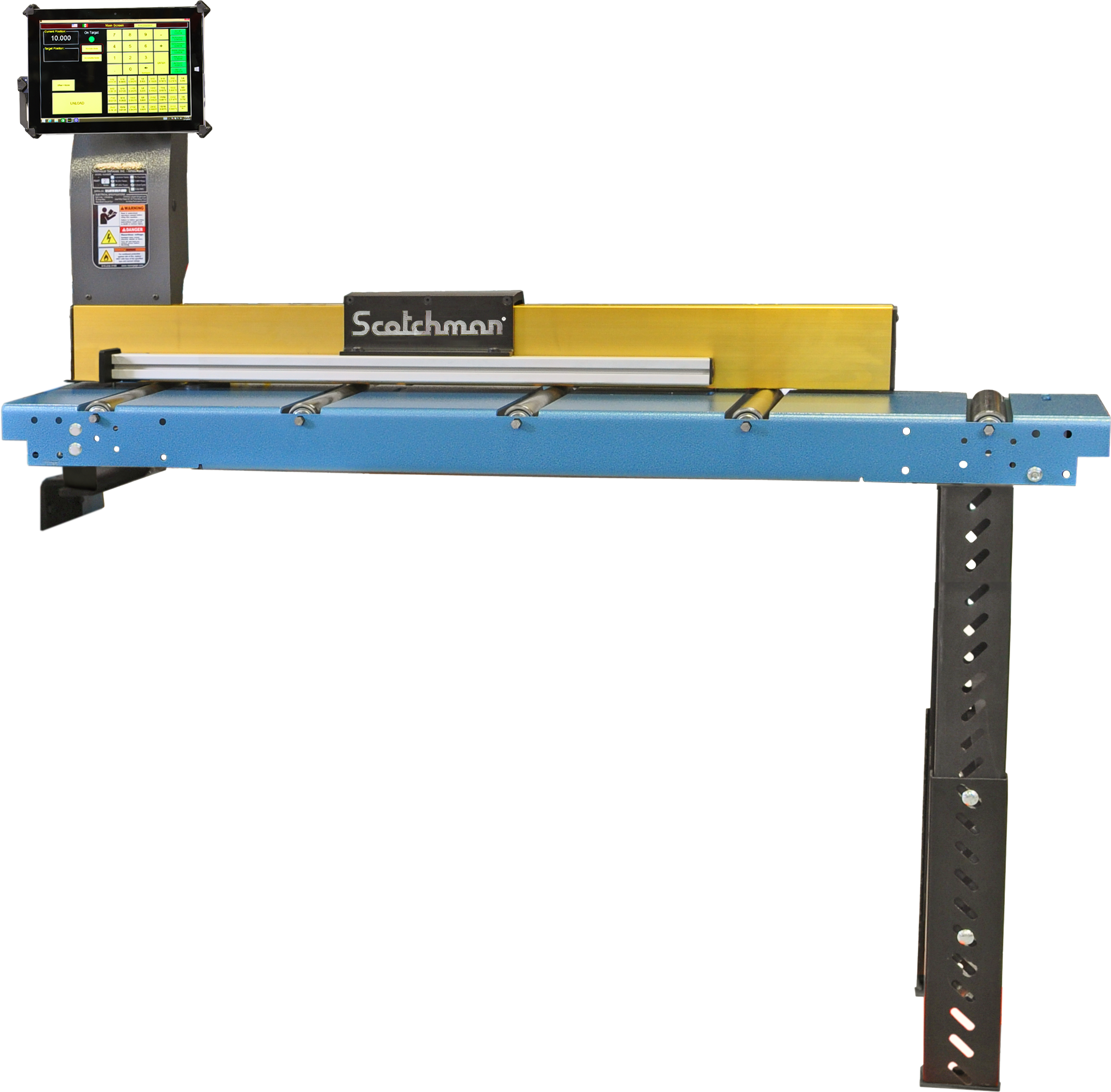

The RG Stop/Pusher System can be used as a "go to" stop or as a semi-automatic push feed system. It uses Windows-based technology with touch screen controls. The system can be mounted to feed left to right OR right to left. Available in lengths from 8' to 30'. The Stop/Pusher system can be paired with the punch stations of the Scotchman Ironworkers and Scotchman Cold Saws.
Lengths:
8' to 30' Working Lengths
Speed:
Adjustable 1" to 25" per second
Accuracy:
Positioner accuracy ±0.008"
Screen:
17" Windows® touchscreen
Storage:
Unlimited preset keys & list storage
Measurements:
Inches, Fractions, Decimals OR Metric
Language:
Multi-lingual
Feed Direction:
Mounts: left → right -OR- right → left (must specify)
Voltage:
120 VAC
Functions:
Auto Pusher Mode Batch Mode Incremental Mode Set Point Mode
