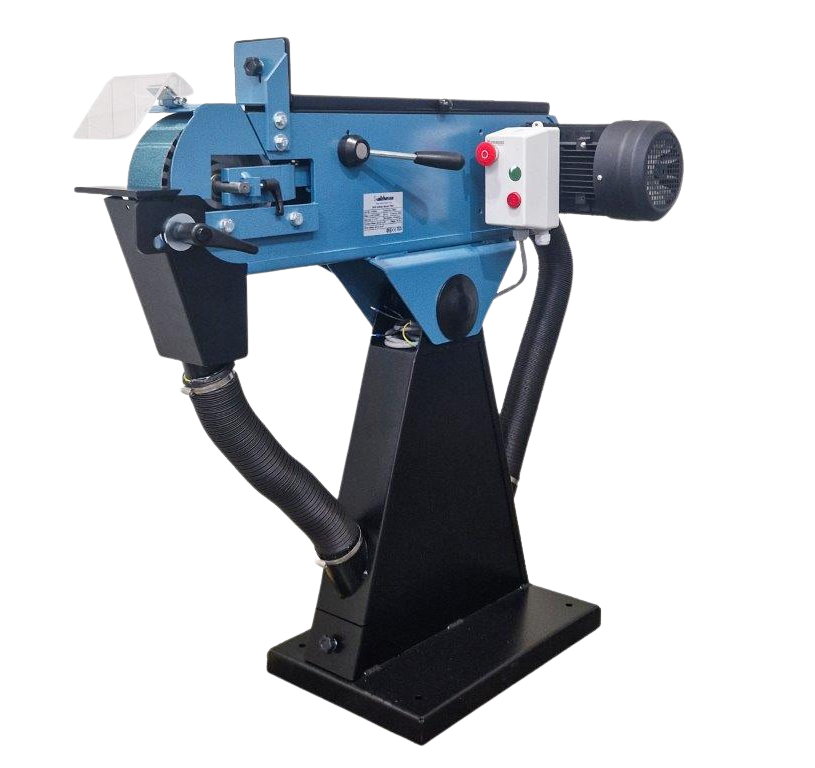

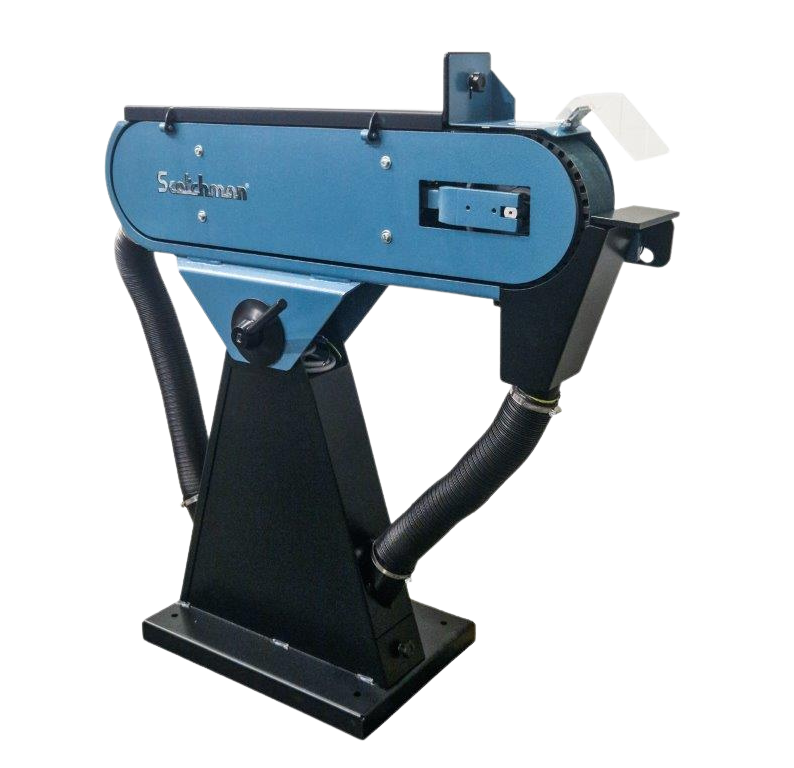

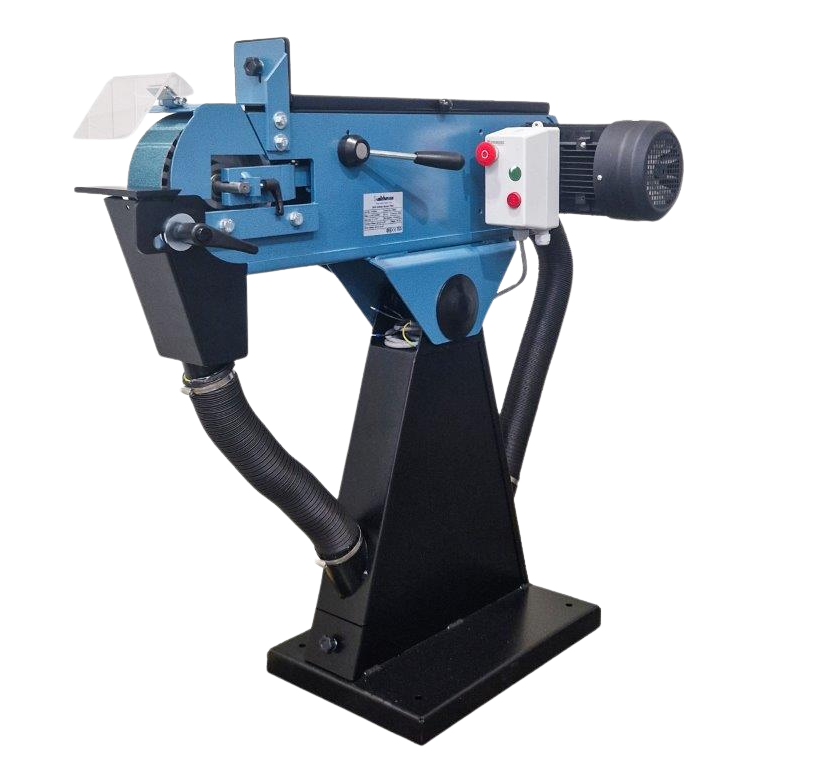

Scotchman SG3 Belt Grinder 3''

The Scotchman SG3 is a 3" wide industrial belt grinder capable of allowing the user to grind parts at any angle and use the front or top side of the grinder. It has a unique built-in dust collection system that makes clean up very easy. This grinder will remove material rapidly without vibration. The contact wheel provides a safe consistent grinding area to work from. The working height is adjustable to accommodate your material. This grinder is equipped with a tool-free belt change making it easy to match the abrasive belt to your application. The SG3 is your go-to-grinder for any job, big or small.

• 4.1hp motor, 220/440v 3 ph, optional 220v 1 ph
• 3” industrial belt grinder with unique dust collecting system
• Remove material rapidly without vibration
• Contact wheel provides safe consistent grinding area
• Tool free belt change for matching abrasive to application
• Working height adjusts to accommodate operator and material
• Top grinding table graphite pad increases versatility
• Adjustable tool rest and eye shield
• Emergency stop
• Tool free adjustment of belt tracking
• UL/CSA
• 3 year warranty

Grinding Belt	3" x 79"
Motor	4.1 HP
Voltages	220/440v 3ph or 220v 1ph
Class	IEC 34-1
IP Class	54
r/min.	2860
AMP	10,6/6,0
Belt speed	98 FPS
Contact wheel	8" x 3"
Weight in lbs	176
