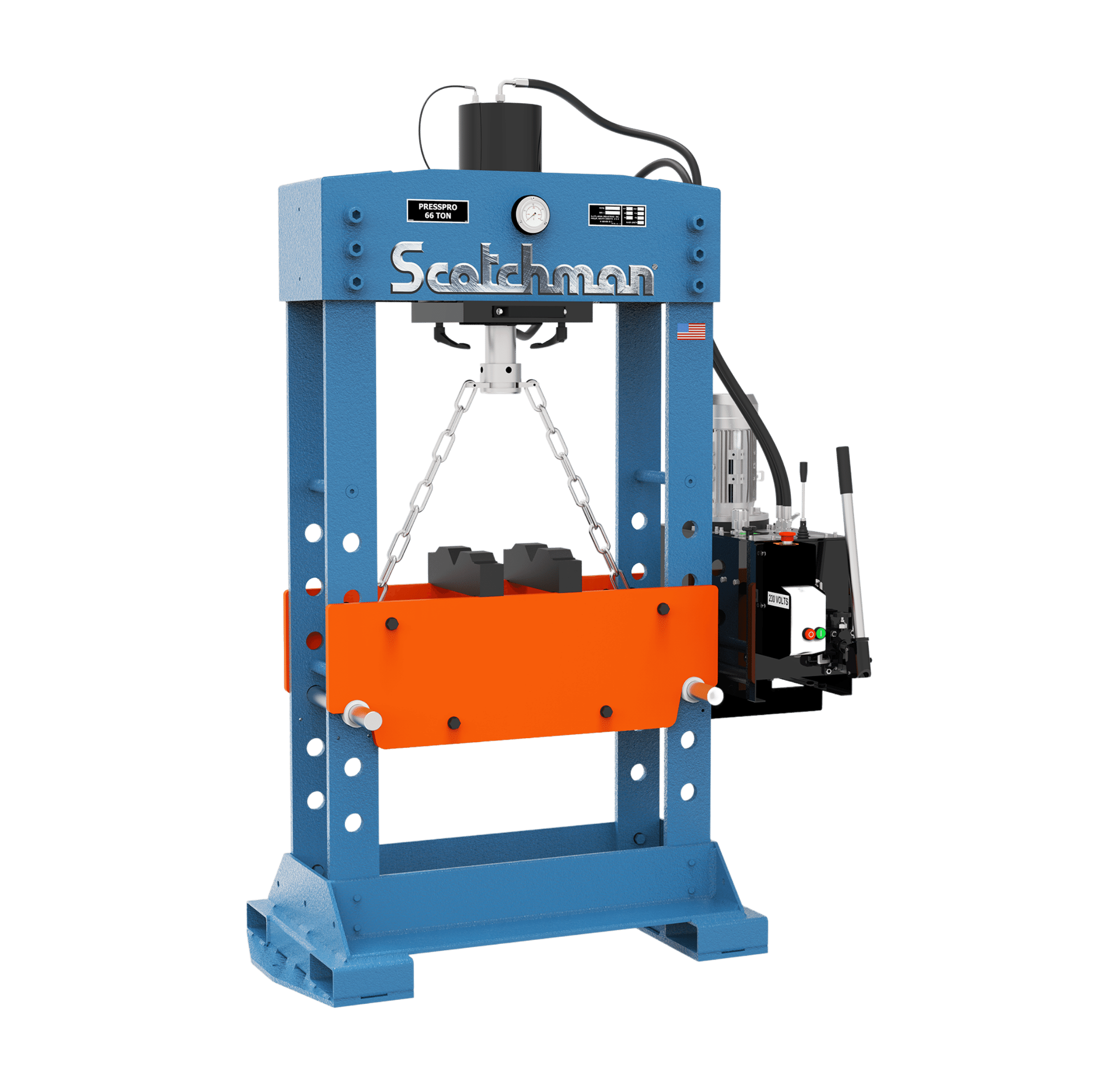

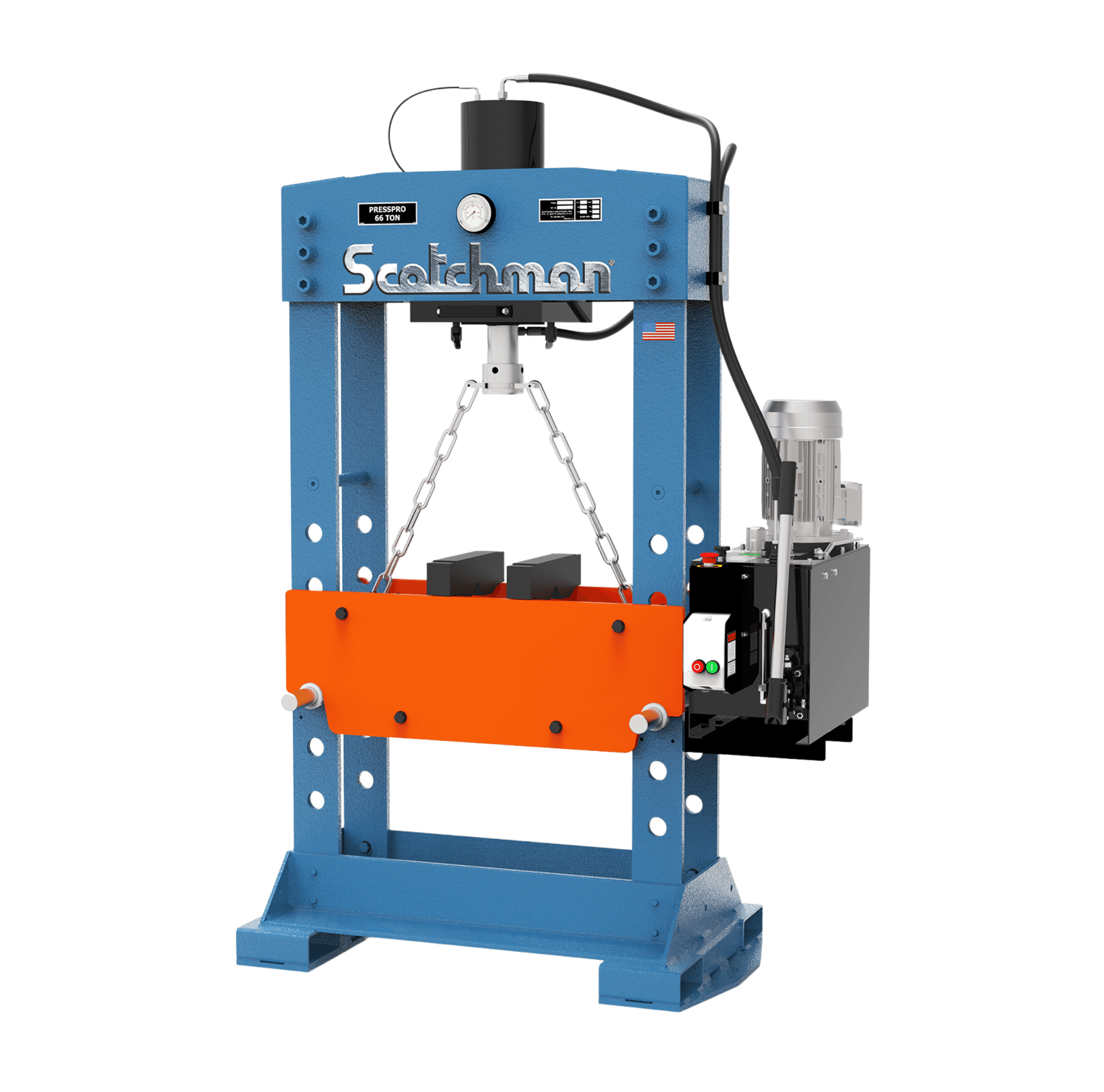

This motorized 66 ton workshop press has a movable cylinder (left-right) and an in-height adjustable working table. Equipped with pressure regulation, 2 speeds, joystick and a hand pump for precision pressing.
The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible Meets CE Standards, manufactured in the USA & comes with our 3-year warranty.
Press Force
66 Ton
60 mt
Motor Options (must specify)
230/460v, 3ph 2.5 hp
1.8 kW
Ram Speed - Approach
21 ipm
8.69 mm/s
Ram Speed - Press
5 ipm
2.07 mm/s
Ram Speed - Return
25 ipm
10.79 mm/s
Open Height (min.)
6-5/16"
160 mm
Open Height (max.)
31-15/16"
811 mm
Stroke
15"
Lateral Ram Slide
YES
Manual
Width Between Uprights
29-1/2"
Width Between Table Channels
11-15/16"
Table Height
Adjustable
Manual w/Hyd. Assist
Footprint (L x W)
57-3/4" x 39-1/4"
147 x 100 cm
Height Overall
82-3/4"
210 cm
Weight (includes V-blocks)
1,190 lbs
540 kg
