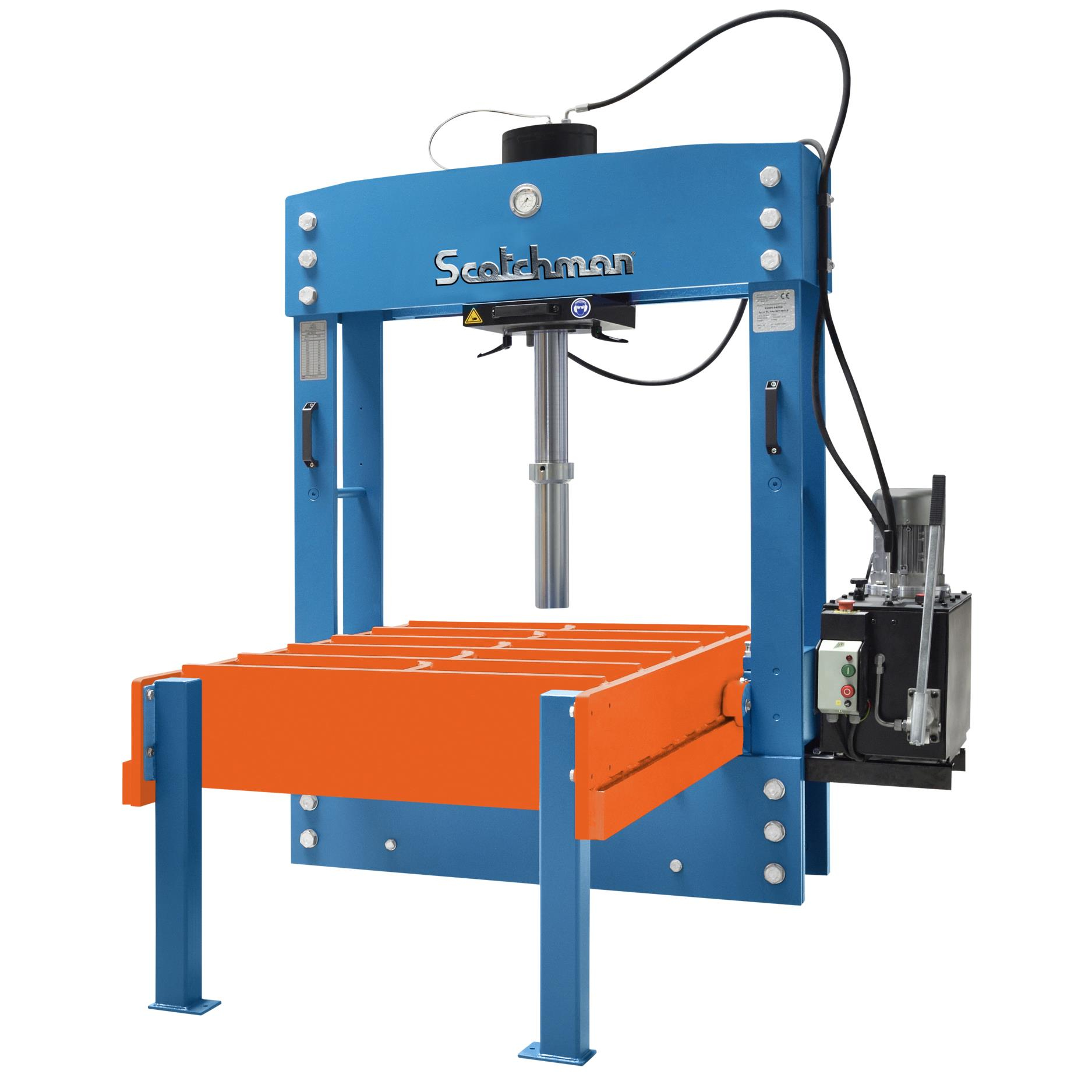

This 176 ton press has a movable press frame which allows for overhead loading of heavy workpieces and is ideal for the straightening of large sheets and structures. Easily slide the ram head from side to side and move the press frame forward and back to access all different points of the work surface. Thanks to the movable frame and movable cylinder design you can easily reach every point of the ‘to be pressed’ surface. Movement of the ram cylinder and press frame are done manually.
The quality of these hydraulic straightening presses is very high and the hydraulic unit is equipped with a pressure regulator, 2 speeds, joystick and a hand pump for precision pressing.
Meets CE Standards, manufactured in the USA, and comes with our 3-year warranty.
Press Force
176 tons
160 mt
Motor Options (must specify)
230/460v, 3ph 5 hp
3.6 kW
Ram Speed - Approach
18 ipm
7.48 mm/s
Ram Speed - Press
6 ipm
2.40 mm/s
Ram Speed - Return
22 ipm
9.35 mm/s
Open Height (min.)
---
Open Height (max.)
27-5/8" (w/small ram cap)
702 mm
Stroke
15-3/4"
Cylinder Extension
14-1/8"
Lateral Ram Slide
YES
Manual
Width Between Uprights
43-3/16"
Width Between Table Channels
9-5/8"
Table Height
FIXED at 30"
Table Size (L x W)
54-1/2" x 38-1/2"
Frame Movement (forward & back)
38-1/2"
Max Load
1,653 lbs
750 kg
Footprint (L x W)
68-1/2" x 69"
174 x 175.5 cm
Height Overall
85"
216 cm
Weight est.
4,500 lbs
2,041 kg
