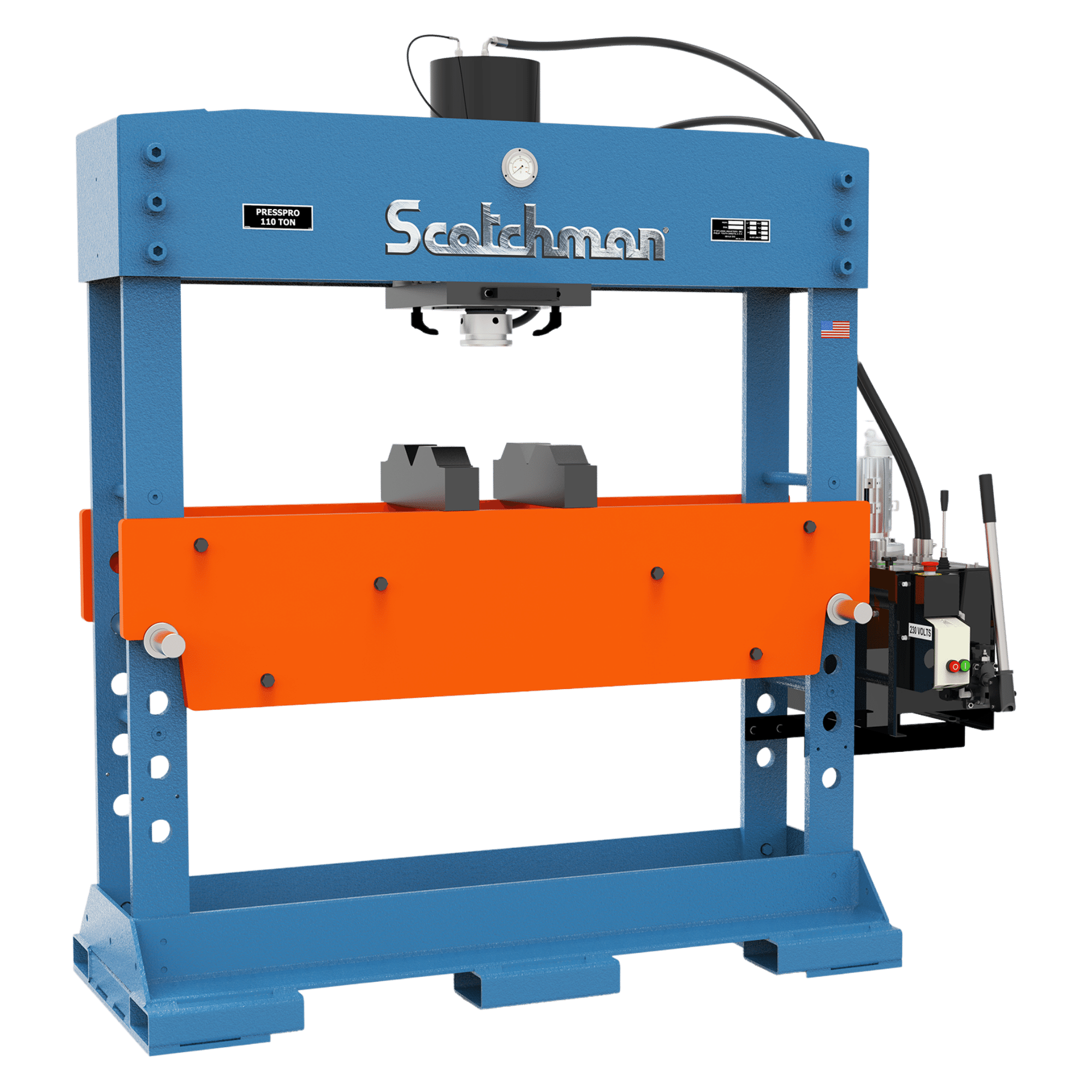

This 110 ton hydraulic press has an extra wide working width (1500 mm) for handling larger materials. It is equipped with a movable cylinder (left to right) and an in-height adjustable working table. In addition, it has a pressure regulation, 2 speeds, a joystick and a hand pump for precision pressing.
The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible Meets CE Standards, manufactured in the USA & comes with our 3-year warranty.
Press Force
110 ton
100 mt
Motor Options (must specify)
230/460v, 3ph 3.5 hp
2.6 kW
Ram Speed - Approach
18 ipm
7.54 mm/s
Ram Speed - Press
6 ipm
2.47 mm/s
Ram Speed - Return
21 ipm
9.06 mm/s
Open Height (min.)
8-1/4"
210 mm
Open Height (max.)
29-3/4"
755 mm
Stroke
15"
Lateral Ram Slide
YES
Manual
Width Between Uprights
59"
Width Between Table Channels
14-1/4"
Table Height
Adjustable
Manual with Hydraulic Assist
Footprint (L x W)
83-1/8" x 41"
211 x 104 cm
Height Overall
83-3/8"
212 cm
Weight (including V-blocks)
2,524 lbs
1,154 kg
