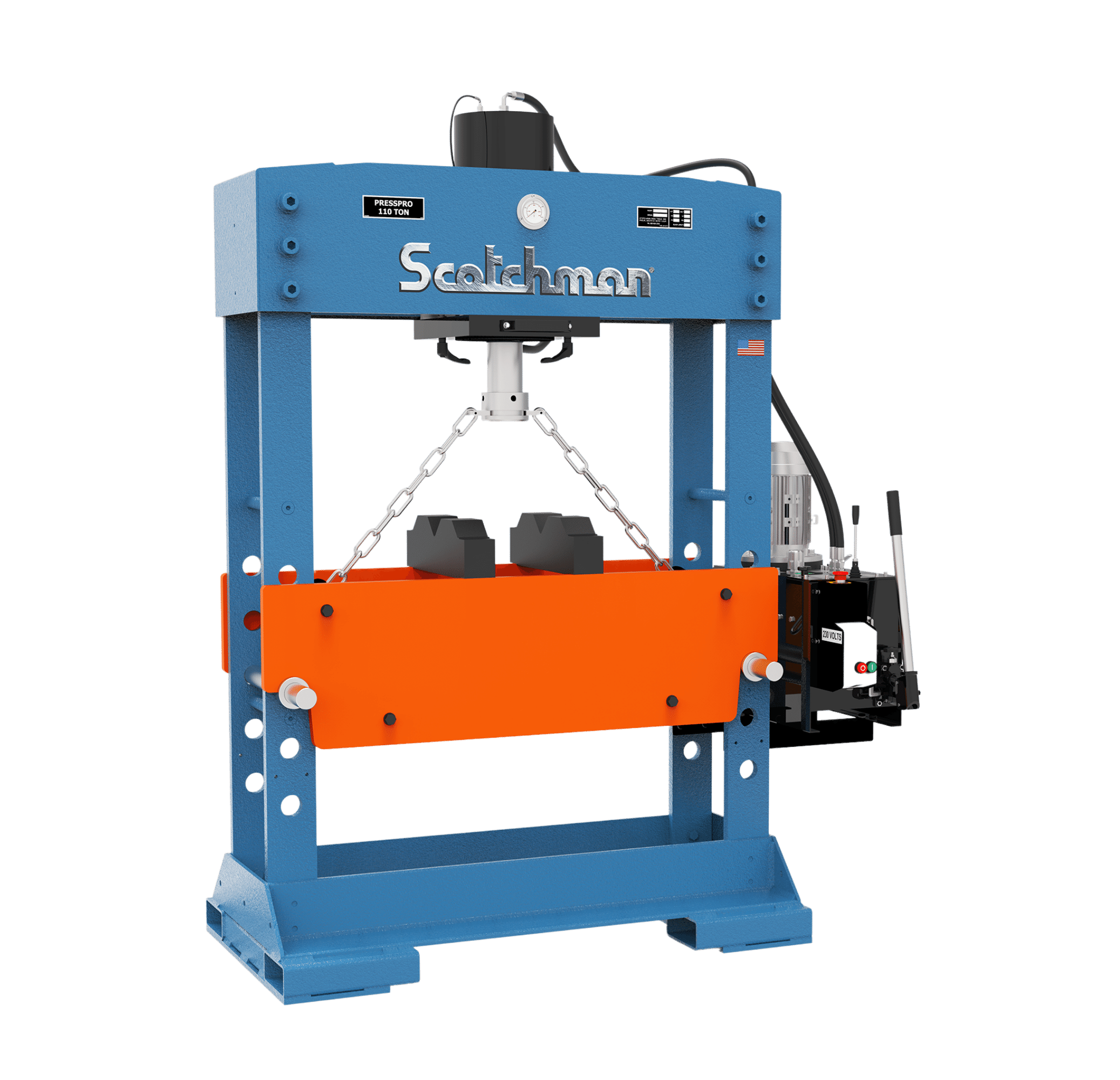

The 110 ton workshop press is our all-time best-seller! This 110-ton hydraulic press is equipped with a movable cylinder (left-right) and an in-height adjustable working table. Furthermore, it has a pressure regulation, 2 speeds, a joystick and a hand pump for precision pressing.
Smooth & precise, heavy-duty and versatile; This hydraulic press is industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible Meets CE Standards, manufactured in the USA & comes with our 3-year warranty.
Press Force
110 tons
100 mt
Motor Options (must specify)
230/460v, 3ph 3.5 hp
2.6 kW
Ram Speed - Approach
18 ipm
7.54 mm/s
Ram Speed - Press
6 ipm
2.47 mm/s
Ram Speed - Return
21 ipm
9.06 mm/s
Open Height (min.)
8-1/4"
210 mm
Open Height (max.)
29-3/4"
755 mm
Stroke
15"
Lateral Ram Slide
YES
Manual
Width Between Uprights
43-1/4"
Width Between Table Channels
14-1/4"
Table Height
Adjustable
Manual with Hydraulic Assist
Footprint (L x W)
67-1/2" x 41"
171.5 x 104 cm
Height Overall
83-3/8"
212 cm
Weight (includes V-blocks)
2,138 lbs
970 kg
