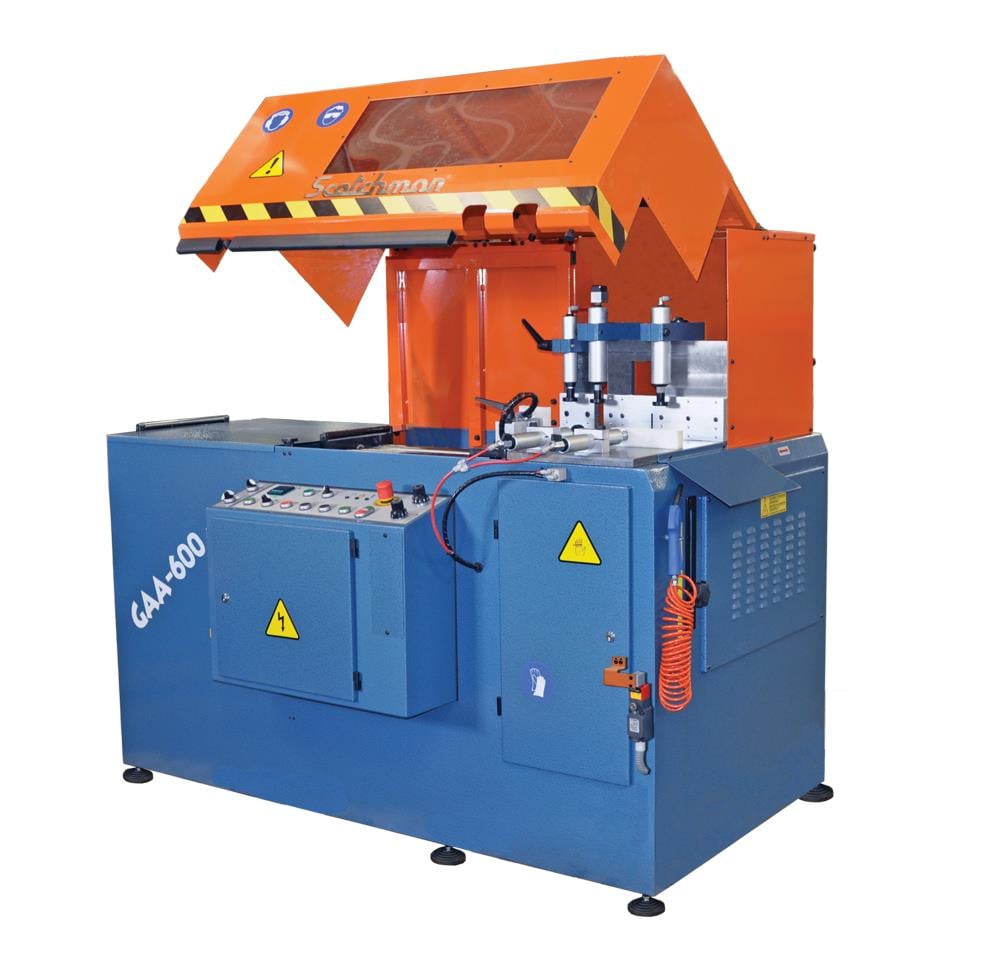

This large capacity up-cut saw features a 600 mm (24") diameter carbide tipped blade for cutting nonferrous materials at 90° up to 8" square or round and 14" x 4" rectangle and fits almost any profile. The precise CNC control stores 10 programs, with each program containing up to 30 different cut lengths and quantities, which can easily be created or adjusted right on the machine at any time. Programs can also be imported through USB port.
The saw uses a robust shuttle feed design with a 27" ballscrew servomotor automatic feeder with unlimited stroke, and adjustable cutting and feeding speeds provide more versatility to customize the saw's operation to fit specific requirements. Three horizontal & three vertical pneumatic clamps secure the workpiece during the cutting process for high cut length tolerances, ±0.006" per index.
This sawing system is built for industrial use and includes a 2-year warranty and lifetime customer support.
Maximum Cutting Capacities (NF) (Non-Ferrous & PVC)
Round Square Rectangle
90 Degree 8" 8" x 8" 14" x 4"
Length Tolerance
±0.006" per index
Cutting Speed
3,000 RPM
Motor Rate
7.5 HP
5.59 kW
Motor Options (Factory Wired)
Specify: 230/460v, 3ph
Air Pressure
90 psi
Maximum Diameter Blade
600 mm
Arbor Bore
50 mm
Width
75"
191 cm
Depth
60"
152 cm
Height (top of hood)
65"
165 cm
Height (floor to table)
38-5/8"
98 cm
Shipping Weight (may vary)
1,750 lbs.
794 kg
