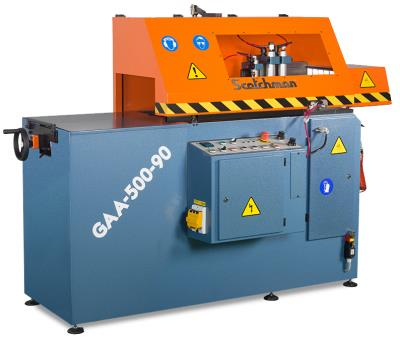

This large capacity up-cut saw has an automatic or semi-automatic operation and features a 500 mm (20") diameter carbide tipped blade for cutting non ferrous materials at 90° up to 6" square or round and 10" x 3" rectangle. Fits almost any profile and is capable of drilling and tapping holes with our DT20 option.
The saw uses a robust shuttle feed design with an automatic feeder. Adjustable length selector from 0.200" to 20", unlimited stroke, and adjustable cutting and feeding speeds provide more versatility to customize the saw's operation to fit specific requirements. Three horizontal & three vertical pneumatic clamps secure the workpiece during the cutting process for high cut length tolerances, ±0.006" per index.
This sawing system is built for industrial use and includes a 2-year warranty and lifetime customer support.

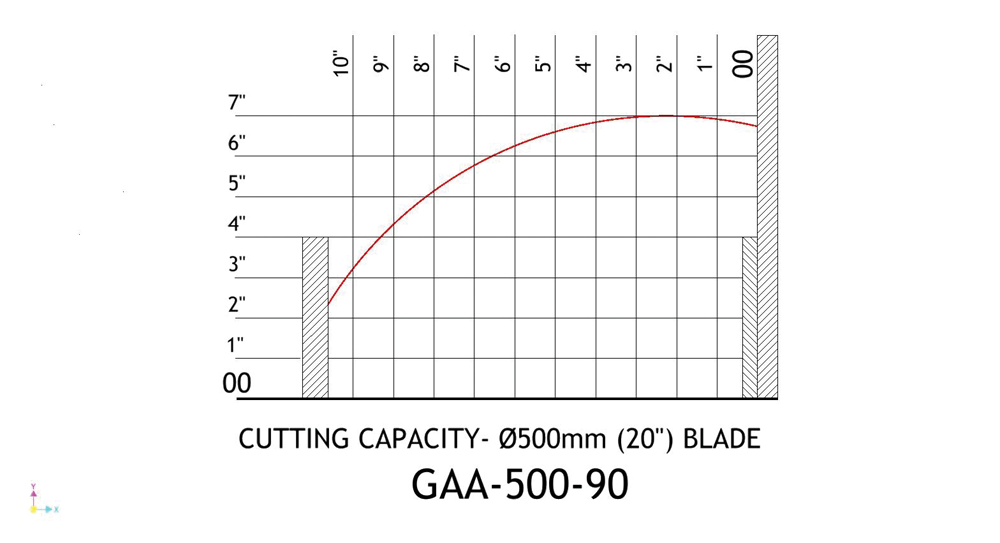

Max Cutting Capacities (NF) (Non-Ferrous & PVC )
Round Square Rectangle
90 Degree 6" 6" x 6" 10" x 3"
Length Tolerance
± 0.006" per index
Cutting Speed
3,000 RPM
Motor Rate
7.5 HP
5.59 kW
Motor Options (Factory Wired)
Specify: 230/460v, 3 ph
Air Pressure
90 psi
Maximum Diameter Blade
500 mm
Arbor Bore
50 mm
Width
75"
191 cm
Depth
42"
107 cm
Height (top of hood)
60-1/4"
153 cm
Height (floor to table)
38-5/8"
98 cm
Shipping Weight (may vary)
1,300 lbs.
590 kg
