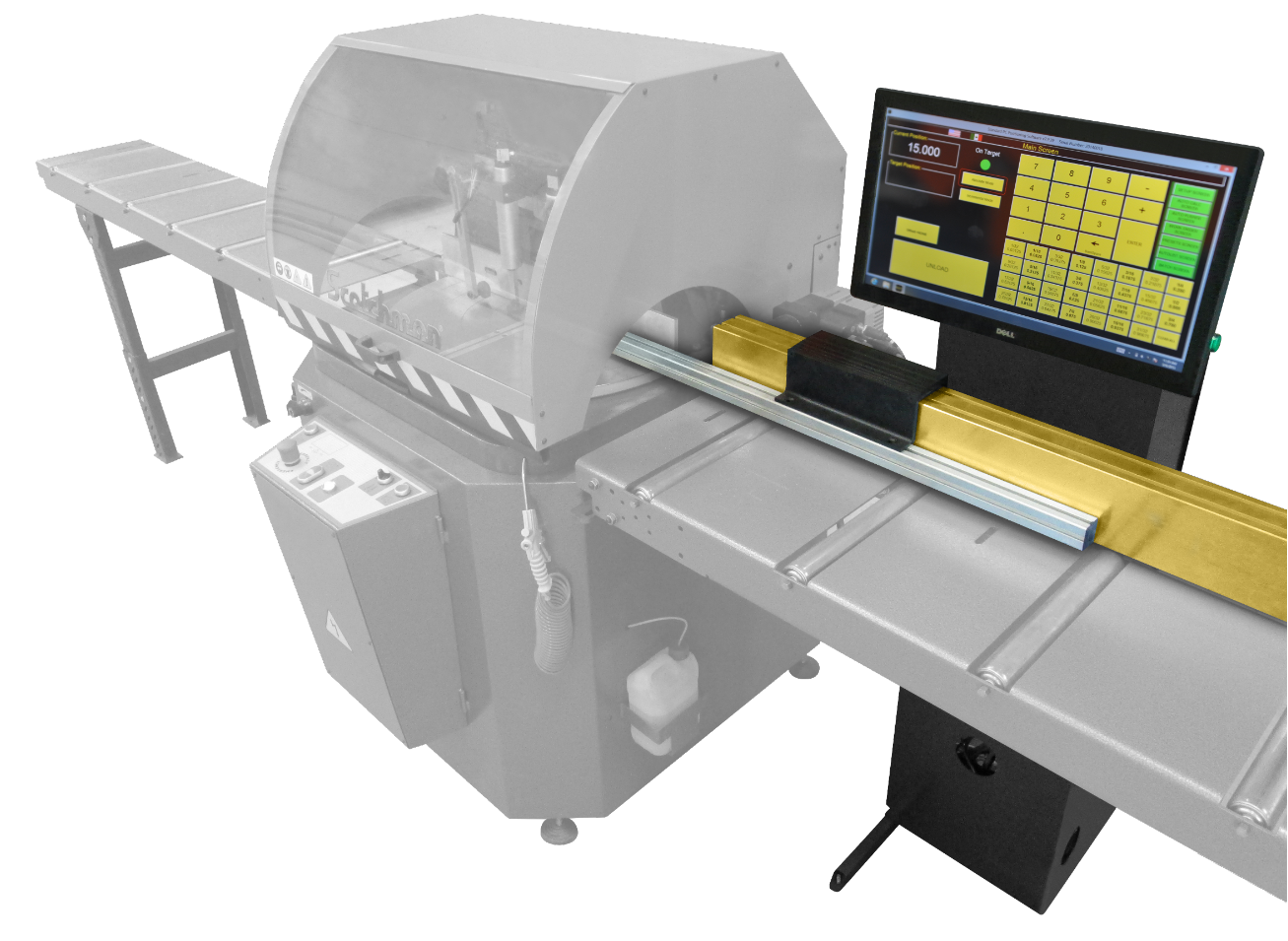

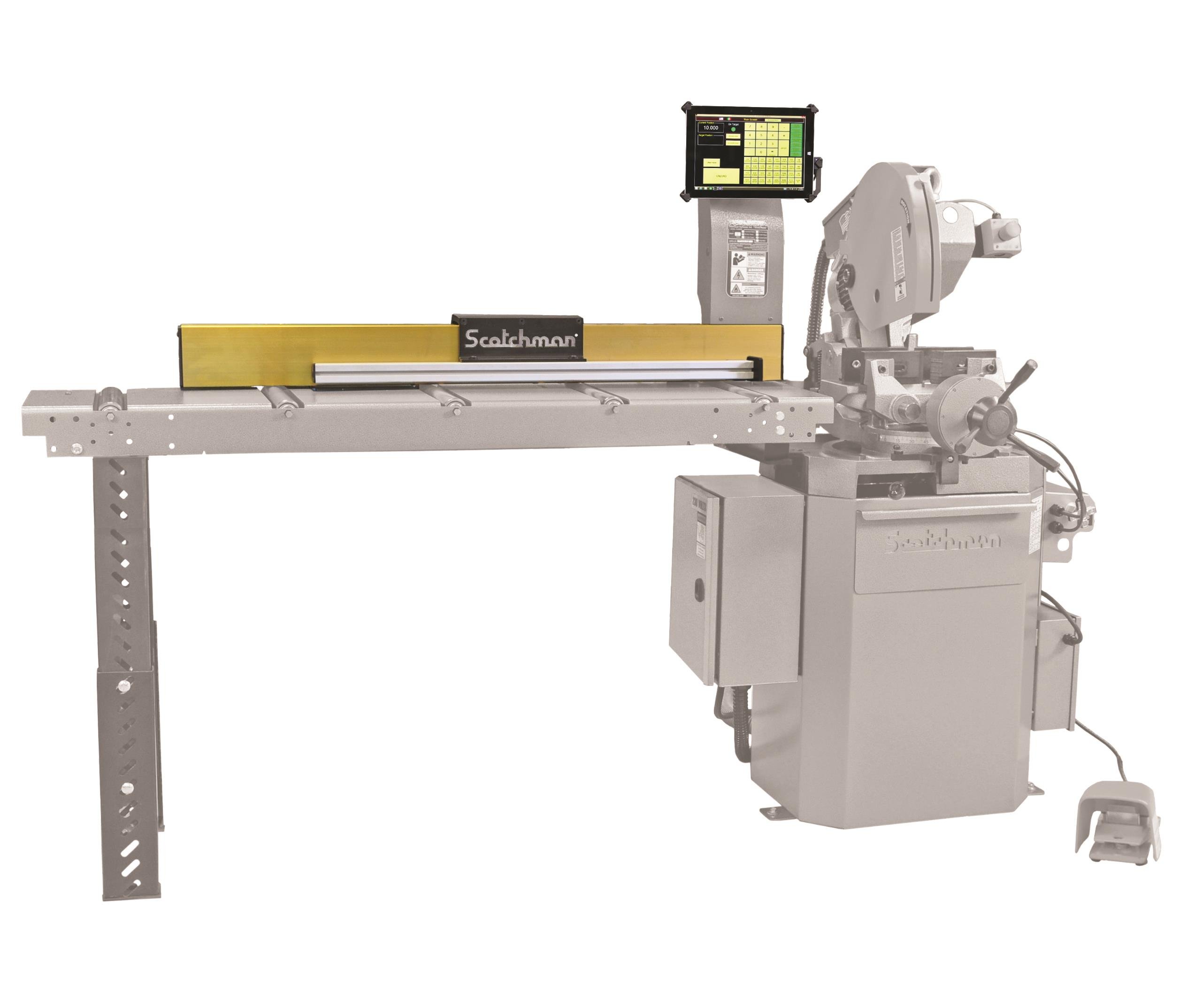

This Auto Feed System (AFS) allows you to turn a Scotchman semi-automatic cold saw into a fully automated cutting system. The system automatically moves your material to position, clamps the material, and cycles the machine giving you a burr-free finished piece. Program a complete cut list to automate your process even more. This system has the ability to make manual cuts too, simply position the stop at the length you desire then manually fire the machine. Made in USA.
Pairs with Scotchman’s CPO 350 PKPD & SUP series saws.
Lengths:
8' to 30' Working Lengths
Accuracy:
Positioner accuracy ±0.008"

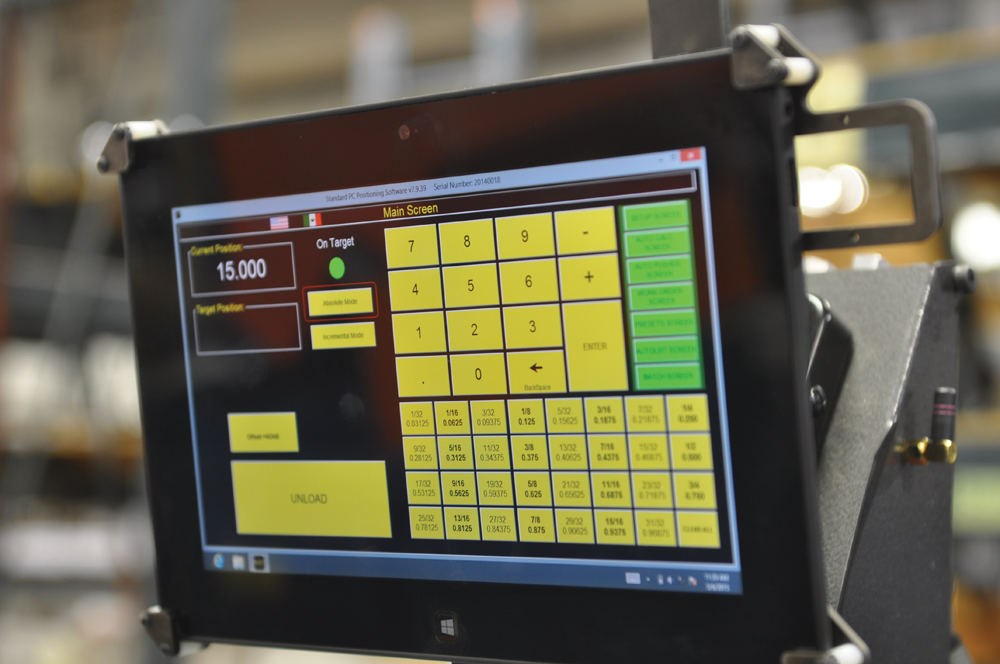

Screen:
17" Windows® touchscreen
Storage:
Unlimited storage to save cut jobs
Measurements:
Inches, Fractions, Decimals OR Metric
Language:
Multi-lingual
Feed Direction:
Mounts: left → right -OR- right → left (must specify)
Voltage:
120 VAC
Functions:
Auto Pusher Mode Batch Mode Incremental Mode Set Point Mode Auto List (Optimizing)
Automatic Sequences:
Push stock to cut length Consider blade kerf Clamp the Material Trigger the cut cycle Release the clamp Index to the next cut position & Repeat
