WE ARE NOT A PLATFORM. WE ARE A TRADING COMPANY SUPPLYING MACHINES DIRECTLY FROM SUPPLIERS FOR YOU !

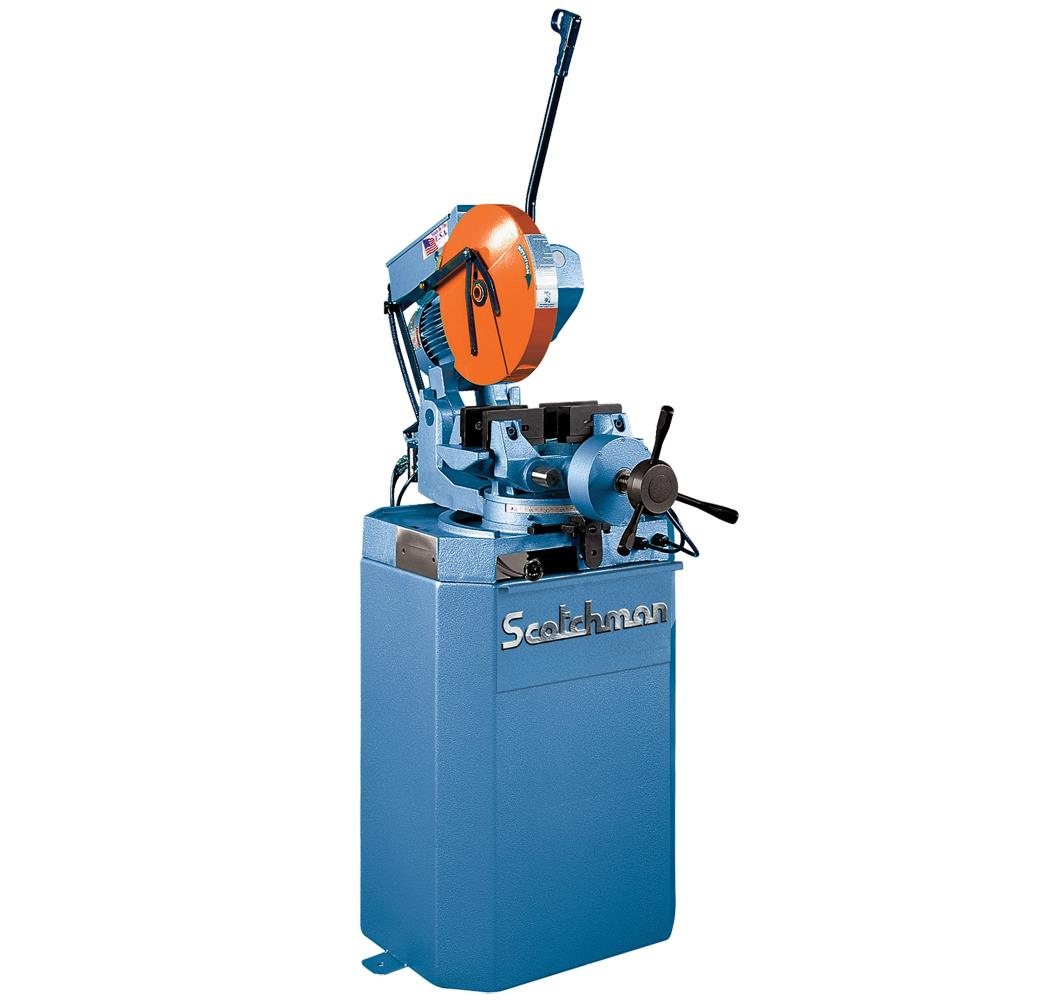

If you are looking for a precision metal cutting saw, this powerful American-made Circular Cold Saw takes sawing to the next level. The CPO350 PK coldsaw is designed to make extremely fast and accurate cuts through metal and features a double clamping and self-centering vise for maximum hold and provides burr-free, high quality, volume parts.
It has 180 degree mitering ability and a miter-locking device which automatically stops at 45 degrees left, 90 degrees straight, and 45 degrees right, and can slot and notch. Accuracy within 1° of mitering and a squareness tolerance of ±0.002 per diameter inch in height, the real payoff for this machine is fast, clean and extremely accurate cuts.
Additional machine features include a chip drawer, a two-speed motor (or variable speed 11-177 rpm motor) and utilizes up to a 14" diameter (350mm) high-speed steel saw blade giving it the ability to cut 4-1/2" OD max round tube at 90° and 1-3/4" max round or square solid at 90 degrees. Features two cutting speeds (LT 30/60 rpm or HT 60/120 rpm), the CPO350PK also comes with a seven-gallon coolant tank. This dependable machine is built with versatility in mind, with the quality you expect from a Scotchman. Always backed by their 3-Year Warranty and lifetime customer support!
Pair this machine with a Scotchman digital measuring system to automate the measuring process; simply enter the desired length on the touchscreen and the stop will automatically move to the correct length.
Cutting Speeds (must specify when ordering)
LT (Low Turn) - designed for solid mild steel, solid stainless steel & thick wall pipe
LT (Low Turn) 22 / 44 rpm
Motor rate: 3 hp
HT (High Turn) - designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material
HT (High Turn) 44 / 88 rpm
VS (Variable Speed) ~ wired 230/460, 3-ph
VS (Var. Speed) 11 to 177 rpm
Motor Rate: 5 hp
VS (Variable Speed) ~ wired 220, 1-ph
Motor Rate: 5 ph
SS (Single Speed) - designed for 220v 1ph applications
SS (One Speed) 44 rpm
Motor Rate: 3 hp
Maximum Cutting Capacities (based on mild steel)
TUBING Round Square Rectangle
90 Degree 4-1/2" 4-1/4" x 4-1/4" 5-1/2" x 4"
45 Degree 4" 3-3/4" x 3-3/4" 3-3/4" x 3-3/4"
SOLID Round Square
90 Degree 1-3/4" 1-3/4" x 1-3/4"
45 Degree 1-1/2" 1-1/2" x 1-1/2"
Motor Options (based on mild steel) Must Specify Voltage
LT & HT: 208/230/460/575v, 3ph; OR 220v, 1ph
VS: 230/460v 3ph; 220v, 1ph
SS: 220v, 1ph
Maximum Diameter Blade
350 mm
Arbor Bore
40 mm
Pin Spacing
4/12/64
Width
21-7/8"
55.5 cm
Depth
43-1/2"
110.5 cm
Height (not including feed handle)
56-1/4"
143 cm
Height (floor to vise)
37-7/16"
95 cm
Shipping Weight (may vary)
690 lbs.
313 kg
